M062-D001

IM-30CNE-HC-25 Cuber, Self Contained

Ice

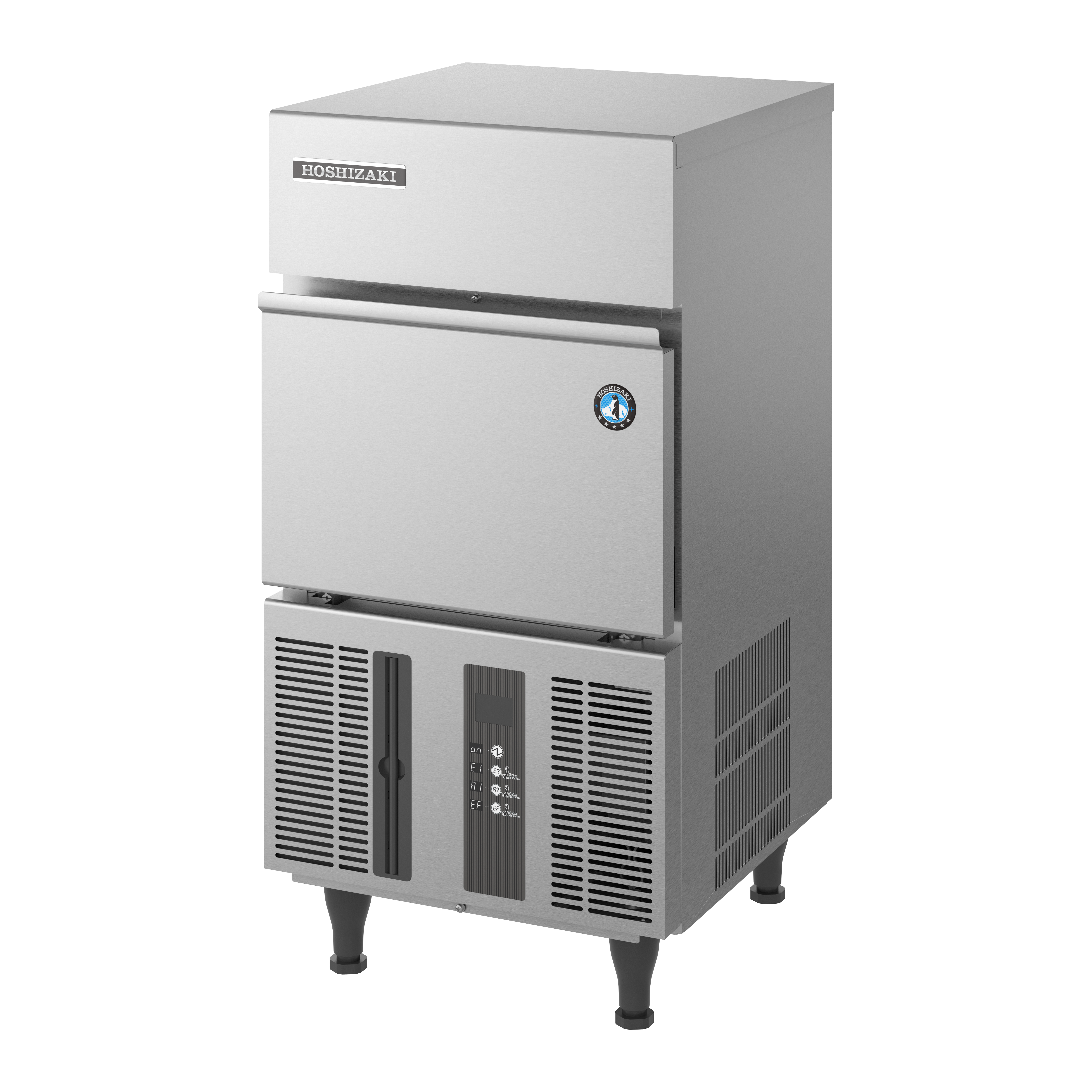

This Hoshizaki IM-30CNE-HC-25 is a self-contained cube ice maker producing up to 25 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.



All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Product not available
Get quote View spec sheet

Key features

Sustainable

The IM-30CNE-HC-25 uses refrigerant R290.

This natural refrigerant is not only climate-friendly but also boosts the machine, when it comes to performance and production capacity.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process.  Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-30CNE-HC-25 is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

With outside dimensions W x D x H of 398 x 451 x 695 mm,  the IM-30CNE-HC-25 is compact and is a perfect fit for small spaces.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number M062-D001
Model name IM-30CNE-HC-25
Brand Hoshizaki
Product configuration Self Contained
Warranty period 2 Years on Parts & Labour
Country of origin UK
Accessories included Installation kit, Scoop
Title Cuber, Self Contained
Corresponding water filters 4HC-H Single Water Filter, 4HC Replacement Cartridge
Extended spec sheets approved 1
Width (legs excluded) 398 mm
Width (packed) 505 mm
Depth (legs excluded) 451 mm
Depth (packed) 575 mm
Height (legs excluded) 695 mm
Height (packed) 862 mm
Volume (packed) 0.25 l
Dimensions legs For legs add 92-127mm
Electric Consumption 0.23 kW
Energy consumption 0.23 kWh
Ambient temperature (maximum) 40 u00b0C
Ambient temperature (minimum) 1 u00b0C
Voltage range Rated Voltage ±6%
Water supply pressure (maximum) 0.8MPa (8bar)
Water supply pressure (minimum) 0.07MPa (0.7bar)
Water supply temperature (maximum) 35 u00b0C
Water supply temperature (minimum) 5 u00b0C
Product availability -- Not available
Electrical circuit breaker protection 5 A
Exterior Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight 39 kg
Heat Rejection (AT 32ºC, WT 21ºC) 0.54 kW
Net weight 34 kg
Power supply 1/220 - 240V/50Hz
Sound level 51.1 dB
Storage bin capacity 11.5 kg
Volume, gross 0.25 l
Cooling system Air Cooled

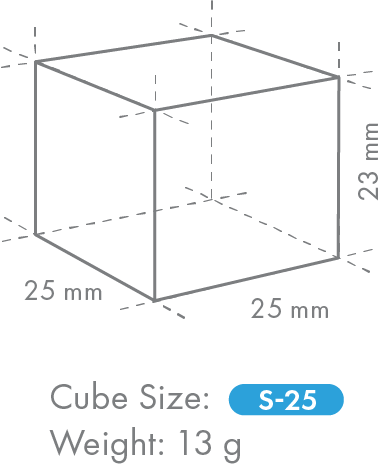

Ice type Small cubes - 25
Ice production 25
Water consumption - Air cooled ice makers 0.15
Optional Extras 4HC-H water filtration, external drain pump
CO2 equivalent 0.195 kg
Refrigerant 0.065 kg
Refrigerant type R290
SKU M062-D001

Documentation

Documentation
DWG files Download
Declaration of conformity Download
IM_30CNE_HC.pdf Download
Drain_Pump_Installation.pdf Download
Instruction manual Download
Spec sheet Download
Spec sheet Download

Accessories

Accessory name Item number
4HC-H Single M062-D001
4 HC Replacement Cartridge M062-D001
