E1GA-D100

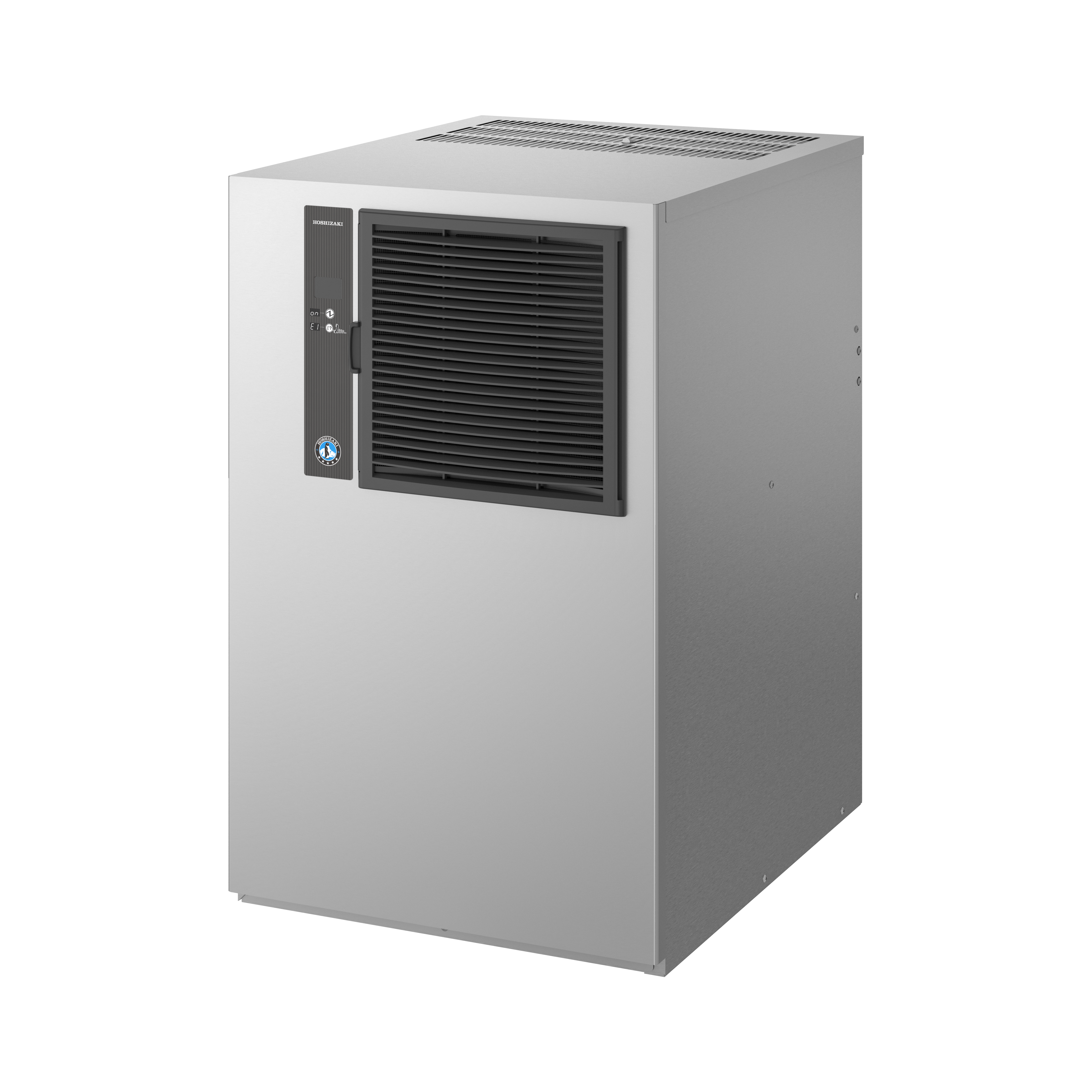

IM-240ANE-HC Cuber, Modular

Ice makers

This Hoshizaki IM-240ANE-HC is a modular cube ice maker producing up to 210 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.

All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Product not available
Get quote View spec sheet

Key features

Sustainable

The IM-240ANE-HC uses refrigerant R290.  This natural refrigerant is not only climate-friendly but also boosts the machine, when it comes to performance and production capacity.

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process.



Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-240ANE-HC is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

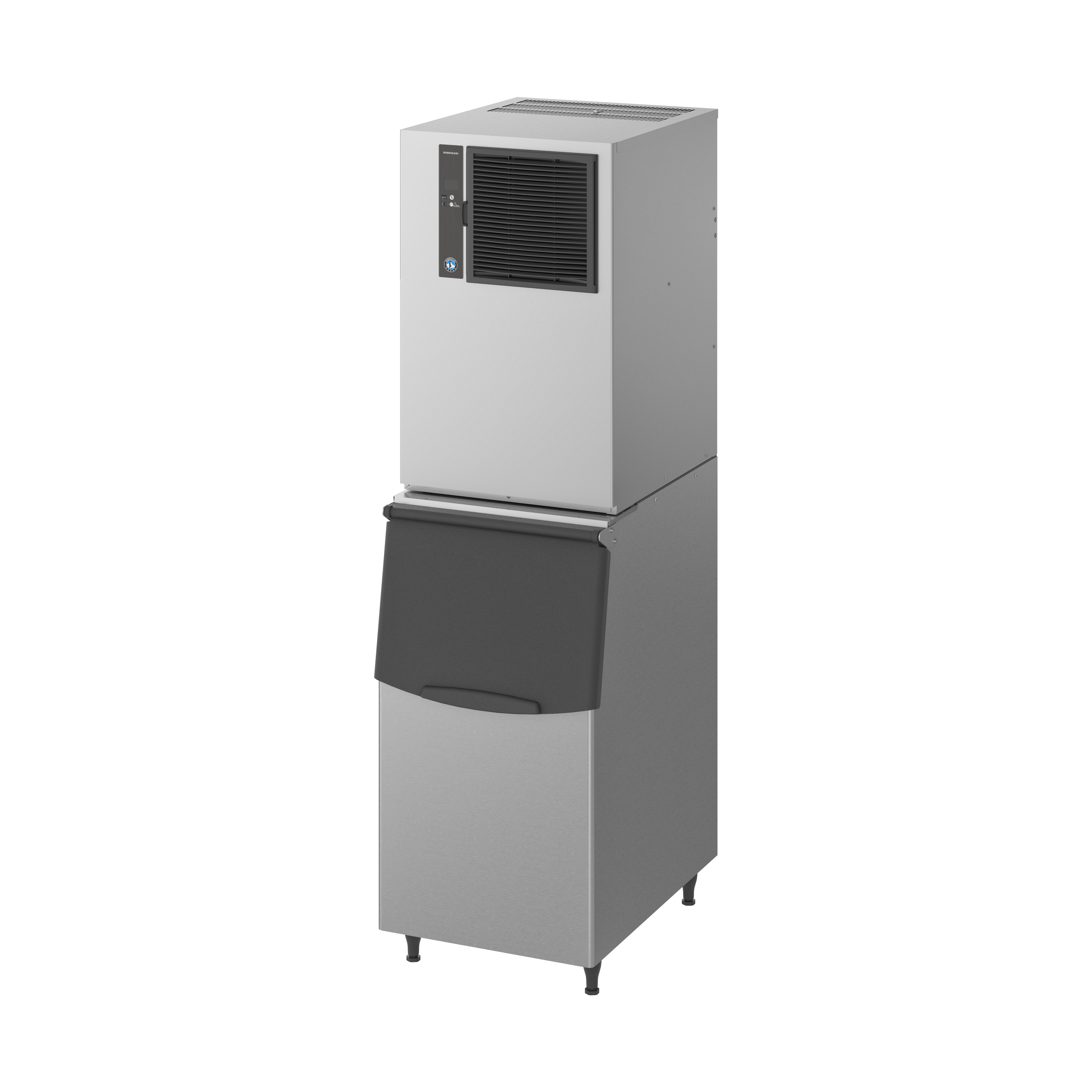

Need to amp up your production capacity? The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the IM-240ANE-HC are mm.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number E1GA-D100
Model name IM-240ANE-HC
Brand Hoshizaki
Product configuration Modular
Warranty period 2 Years on Parts & Labour
Country of origin UK
Accessories included Ice chute, Installation kit, Scoop
Title Cuber, Modular
Corresponding water filters 4HC-H Twin Water Filter, 4HC Replacement Cartridge
Extended spec sheets approved 1
Width 560 mm
Width (packed) 665 mm
Depth 700 mm
Depth (packed) 820 mm
Height 880 mm
Height (packed) 1054 mm
Volume (packed) 0.57 l
Electric Consumption 0.93 kW
Energy consumption 0.93 kWh
Ambient temperature (maximum) 40 u00b0C
Ambient temperature (minimum) 1 u00b0C
Voltage range Rated Voltage ±6%
Water supply pressure (maximum) 0.8MPa (8bar)
Water supply pressure (minimum) 0.07MPa (0.7bar)
Water supply temperature (maximum) 35 u00b0C
Water supply temperature (minimum) 5 u00b0C
Product availability -- Not available
Electrical circuit breaker protection 5 A
Exterior Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight 89 kg
Heat Rejection (AT 32ºC, WT 21ºC) 2.33 kW
Net weight 78 kg
Power supply 1/220 - 240V/50Hz
Volume, gross 0.57 l
Cooling system Air Cooled

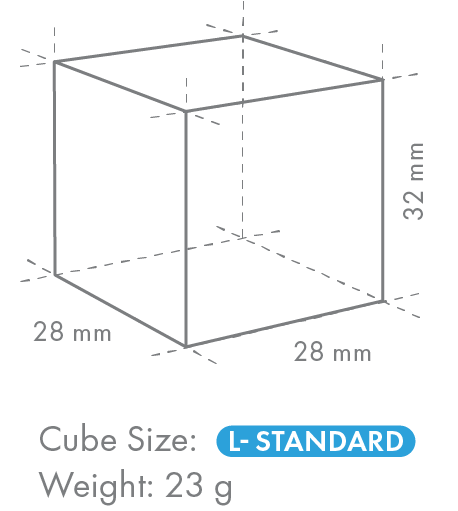

Ice type Large cubes, Standard
Ice production 210
Water consumption - Air cooled ice makers 0.67
Optional Extras 4HC-H water filtration
Corresponding Bin(s) B-140SA, B-210SA, B-340SA
CO2 equivalent 0.441 kg
Refrigerant 0.147 kg
Refrigerant type R290
Corresponding top kits TK-30 for B-140SA, B-210SA, B340SA (optional, not required), TK-8D for B-210SA, TK-8D + TK18D for B-340SA
SKU E1GA-D100

Documentation

Documentation
DWG files Download
Declaration of conformity Download
IM_240ANE_HC.pdf Download
l2e1ga202.pdf Download
Instruction manual Download

Accessories

Accessory name Item number
9320-52 E1GA-D100
4 HC Replacement Cartridge E1GA-D100
