KH-515MAH-E

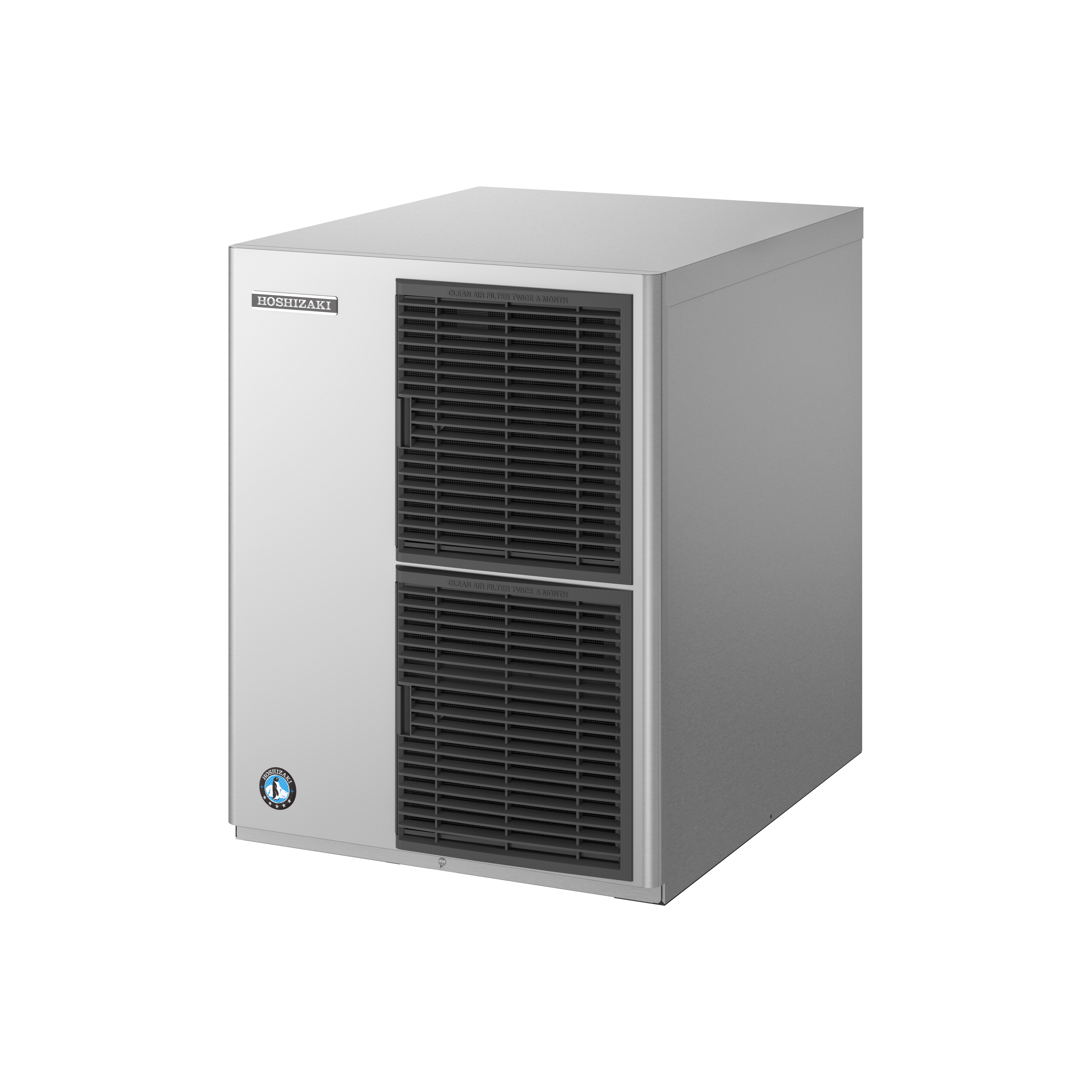

KM-515MAH-E Crescent Ice Maker, Modular

Ice

This Hoshizaki KM-515MAH-E is a modular Crescent Edge ice maker producing up to 515 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.

The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range  will help you to increase your serving capacity instantly. More ice in less amount of time.

Get quote View spec sheet

Key features

The KM-515MAH-E uses refrigerant R404A.



Unique Technology

The double-sided evaporator in all KM machines is made of stainless steel – the best material for improved longevity, food safety, and cleaning without damaging to the machine. The external material is made of . Thanks to its rounded, yet edgy form, the Hoshizaki Crescent Ice will not cluster inside the ice chest. That is why it is considered the perfect ice shape for bottle coolers, allowing you to place bottles inside the ice effortlessly. The ice can be used for chilling drinks, fresh produce display, and bottle cooling as well as cooking.



Convenience

Always focusing on operating convenience and food safety, the air filters are easily accessible from the front for routine cleaning. With intake and outflow positioned at the front, the KM is ideal for built-in installation opportunities. “



Smart Design

Like all Hoshizaki ice makers, the KM-515MAH-E is designed to last and comes with smart design extras such as the double-sided, stainless steel evaporator, unique in the industry, produces more ice per cycle with lower energy consumption and resistance to descaling acids.



Flexibility

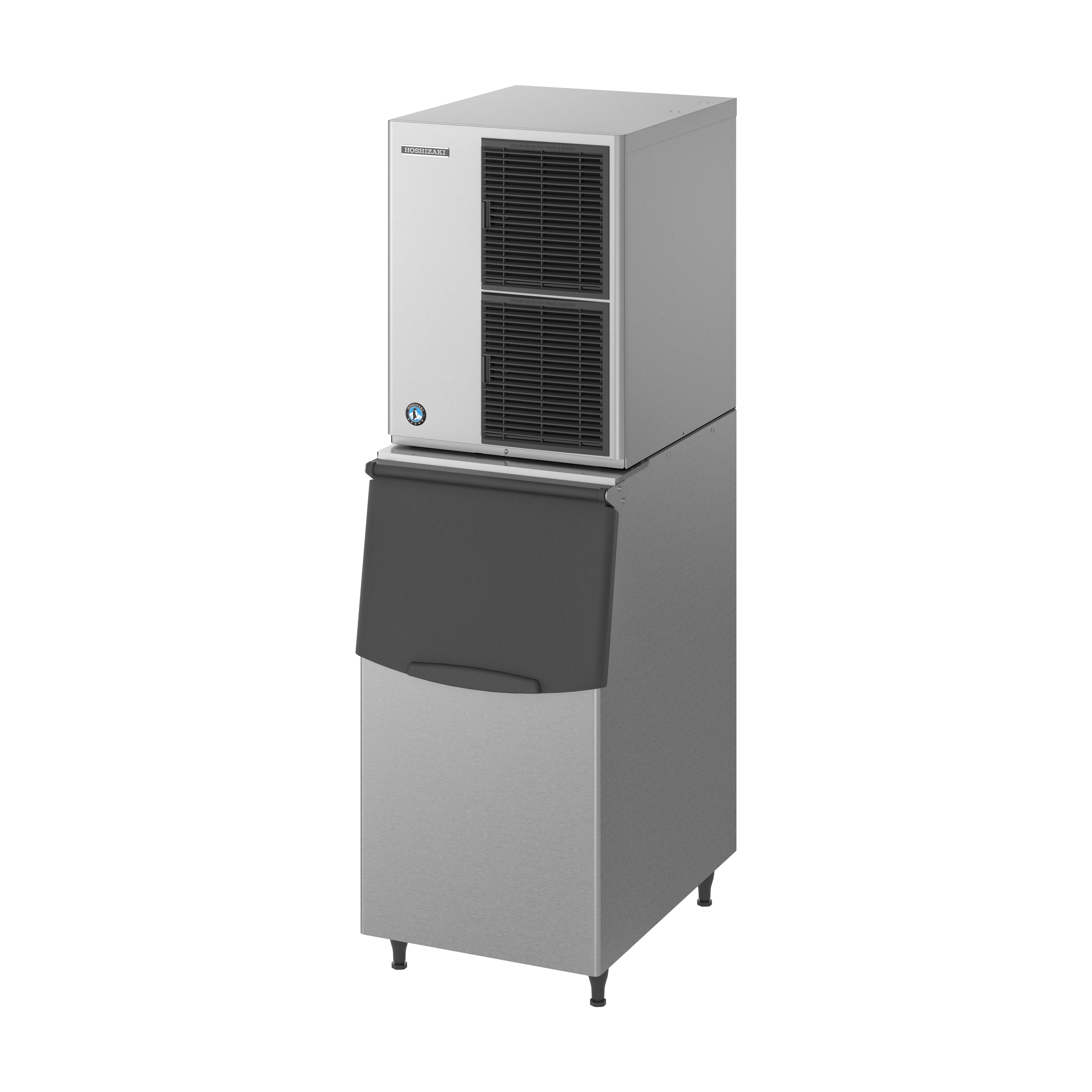

Need to amp up your production capacity? The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the KM-515MAH-E are 560 x 695 x 770 mm.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number KH-515MAH-E
Model name KM-515MAH-E
Ice maker type Crescent ice maker
Brand Hoshizaki
Product configuration Modular
Title Crescent Ice Maker, Modular
Width (legs excluded) 560 mm
Depth (legs excluded) 695 mm
Height (legs excluded) 770 mm
Electric Consumption 1.2 kW
Energy consumption 1.2 kWh
Exterior Stainless Steel
Gross weight 79 kg
Net weight 68 kg
Power supply 1/220 - 240V/50Hz
Cooling system Air Cooled
Ice type Crescent Edge
Ice production 515
CO2 equivalent 1712 kg
Refrigerant type R404A
SKU KH-515MAH-E
