E1CL-D104

IM-240DWNE-32 Cuber, Modular & Stackable

Ice makers

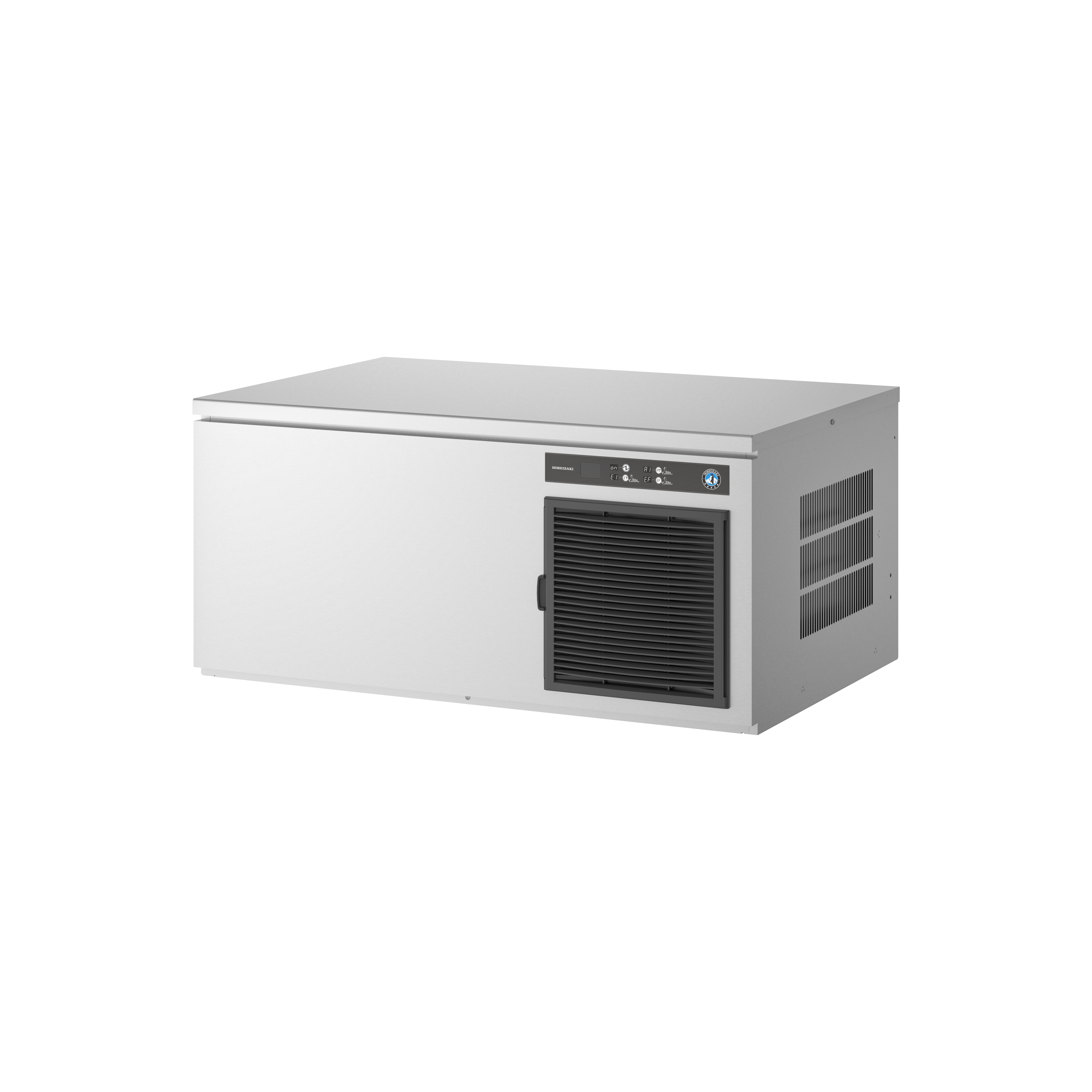

This Hoshizaki IM-240DWNE-32 is a stackable cube ice maker producing up to 215 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.

All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Get quote View spec sheet

Key features

The IM-240DWNE-32 uses refrigerant R404A.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process. Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-240DWNE-32 is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

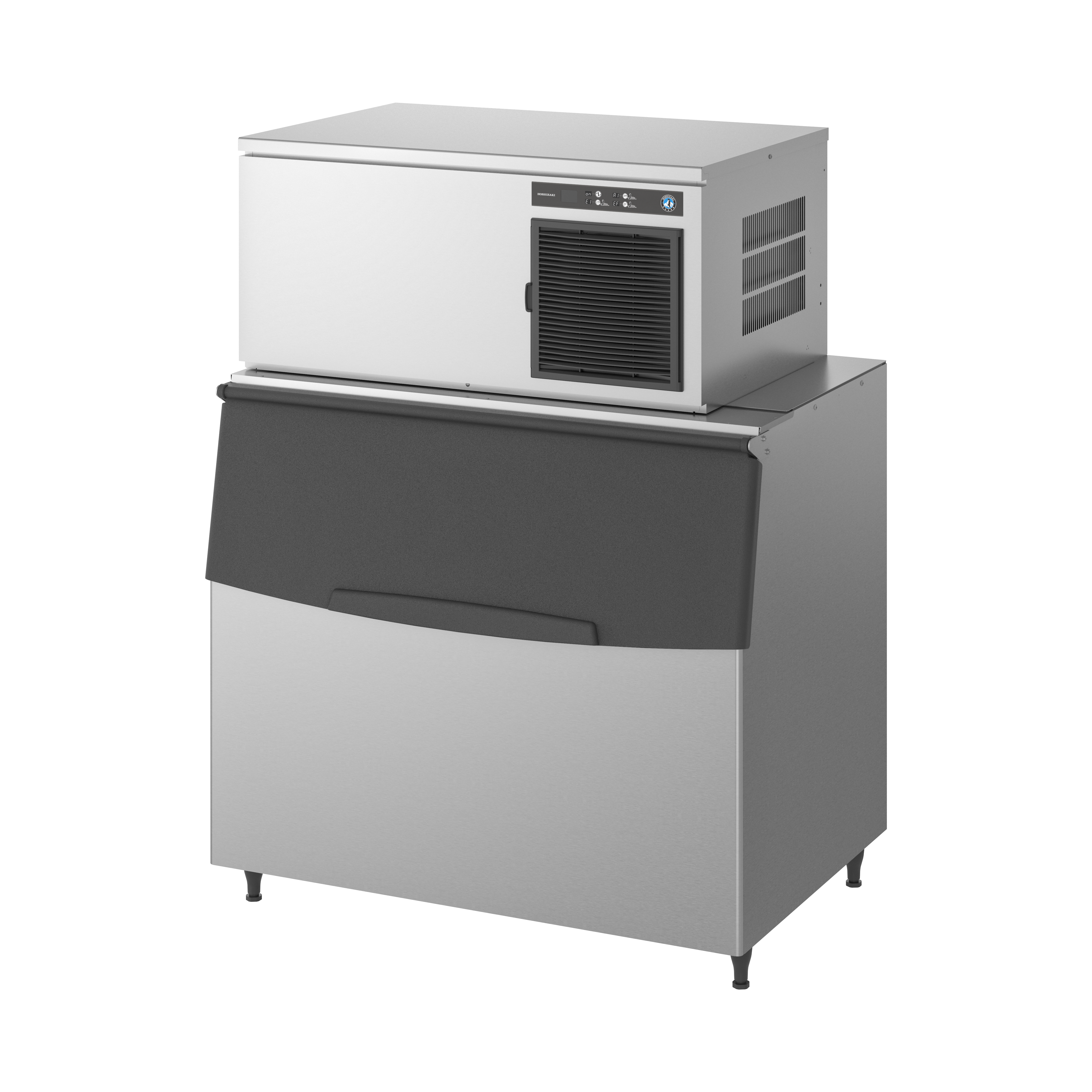

Need to amp up your production capacity? These ice makers can be stacked and combined with modular bins and bases. This allows the user to mix and match depending on individual requirements, ice consumption, and space conditions. The dimensions of the IM-240DWNE-32 are  1084 x 700 x 500 mm.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number E1CL-D104
Model name IM-240DWNE-32
Brand Hoshizaki
Product configuration Stackable
Title Cuber, Modular & Stackable
Please observe This type of icemaker is on special order only. Please take longer lead times into consideration.
Width (legs excluded) 1084 mm
Depth (legs excluded) 700 mm
Height (legs excluded) 500 mm
Electric Consumption 1.3 kW
Energy consumption 1.3 kWh
Product availability -- Not available
Exterior Stainless Steel
Gross weight 88 kg
Net weight 101 kg
Power supply 1/220 - 240V/50Hz
Cooling system Water Cooled
Ice type Extra large cubes - 32
Ice production 215
Water consumption - Air cooled ice makers 0.57
Corresponding Bin(s) F-1025-52S, F-650-42S, F-650-44S, F-950-48S
CO2 equivalent 1882 kg
Refrigerant type R404A
SKU E1CL-D104

Documentation

Documentation
DWG files Download
Declaration of conformity Download
l2e1ck201_installation_manual.pdf Download
Instruction manual Download

Accessories

Accessory name Item number
9320-52 9320-52
4 HC Replacement Cartridge 9655-11
