E1FD-D012

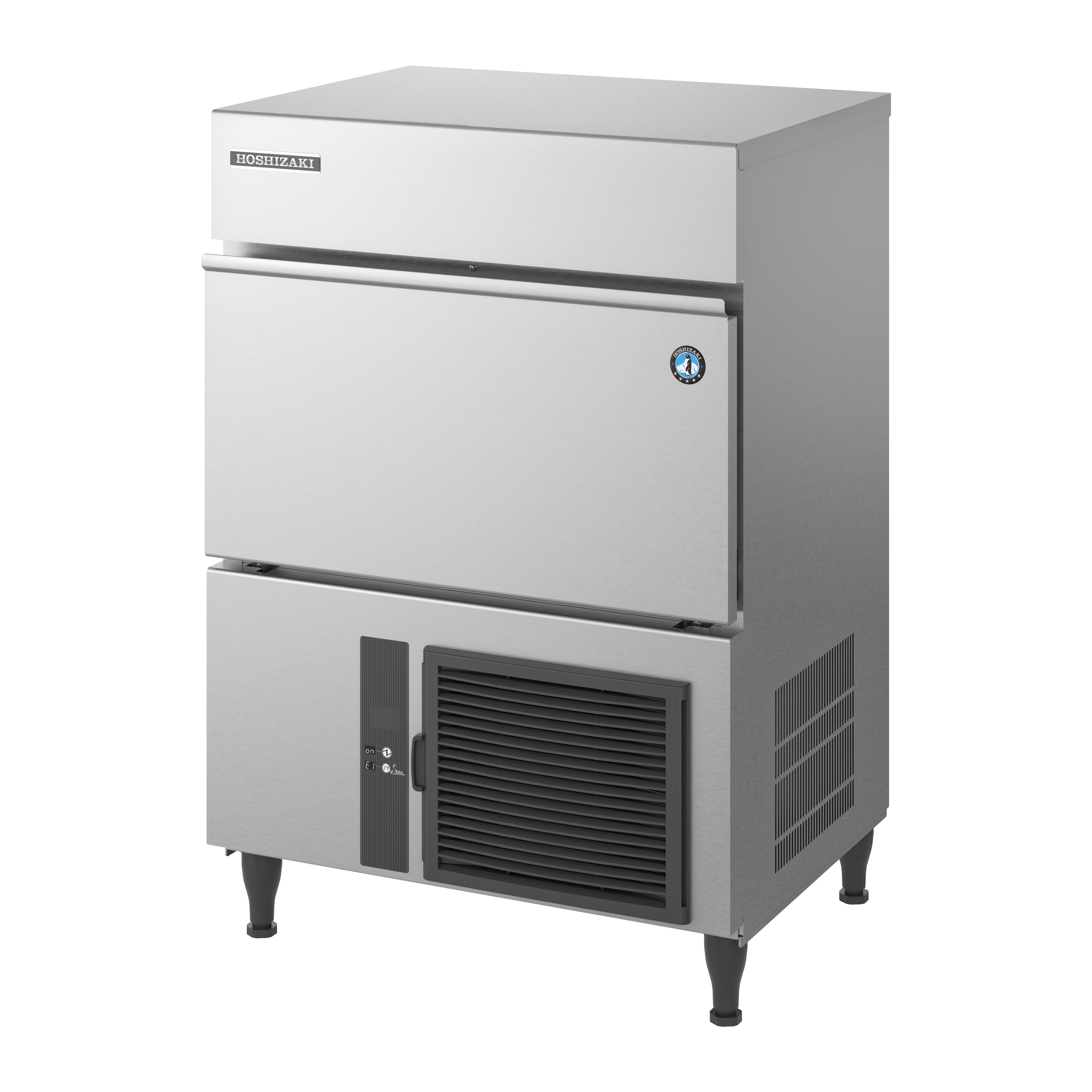

IM-65NE-Q Ball Ice Maker, Self Contained

Ice makers

This Hoshizaki IM-65NE-Q is a self-contained special ice maker producing up to 26 kg of high-quality Ball Ice per 24 hours.

Expand your creative horizon and your craft’s aesthetic possibilities with the help of our special ice makers that produce different, extraordinary shapes of ice. Specially tailored for cocktail bars that like to differentiate themselves from others, whilst never compromising on taste and quality of their drinks. With perfect ice characteristics still in focus, you can now add a decorative highlight to your cocktails and long drinks.

All special ice makers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Special Ice Makers produce generous amounts of ice cubes, at a consistently high quality.

Get quote View spec sheet

Key features

The IM-65NE-Q uses refrigerant R134a.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process.  Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-65NE-Q is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

With outside dimensions W x D x H of 633 x 506 x 860 mm,  the IM-65NE-Q is compact and makes a perfect fit for small spaces.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number E1FD-D012
Model name IM-65NE-Q
Brand Hoshizaki
Product configuration Self Contained
Title Ball Ice Maker, Self Contained
Please observe This type of icemaker is on special order only. Please take longer lead times into consideration.
Width (legs excluded) 633 mm
Depth (legs excluded) 506 mm
Height (legs excluded) 860 mm
Electric Consumption 0.39 kW
Energy consumption 0.39 kWh
Product availability -- Not available
Exterior Stainless Steel
Gross weight 61 kg
Net weight 53 kg
Power supply 1/220 - 240V/50Hz
Storage bin capacity 17 kg
Cooling system Air Cooled
Ice type Ball
Ice production 26
Water consumption - Air cooled ice makers 0.97
CO2 equivalent 260 kg
Refrigerant type R134a
SKU E1FD-D012

Documentation

Documentation
DWG files Download
Declaration of conformity Download
Instruction manual Download
Spec sheet Download

Accessories

Accessory name Item number
4HC-H Single E1FD-D012
4 HC Replacement Cartridge E1FD-D012
