COMPACT F 610 RG L2 4N

Freezers

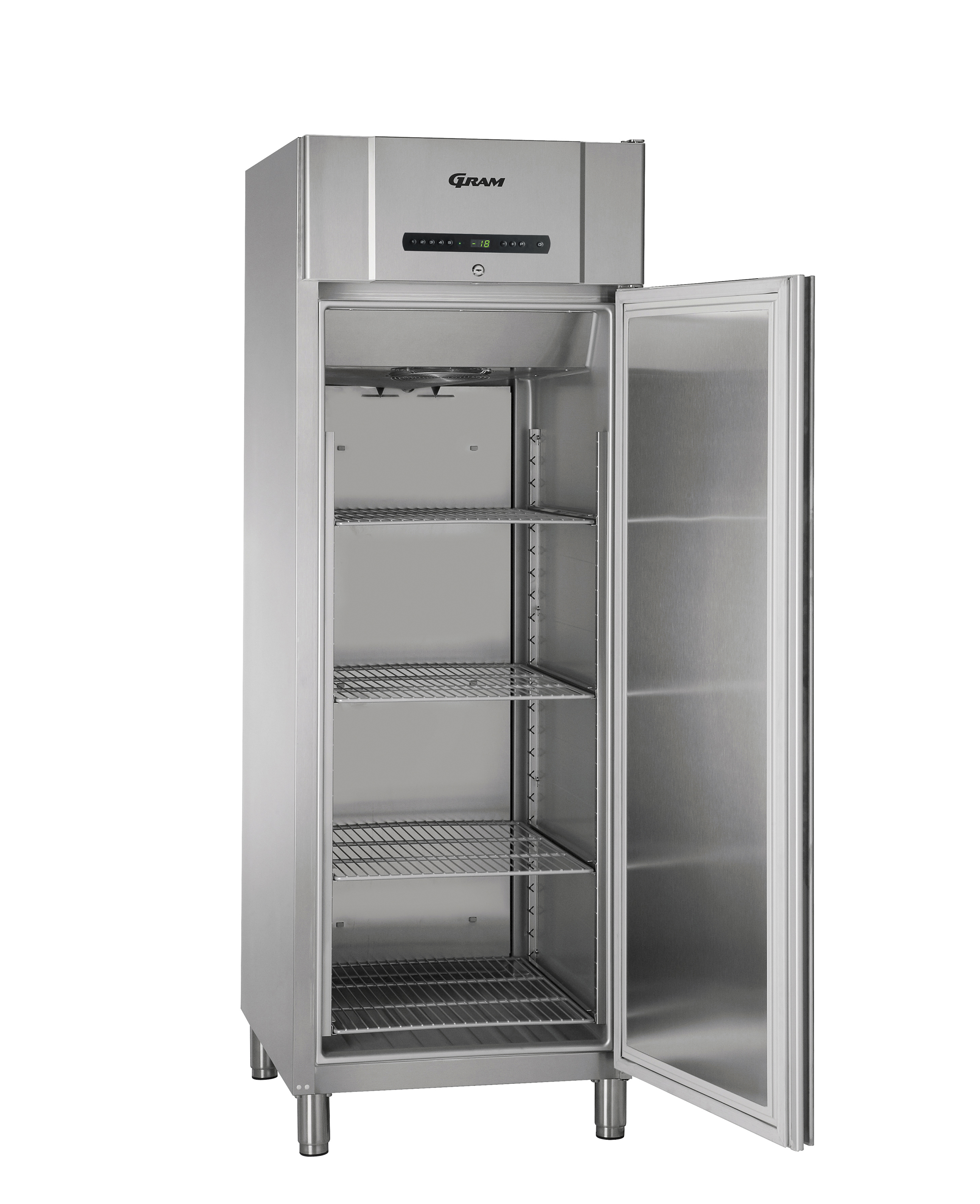

The GRAM COMPACT F 610 RG L2 4N is a with a net internal volume of 421 Ltr.

The GRAM COMPACT series offers a rare combination: These cabinets are food safe, space-saving, and come with excellent energy ratings for its class. With a footprint of only 59,5 x, 64 cm these small space storage cabinets are easy to fit in, especially when space is limited. These specifications make the series such a popular choice of those operators who do not require heavy-duty Gastronorm equipment.

Product not available

Get quote View spec sheet

Key features Specifications Documentation

Key features

Food Safety

Thanks to the Gram air distribution system, temperatures are correct and uniform throughout the entire cold room, ensuring perfectly food-safe temperatures at all times

Low-Running Energy Costs

The Energy Efficiency Class of the COMPACT F 610 RG L2 4N is D. The COMPACT series offers a range of extremely energy-efficient refrigeration units for small spaces.

Comfortable Work Environment

Contributes to a healthier work environment with low noise levels 49.3000 dB(A), when the compressor is running. Low heat emission due to short compressor running times.

Hygiene & Ergonomic Design

Just like all GRAM units, the COMPACT series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.

Modularity & Scalability

The COMPACT F 610 RG L2 4N strikes with its versatility, as the units can be stacked, paired, or even combined with other kitchen devices. Configuration possibilities include column combinations, side-by-side combinations, wall-mounted solutions, and the combinations with microwave ovens on top.

The COMPACT F 610 RG L2 4N comes with the following extras:

Refrigerant: The uses HC refrigerant R290
Air circulation system
Right-hand hinged door
Integrated full height door handle
Internal LED light

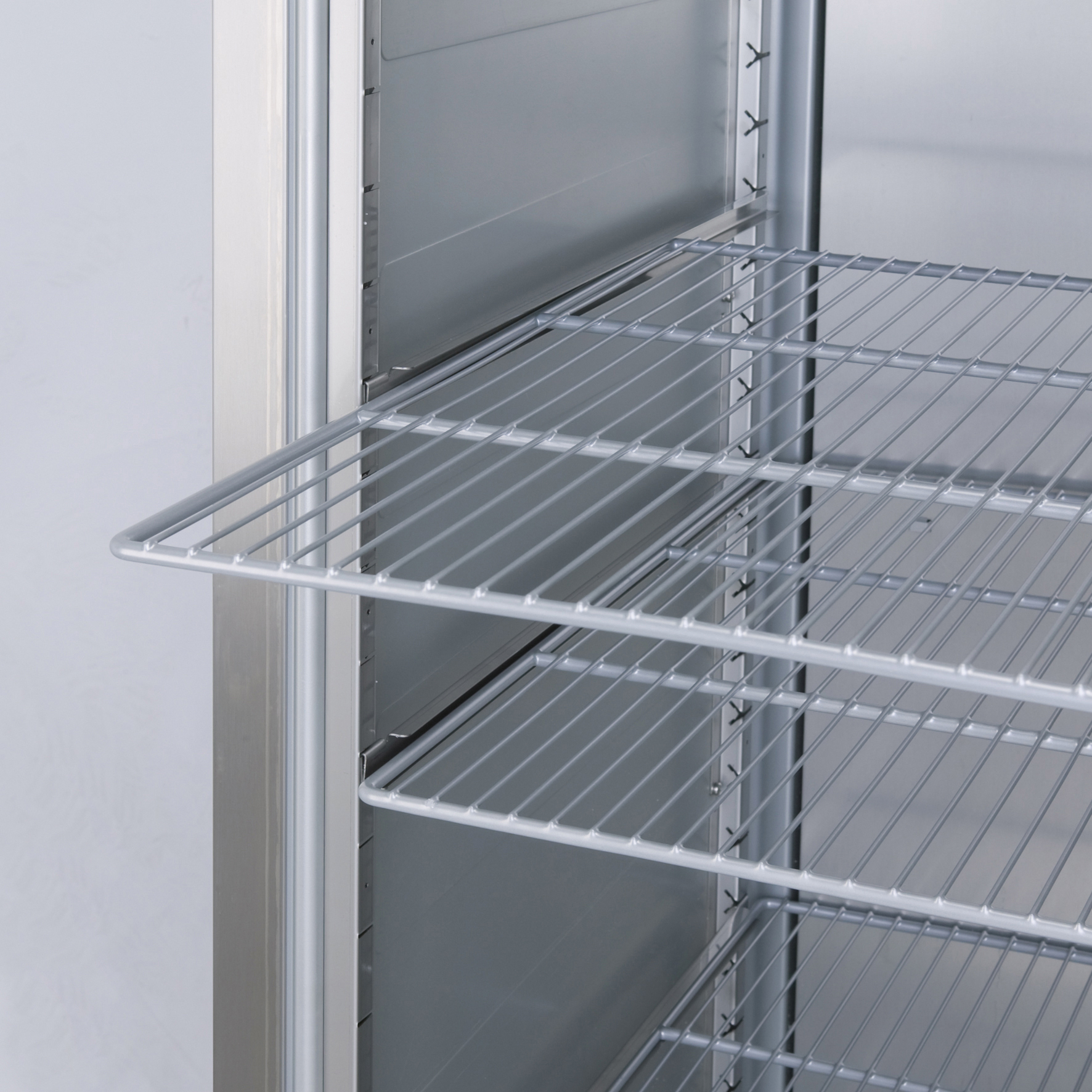

Anti-tilt shelves
Door lock for extra security

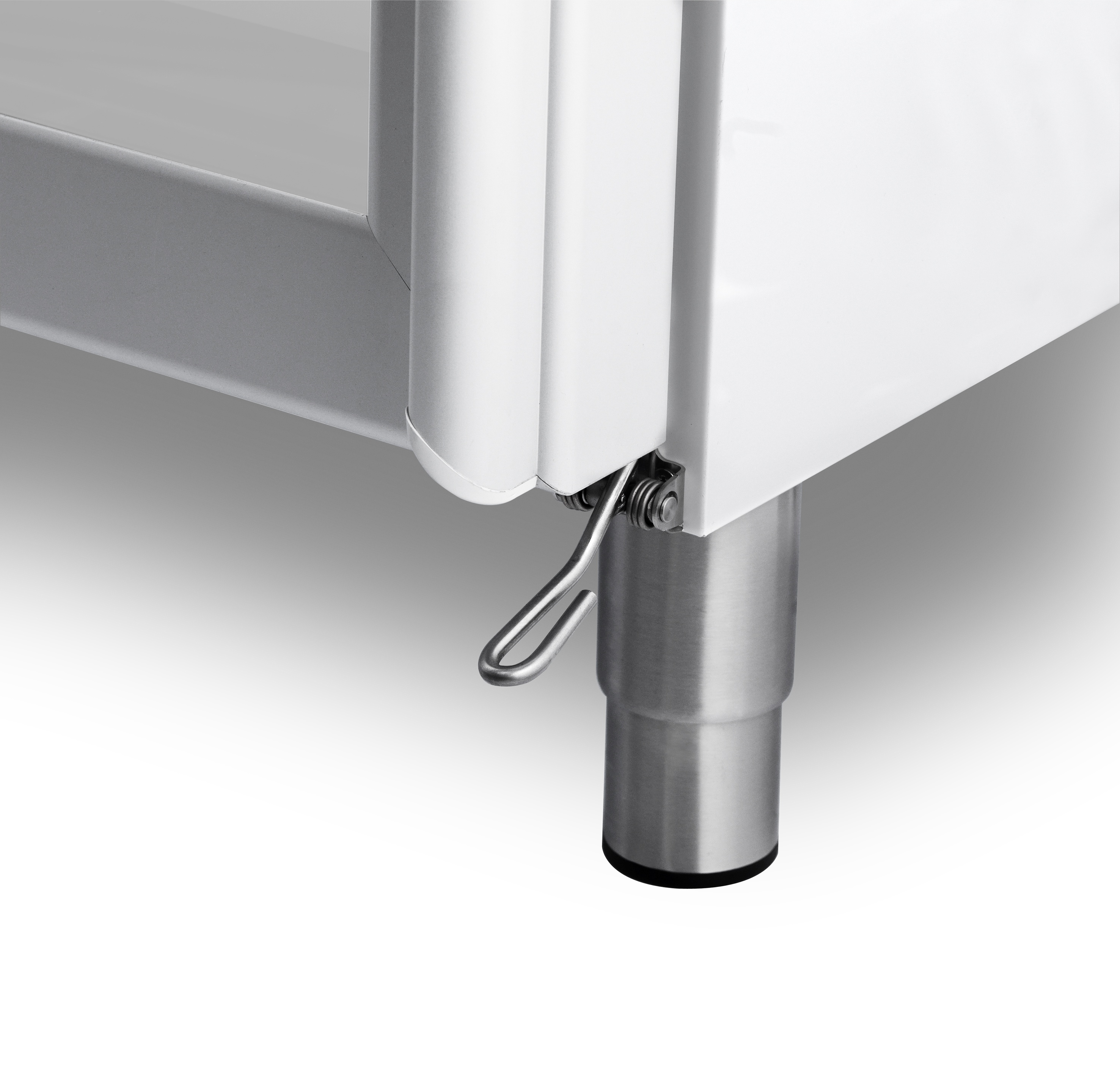

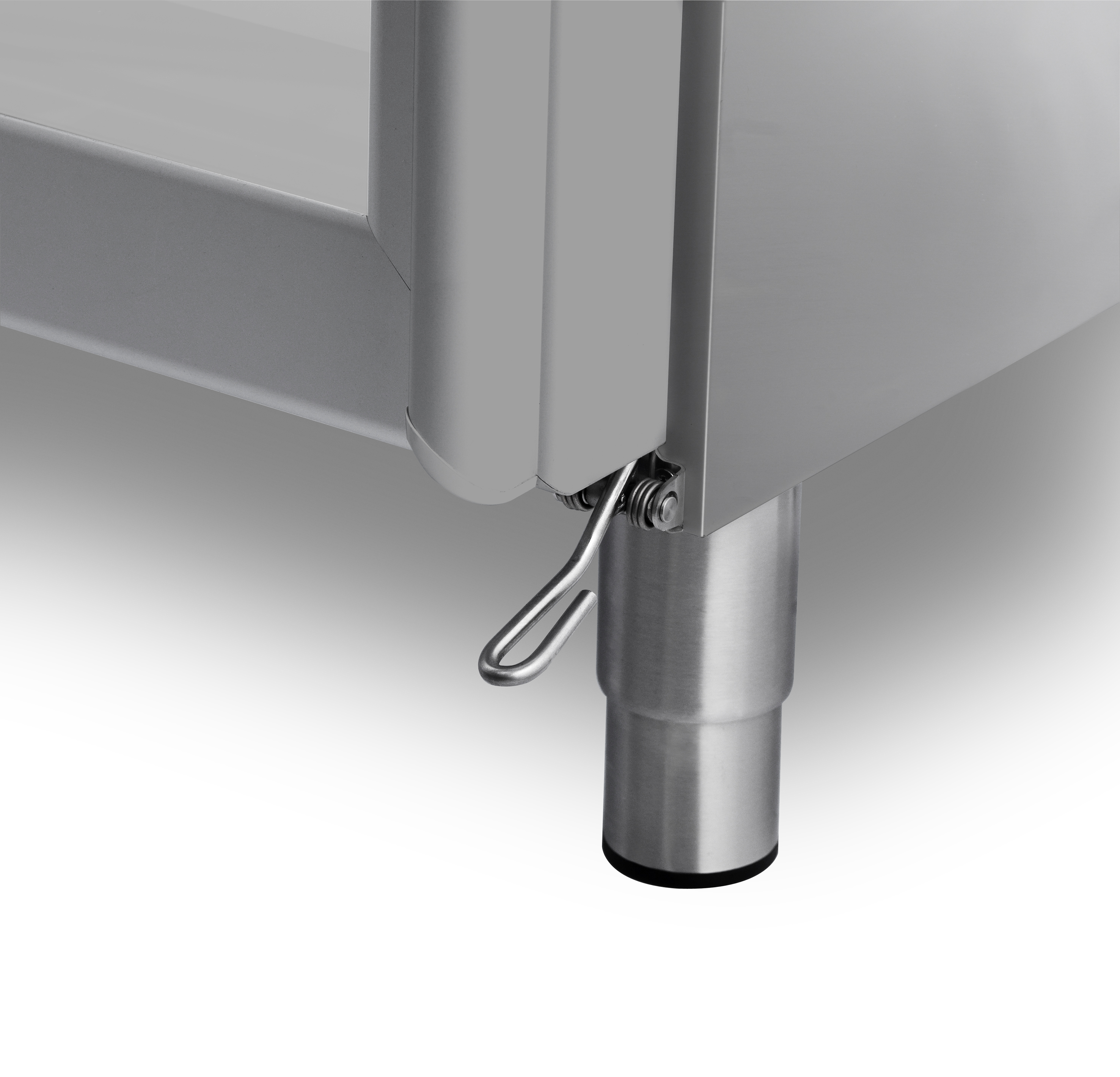

Pedal door opener for handsfree operation (optional accessory
Automatic defrost with re-evaporation of defrost water
10 years spare parts warranty guaranteed

Specifications

Specification	Value
Item number	866100241
Model name	COMPACT F 610 RG L2 4N
Brand	Gram
Warranty period	5 Years on Parts & Labour
Equipped with	Right hand hinged reversible door with lock, 4 grey shelves. Exterior: Stainless. Interior: ABS lining in grey
Extended spec sheets approved	1
Width	695 mm
Depth	875 mm
Height	2017 mm
Energy consumption	2076 kWh
Energy efficiency class	D
Energy Efficiency Index (EEI)	58.5 EEI
Shelf size	2/1 GN deep
Product availability	-- Not available
Climate class	5 (max. ambient 40°C w/ 40% RH)
Connection load	485 kW
Gross weight	113 kg
Insulation thickness	60 mm
Insulation type	Cyclopentane

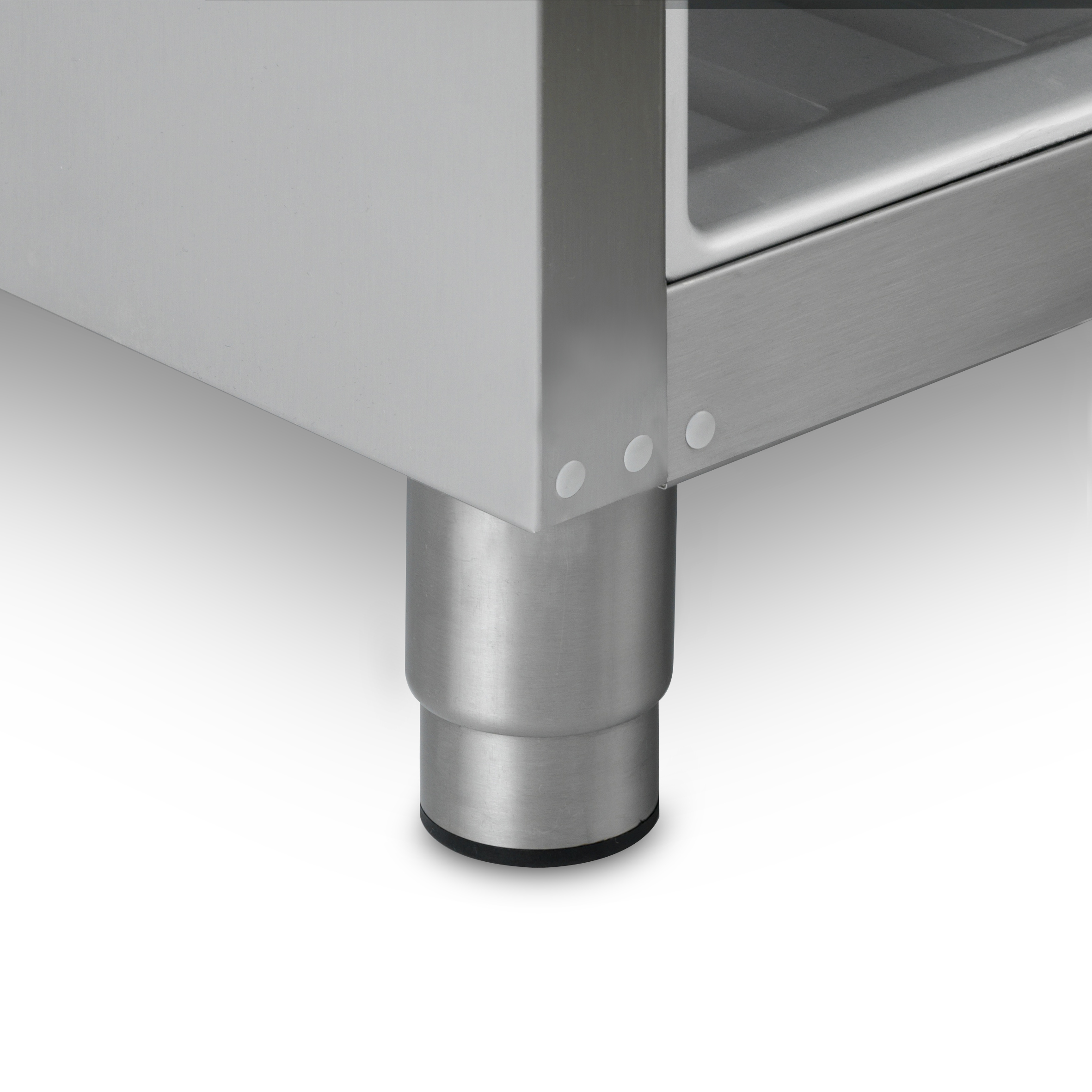

Legs / Castors	H = 135-200 mm (L)
Net usable volume	421 l
Net weight	113 kg
Power supply	230V, 50Hz
Sound level	49.3 dB
Temperature range	-25/-5°C
Volume, gross	583 l
Volume, net	421 l
Door Type	Solid Door
Refrigeration capacity	512
CO2 equivalent	0.28 kg
GWP	3 GWP
Refrigerant	0.09 kg
Refrigerant type	R290
SKU	866100241

Documentation

Documentation
DWG files	Download
Declaration of conformity	Download
EU_Combined_F610_G.pdf	Download
Instruction manual	Download
765071978_004_Wiring_diagram_Compact_F_610.pdf	Download
