COMPACT F 410 LG L1 6W

Freezers
C

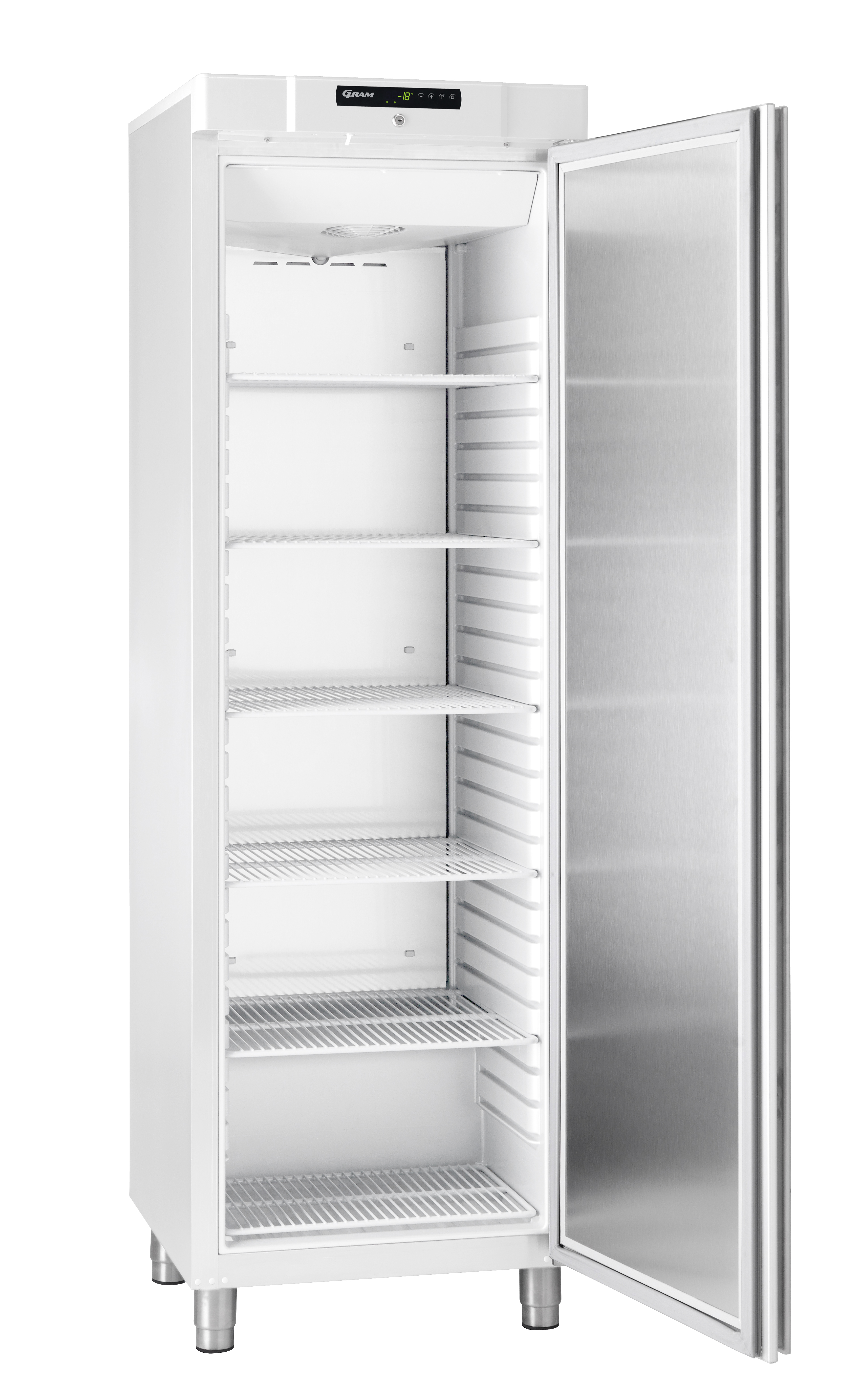

The GRAM COMPACT F 410 LG L1 6W  is a with a net internal volume of  265 Ltr.



The GRAM COMPACT series offers a rare combination: These cabinets are food safe, space-saving, and come with excellent energy ratings for its class.  With a footprint of only 59,5 x, 64 cm these small space storage cabinets are easy to fit in,  especially when space is limited. These specifications make the series such a popular choice of those operators who do not require heavy-duty Gastronorm equipment.

Product not available
Get quote View spec sheet

Key features

Food Safety

Thanks to the Gram air distribution system, temperatures are correct and uniform throughout the entire cold room, ensuring perfectly food-safe temperatures at all times



Low-Running Energy Costs

The Energy Efficiency Class of the COMPACT F 410 LG L1 6W is C. The COMPACT series offers a range of extremely energy-efficient refrigeration units for small spaces.



Comfortable Work Environment

Contributes to a healthier work environment with low noise levels  39.4000 dB(A), when the compressor is running. Low heat emission due to short compressor running times.



Hygiene & Ergonomic Design

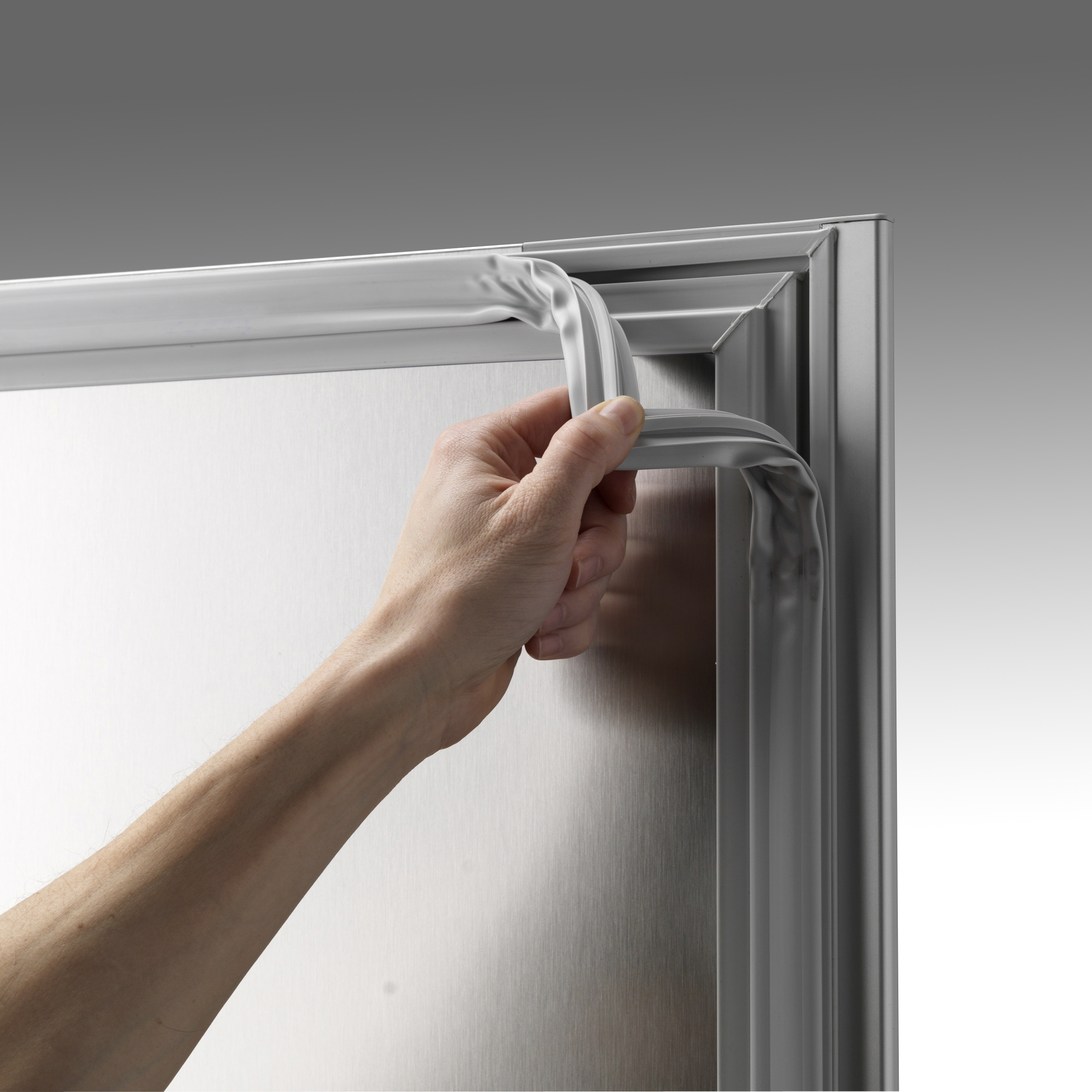

Just like all GRAM units, the COMPACT series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.



Modularity & Scalability

The COMPACT F 410 LG L1 6W  strikes with its versatility, as the units can be stacked, paired, or even combined with other kitchen devices. Configuration possibilities include column combinations, side-by-side combinations, wall-mounted solutions, and the combinations with microwave ovens on top.



The COMPACT F 410 LG L1 6W comes with the following extras:

  • Refrigerant: The uses HC refrigerant R600a

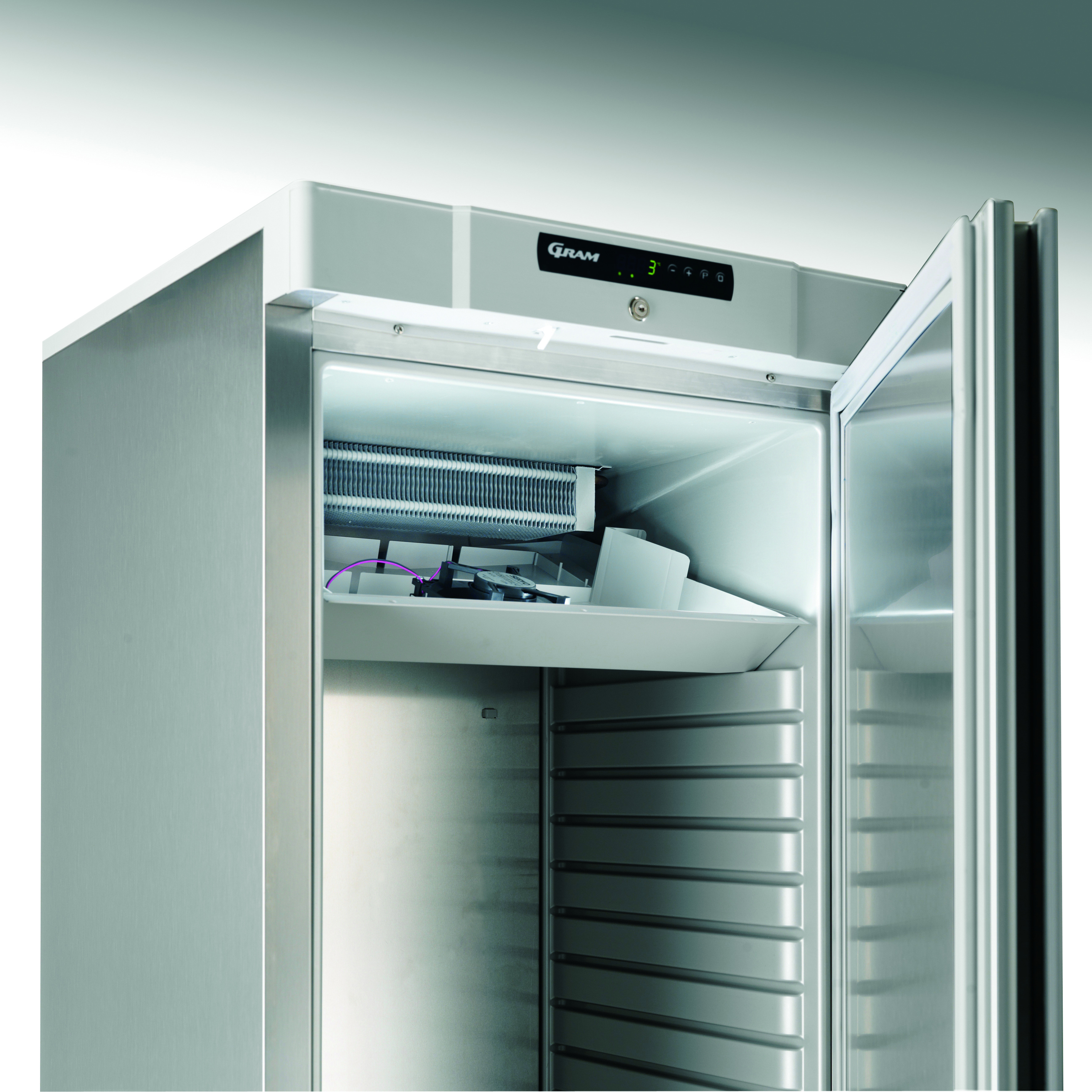

  • Air circulation system
  • Right-hand hinged door
  • Integrated full height door handle
  • Internal LED light

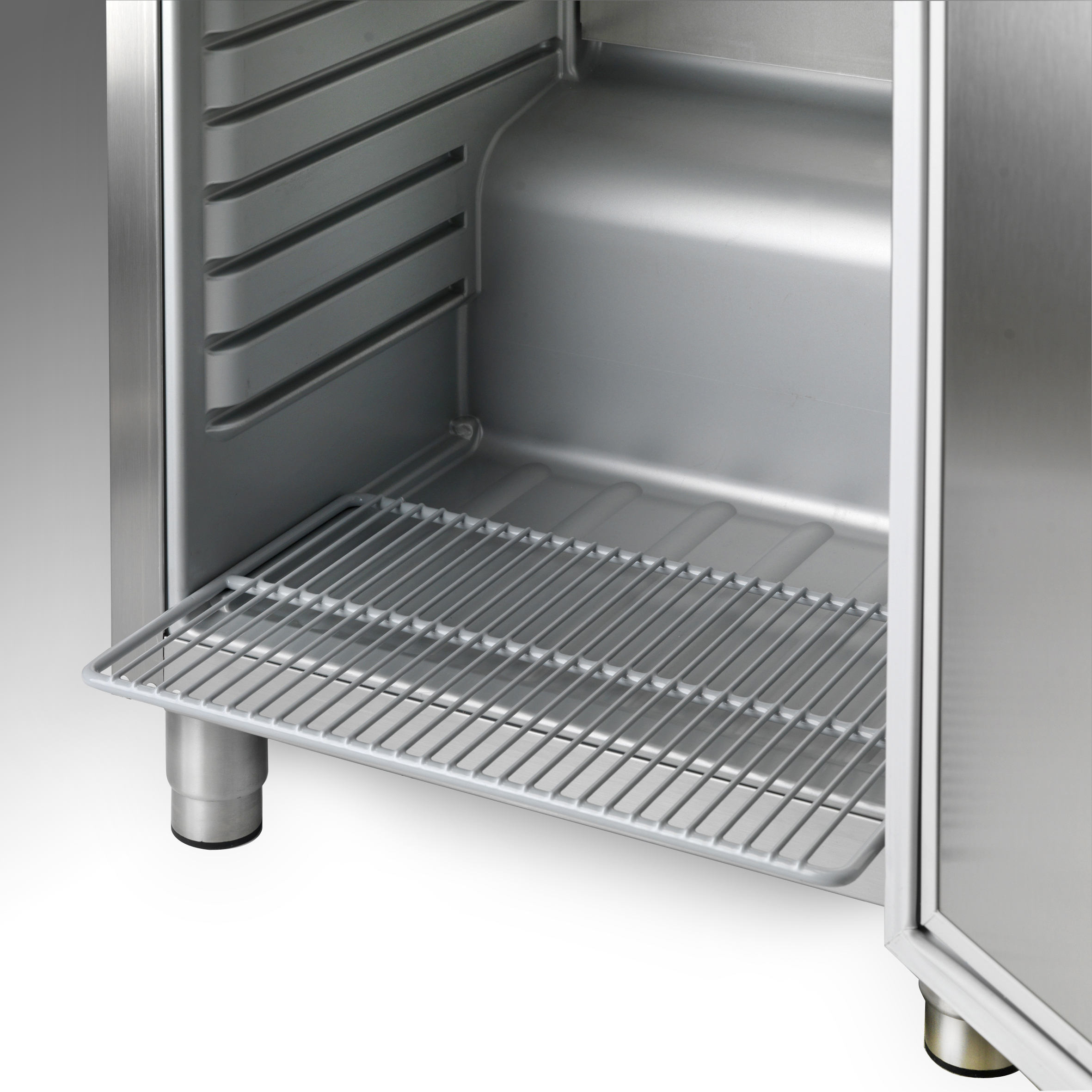

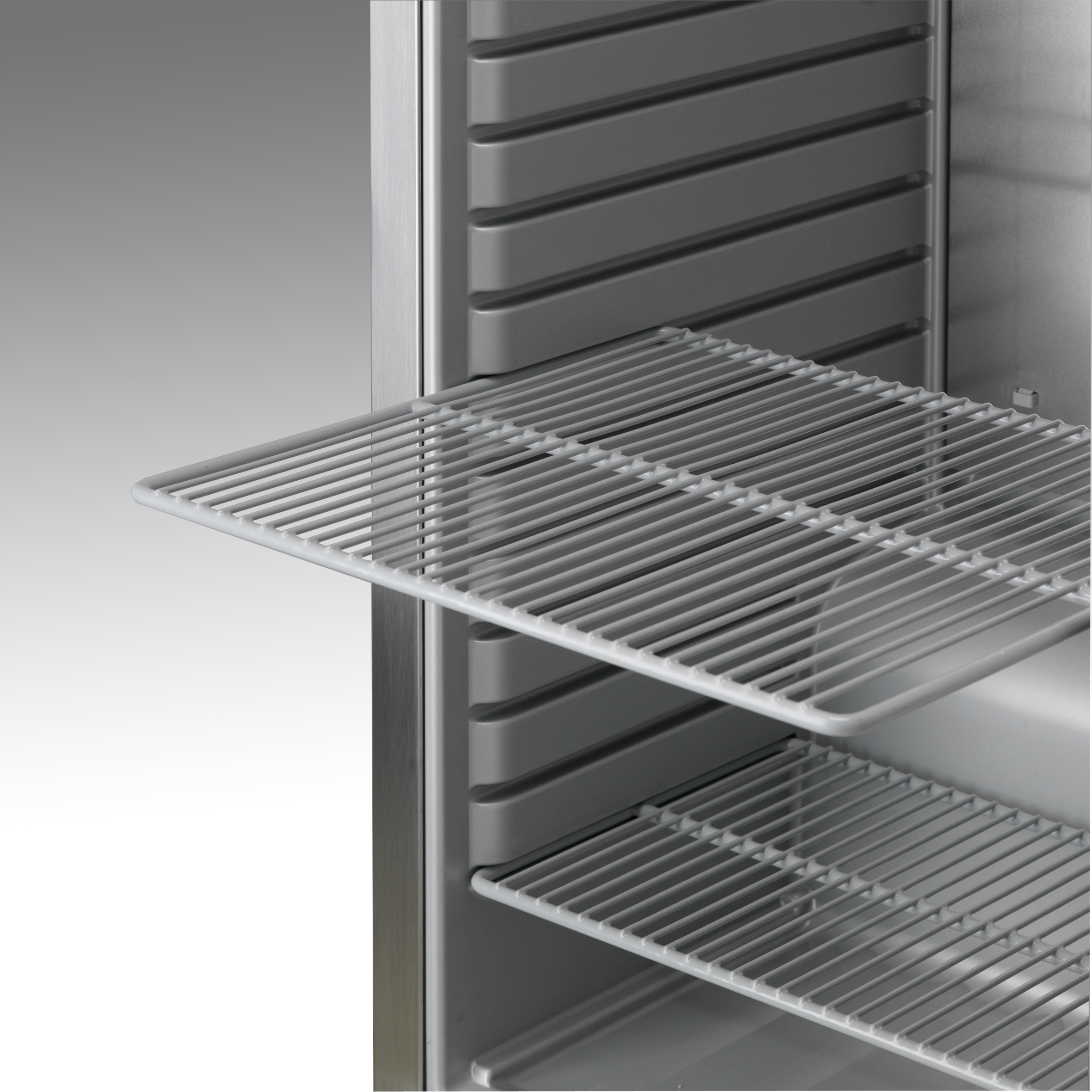

  • Anti-tilt shelves
  • Door lock for extra security
  • Pedal door opener for handsfree operation (optional accessory
  • Automatic defrost with re-evaporation of defrost water
  • 10 years spare parts warranty guaranteed

Specifications

Specification Value
Item number 864120461
Model name COMPACT F 410 LG L1 6W
Brand Gram
Warranty period 5 Years on Parts & Labour
Equipped with Right hand hinged reversible door with lock, 6 white shelves. Exterior: White. Interior: ABS lining in white
Extended spec sheets approved 1
Width 595 mm
Depth 640 mm
Height 1875 mm
Energy consumption 1086 kWh
Energy efficiency class C
Energy Efficiency Index (EEI) 39.1 EEI
Shelf size Shelf 484.7 x 433 mm
Product availability -- Not available
Connection load 142 kW
Gross weight 78 kg
Insulation thickness 50 mm
Insulation type Cyclopentane

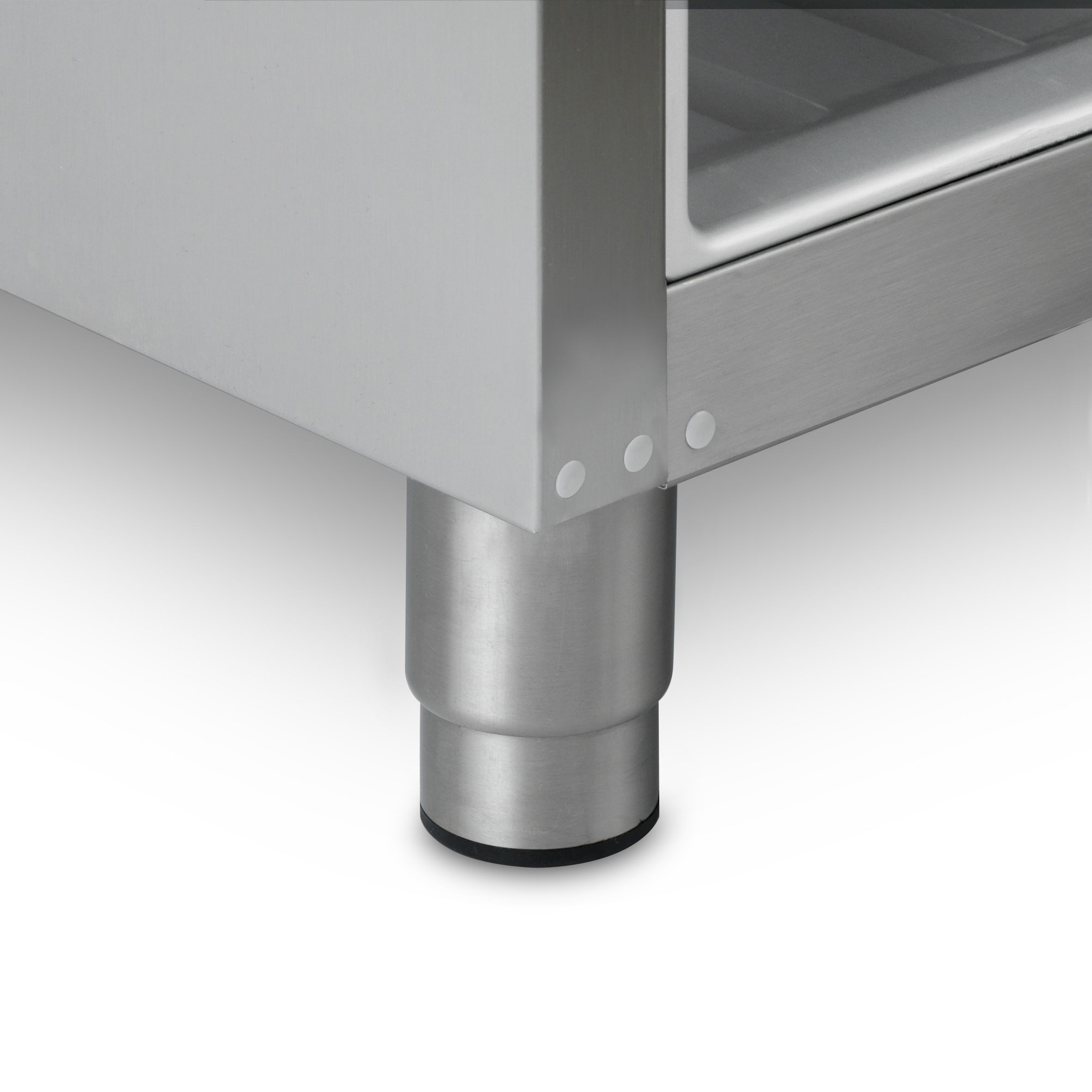

Legs / Castors H = 130-180 mm (L)
Net usable volume 265 l
Net weight 78 kg
Power supply 230V, 50Hz
Sound level 39.4 dB
Temperature range -22/-5°C
Volume, gross 346 l
Volume, net 265 l
Door Type Solid Door
Refrigeration capacity 212
CO2 equivalent 0.14 kg
GWP 3 GWP
Refrigerant 0.05 kg
Refrigerant type R600a
SKU 864120461

Documentation

Documentation
DWG files Download
Declaration of conformity Download
COMPACT_F_410_G.pdf Download
Instruction manual Download
6685696.pdf Download
