BAKER F 1500 CBG

Freezers

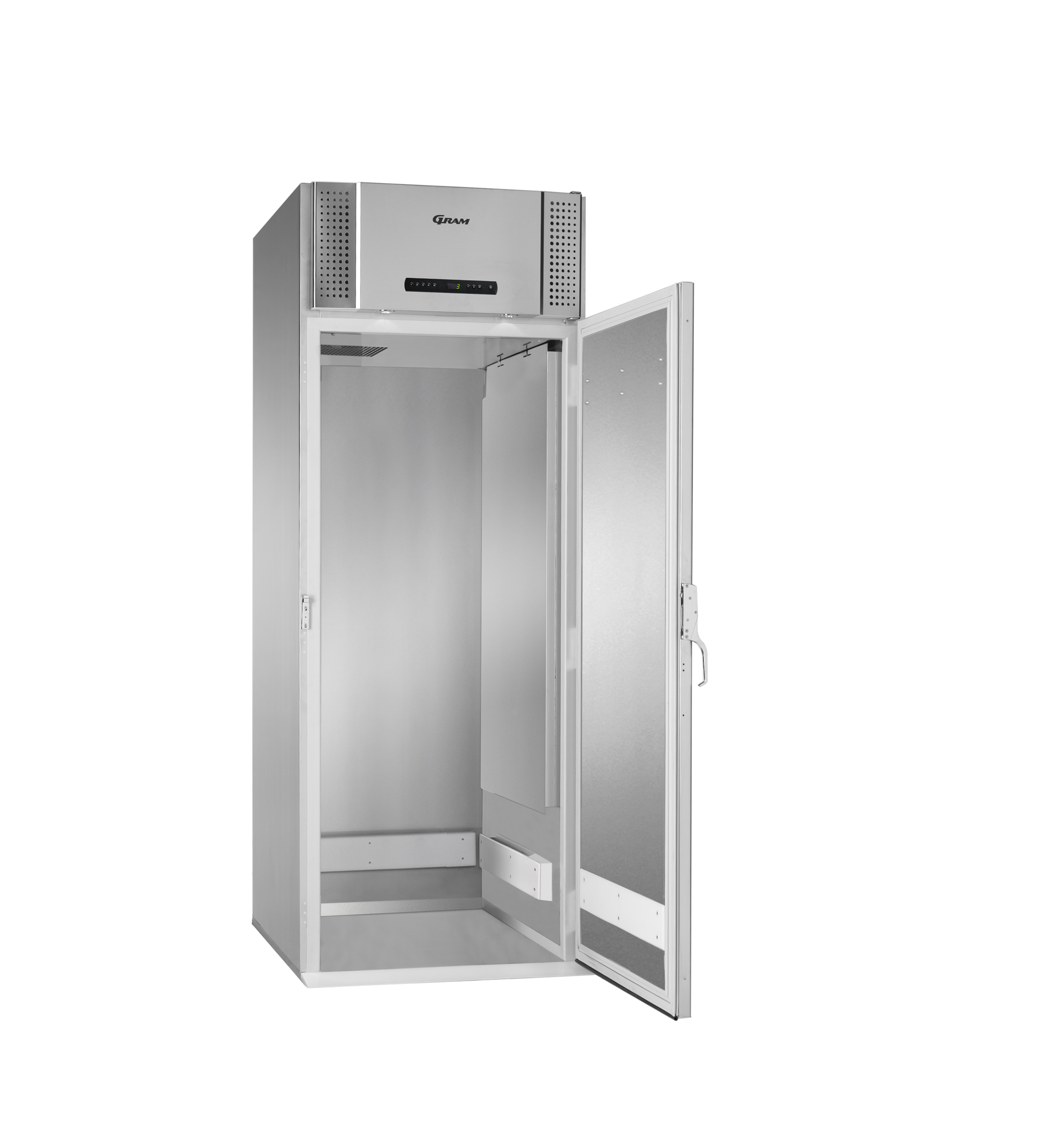

The GRAM BAKER F 1500 CBG  is a with a net internal volume of  0 Ltr.

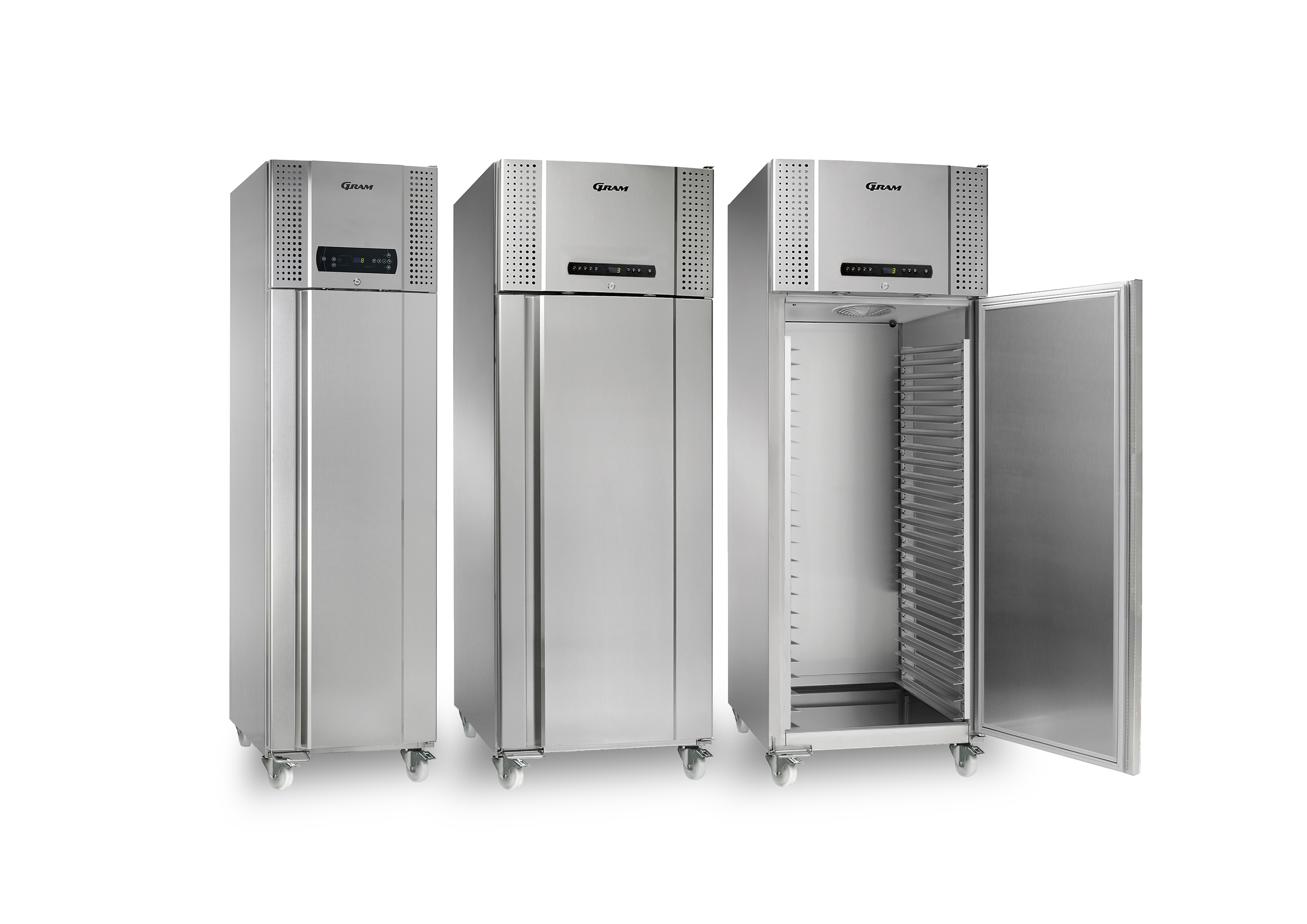

Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperatures inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Product not available
Get quote View spec sheet

Key features

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

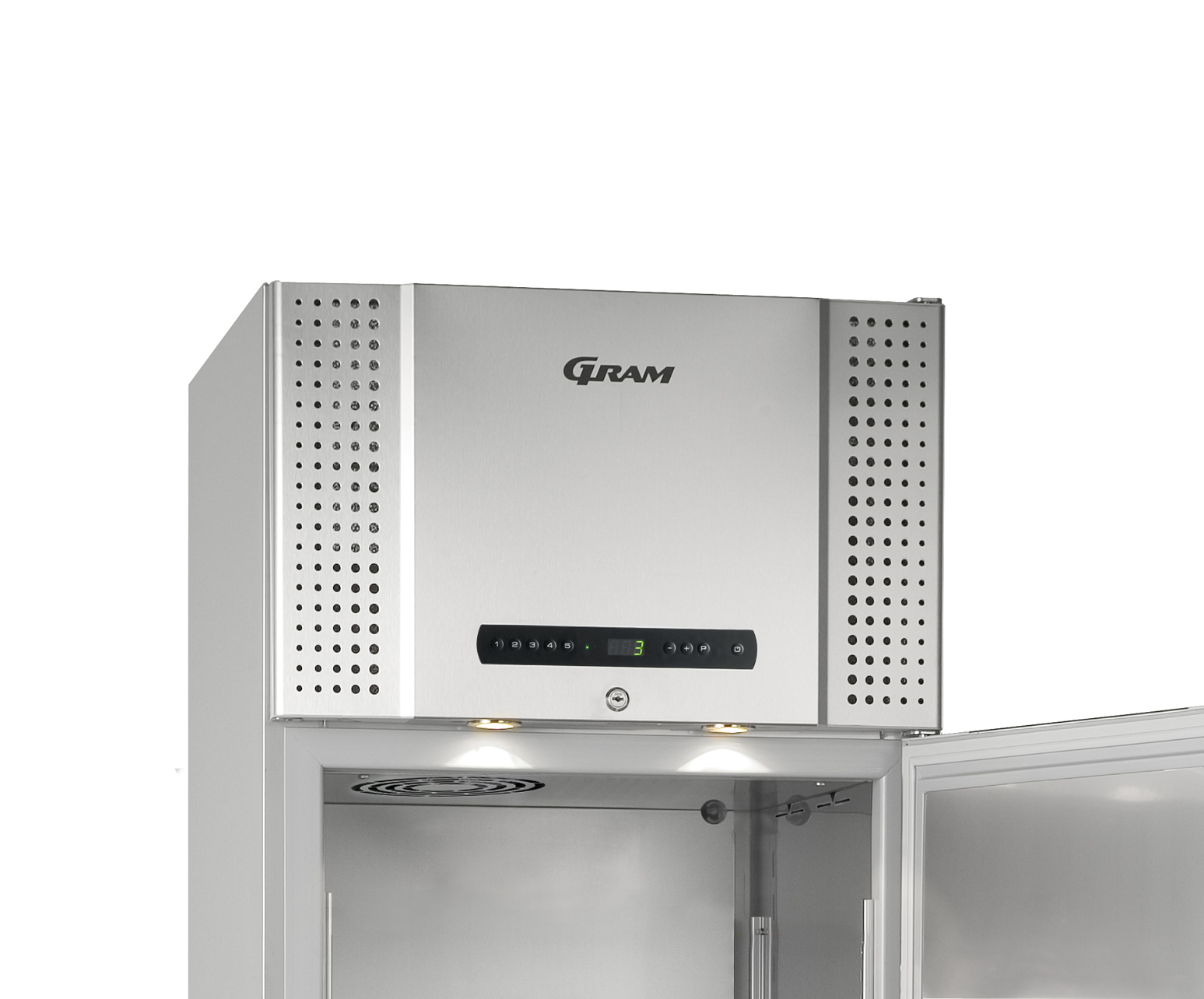

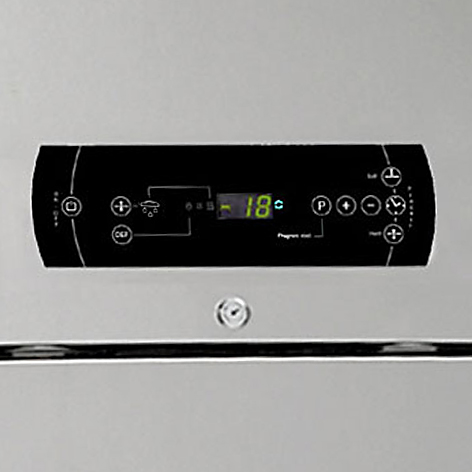

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER F 1500 CBG comes with the following extras:

Right-hand hinged door with lock

Air circulation system

Dry cooling and controlled thawing (M versions)

Automatic defrost and reevaporation of water



Specifications

Specification Value
Item number 861500505
Model name BAKER F 1500 CBG
Brand Gram
Warranty period 5 Years on Parts & Labour
Equipped with Right hand hinged reversible door with positive handle and lock, stainless and heated floor and drive-in ramp
Width 880 mm
Width inside 720 mm
Depth 1088 mm
Depth inside 895 mm
Height 2362 mm
Height inside 1900 mm
Product availability -- Not available
Connection load 658 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 185 kg
Insulation thickness 60 mm
Insulation type Cyclopentane
Net weight 185 kg
Power supply 230V, 50Hz
Temperature range -25/-5°C
Volume, gross 1422 l
Door Type Solid Door
Refrigeration capacity 633
CO2 equivalent 0.32 kg
GWP 3 GWP
Refrigerant 0.11 kg
Refrigerant type R290
SKU 861500505

Documentation

Documentation
DWG files Download
DWG files Download
Declaration of conformity Download
Instruction manual Download
6762407.pdf Download
6762408.pdf Download
6762406.pdf Download

Accessories

Accessory name Item number
818649901 818649901
818649902 818649902
