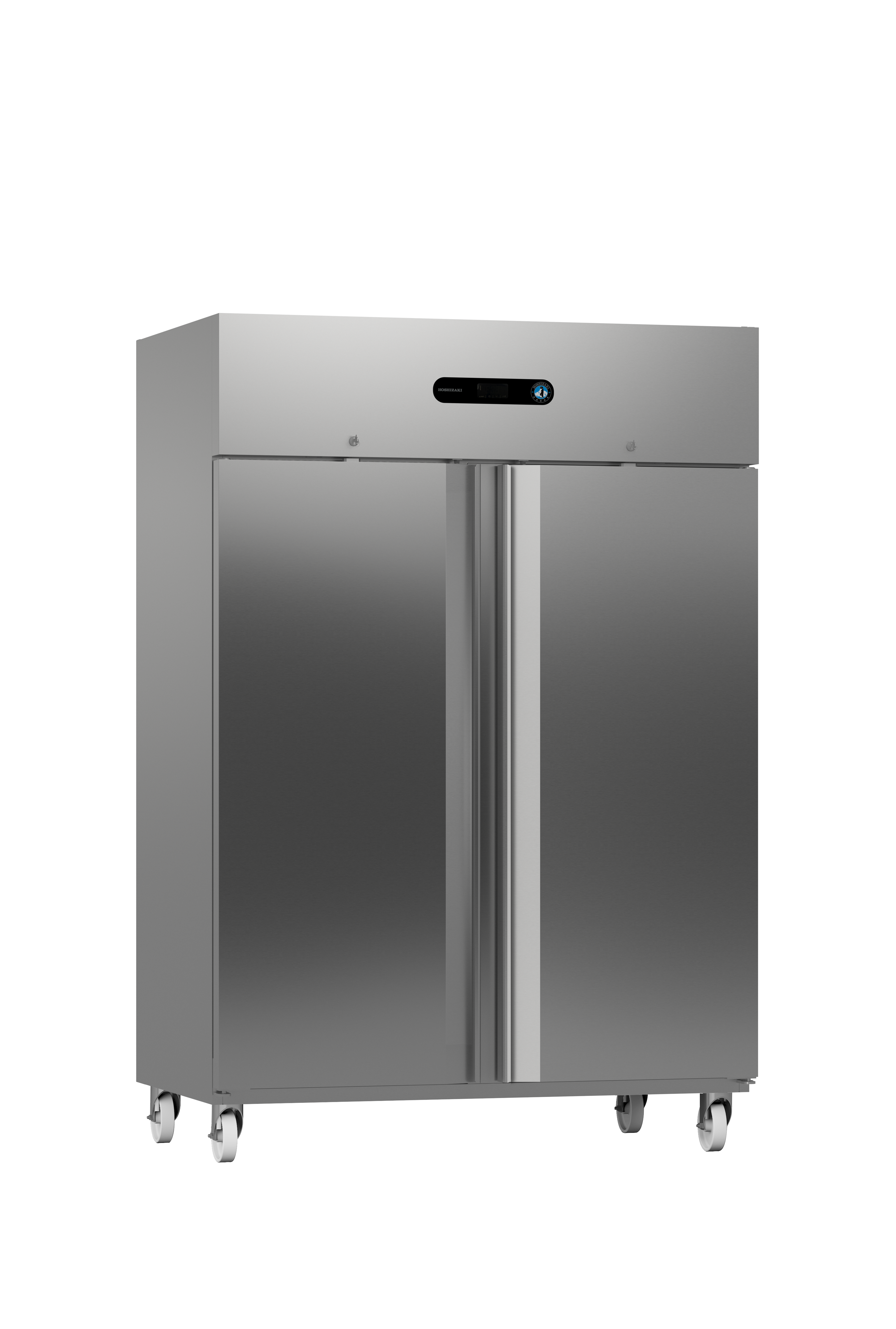

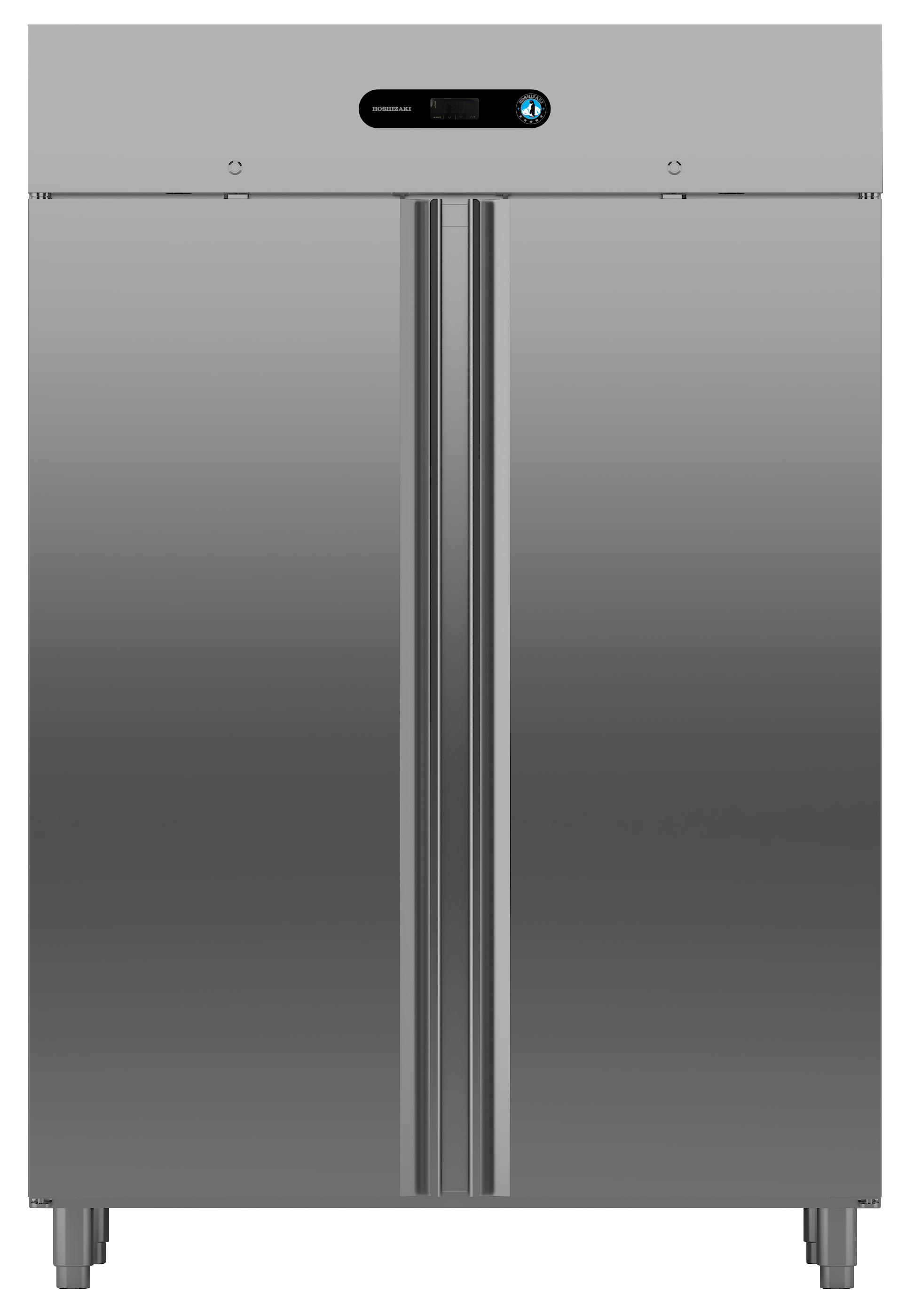

SUR-135EG-R-C-U 2-Door Refrigerated Cabinet, HC

C

Please be informed that the SUR-135EG-R-C-U  reach-in cabinets is phased out.

For enquiries about the availability of the remaining products, please contact your branch office.



Our new Advance 140 will be available instead. You can read more about the Advance https://hoshizaki-europe.com/advance/ or get in contact with your local branch to receive the latest information.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Sustainable

The refrigerant used in all Snowflake GII+ models is R290. This agent is a natural gas that enhances the performance of the refrigerated counter and has, compared to other refrigerants, a minimal ozone depletion potential.



Material

Both interior and exterior of the refrigerated cabinet are built of  nickel-free (non-allergic) stainless steel, which is among the best choices for hygienic and food-safe cooking environments.



Smart Use of Space

Making the best possible use of limited space conditions is a common challenge in kitchen design. The evaporator is positioned on top of the cabinet,  so valuable space inside the cabinet can be used for storage.

The condensation tray is not positioned on the back of the cabinet, but on top of it. This clever design allows you to move the cabinet closer to the back wall which gives you an additional 5 cm of your valuable operational area.



Energy Efficiency

The double insulated and extra wide door gaskets help to keep the cold air inside the cabinet, which is an important factor for device efficiency.  The Ecodesign AEC Energy consumption is 926.



Convenience and Ergonomics

The SUR-135EG-R-C-U has self-closing doors, which close automatically when open in an angle of less than 90 degrees. Additionally, they offer maximum flexibility as they are fully reversible. an anti-tilt mechanism with molded liners helps with the safer container and rooster handling. The GN shelf size of the SUR-135EG-R-C-U is [2_1_gn_deep]. With sound levels of 53.0000 dB(A) the SUR-135EG-R-C-U adds to a comfortable work environment for your staff.



Easy Cleaning & Maintenance

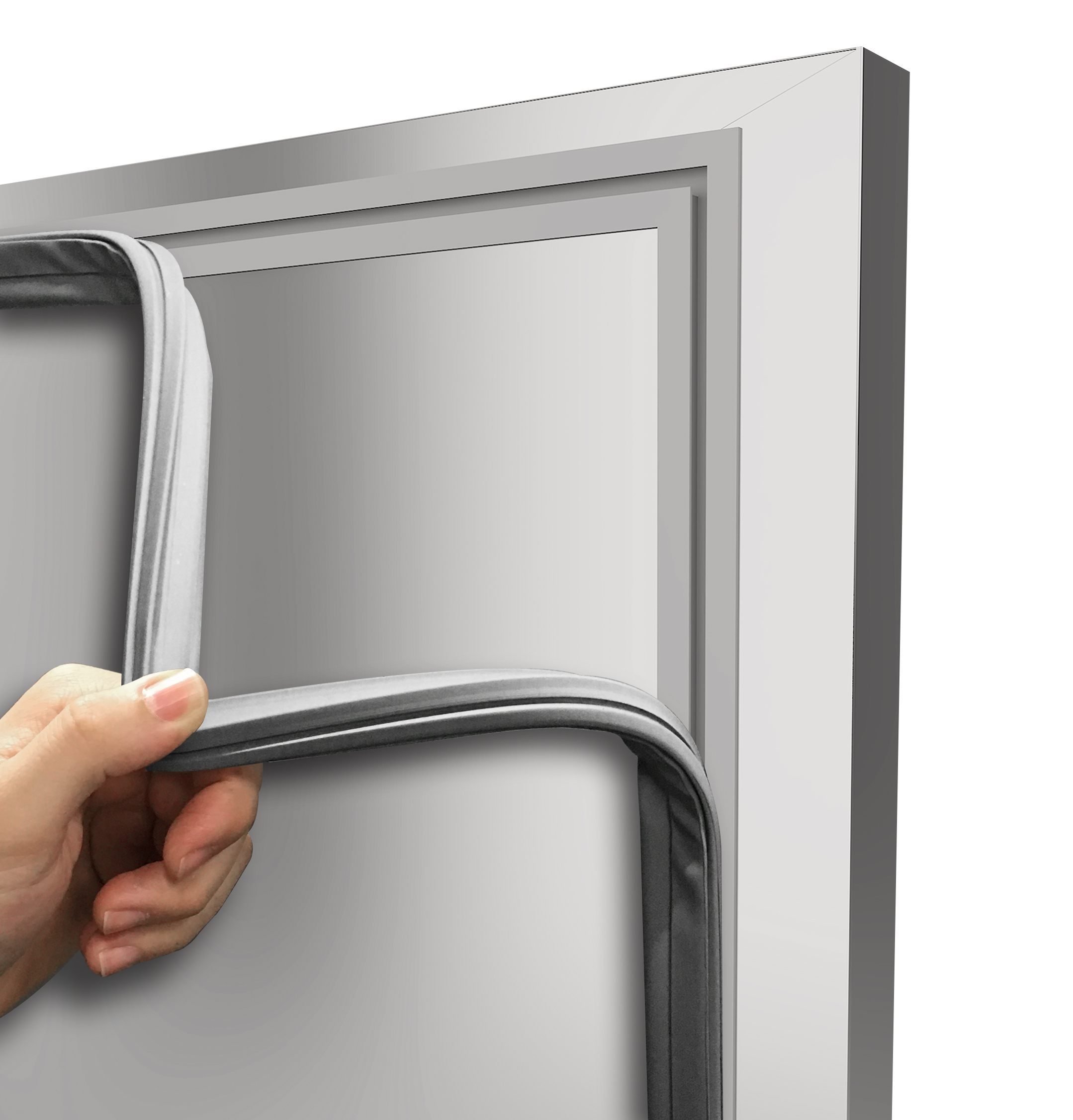

The Snowflake GII+  refrigeration system uses a mono-block construction that is removable for easier maintenance and repair. The removable gaskets make sure that can clean the device thoroughly. This and other thoughtful extras, such as the cleaning-free condenser, are designed to reduce kitchen cleaning times whilst storing foods protectively in the best possible way.

Specifiche

Specifiche Value
Codice articolo 878000904
Modello SUR-135EG-R-C-U
Marchio Hoshizaki
Titolo 2-Door Refrigerated Cabinet, HC
Equipaggiato con Right hand hinged reversible doors, automatic door closing, 6 grey shelves, LED lighting
Larghezza 1344 mm
Profonditá 830 mm
Altezza 1977 mm
Consumo elettrico 926 kWh
Classe di efficienza energetica C
Indice di Efficienza Energetica (IEE) 48.16 EEI
Numero ripiani 6
Numero massimo ripiani 22 x 2, distance of 60 mm
Dimensioni ripiano 2/1 GN prof.
Product availability -- Non disponibile
Classe climatica 5
Valori di allacciamento 250 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 192 kg
Spessore isolamento 60 mm
Tipologia isolamento Polyurethane
Piedini / Rotelle H = 127 mm (C)
Volume netto 797 l
Peso netto 192 kg
Alimentazione 230V, 50Hz
Livello rumorositá 53 dB
Intervallo di temperatura 0/+10°C
Volume lordo 1200 l
Tipologia porta Solid Door
Capacitá di refrigerazione 632
Equivalente CO2 0.255 kg
GWP 3 GWP
Refrigerante 0.085 kg
Tipologia refrigerante R290
SKU 878000904

Documentazione

Documentazione
DWG files Download
Declaration of conformity Download
SUR_135EG.pdf Download
Instruction manual Download
SUR_65_135_EG_Wiring_Diagram.pdf Download
