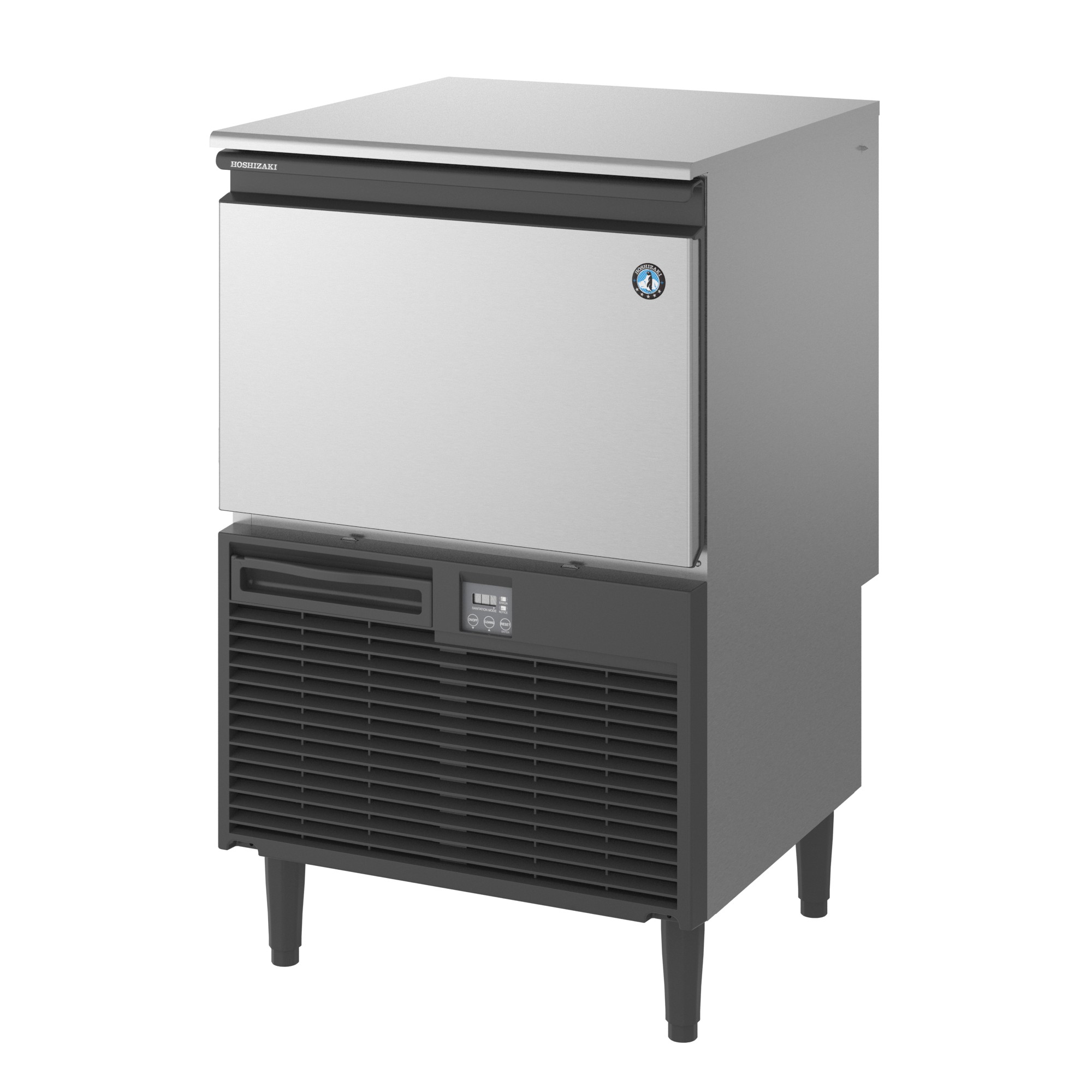

KM-60C-W Crescent Ice Maker, Self Contained

Ice

This Hoshizaki KM-60C-W is a [[att_title]] producing up to 60 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements. The KM Edge range has an enlarged, bonded evaporator surface. With accelerated harvest cycles, the technology behind the KM Edge range will help you increase your serving capacity instantly. More ice in less time. The dimensions of the KM-60C-W (W x D x H) are 605 x 610 x 838 mm.

Get quote View spec sheet

Key features Specifications Documentation Accessories

Key features

The KM-60C-W uses refrigerant R134a.

Unique Technology

The double-sided evaporator in all KM machines is made of stainless steel – the best material for improved longevity, food safety, and cleaning without damaging to the machine. The external material is made of . Thanks to its rounded, yet edgy form, the Hoshizaki Crescent Ice will not cluster inside the ice chest. That is why it is considered the perfect ice shape for bottle coolers, allowing you to place bottles inside the ice effortlessly. The ice can be used for chilling drinks, fresh produce display, and bottle cooling as well as cooking.

Convenience

Always focusing on operating convenience and food safety, the air filters are easily accessible from the front for routine cleaning. With intake and outflow positioned at the front, the KM is ideal for built-in installation opportunities. “

Smart Design

Like all Hoshizaki ice makers, the KM-60C-W is designed to last and comes with smart design extras such as the double-sided, stainless steel evaporator, unique in the industry, produces more ice per cycle with lower energy consumption and resistance to descaling acids.

Flexibility

With outside dimensions W x D x H of 605 x 610 x 838 mm, the KM-60C-W is compact and makes a perfect fit for small spaces.

Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.

Specifications

Specification	Value
Item number	F159-C271
Model name	KM-60C-W
Ice maker type	Crescent ice maker
Brand	Hoshizaki
Product configuration	Self Contained
Title	Crescent Ice Maker, Self Contained
Width	605 mm
Width (packed)	605 mm
Depth	610 mm
Depth (packed)	610 mm
Height	838 mm
Height (packed)	838 mm
Volume (packed)	0.3093 m³
Electric Consumption	0.56 kW
Energy consumption	0.56 kWh
Ambient temperature (maximum)	40 °C
Ambient temperature (minimum)	1 °C
Voltage range (Rated Voltage)	±6%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 °C
Water supply temperature (minimum)	5 °C
Exterior	Stainless Steel AISI 430
Gross weight	57 kg
Net weight	45 kg
Power supply	1/220 - 240V/50Hz
Storage bin capacity	23 kg
Cooling system	Air Cooled
Ice type	Crescent Edge
Ice production	60
Water consumption - Air cooled ice makers	0.25
Refrigerant type	R134a
SKU	F159-C271

Documentation

Documentation
Installation manual	Download
Instruction manual	Download
Instruction manual	Download

Accessories

Accessory name	Item number
4HC-H Single	9320-51
4 HC Replacement Cartridge	9655-11
ACK-40-A: Fully automated chemical cleaning kit	F174-C101
ACK-60-A: Fully automated chemical cleaning kit	F174-C102
ACK-80-A: Fully automated chemical cleaning kit	F174-C103
ACK-130-A: Fully automated chemical cleaning kit	F174-C104
UVL-25-A: UV-LED for the water tank	F174-C201
