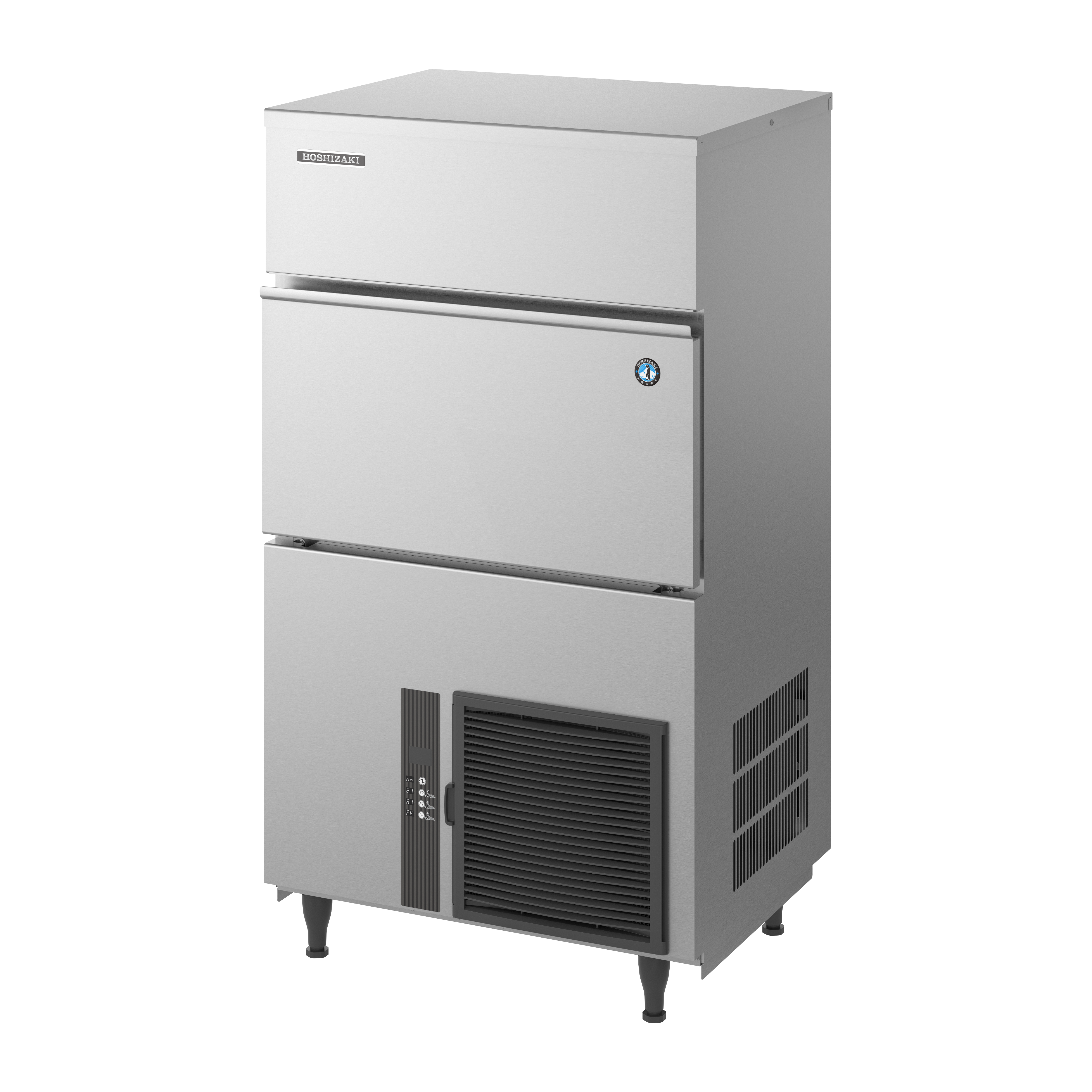

IM-100NE(SA) Cuber, Self Contained

Ice makers

This Hoshizaki IM-100NE(SA) is a self contained cube ice maker producing up to 88 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.

All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Get quote View spec sheet

Specifications Documentation Accessories

Specifications

Specification	Value
Item number	E1FE-D804
Model name	IM-100NE(SA)
Product availability	-- Not available
Brand	Hoshizaki
Product configuration	Self Contained
Warranty period	2 Years on Parts & Labour
Country of origin	UK
Title	Cuber, Self Contained
Accessories included	Installation kit, Legs, Scoop
Please observe	This type of icemaker is on special order only. Please take longer lead times into consideration.
Width	704 mm
Width (packed)	805 mm
Depth	506 mm
Depth (packed)	580 mm
Height	1200 mm
Height (packed)	1375 mm
Volume (packed)	0.642 m³
Dimensions legs	for legs add 70-110mm
Electric Consumption	0.65 kW
Energy consumption	0.65 kWh
Ambient temperature (maximum)	40 °C
Ambient temperature (minimum)	1 °C
Voltage range (Rated Voltage)	± 10%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 °C
Water supply temperature (minimum)	5 °C
Electrical circuit breaker protection	5 A
Exterior	Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight	85 kg
Heat Rejection (AT 32°C, WT 21°C)	0.118 kW
Net weight	76 kg
Power supply	1/220 - 230V/60Hz
Storage bin capacity	50 kg
Volume, gross	0.642 l
Cooling system	Air Cooled
Ice type	Large cubes, Standard
Ice production	88
Water consumption - Air cooled ice makers	0.45
Optional Extras	4HC-H water filtration
CO2 equivalent	400.4 kg
Refrigerant	0.28 kg
Refrigerant type	R134a
SKU	E1FE-D804
