965511012

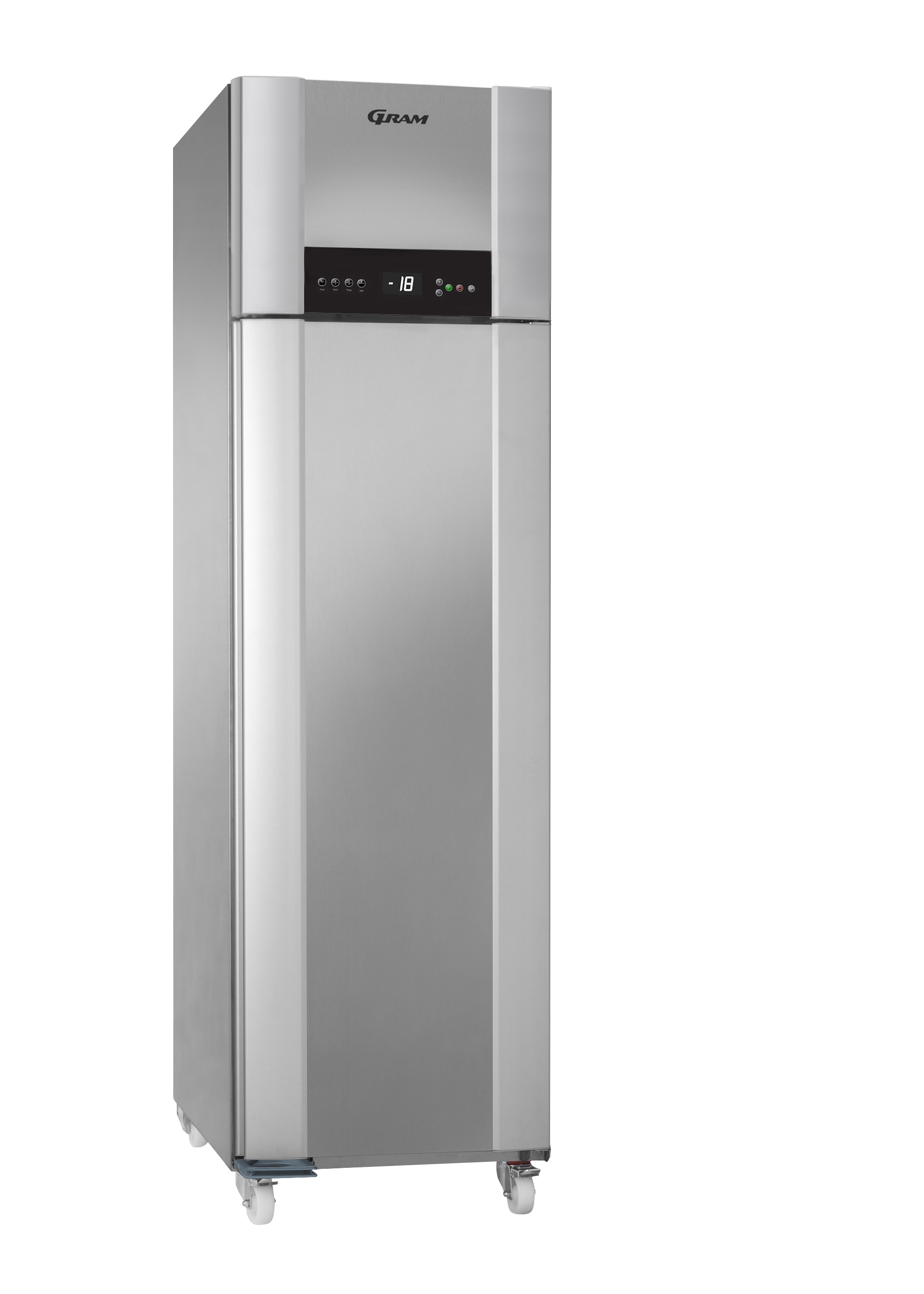

BAKER SF 550 CCG C1 25B

Baker cabinets

The GRAM BAKER SF 550 CCG C1 25B  is a with a net internal volume of  0 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperature and humidity levels inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Discontinued
Get quote View spec sheet

Key features

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER SF 550 CCG C1 25B comes with the following extras:

  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water



Specifications

Specification Value
Item number 965511012
Model name BAKER SF 550 CCG C1 25B
Brand Gram
Warranty period 5 Years on Parts & Labour
Equipped with Right hand hinged reversible door with lock; automatic door closing, pedal door opener; 25 pairs of adjustable supports (40 x 60 cm), drycooling, rapid thaw
Width 600 mm
Depth 855 mm
Height 2100 mm
Climate class 5 (max. ambient 40°C w/ 40% RH)
Exterior Stainless Steel AISI 430
Interior Stainless
Gross weight 137 kg
Net weight 137 kg
Insulation thickness 70 mm
Insulation type Cyclopentane
Power supply 230V, 50Hz
Temperature range -30/+10°C
Volume, gross 460 l
Door Type Solid Door
Refrigeration capacity 882
CO2 equivalent 0.48 kg
GWP 3 GWP
Refrigerant 0.15 kg
Refrigerant type R290
SKU 965511012

Documentation

Documentation
Declaration of conformity Download
Instruction manual Download

Accessories

Accessory name Item number
Shelf supports (561mm) (2 of), for GN, L-shaped 818885005
Castors (4 of) H=125mm (C2) 818899905
Set of legs (4 pieces), H=135/200mm (L2) 818899926
Legs stainless (4 of), H=100/130mm (L1) 818899928
Set of castors (4 of) H 110mm (C1) 818899933
Stainless shelf (400 x 600mm) excluding supports 818979907
