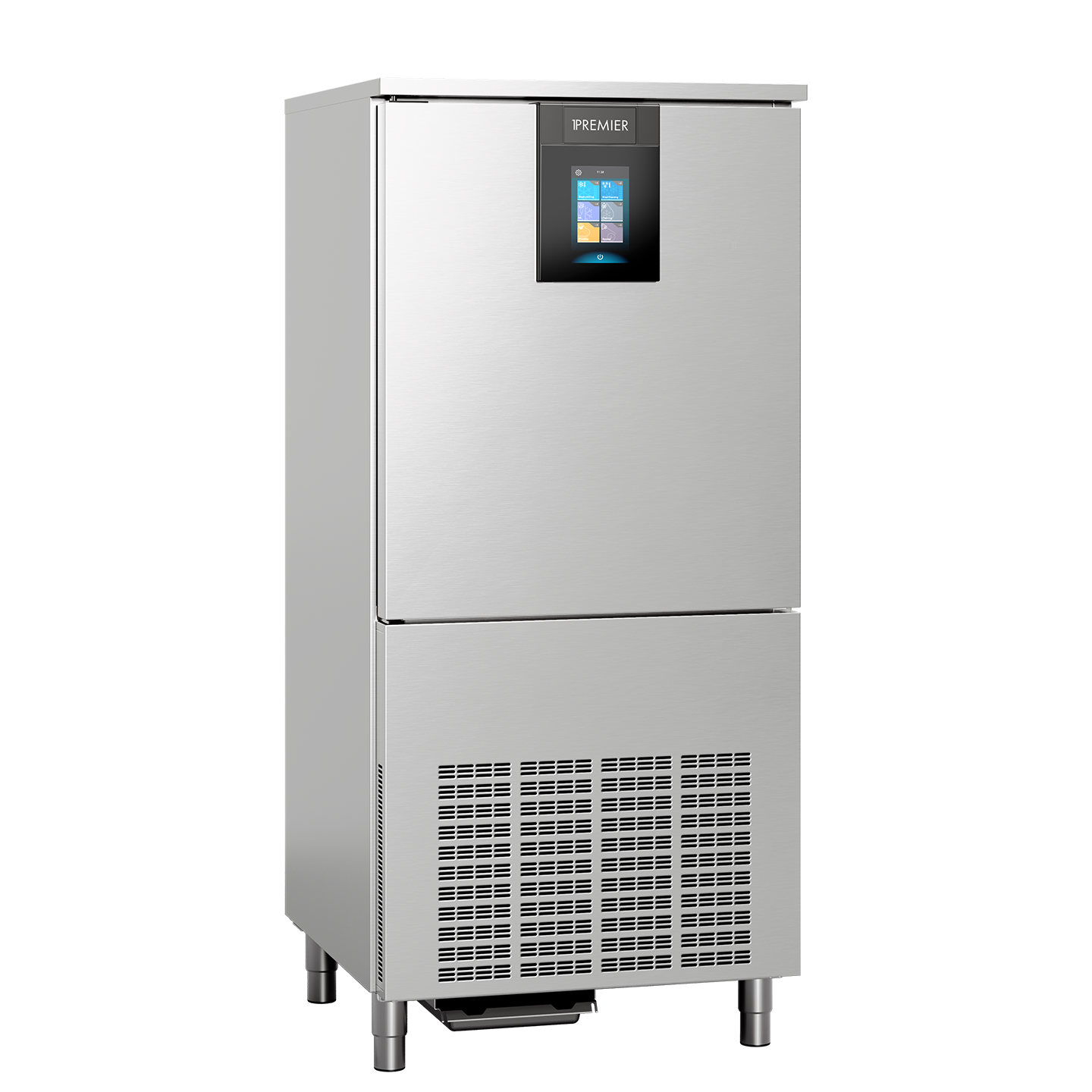

PREMIER KPS 42 SF Blast Chiller/Freezer for remote cooling system
875809959

Read more
The GRAM KPS 42 SH R is a Blast Chiller/Freezer for Rational oven.
The GRAM KPS series has been designed to cover all regulations around the perfectly hygienic transition from cooking to chilling your valuable produce.
External equipment
Top positioned LCD control panel with encoder wheel
Right hand hinged reversible and self-closing door
Legs H 150 mm
Internal equipment
IFR control system
Multipoint probe with 3 measuring points
Removable wire rack for 1/1 GN and 40 x 60 cm
Max. Number of trays: 10
Cabinet fitted with an internal condensate tray
Removable magnetic door gasket
Food Safe
Food items are handled in full compliance with the HACCP guidelines.
Automatic shift to ‘storage mode’ after the chilling/freezing process. If a power failure occurs or when a temperature limit is exceeded this will activate an audio-visual alarm (HACCP alarms).
The internal fan section can be opened for cleaning around and behind the
unit.
High Food Quality
The use of IFR function protects against surface freeze damage. Operates as a storage cabinet after the chilling/freezing process has finished. Taste, texture, appearance as well as vitamins and nutrient content are preserved.
Versatility
Offers different operational modes: IFR operation, time or temperature controlled chill cycle.
Up to 20 customized cycles can be stored.
Specification | Value |
Item number | 865780560 |
Model name | KPS 42 SH R |
Brand | Hoshizaki |
Title | Blast Chiller/Freezer for Rational oven |
Please observe | This model is available as a single phase unit. 230 V, 50 Hz - 30 amp fuse |
Width | 800 mm |
Depth | 830 mm |
Height | 1850 mm |
Energy consumption - Chilling (kWh/kg) | 0.13 kWh/kg |
Energy Consumption - Freezing (kWh/kg) | 0.4 kWh/kg |
Compatible with | Rational oven SCC101 |
Connection load | 4000 kW |
Exterior | Stainless Steel |
Interior | Stainless |
Gross weight | 225 kg |
Insulation thickness | 75 mm |
Insulation type | Cyclopentane |
Power supply | 400V, 3N-/50 Hz |
Sound level | 72 dB |
Temperature range | -25/+10°C |
Volume, gross | 195 l |
Chilling capacity | 45 |
Freezing capacity | 27 |
Refrigeration capacity | 2011 |
CO2 equivalent | 4282 kg |
GWP | 2141 GWP |
Refrigerant | 2 kg |
Refrigerant type | attOpt_R452a |
SKU | 865780560 |
