KPS 21 SH U BLAST CHILLER/FREEZER

Blast chillers / freezers

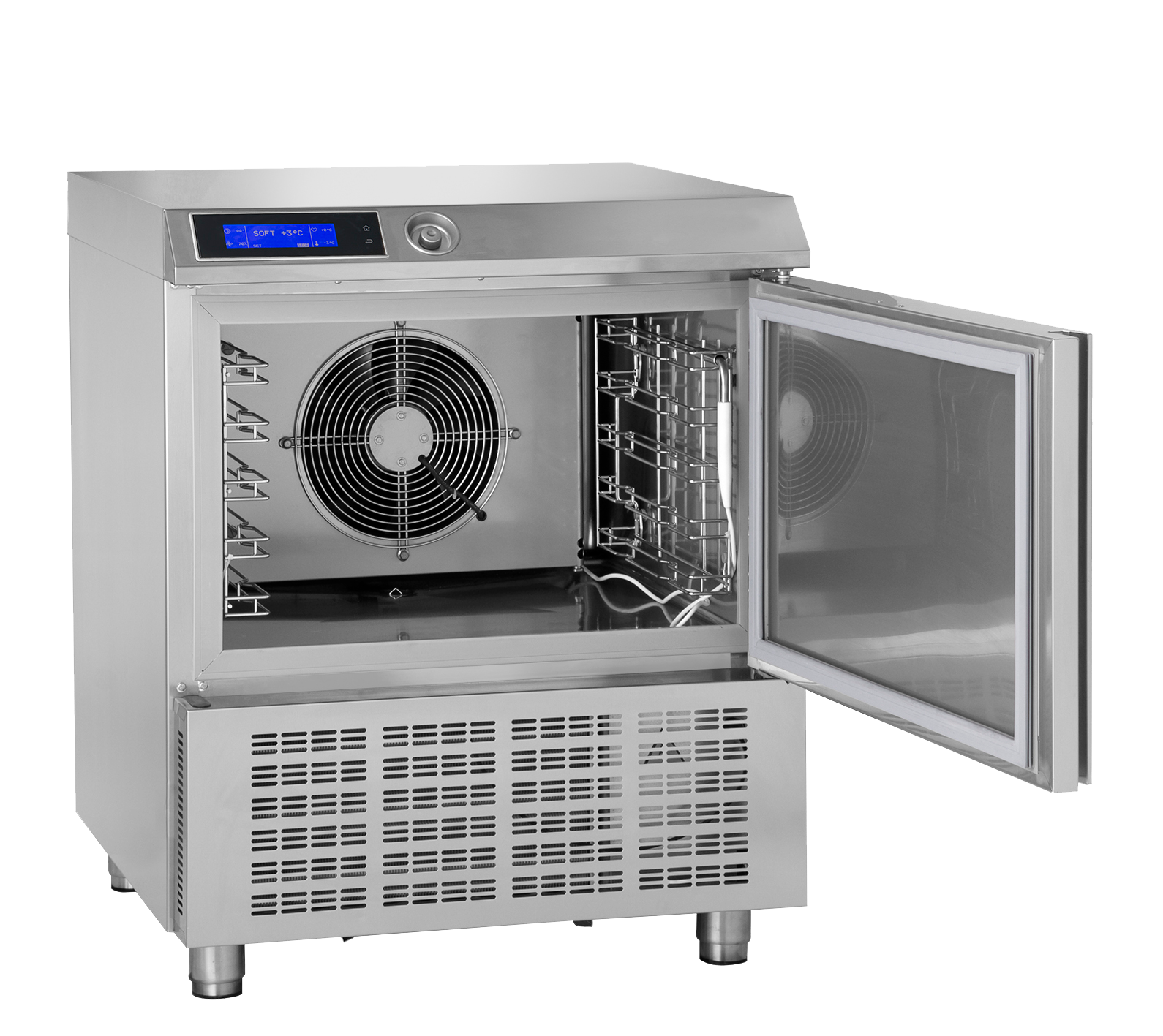

The GRAM KPS 21 SH U is a BLAST CHILLER/FREEZER.



The GRAM KPS series has been designed to cover all regulations around the perfectly hygienic transition from cooking to chilling your valuable produce.

Product not available
Get quote View spec sheet

Key features

External equipment

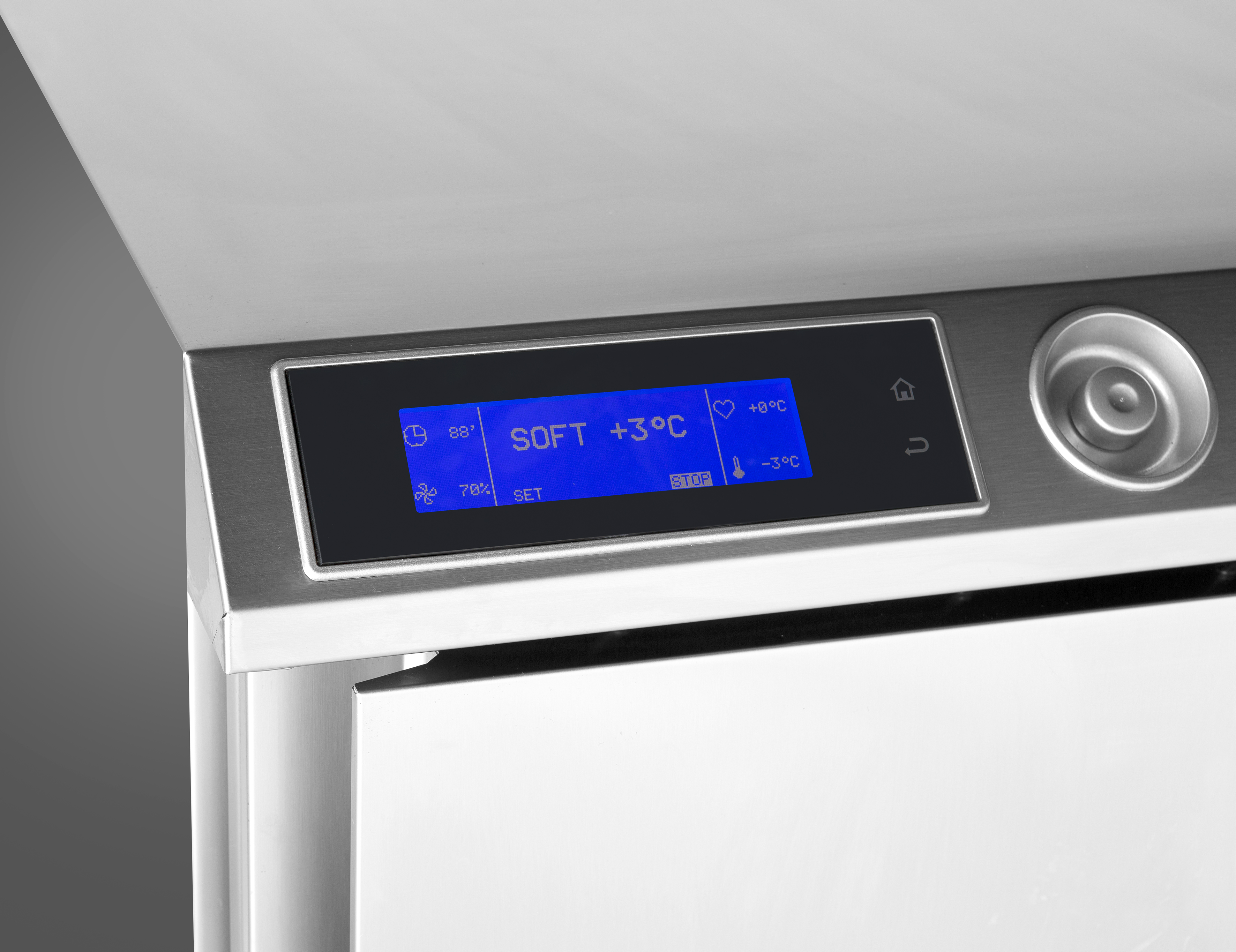

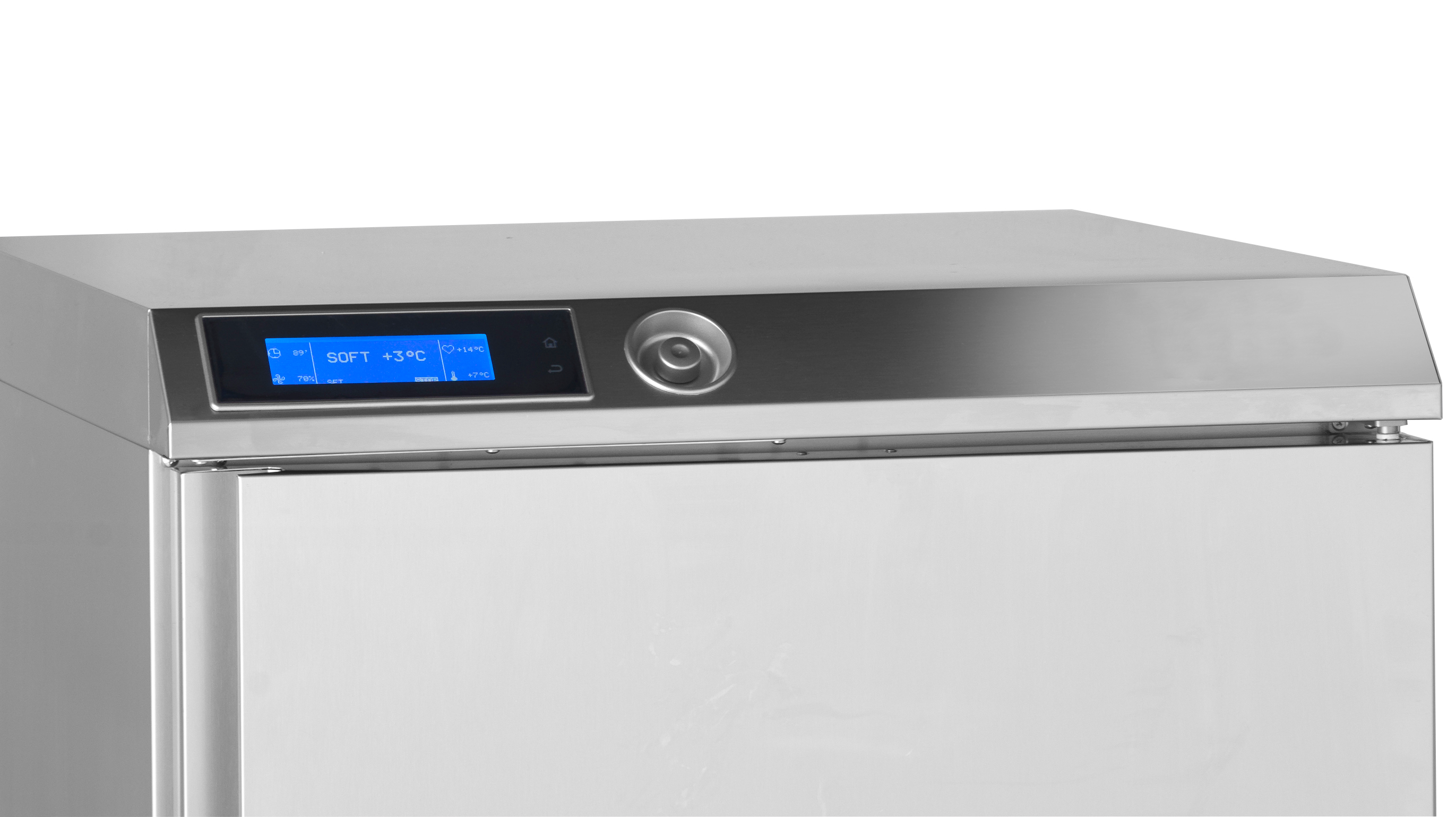

Top positioned  LCD control panel with encoder wheel

Right hand hinged door

Legs



Internal equipment

IFR control system

Multipoint probe with 3 measuring points

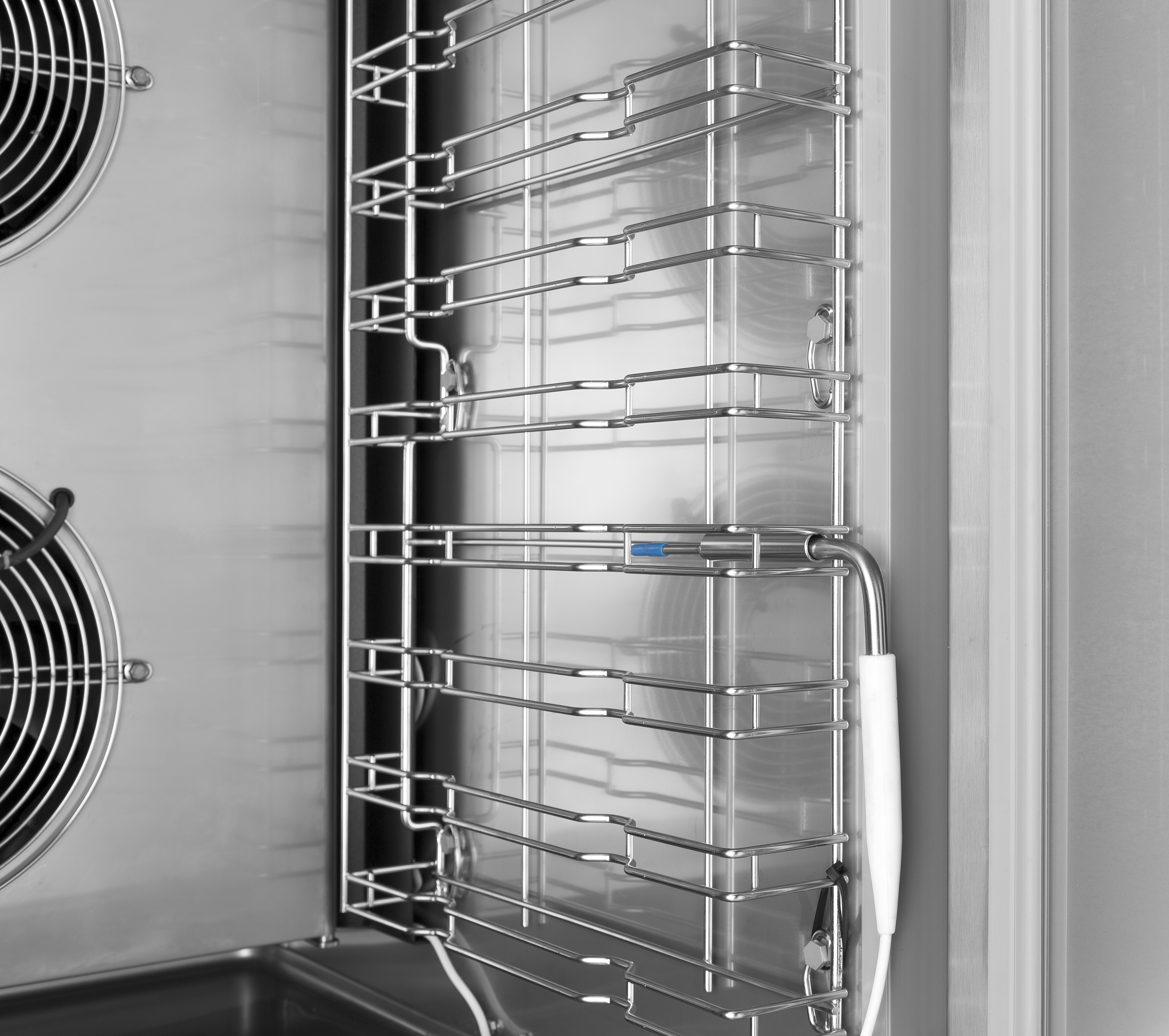

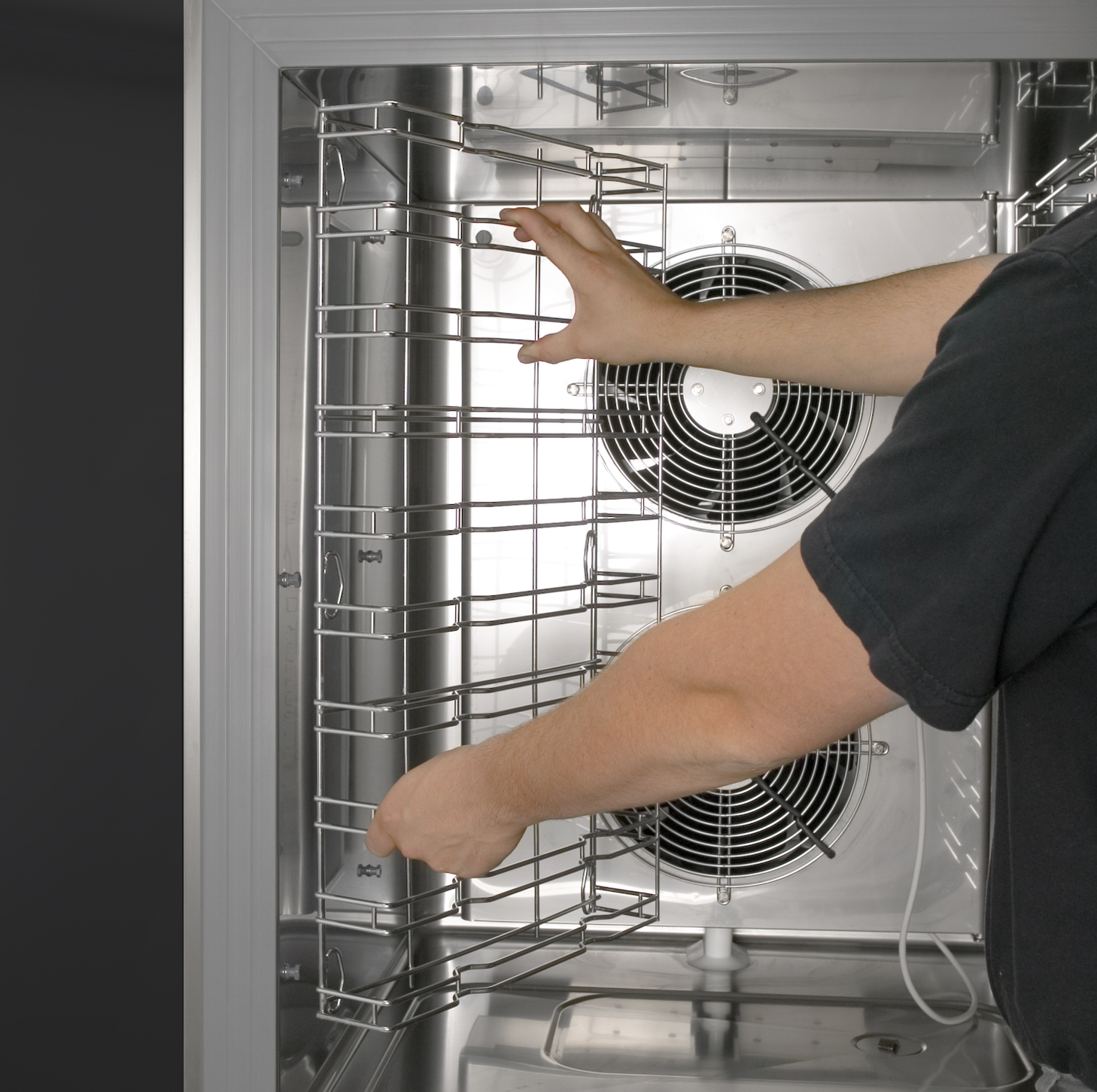

Removable wire rack for 1/1 GN and 40 x 60 cm

Max. Number of 1/1 GN 40 mm deep: 5

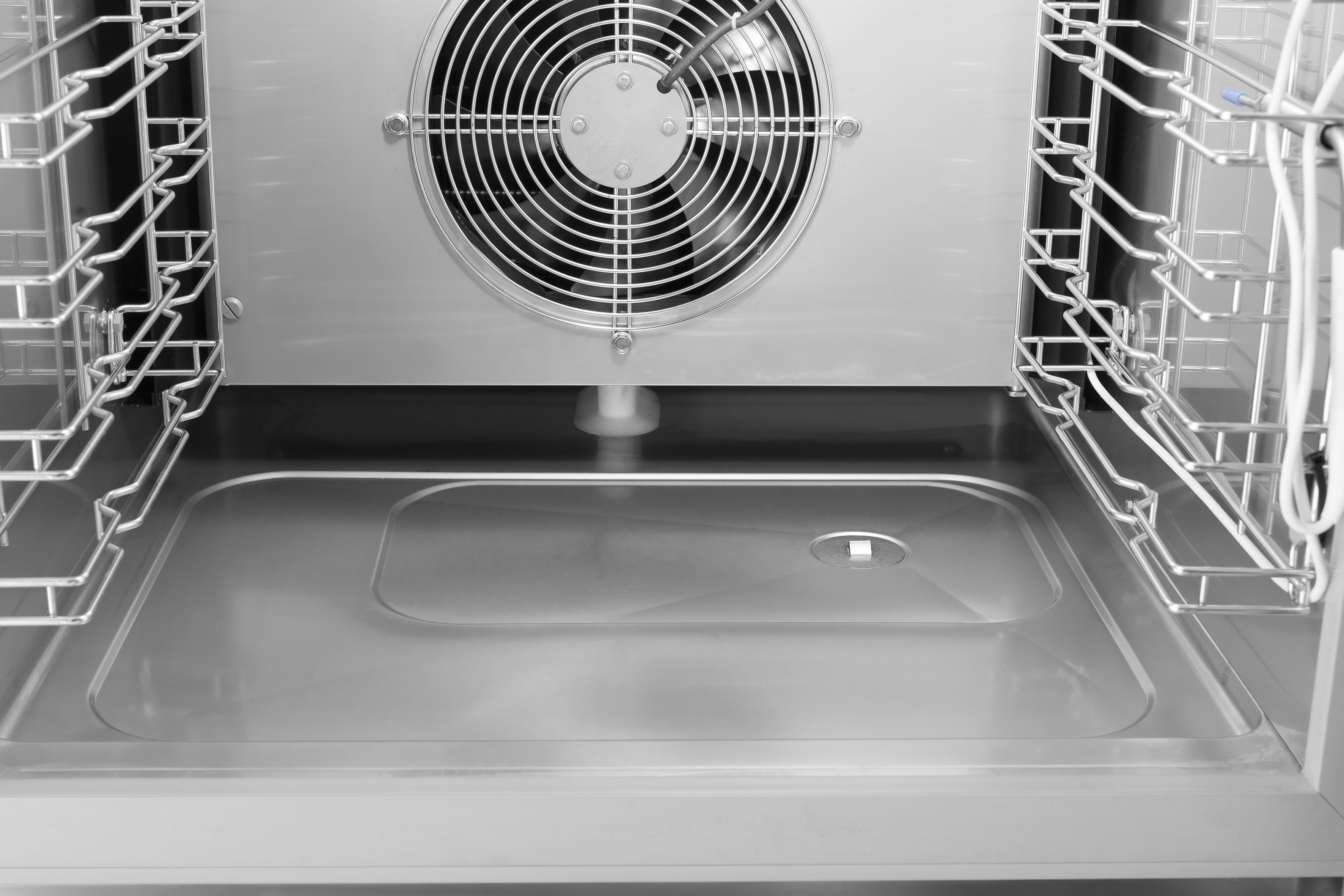

Cabinet fitted with an internal condensate tray

Removable magnetic door gasket



Food Safe

Food items are handled in full compliance with the HACCP guidelines.

Automatic shift to ‘storage mode’  after the chilling/freezing process.

If a power failure occurs or when a temperature limit is exceeded this will activate an audio-visual alarm (HACCP alarms).

The internal fan section can be opened for cleaning around and behind the unit.



High Food Quality

The use of IFR function protects against surface freeze damage.

Operates as a storage cabinet after the chilling/freezing process has finished.

Taste, texture, appearance as well as vitamins and nutrient content are preserved.



Versatility

Offers different operational modes: IFR operation, time or temperature controlled chill cycle.

Up to 20 customized cycles can be stored.

Specifications

Specification Value
Item number 865780553
Model name KPS 21 SH U
Brand Hoshizaki
Title BLAST CHILLER/FREEZER
Width 745 mm
Depth 720 mm
Height including legs (minimum) 820 mm
Height including legs (maximum) 900 mm
Energy consumption - Chilling (kWh/kg) 0.08 kWh/kg
Energy Consumption - Freezing (kWh/kg) 0.3 kWh/kg
Connection load 1400 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 130 kg
Insulation thickness 60 mm
Insulation type Cyclopentane
Power supply 230V, 50Hz
Sound level 65 dB
Temperature range -25/+10°C
Volume, gross 90 l
Chilling capacity 22
Freezing capacity 13
Refrigeration capacity 947
CO2 equivalent 2997.4 kg
GWP 2141 GWP
Refrigerant 1.4 kg
Refrigerant type attOpt_R452a
SKU 865780553

Documentation

Documentation
DWG files Download
Declaration of conformity Download
Instruction manual Download
765072800_Wiring_Diagram_KPS_21.pdf Download
