860180030

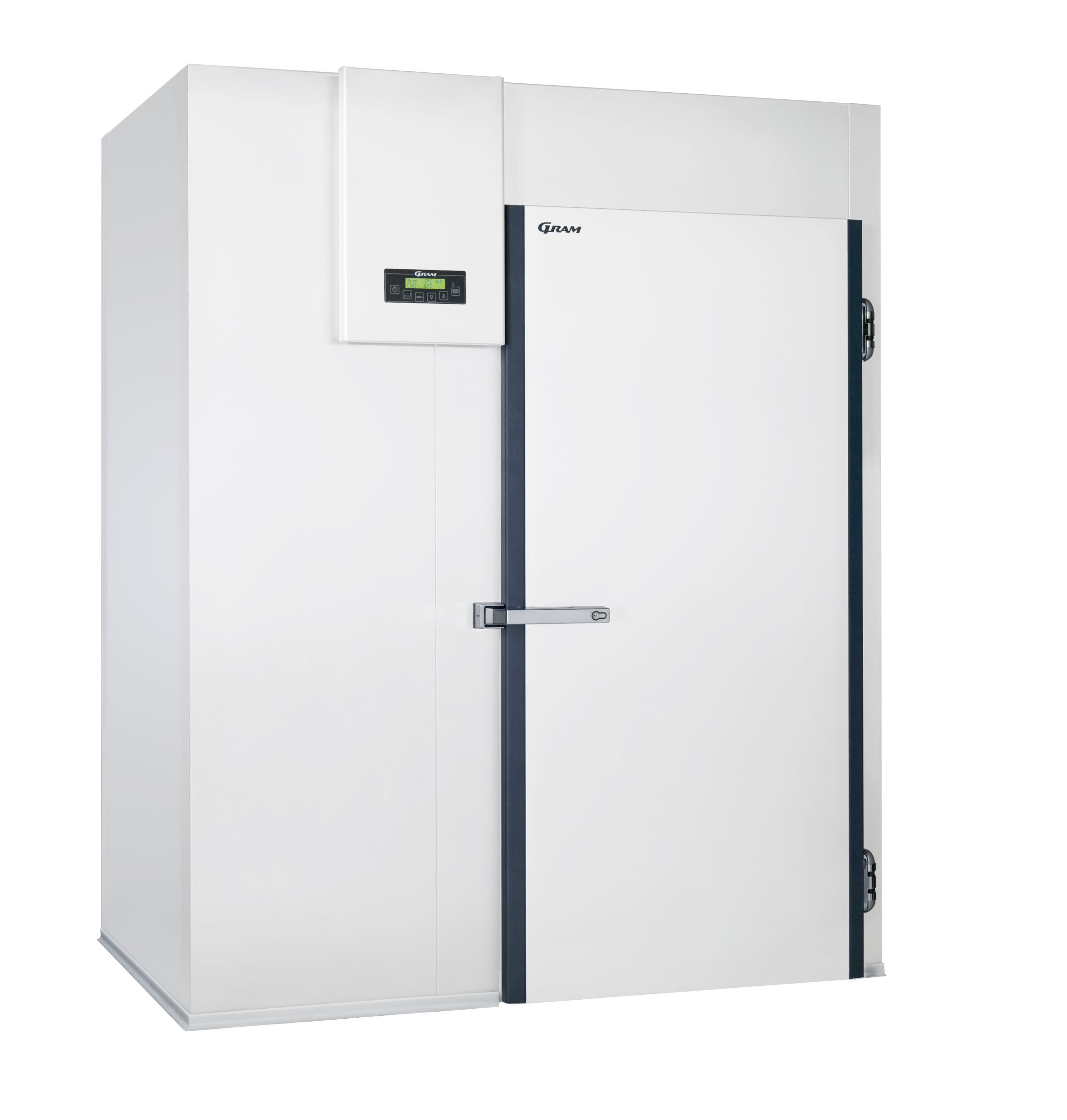

KPS 180 SF LS B

Blast chillers / freezers

The GRAM KPS 180 SF LS B is a with an internal net volume of 0 Ltr.



The GRAM KPS series has been designed to cover all regulations around the perfectly hygienic transition from cooking to chilling your valuable produce.

Product not available
Get quote View spec sheet

Key features

Food Safe

Food items are handled in full compliance with the HACCP guidelines. HACCP alarms and an automatic shift to ‘storage mode’ are useful extras to help you to ensure the highest food safety at all times.



High Food Quality

Taste, texture, appearance as well as vitamins and nutrient content are preserved. The use of IFR function also protects against surface freeze damage.



Versatility

Offers different operational modes: IFR operation, time or temperature controlled chill cycle. Up to 20 customized cycles can be stored.



Modularity and Scalability

Available as reach-in, roll-in or roll-through models for small or big scale operations. Part delivery or turn key.

Specifications

Specification Value
Item number 860180030
Model name KPS 180 SF LS B
Brand Gram
Please observe It is necessary to connect this unit to an external drain. The product is delivered unassembled, in parts on two pallets.
Width (packed) 1800 mm
Width inside 1041 mm
Depth (packed) 1326 mm
Depth inside 1000 mm
Height (packed) 2235 mm
Height inside 1900 mm
Energy consumption - Chilling (kWh/kg) 0.1 kWh/kg
Energy Consumption - Freezing (kWh/kg) 0.24 kWh/kg
Product availability -- Not available
Connection load 1946 kW
Exterior White Finish
Interior Stainless
Gross weight 285 kg
Insulation thickness 100 mm
Insulation type Cyclopentane
Power supply 230V, 50Hz
Temperature range -25/+10°C
Chilling capacity 180
Freezing capacity 180
Refrigeration capacity 11500
GWP 3922 GWP
Refrigerant type Standard remote model prepared for R404A. Optionally can be prepared for R407A/R407F/R448A/R449A/R452A/R455A
SKU 860180030

Documentation

Documentation
DWG files Download
Declaration of conformity Download
765041176_001.pdf Download
Instruction manual Download
6686222.pdf Download
765072825_Wiring_Diagram_KPS_120_180_SF.pdf Download
