E1FB-D002

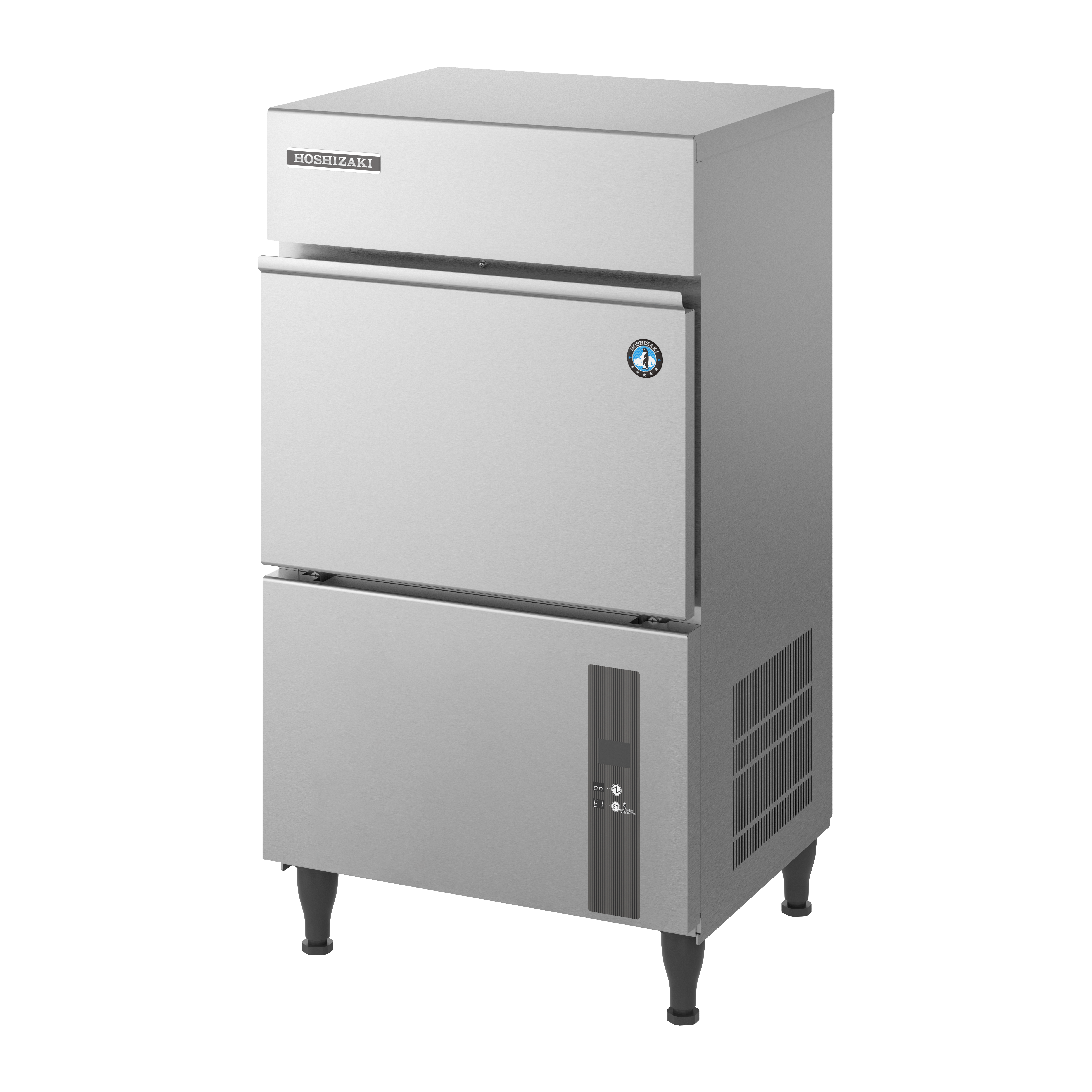

IM-45WNE Cuber, Self Contained

Ice makers

This Hoshizaki IM-45WNE is a self contained cube ice maker producing up to 47 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.



All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Get quote View spec sheet

Key features

The IM-45WNE uses refrigerant R134a.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process.

Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-45WNE is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

With outside dimensions W x D x H of 503 x 456 x 840 mm,  the IM-45WNE is compact and is a perfect fit for small spaces.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number E1FB-D002
Model name IM-45WNE
Brand Hoshizaki
Product configuration Self Contained
Title Cuber, Self Contained
Please observe This type of icemaker is on special order only. Please take longer lead times into consideration.
Width (legs excluded) 503 mm
Depth (legs excluded) 456 mm
Height (legs excluded) 840 mm
Electric Consumption 0.295 kW
Energy consumption 0.295 kWh
Product availability -- Not available
Exterior Stainless Steel
Gross weight 55 kg
Net weight 47 kg
Power supply 1/220 - 240V/50Hz
Storage bin capacity 18 kg
Cooling system Water Cooled
Ice type Large cubes, Standard
Ice production 47
Water consumption - Air cooled ice makers 0.21
CO2 equivalent 229 kg
Refrigerant type R134a
SKU E1FB-D002

Documentation

Documentation
Declaration of conformity Download
Drain_Pump_Installation.pdf Download
Instruction manual Download
Spec sheet Download
Spec sheet Download

Accessories

Accessory name Item number
4HC-H Single 9320-51
4 HC Replacement Cartridge 9655-11
