E1FA

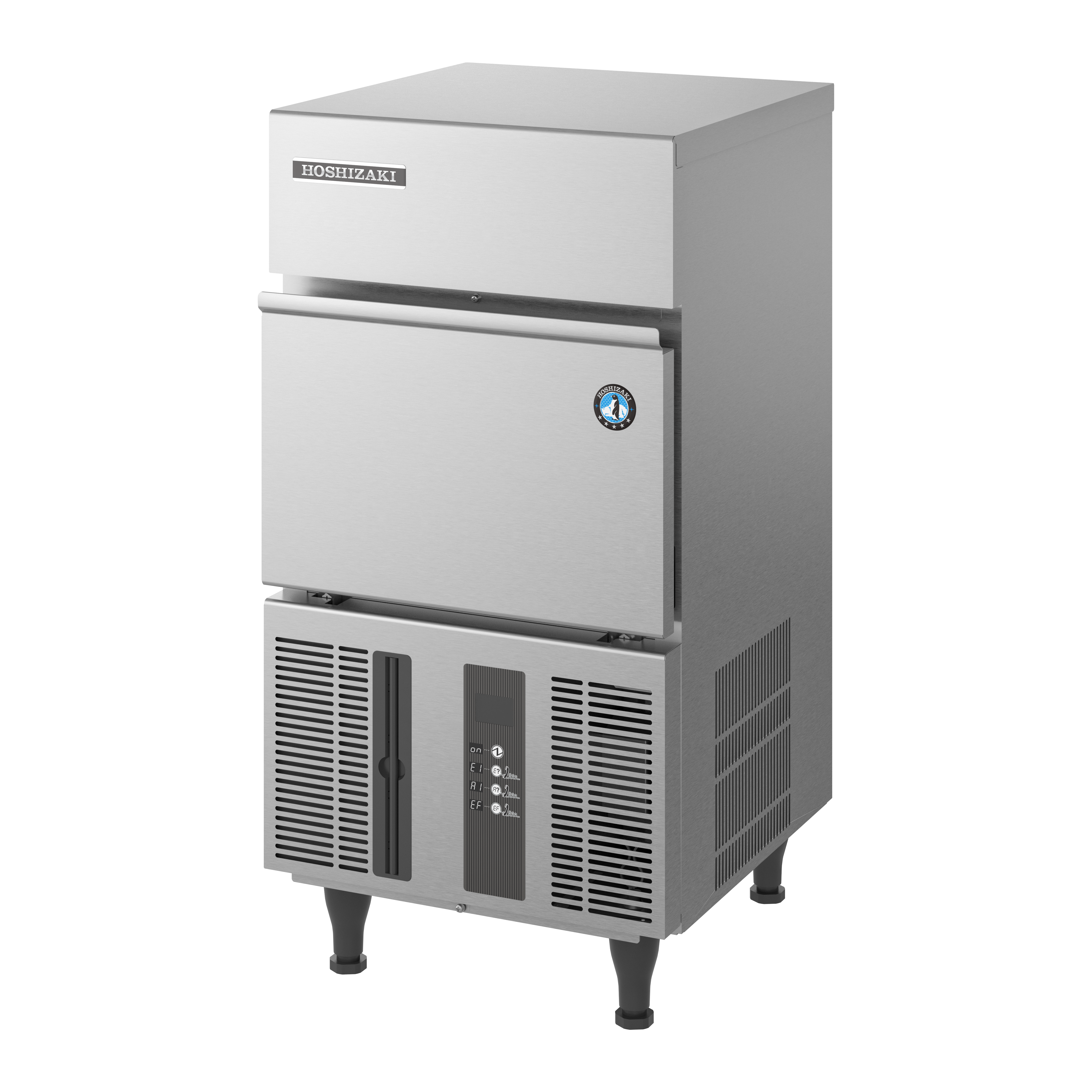

IM-30CNE Cuber, Self Contained

Ice makers

This Hoshizaki IM-30CNE is a self-contained cube ice maker producing up to 28 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.



All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Get quote View spec sheet

Key features

The IM-30CNE uses refrigerant R134a.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process.  Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-30CNE is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

With outside dimensions W x D x H of 398 x 451 x 695 mm,  the IM-30CNE is compact and is a perfect fit for small spaces.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number E1FA
Model name IM-30CNE
Brand Hoshizaki
Product configuration Self Contained
Title Cuber, Self Contained
Please observe This type of icemaker is on special order only. Please take longer lead times into consideration.
Width (legs excluded) 398 mm
Depth (legs excluded) 451 mm
Height (legs excluded) 695 mm
Electric Consumption 0.27 kW
Energy consumption 0.27 kWh
Product availability -- Not available
Exterior Stainless Steel
Gross weight 39 kg
Net weight 34 kg
Power supply 1/220 - 240V/50Hz
Storage bin capacity 11.5 kg
Cooling system Air Cooled
Ice type Large cubes, Standard
Ice production 28
Water consumption - Air cooled ice makers 0.1
Refrigerant type R134a
SKU E1FA

Documentation

Documentation
DWG files Download
Declaration of conformity Download
Drain_Pump_Installation.pdf Download
Instruction manual Download
Spec sheet Download
Spec sheet Download

Accessories

Accessory name Item number
4HC-H Single E1FA
4 HC Replacement Cartridge E1FA
