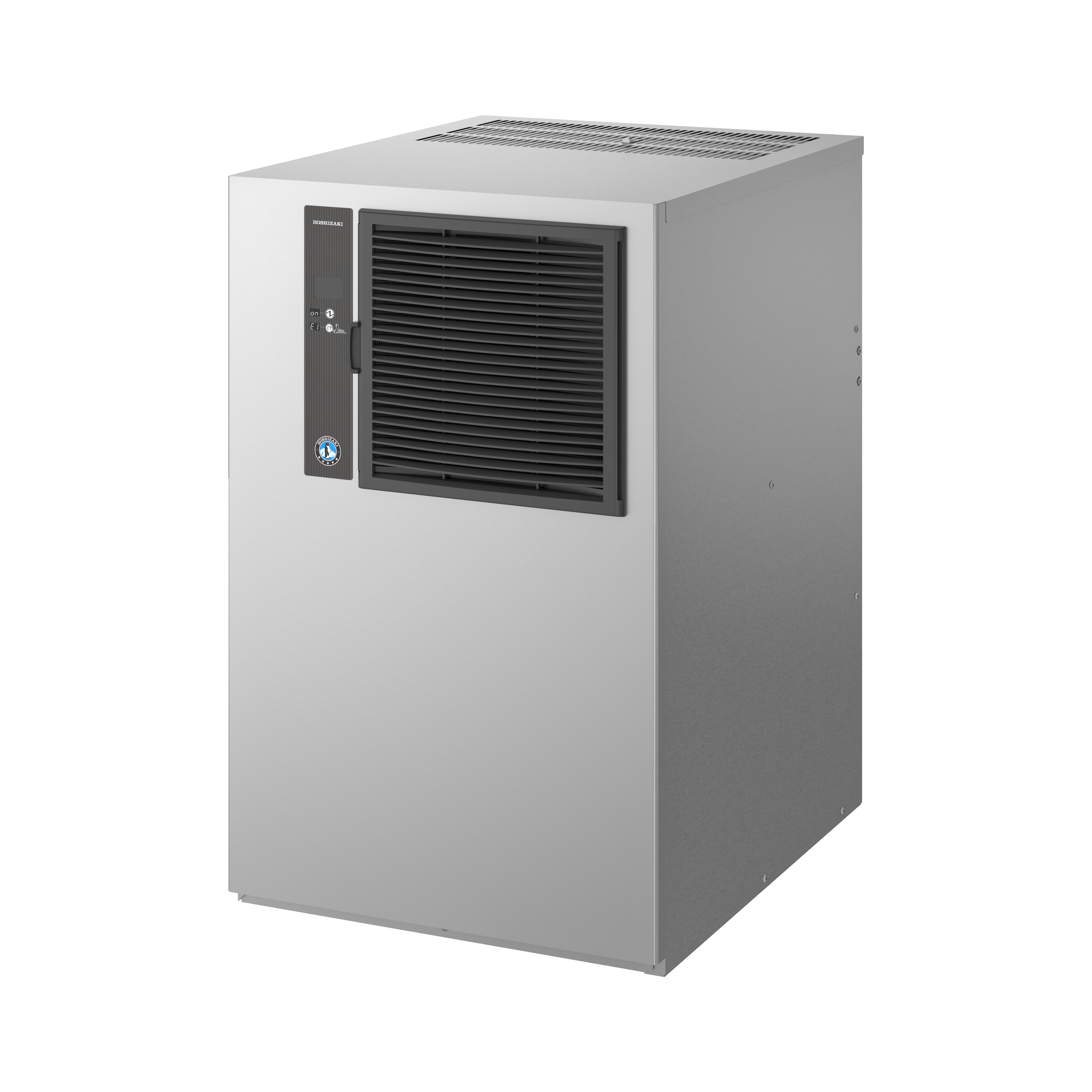

IM-240ANE Cuber, Modular - Hoshizaki Europe B.V.

IM-240ANE Cuber, Modular

<img src="https://hoshizaki.akeneopim.com/public/E1CP/1200x1200/7ce437bb3b4eac295144a146c5742af76c69d981_IM_240ANE_B_301SA_rev02.png" style="max-height: 600px; " />

<img src="https://hoshizaki.akeneopim.com/public/E1CP/0f72c2e504b818aaed36350edc9e72c86fce51bb_IM_240ANE__1h5197_asm.igs_rev01.png" style="max-height: 600px; " />

<img src="https://hoshizaki.akeneopim.com/public/E1CP/600x600/7ce437bb3b4eac295144a146c5742af76c69d981_IM_240ANE_B_301SA_rev02.png" style="max-width: 150px; max-height: 150px; " />

<img src="https://hoshizaki.akeneopim.com/public/E1CP/0f72c2e504b818aaed36350edc9e72c86fce51bb_IM_240ANE__1h5197_asm.igs_rev01.png" style="max-width: 150px; max-height: 150px; " />

Item Number: E1CP

IM-240ANE Cuber, Modular

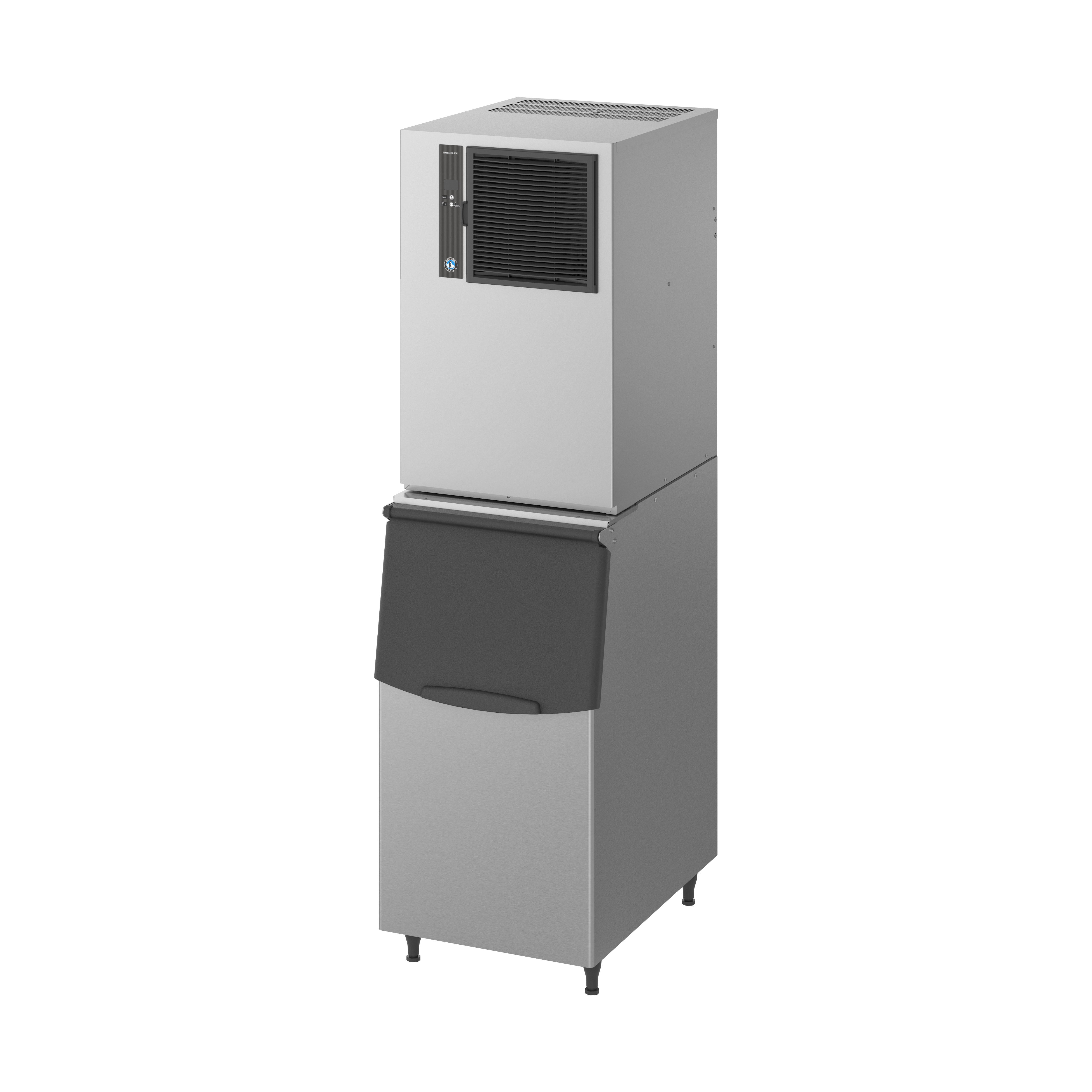

This modular ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water ensuring the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavour of the drink. This model is configured with our storage bins.

<img src="https://hoshizaki-europe.com/wp-content/uploads/2018/11/Catering-icon.png" width="50" title="Catering" alt="Catering" />

<img src="https://hoshizaki-europe.com/wp-content/uploads/2018/11/Education-icon.png" width="50" title="Education" alt="Education" />

<img src="https://hoshizaki-europe.com/wp-content/uploads/2018/11/Healthcare-icon.png" width="50" title="Healthcare" alt="Healthcare" />

<img src="https://hoshizaki-europe.com/wp-content/uploads/2018/11/Hospitality-icon.png" width="50" title="Hospitality" alt="Hospitality" />

<img src="https://hoshizaki-europe.com/wp-content/uploads/2018/11/Leisure-icon.png" width="50" title="Leisure" alt="Leisure" />

<img src="https://hoshizaki-europe.com/wp-content/uploads/2018/11/Marine-icon.png" width="50" title="Marine" alt="Marine" />

View spec sheet Get Quote Add to compare

Compare

Categories: Ice, Ice Makers, Cubers

Unique ice making system that has an automatic rinse cycle. After every new batch of ice, the water reservoir drains and refills with fresh water.
System comes with a magnetic water pump that has no direct coupling, which prevents any leakage.
Closed water circuit offers the ultimate contamination protection, by reducing the number of points at which impurities can enter the ice making process.
Electronically controlled to ensure an optimised ice making process under varying circumstances without the need for physical adjustments. Quality of ice is always consistent.
Easily cleanable air filter allows end-users to carry out routine cleaning schedules. Extends product life expectancy and reduces the frequency and costs of maintenance call-outs.

Product Series	IM
Model name	IM-240ANE
Item Number	E1CP
Product Title	Cuber, Modular
Market Segment	Catering, Education, Healthcare, Hospitality, Leisure, Marine
Production Capacity (KG/24H) approx.	240
Electric Connection Load (kW)	1.32
Electric Connection	1/220 – 240V/50Hz
Outside Dimensions W x D x H (mm)	560 x 700 x 880
Ice Type	L Cube – standard
Refrigerant	R404A
CO2 Equivalent (kg)	1882
Cooling System	Air Cooled
Product Configuration	Modular
Net Weight (kg)	80
Gross Weight Packed (kg)	95
Corresponding bin(s)	B301SA, B501SA, B801SA

Spec Sheet	Download
Instruction Manual	Download
Installation Manual	Download
Main product image	Download
