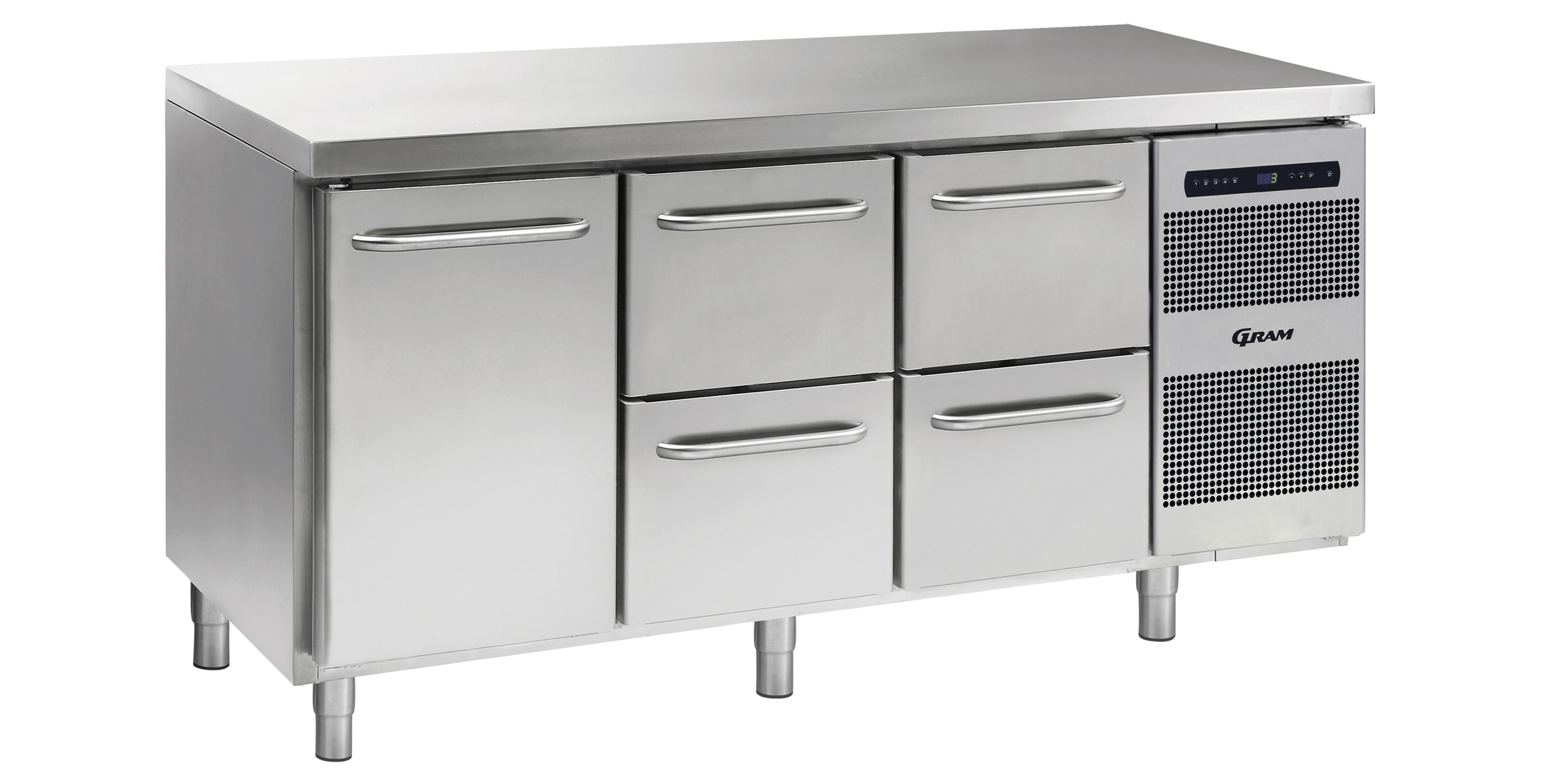

The GRAM GRAM GASTRO K 1807 CSG A DL/2D/2D L2 is a with a net internal volume of 262 Ltr.
GRAM Gastro 07 is a series of 1/1 GN workstations, equipped with customizable sections. Furthermore, the highly modular refrigerated counter offers an abundance of practical configuration possibilities.
Temperature Control
Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.
This includes rapid temperature recovery after every door opening.
Modularity & Scalability
With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.
Easy Maintenance
A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.
High Standard in Hygiene
Allergy-Proof
Counters are made from nickel-free stainless steel.
Ergonomic and practical design
Specification | Value |
Item number | 951800502 |
Model name | GRAM GASTRO K 1807 CSG A DL/2D/2D L2 |
Brand | Gram |
Equipped with | Stainless steel solid top, 1 door section with 2 stainless wire shelves and 2 drawer sections each with 2 x 1/2 drawers |
Width | 1726 mm |
Depth | 700 mm |
Height including legs (minimum) | 885 mm |
Height including legs (maximum) | 950 mm |
Energy consumption | 579 kWh |
Energy efficiency class | A |
Energy Efficiency Index (EEI) | 23.55 EEI |
Number of shelves | 2 |
Shelf size | 1/1 GN |
Product availability | -- Not available |
Climate class | 5 (max. ambient 40°C w/ 40% RH) |
Connection load | 190 kW |
Exterior | Stainless Steel |
Interior | Stainless |
Gross weight | 158 kg |
Insulation thickness | 50 mm |
Insulation type | Cyclopentane |
Legs / Castors | H = 135-200 mm (L) |
Net usable volume | 262 l |
Net weight | 158 kg |
Power supply | 230V, 50Hz |
Temperature range | +2/+12°C |
Volume, gross | 506 l |
Volume, net | 262 l |
Door Type | Solid Door |
Refrigeration capacity | 406 |
CO2 equivalent | 0.291 kg |
GWP | 3 GWP |
Refrigerant | 0.097 kg |
Refrigerant type | R290 |
SKU | 951800502 |
