951420021

GRAM GASTRO F 1407 CSG A DL/DR L2

Freezer counters
C

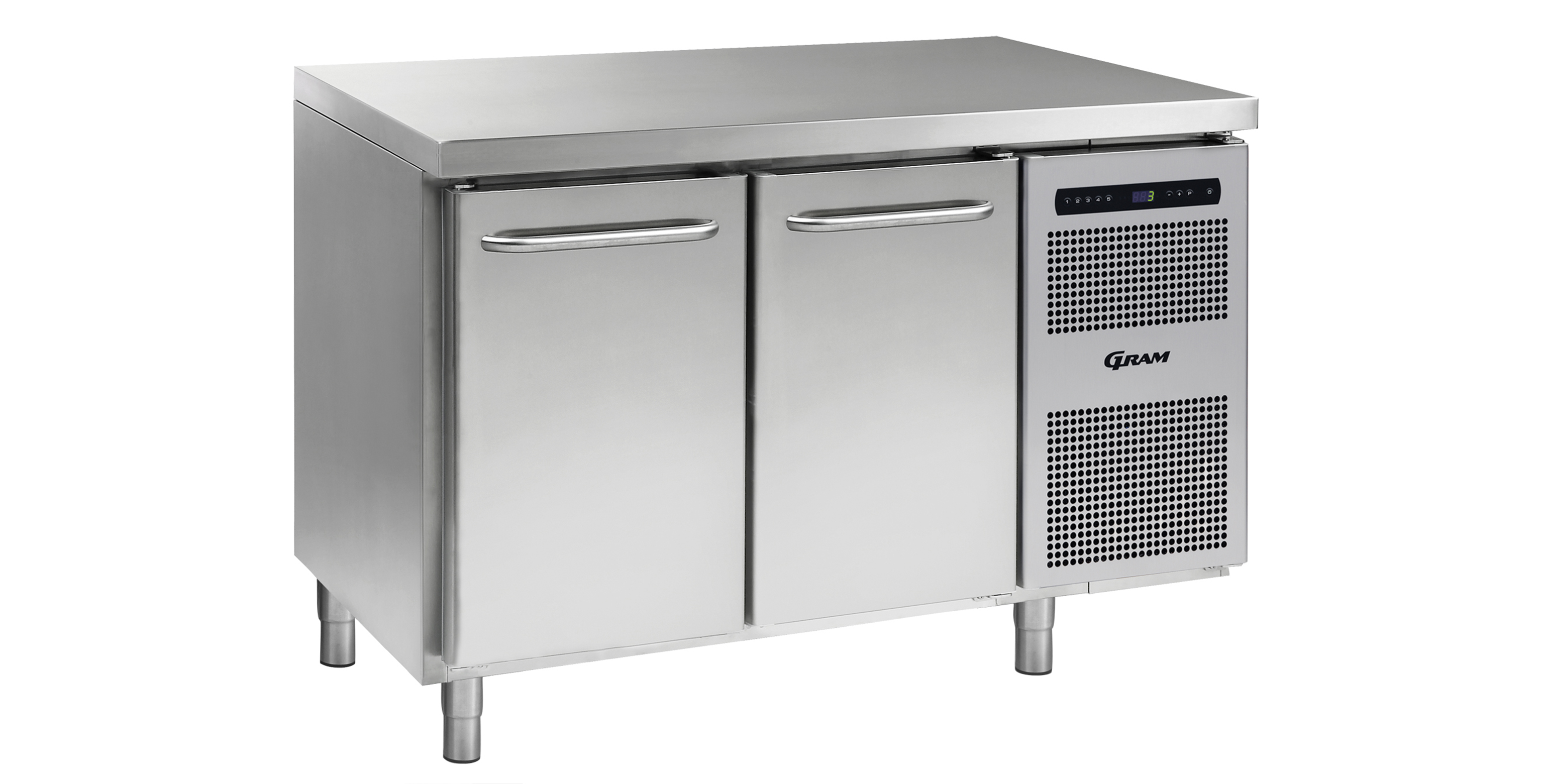

The GRAM GRAM GASTRO F 1407 CSG A DL/DR L2  is a with a net internal volume of  192 Ltr.



GRAM Gastro 07 is a series of 1/1 GN workstations, equipped with customizable sections. Furthermore, the highly modular refrigerated counter offers an abundance of practical configuration possibilities.



Product not available
Get quote View spec sheet

Key features

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.



Easy Maintenance

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick and thorough cleaning.
  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.
  • Removable drawer and door gaskets for easy cleaning.
  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

  • Anti-tilt shelves and drawers with pull-out stop.

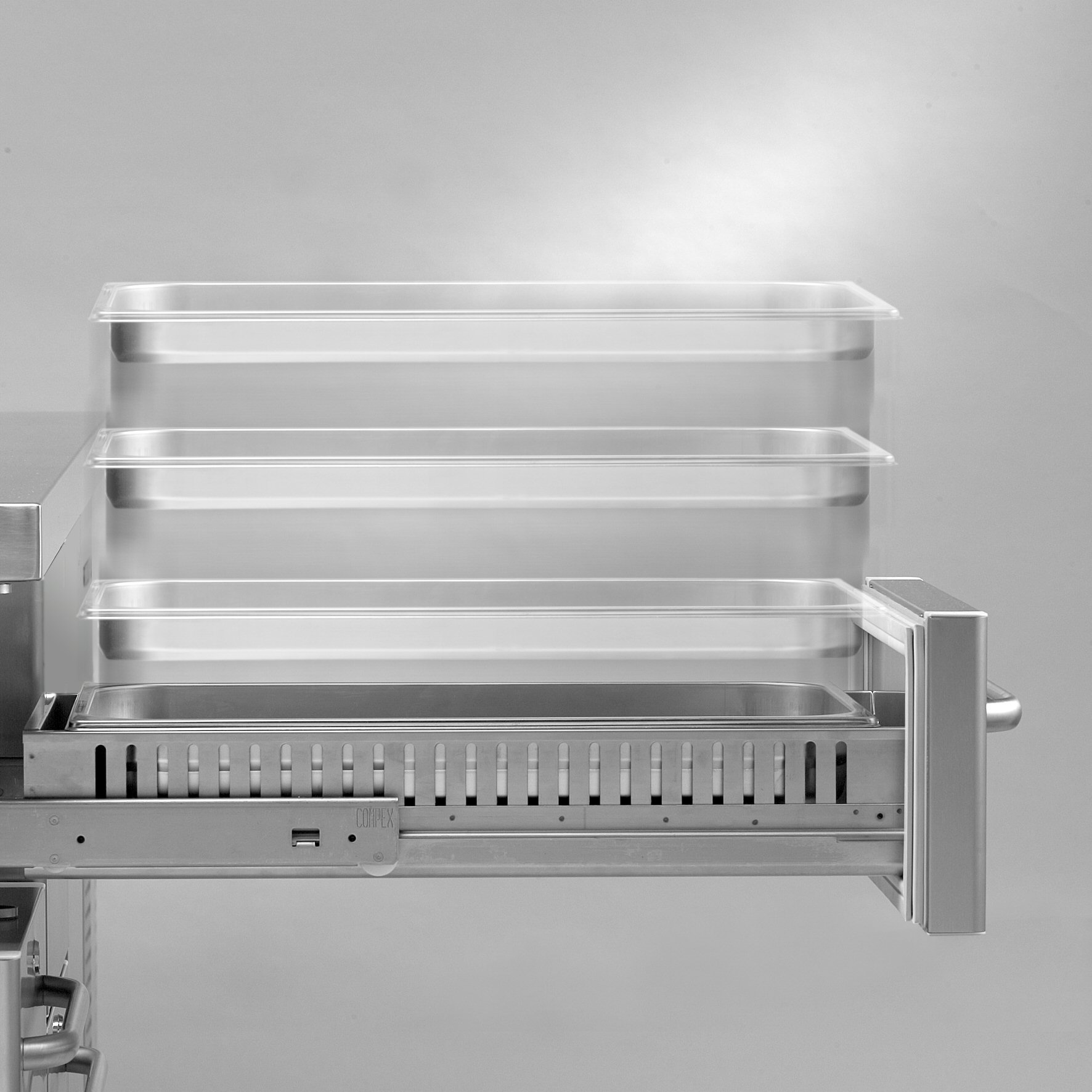

  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without tilting.



Specifications

Specification Value
Item number 951420021
Model name GRAM GASTRO F 1407 CSG A DL/DR L2
Brand Gram
Equipped with Stainless steel solid top, 2 door sections each with 2 stainless shelves
Width 1289 mm
Depth 700 mm
Height including legs (minimum) 885 mm
Height including legs (maximum) 950 mm
Energy consumption 1638 kWh
Energy efficiency class C
Energy Efficiency Index (EEI) 46.79 EEI
Number of shelves 4
Shelf size 1/1 GN
Product availability -- Not available
Climate class 4 (max. ambient temp. of 30 °C with 55% RH)
Connection load 350 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 140 kg
Insulation thickness 50 mm
Insulation type Cyclopentane
Legs / Castors H = 135-200 mm (L)
Net usable volume 192 l
Net weight 140 kg
Power supply 230V, 50Hz
Sound level 46 dB
Temperature range -25/-5°C
Volume, gross 345 l
Volume, net 192 l
Door Type Solid Door
Refrigeration capacity 517
CO2 equivalent 0.15 kg
GWP 3 GWP
Refrigerant 0.05 kg
Refrigerant type R290
SKU 951420021
