861810121

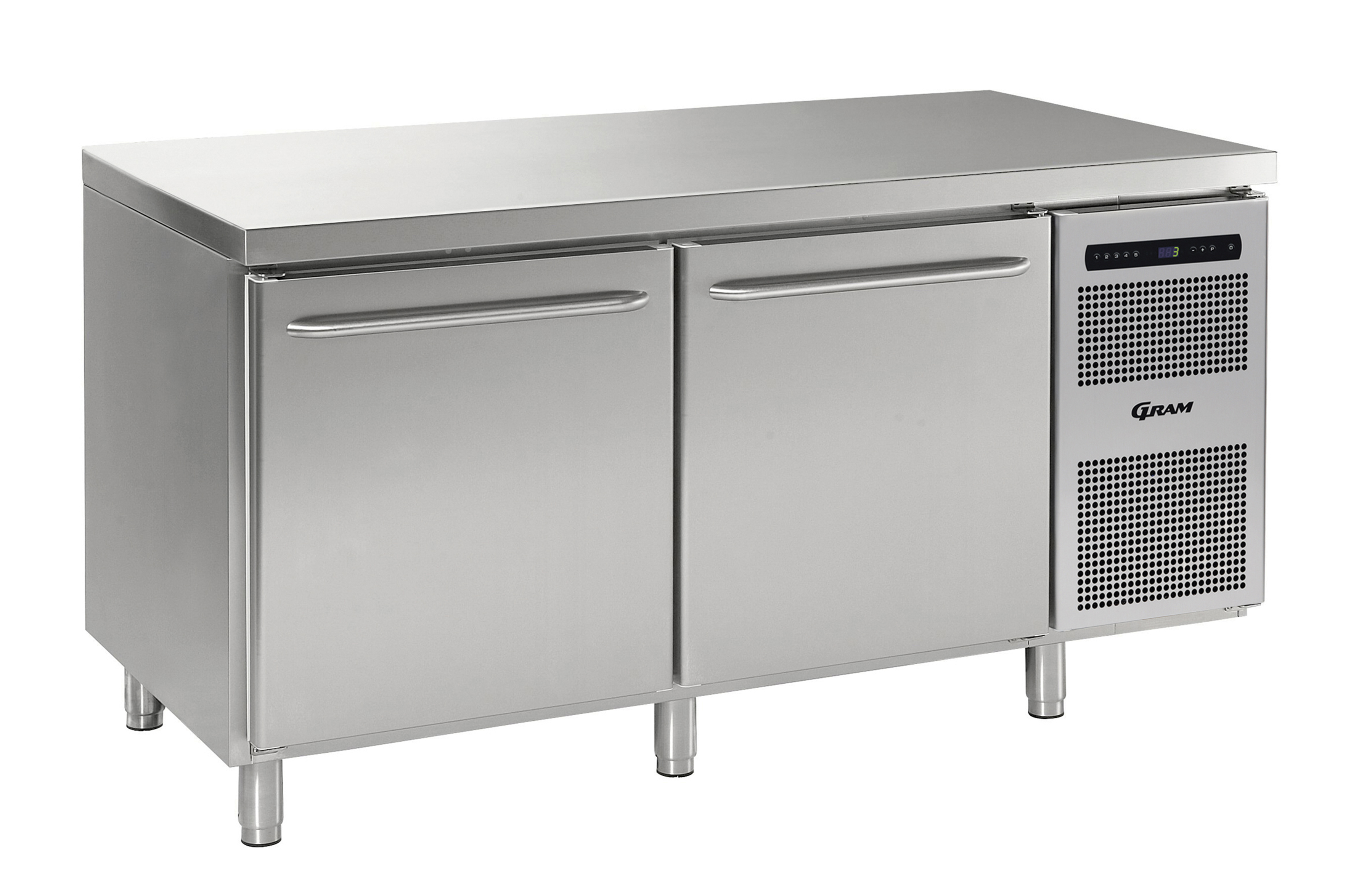

GASTRO M 1808 CSG A DL DR L2

Gastronomy counters
D

The GRAM GASTRO M 1808 CSG A DL DR L2  is a with a net internal volume of  382 Ltr.



The GRAM Gastro 08 series consists of 2/1 GN workstations, all equipped with customizable sections to meet the individual needs of different kitchen environments. Apart from that, the highly modular reach-in or pass-through stations offer further practical configuration possibilities.



Product not available
Get quote View spec sheet

Key features

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

With GRAM GASTRO 08 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges, and accessories.



Easy Maintenance

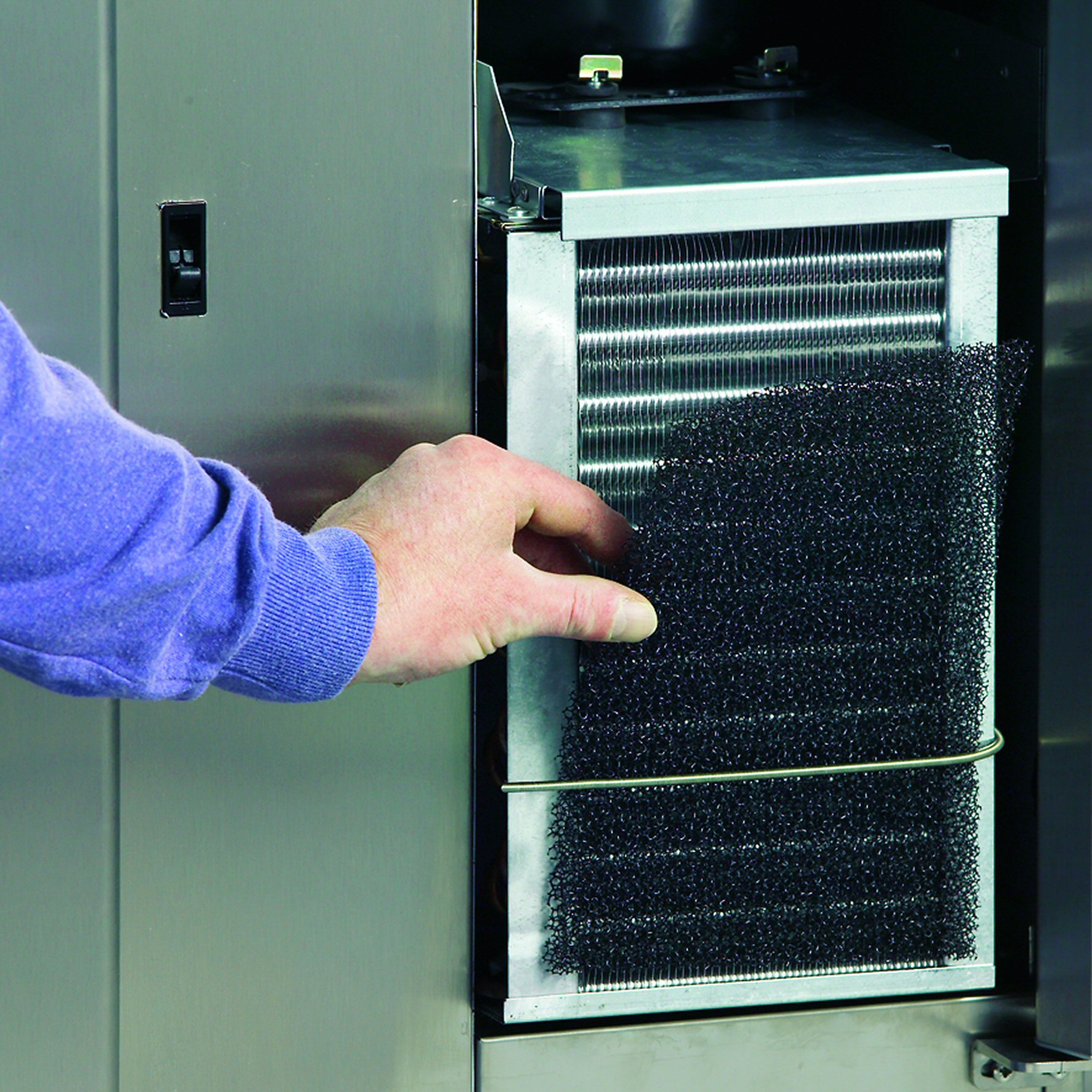

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick, and thorough cleaning.

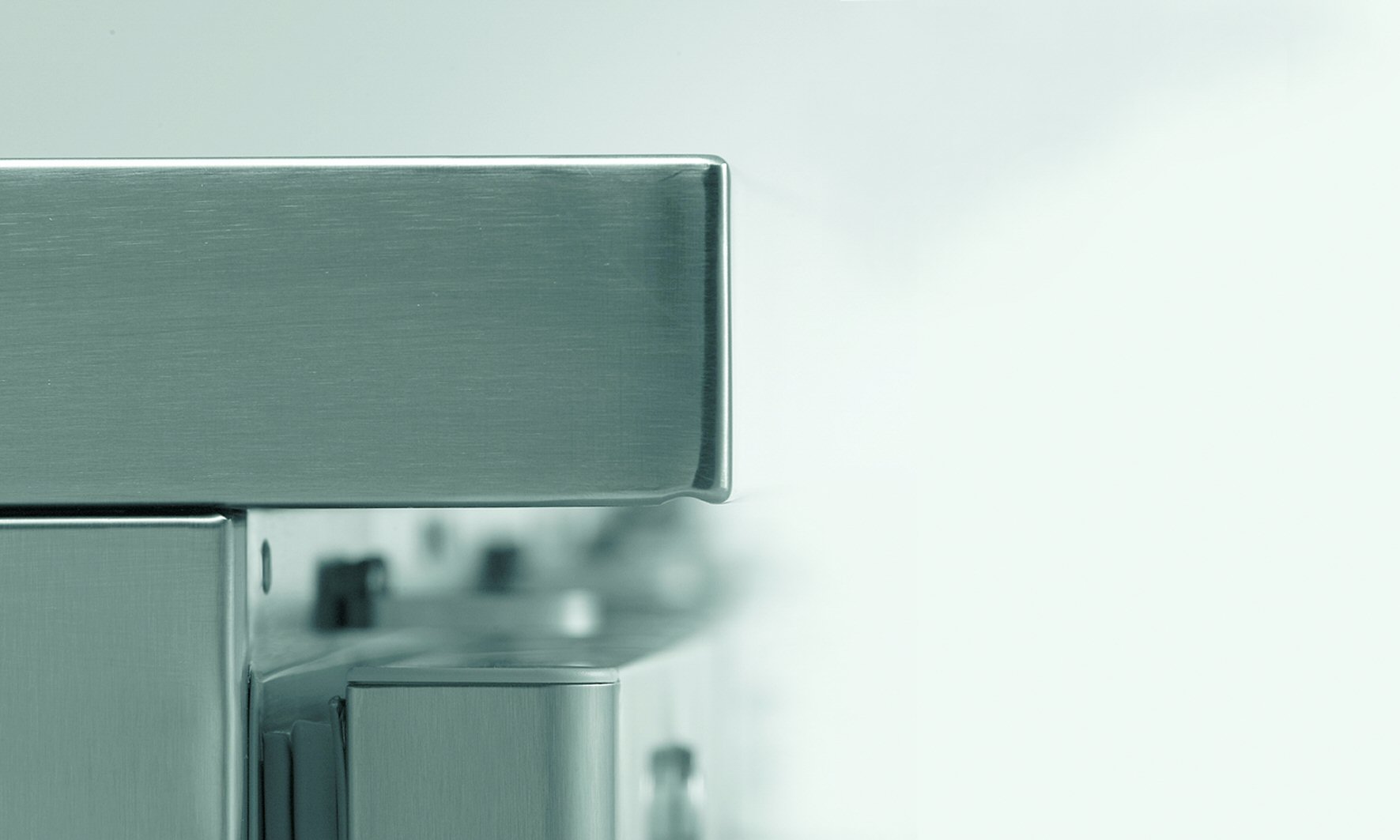

  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.

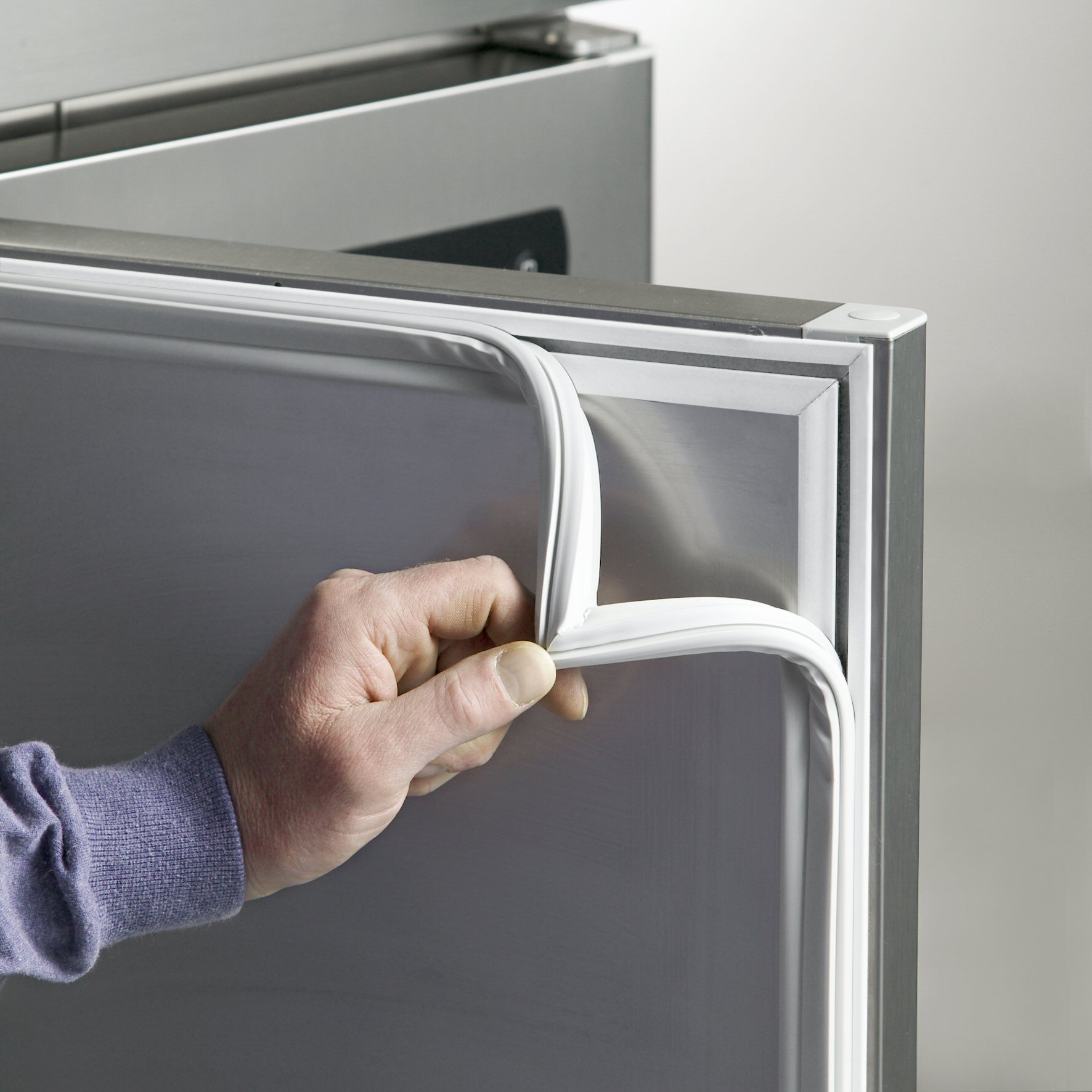

  • Removable drawer and door gaskets for easy cleaning.
  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

  • Anti-tilt shelves and drawers with pull-out stop.
  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without

Specifications

Specification Value
Item number 861810121
Model name GASTRO M 1808 CSG A DL DR L2
Brand Gram
Equipped with Stainless steel solid top, 2 door sections each with 2 stainless shelves
Width 1700 mm
Depth 800 mm
Height including legs (minimum) 885 mm
Height including legs (maximum) 950 mm
Energy consumption 1990 kWh
Energy efficiency class D
Shelf size 2/1 GN deep
Product availability -- Not available
Connection load 370 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 184 kg
Insulation thickness 50 mm
Insulation type Cyclopentane
Legs / Castors H = 135-200 mm (L)
Net usable volume 382 l
Net weight 184 kg
Power supply 230V, 50Hz
Temperature range -5/+12°C
Volume, gross 588 l
Volume, net 382 l
Door Type Solid Door
Refrigeration capacity 345
CO2 equivalent 0.23 kg
GWP 3 GWP
Refrigerant 0.07 kg
Refrigerant type R290
SKU 861810121
