DCM230HE

DCM-230HE-CT Dispenser, Ice & Water

Dispensers

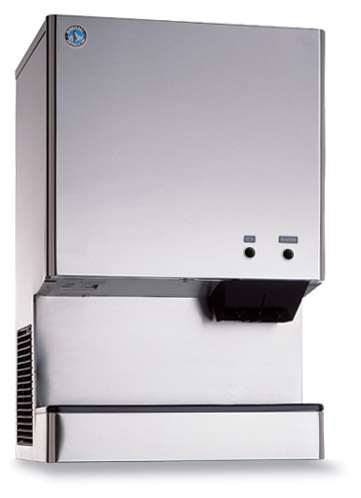

This Hoshizaki DCM-230HE-CT is an ice/water dispenser producing up to 230 kg of high-quality servings of cubelet ice and/or water per 24 hours.  Most commonly, Hoshizaki dispensers are used, where a quick, efficient, and food-safe serving of ice-water combinations is needed.



Dispensers play a crucial role when business owners want to provide ice and/or water for self-service. The three steps of quality ice production, protected ice storage, as well as quick service of ice are all combined in one device – with the help of only one button your refreshment is ready in seconds.



With DCM DISPENSERS the user can select from these options:

• Cubelet ice only

• Cubelet ice and water

• Water only



Product not available
Get quote View spec sheet

Key features

The DCM-230HE-CT uses refrigerant R404A.



Waste Control

Waste control for more sustainability; these dispensers allow intuitive portion control. This helps to regulate the consumption of ice among end-users, reducing overall energy consumption and waste.



Food Safety

As with all Hoshizaki machines, hygiene, food safety, and contamination protection play a major role. Dispensers are operated by consumers directly. In order to eliminate health risks, the machines are designed to never let air or water hit the freshly produced ice, while stored.



Perfect Fit

With outside dimensions W x D x H of 660 x 571 x 1016 mm,  the DCM-230HE-CT is compact and makes a perfect fit for small spaces.  Our dispenser portfolio accommodates suitable appliances for different requirements regarding serving amounts, storage capacity, and space limitations.



Plug&Play

The smart plug-and-play design guarantees an  easy and quick set-up.



Specifications

Specification Value
Item number DCM230HE
Model name DCM-230HE-CT
Product configuration Self Contained
Title Dispenser, Ice & Water
Width (legs excluded) 660 mm
Depth (legs excluded) 571 mm
Height (legs excluded) 1016 mm
Electric Consumption 0.815 kW
Energy consumption 0.815 kWh
Product availability -- Not available
Gross weight 120 kg
Net weight 108 kg
Power supply 1/220 - 240V/50Hz
Storage bin capacity 18 kg
Cooling system Air Cooled
Ice type Cubelet + Water
Ice production 230
CO2 equivalent 2078 kg
Refrigerant type R404A
SKU DCM230HE

Documentation

Documentation
DWG files Download
Instruction manual Download

Accessories

Accessory name Item number
4HC-H Single 9320-51
