866100161

COMPACT M 610 LG L2 4N

D

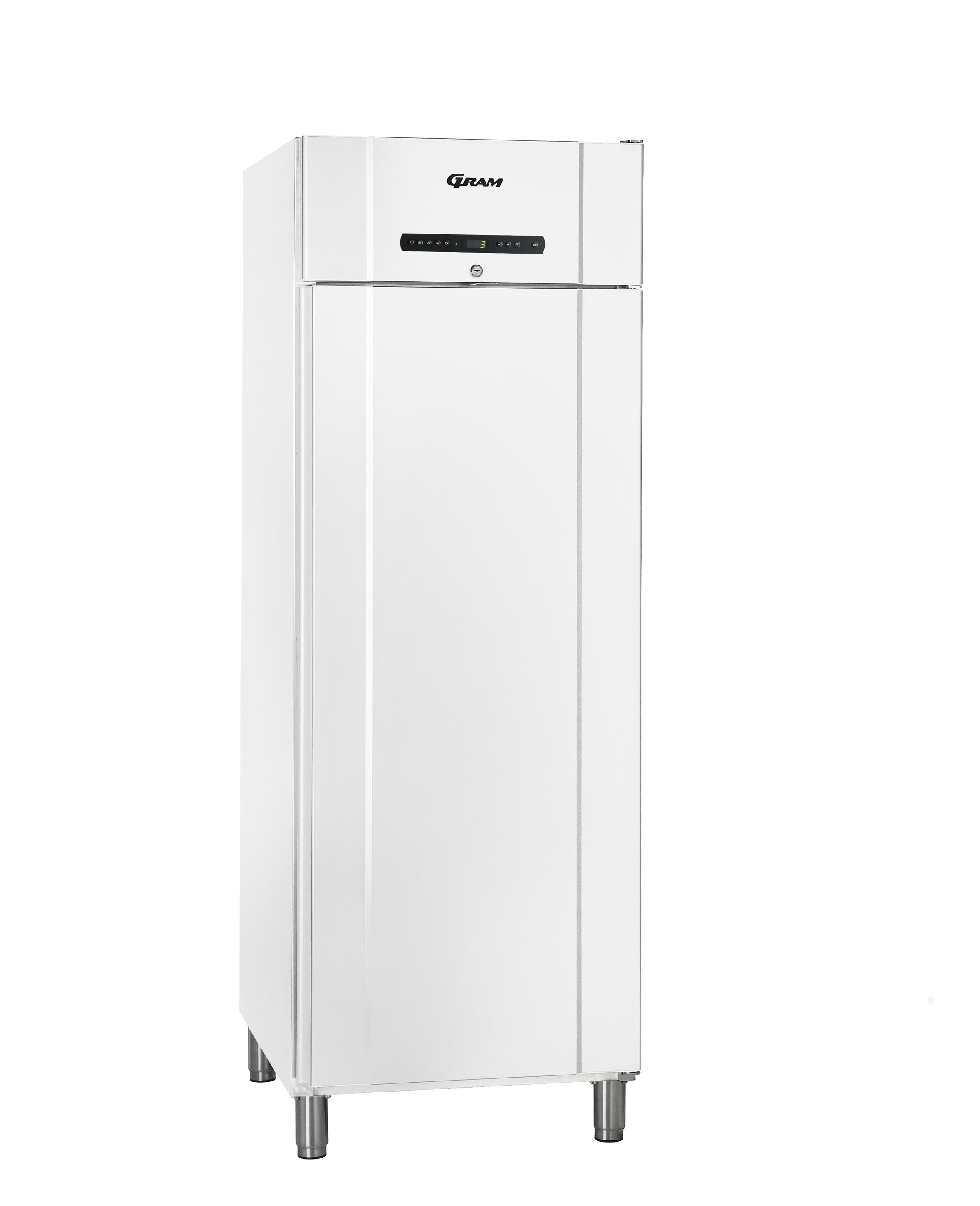

The GRAM COMPACT M 610 LG L2 4N  is a with a net internal volume of  436 Ltr.



The GRAM COMPACT series offers a rare combination: These cabinets are food safe, space-saving, and come with excellent energy ratings for its class.  With a footprint of only 59,5 x, 64 cm these small space storage cabinets are easy to fit in,  especially when space is limited. These specifications make the series such a popular choice of those operators who do not require heavy-duty Gastronorm equipment.

Product not available
Get quote View spec sheet

Key features

Food Safety

Thanks to the Gram air distribution system, temperatures are correct and uniform throughout the entire cold room, ensuring perfectly food-safe temperatures at all times



Low-Running Energy Costs

The Energy Efficiency Class of the COMPACT M 610 LG L2 4N is D. The COMPACT series offers a range of extremely energy-efficient refrigeration units for small spaces.



Comfortable Work Environment

Contributes to a healthier work environment with low noise levels  44.2000 dB(A), when the compressor is running. Low heat emission due to short compressor running times.



Hygiene & Ergonomic Design

Just like all GRAM units, the COMPACT series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.



Modularity & Scalability

The COMPACT M 610 LG L2 4N  strikes with its versatility, as the units can be stacked, paired, or even combined with other kitchen devices. Configuration possibilities include column combinations, side-by-side combinations, wall-mounted solutions, and the combinations with microwave ovens on top.



The COMPACT M 610 LG L2 4N comes with the following extras:

  • Refrigerant: The uses HC refrigerant R600a

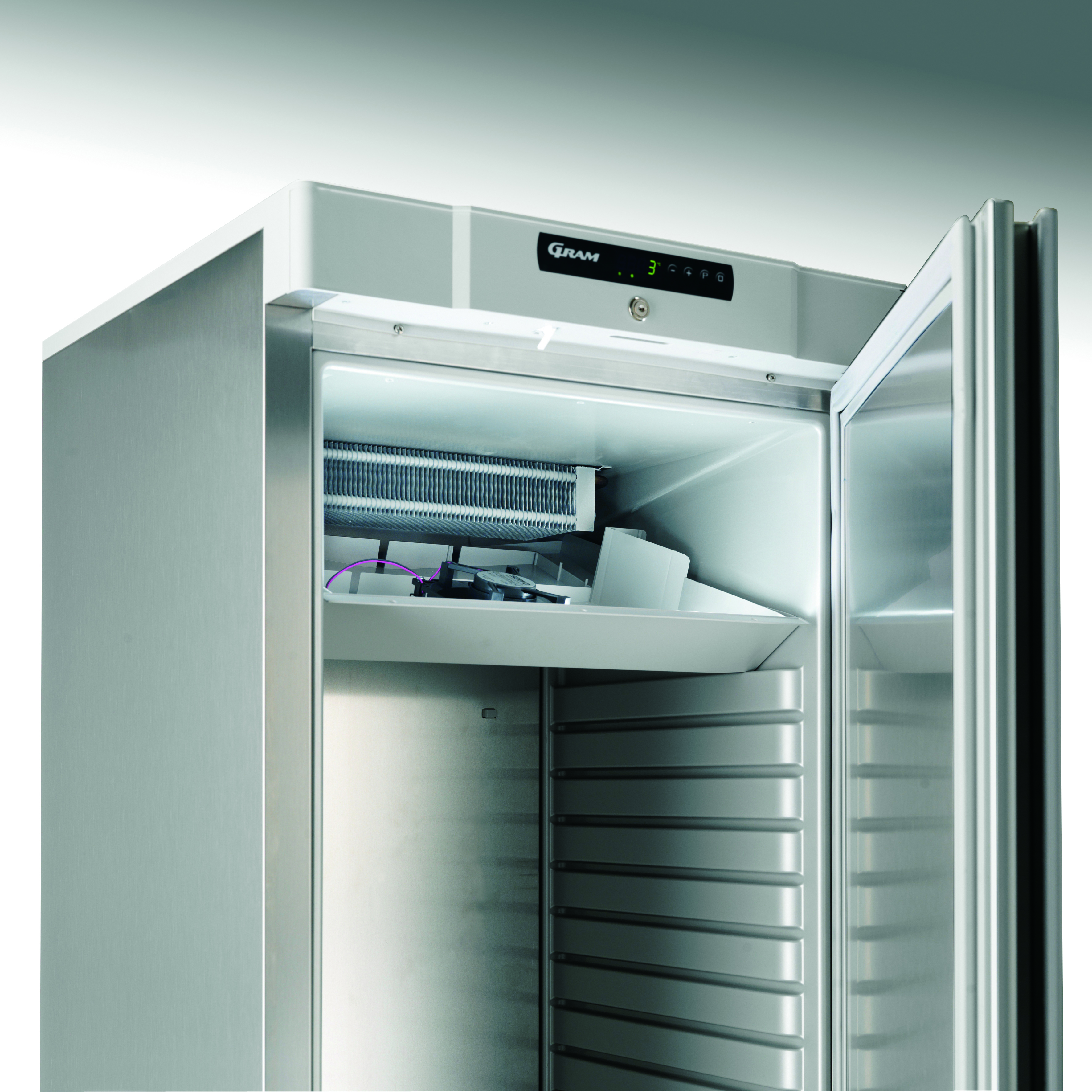

  • Air circulation system
  • Right-hand hinged door
  • Integrated full height door handle
  • Internal LED light

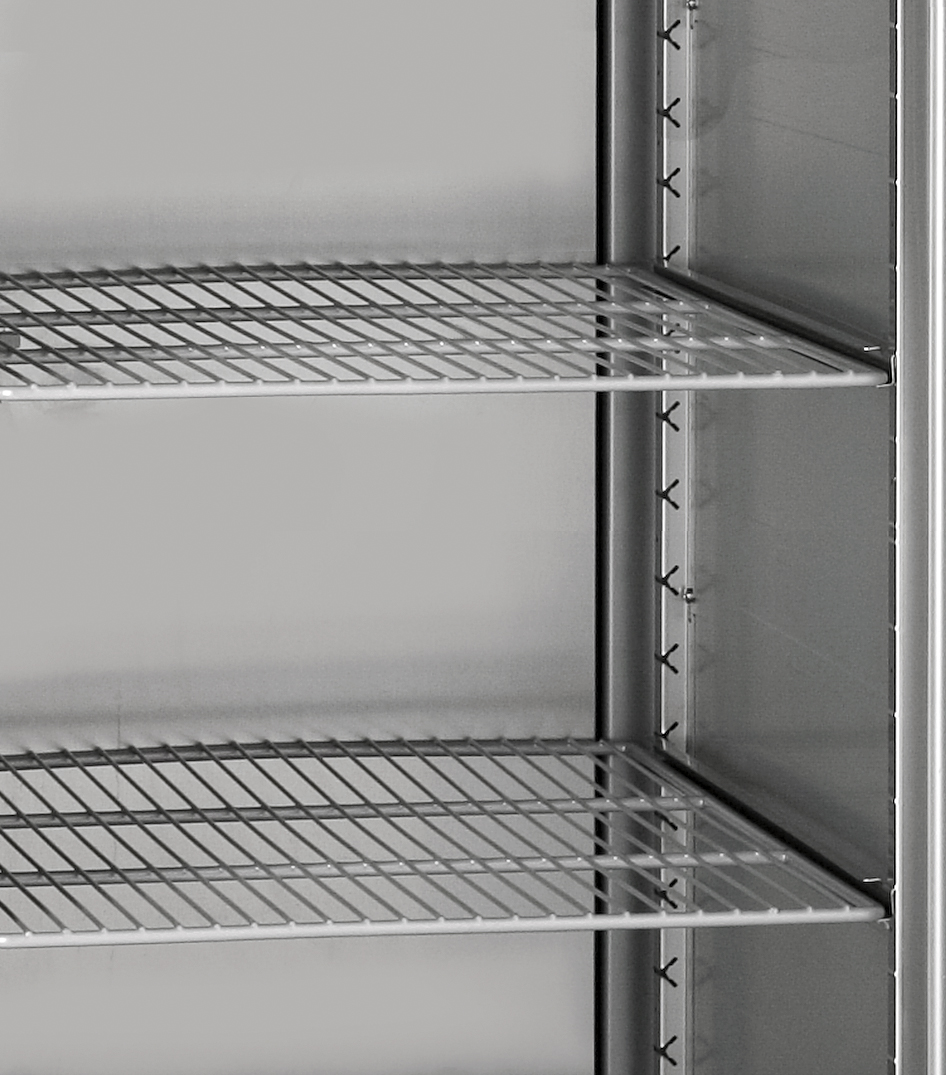

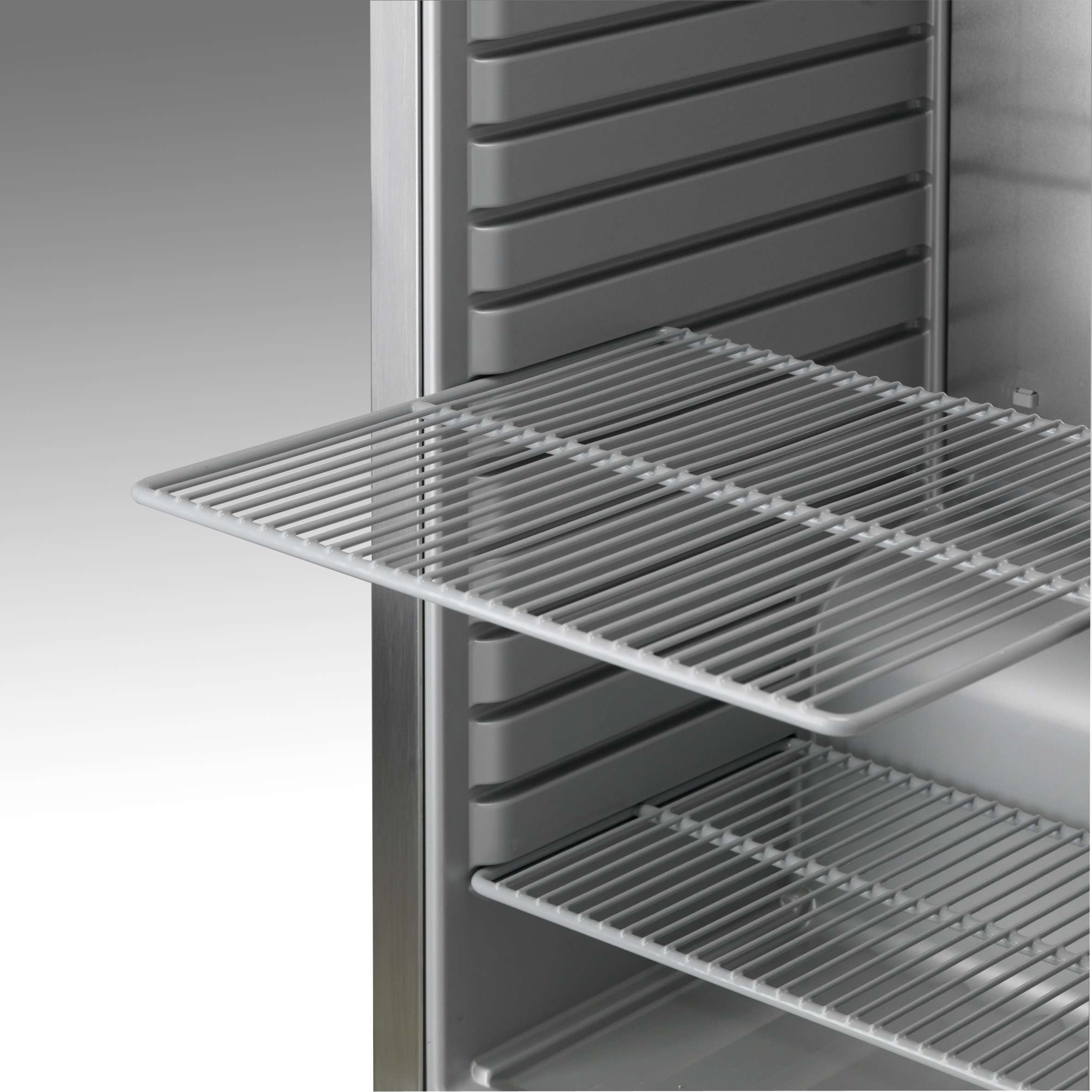

  • Anti-tilt shelves
  • Door lock for extra security
  • Pedal door opener for handsfree operation (optional accessory
  • Automatic defrost with re-evaporation of defrost water
  • 10 years spare parts warranty guaranteed

Specifications

Specification Value
Item number 866100161
Model name COMPACT M 610 LG L2 4N
Brand Gram
Warranty period 5 Years on Parts & Labour
Equipped with Right hand hinged reversible door with lock, 4 grey shelves. Exterior: White. Interior: ABS lining in grey
Width 695 mm
Depth 875 mm
Height 2017 mm
Energy consumption 733 kWh
Energy efficiency class D
Shelf size 2/1 GN deep
Product availability -- Not available
Connection load 291 kW
Gross weight 110 kg
Insulation thickness 60 mm
Insulation type Cyclopentane
Legs / Castors H = 135-200 mm (L)
Net usable volume 436 l
Net weight 110 kg
Power supply 230V, 50Hz
Sound level 44.2 dB
Temperature range -5/+12°C
Volume, gross 583 l
Volume, net 436 l
Door Type Solid Door
Refrigeration capacity 354
CO2 equivalent 0.31 kg
GWP 3 GWP
Refrigerant 0.1 kg
Refrigerant type R600a
SKU 866100161

Documentation

Documentation
Declaration of conformity Download
COMPACT_M_610_G.pdf Download
Instruction manual Download
6762295.pdf Download
