COMPACT K 610 RH 60 HZ LM 5M Refrigerator – Marine Use

Gastronomy cabinets

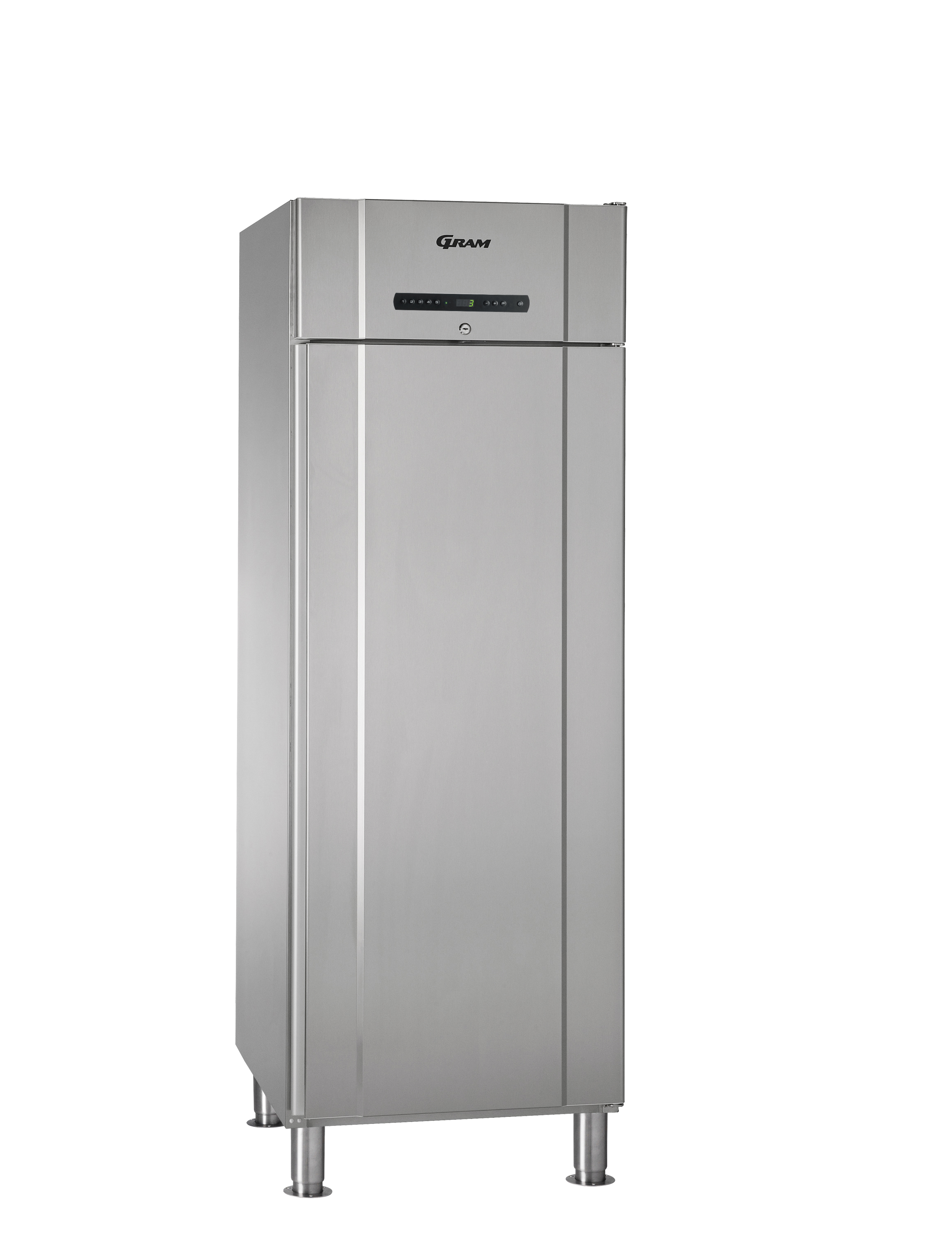

The GRAM COMPACT K 610 RH 60 HZ LM 5M is a Refrigerator - Marine Use with an internal net volume of 421 Ltr.

For decades, Gram has manufactured and supplied specialized refrigeration solutions for the offshore and marine sectors. These customers require our fully adapted models of the MARINE series. No matter what specification you require, Gram marine equipment – uprights and counters - provides reliable, safe, and sturdy solutions.

Product not available

Get quote View spec sheet

Key features Specifications Documentation

Key features

Maximum security at Heavy Seas

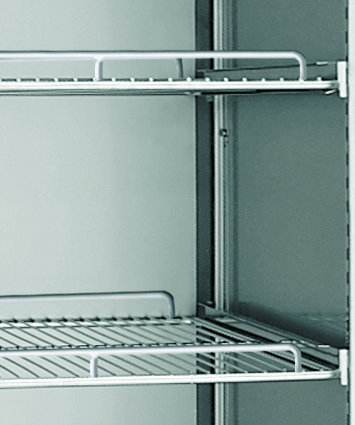

All marine shelves are fixed to the supports to ensure no movement during heavy sea conditions. In calm seas, the shelves can be turned easily allowing them to be pulled out.

Convenience

Glassdoor alternative for good overview and convenience. Available for some cabinets.

Perfectly specialized

Designed for the rough conditions and work mode of a vessel kitchen, where reliability, performance, and safety are the primary considerations. Insulation class: IP21. Specialized elements: dedicated locking marine handle

Easy Cleaning

Inside base with rounded corners and smooth surfaces help keeping the device hygienically clean

Specifications

Specification	Value
Item number	866100081
Model name	COMPACT K 610 RH 60 HZ LM 5M
Brand	Gram
Title	Refrigerator - Marine Use

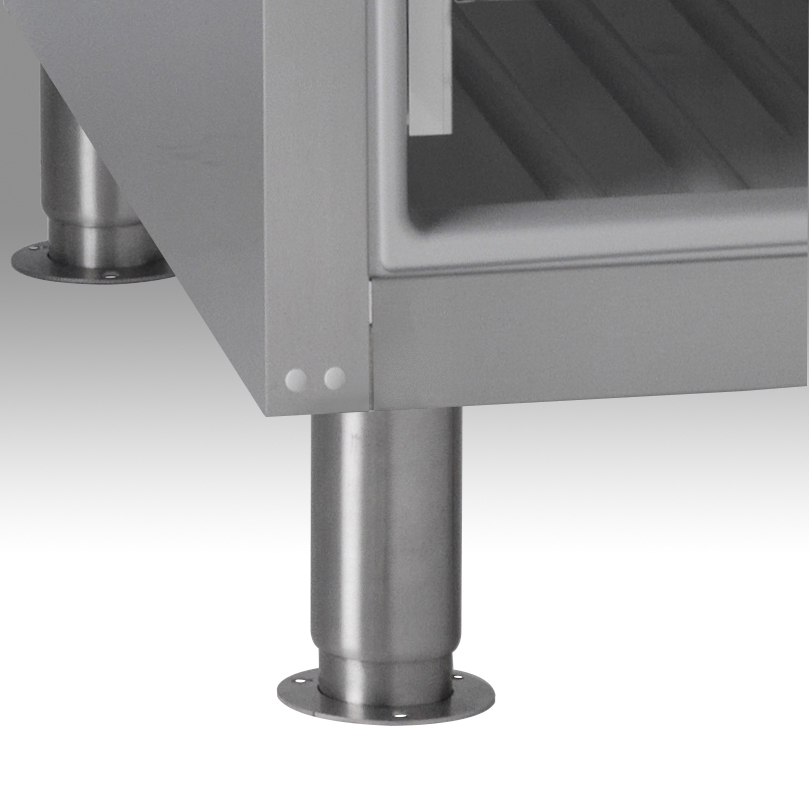

Equipped with	Right hand hinged reversible door with lock, 5 stainless marine shelves, marine legs (not factory fitted)
Width	695 mm
Depth	868 mm
Height	2005 mm
Energy consumption	578 kWh
Energy efficiency class	C
Energy Efficiency Index (EEI)	44.43 EEI
Shelf size	2/1 GN deep
Product availability	-- Not available
Climate class	5 (max. ambient 40°C w/ 40% RH)
Connection load	349 kW
Exterior	Stainless Steel
Interior	ABS Lining Grey
Gross weight	110 kg
Insulation thickness	60 mm
Insulation type	Cyclopentane
Net usable volume	421 l
Net weight	110 kg
Options	50Hz
Power supply	230V, 60Hz
Temperature range	+2/+12°C
Volume, gross	583 l
Volume, net	421 l
Door Type	Solid Door
Refrigeration capacity	371
CO2 equivalent	328.9 kg
GWP	1430 GWP
Refrigerant	0.23 kg
Refrigerant type	R134a
SKU	866100081
