864100281

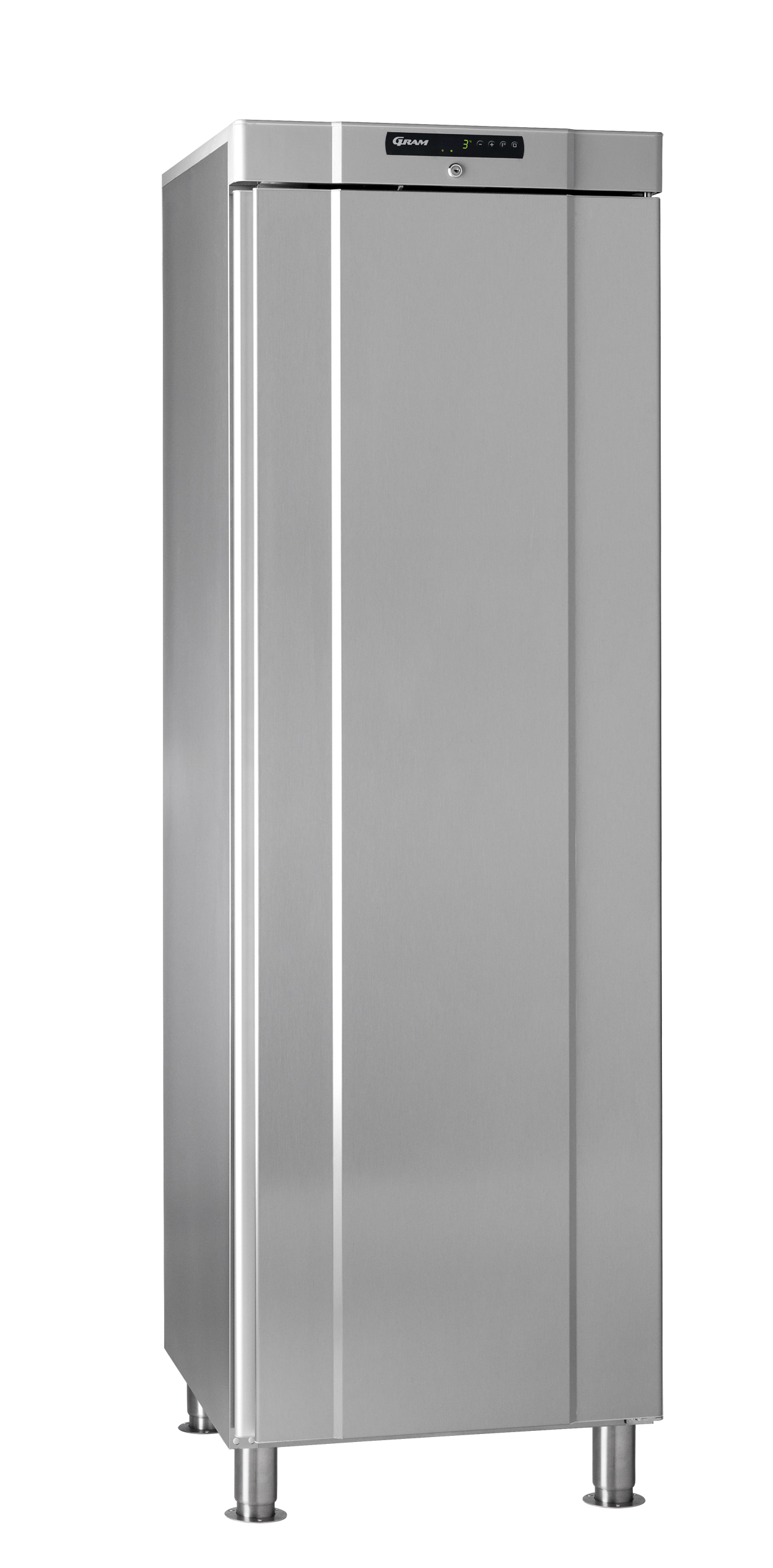

COMPACT K 410 RH 60 HZ LM 5M

Gastronomy cabinets

The Marine range includes the following features:

  • Sturdy adjustable fixed feet

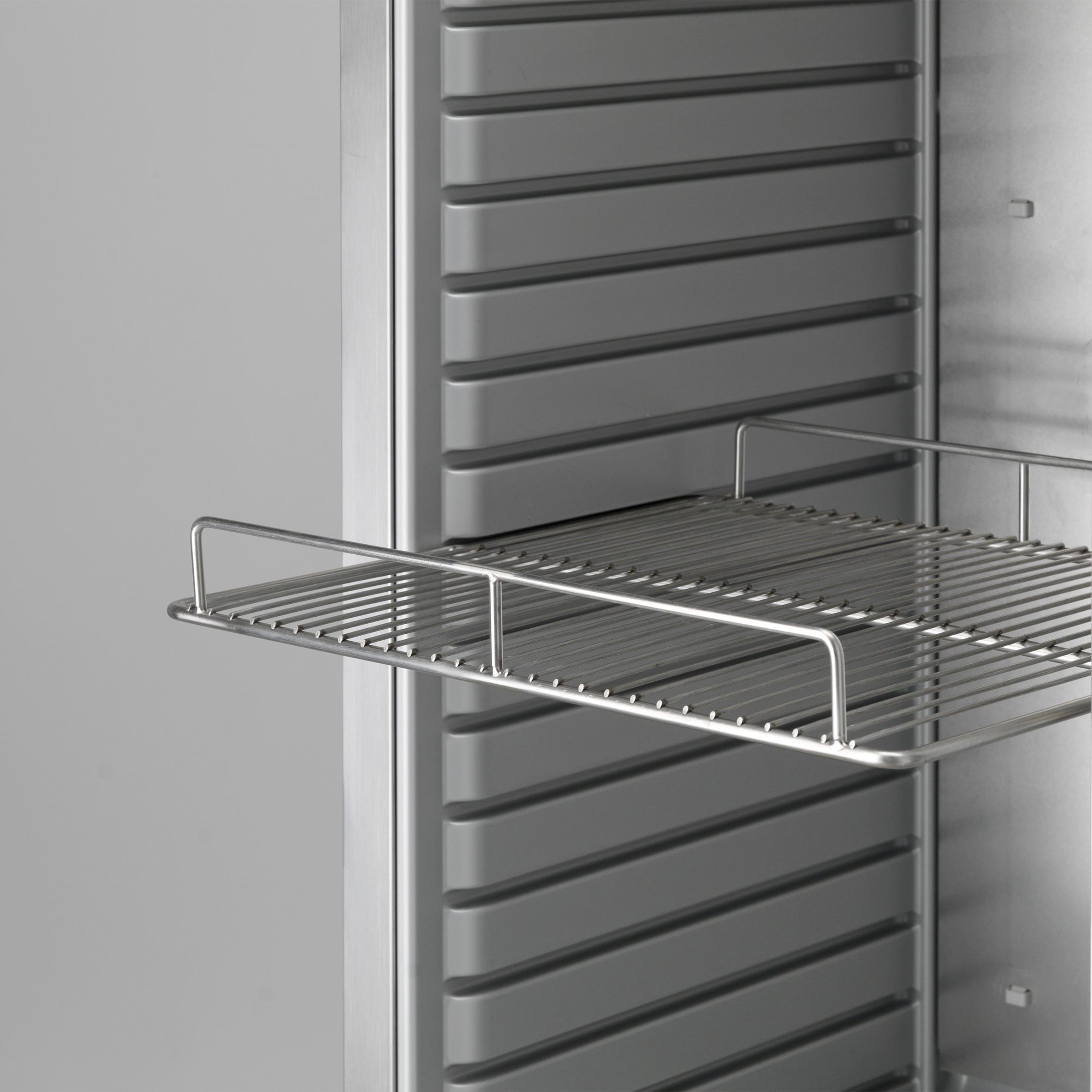

  • Stainless steel marine shelves

Equipped with right hand hinged door with lock, 4 stainless marine shelves, and marine legs (not factory fitted) Height: 1905mm

Product not available
Get quote View spec sheet

Specifications

Specification Value
Item number 864100281
Model name COMPACT K 410 RH 60 HZ LM 5M
Brand Gram
Equipped with Right hand hinged reversible door with lock, 5 stainless marine shelves, 1 stainless bottom shelf, marine legs (not factory fitted)
Width 595 mm
Depth 642 mm
Height 1905 mm
Shelf size Shelf 484.7 x 433 mm
Product availability -- Not available
Connection load 149 kW
Exterior Stainless Steel
Interior Polystyrene Lining White
Gross weight 75 kg
Insulation thickness 50 mm
Insulation type Cyclopentane
Net weight 75 kg
Options 50Hz
Power supply 230V, 60Hz
Temperature range +2/+12°C
Volume, gross 346 l
Door Type Solid Door
Refrigeration capacity 205
CO2 equivalent 171.6 kg
GWP 1300 GWP
Refrigerant 0.12 kg
Refrigerant type R134a
SKU 864100281

Documentation

Documentation
DWG files Download
DWG files Download
Declaration of conformity Download
Instruction manual Download
6762287.pdf Download
6685674.pdf Download
