COMPACT FG 420 LG L1 5W GLASS DOOR FREEZER

Freezers

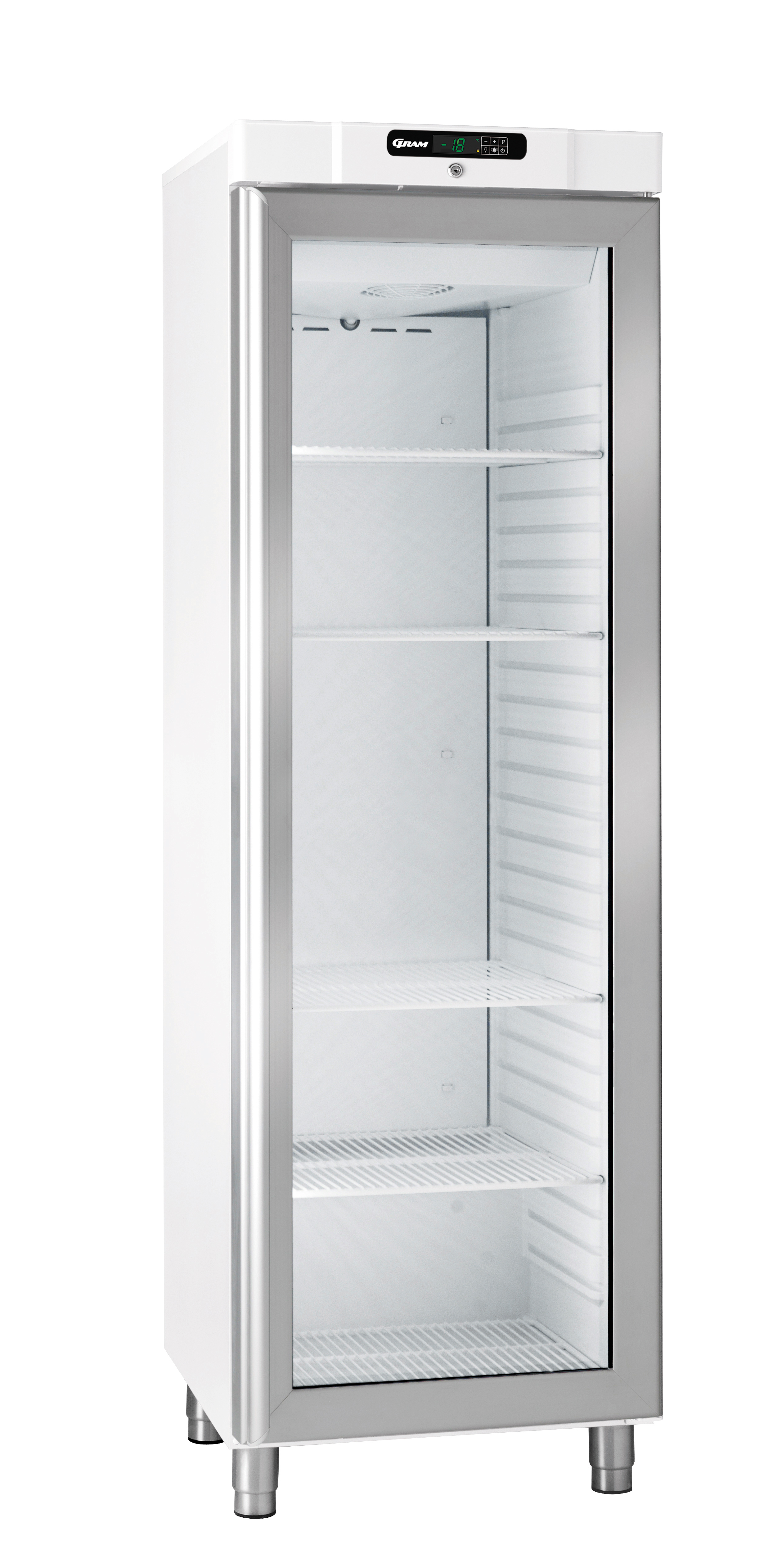

The GRAM COMPACT FG 420 LG L1 5W is a GLASS DOOR FREEZER with a net internal volume of 266 Ltr.

The GRAM COMPACT series offers a rare combination: These cabinets are food safe, space-saving, and come with excellent energy ratings for its class. With a footprint of only 59,5 x, 64 cm these small space storage cabinets are easy to fit in, especially when space is limited. These specifications make the series such a popular choice of those operators who do not require heavy-duty Gastronorm equipment.

Product not available

Get quote View spec sheet

Key features Specifications Documentation

Key features

Food Safety

Thanks to the Gram air distribution system, temperatures are correct and uniform throughout the entire cold room, ensuring perfectly food-safe temperatures at all times

Low-Running Energy Costs

The Energy Efficiency Class of the COMPACT FG 420 LG L1 5W is B. The COMPACT series offers a range of extremely energy-efficient refrigeration units for small spaces.

Comfortable Work Environment

Contributes to a healthier work environment with low noise levels 36 dB(A), when the compressor is running. Low heat emission due to short compressor running times.

Hygiene & Ergonomic Design

Just like all GRAM units, the COMPACT series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.

Modularity & Scalability

The COMPACT FG 420 LG L1 5W strikes with its versatility, as the units can be stacked, paired, or even combined with other kitchen devices. Configuration possibilities include column combinations, side-by-side combinations, wall-mounted solutions, and the combinations with microwave ovens on top.

The COMPACT FG 420 LG L1 5W comes with the following extras:

Refrigerant: The GLASS DOOR FREEZER uses HC refrigerant R600a
Air circulation system
Right-hand hinged door
Integrated full height door handle
Internal LED light
Anti-tilt shelves
Door lock for extra security
Pedal door opener for handsfree operation (optional accessory
Automatic defrost with re-evaporation of defrost water
10 years spare parts warranty guaranteed

Specifications

Specification	Value
Item number	964230461
Model name	COMPACT FG 420 LG L1 5W
Brand	Gram
Warranty period	5 Years on Parts & Labour
Title	GLASS DOOR FREEZER
Equipped with	Right hand hinged glass door with lock, and LED light, 5 white shelves. Exterior: White. Interior: PS lining in white
Width	595 mm
Depth	667 mm
Height	1875 mm
Energy consumption	1231 kWh
Energy efficiency class	B
Energy Efficiency Index (EEI)	17.16 EEI
Shelf size	Shelf 484.7 x 433 mm
Product availability	-- Not available
Climate class	3 (maximum ambient temperatures of 25 °C with 60% RH)
Connection load	166 kW
Exterior	White Finish
Interior	White Finish
Gross weight	91 kg
Insulation thickness	50 mm
Insulation type	Cyclopentane
Net usable volume	266 l
Net weight	91 kg
Power supply	230V, 50Hz
Sound level	36 dB
Temperature range	-22/-5°C
Volume, gross	359 l
Volume, net	266 l
Door Type	Glass door
Refrigeration capacity	200
CO2 equivalent	0.141 kg
GWP	3 GWP
Refrigerant	0.047 kg
Refrigerant type	R600a
SKU	964230461

Documentation

Documentation
DWG files	Download
Declaration of conformity	Download
EU_UK_energi_labels_Compact_FG_420_G.pdf	Download
Instruction manual	Download
765042403_Piping_Diagram_220_and_420.pdf	Download
Spec sheet	Download
765073103_Wiring_Diagram.pdf	Download
