864120281

COMPACT F 410 RH 60 HZ LM 5M

Freezers

The GRAM COMPACT F 410 RH 60 HZ LM 5M is a with an internal net volume of 0 Ltr.



For decades, Gram has manufactured and supplied specialized refrigeration solutions for the offshore and marine sectors. These customers require our fully adapted models of the ECO MARINE series. No matter what specification you require, Gram marine equipment – uprights and counters - provides reliable, safe, and sturdy solutions.



Product not available
Get quote View spec sheet

Key features

Maximum security at Heavy Seas

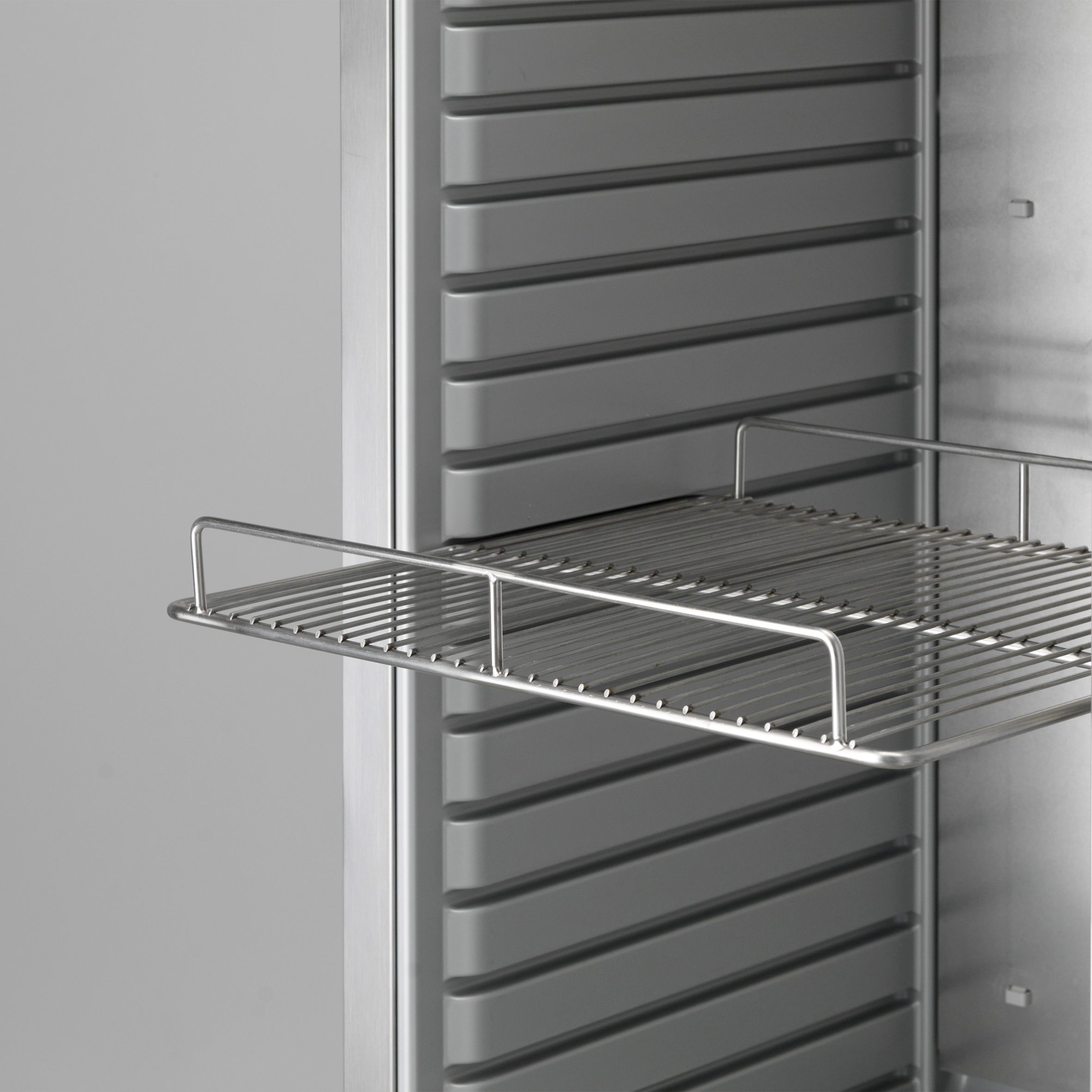

All marine shelves are fixed to the supports to ensure no movement during heavy sea conditions. In calm seas, the shelves can be turned easily allowing them to be pulled out.



Convenience

Glassdoor alternative for good overview and convenience. Available for some cabinets.



Perfectly specialized

Designed for the rough conditions and work mode of a vessel kitchen, where reliability, performance, and safety are the primary considerations. Insulation class: IP21. Specialized elements: dedicated locking marine handle



Easy Cleaning

Inside base with rounded corners and smooth surfaces help keeping the device hygienically clean

Specifications

Specification Value
Item number 864120281
Model name COMPACT F 410 RH 60 HZ LM 5M
Brand Gram

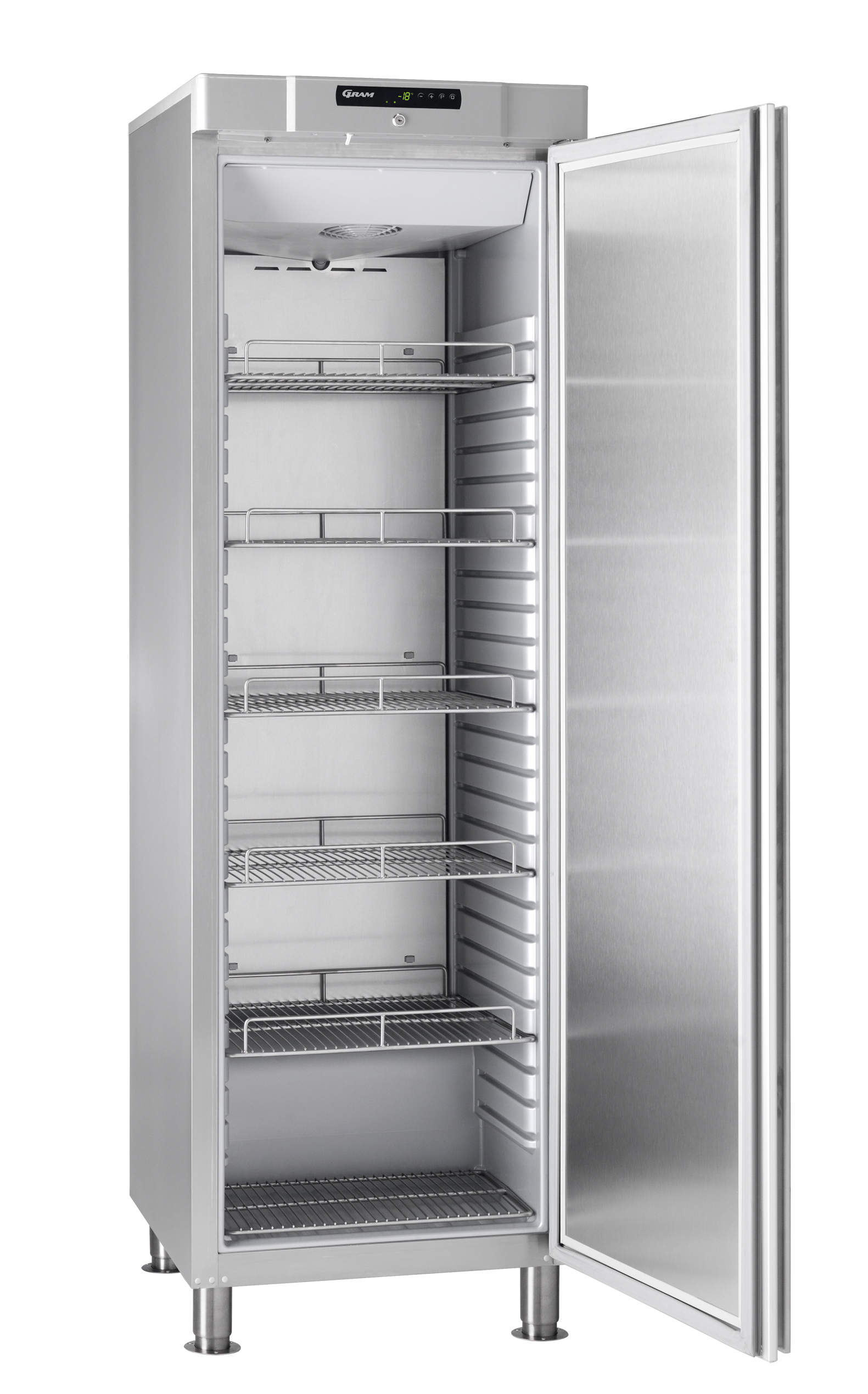

Equipped with Right hand hinged reversible door with lock, 5 stainless marine shelves, 1 stainless bottom shelf, marine legs (not factory fitted)
Width 595 mm
Depth 642 mm
Height 1905 mm
Shelf size Shelf 484.7 x 433 mm
Product availability -- Not available
Connection load 251 kW
Exterior Stainless Steel
Interior Polystyrene Lining White
Gross weight 78 kg
Insulation thickness 50 mm
Insulation type Cyclopentane
Net weight 78 kg
Options 50Hz
Power supply 230V, 60Hz
Temperature range -22/-5°C
Volume, gross 346 l
Door Type Solid Door
Refrigeration capacity 258
CO2 equivalent 135.85 kg
GWP 1300 GWP
Refrigerant 0.1 kg
Refrigerant type R134a
SKU 864120281

Documentation

Documentation
DWG files Download
DWG files Download
Declaration of conformity Download
Instruction manual Download
6762289.pdf Download
6685696.pdf Download
