COMPACT F 210 RG 3N

Freezers

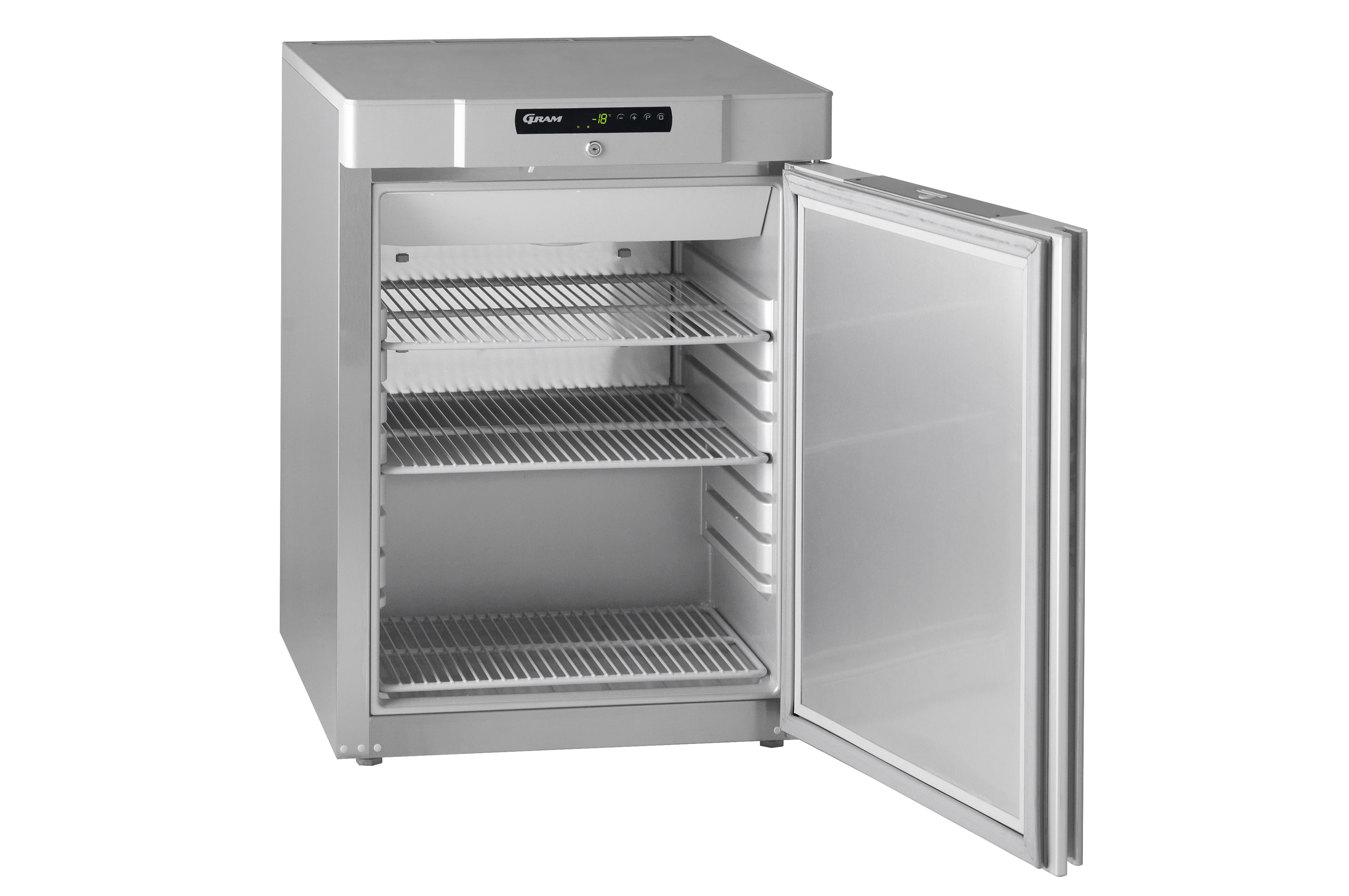

The GRAM COMPACT F 210 RG 3N is a with a net internal volume of 76 Ltr.

The GRAM COMPACT series offers a rare combination: These cabinets are food safe, space-saving, and come with excellent energy ratings for its class. With a footprint of only 59,5 x, 64 cm these small space storage cabinets are easy to fit in, especially when space is limited. These specifications make the series such a popular choice of those operators who do not require heavy-duty Gastronorm equipment.

Product not available

Get quote View spec sheet

Key features Specifications Documentation

Key features

Food Safety

Thanks to the Gram air distribution system, temperatures are correct and uniform throughout the entire cold room, ensuring perfectly food-safe temperatures at all times

Low-Running Energy Costs

The Energy Efficiency Class of the COMPACT F 210 RG 3N is B. The COMPACT series offers a range of extremely energy-efficient refrigeration units for small spaces.

Comfortable Work Environment

Contributes to a healthier work environment with low noise levels 38.6000 dB(A), when the compressor is running. Low heat emission due to short compressor running times.

Hygiene & Ergonomic Design

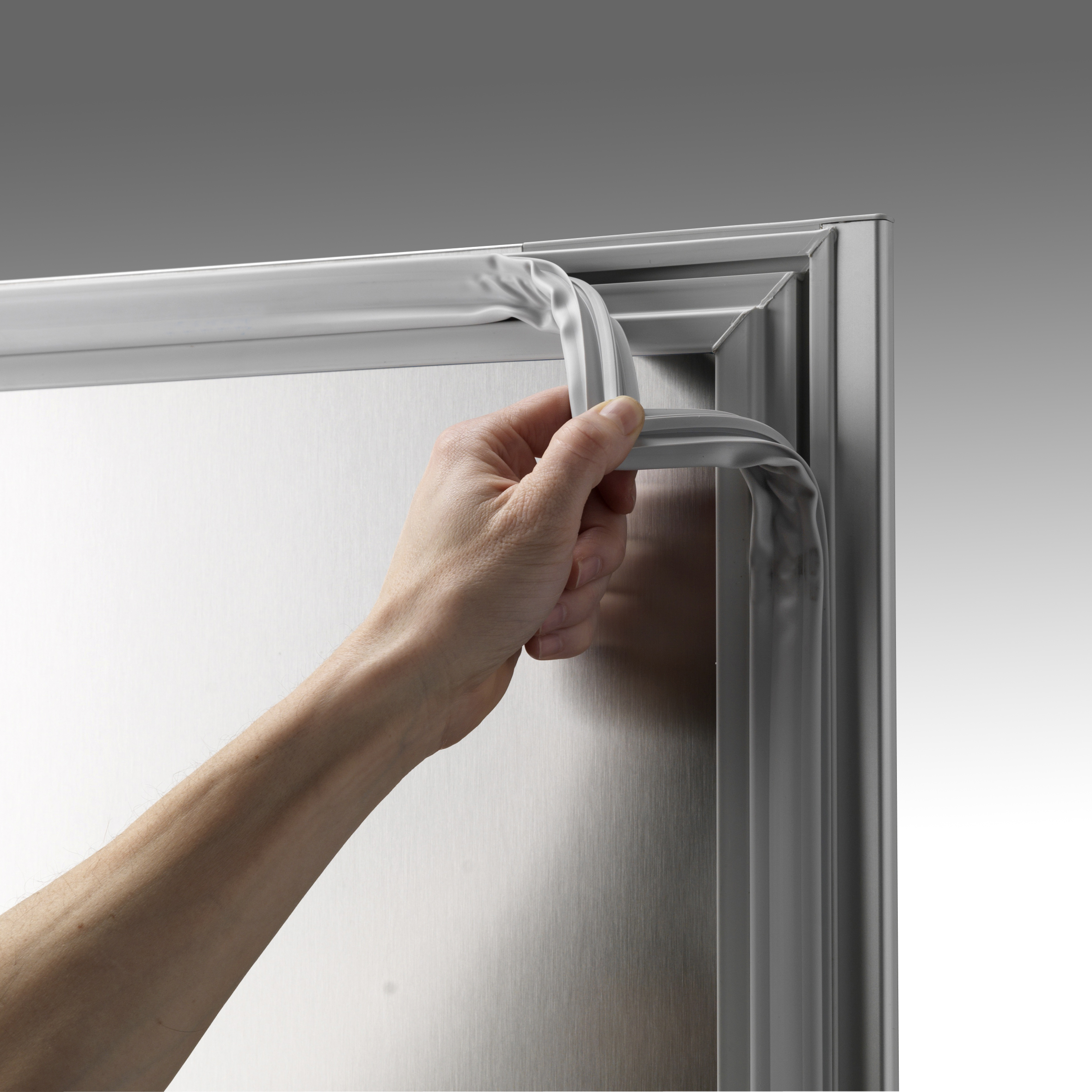

Just like all GRAM units, the COMPACT series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.

Modularity & Scalability

The COMPACT F 210 RG 3N strikes with its versatility, as the units can be stacked, paired, or even combined with other kitchen devices. Configuration possibilities include column combinations, side-by-side combinations, wall-mounted solutions, and the combinations with microwave ovens on top.

The COMPACT F 210 RG 3N comes with the following extras:

Refrigerant: The uses HC refrigerant R600a
Air circulation system
Right-hand hinged door

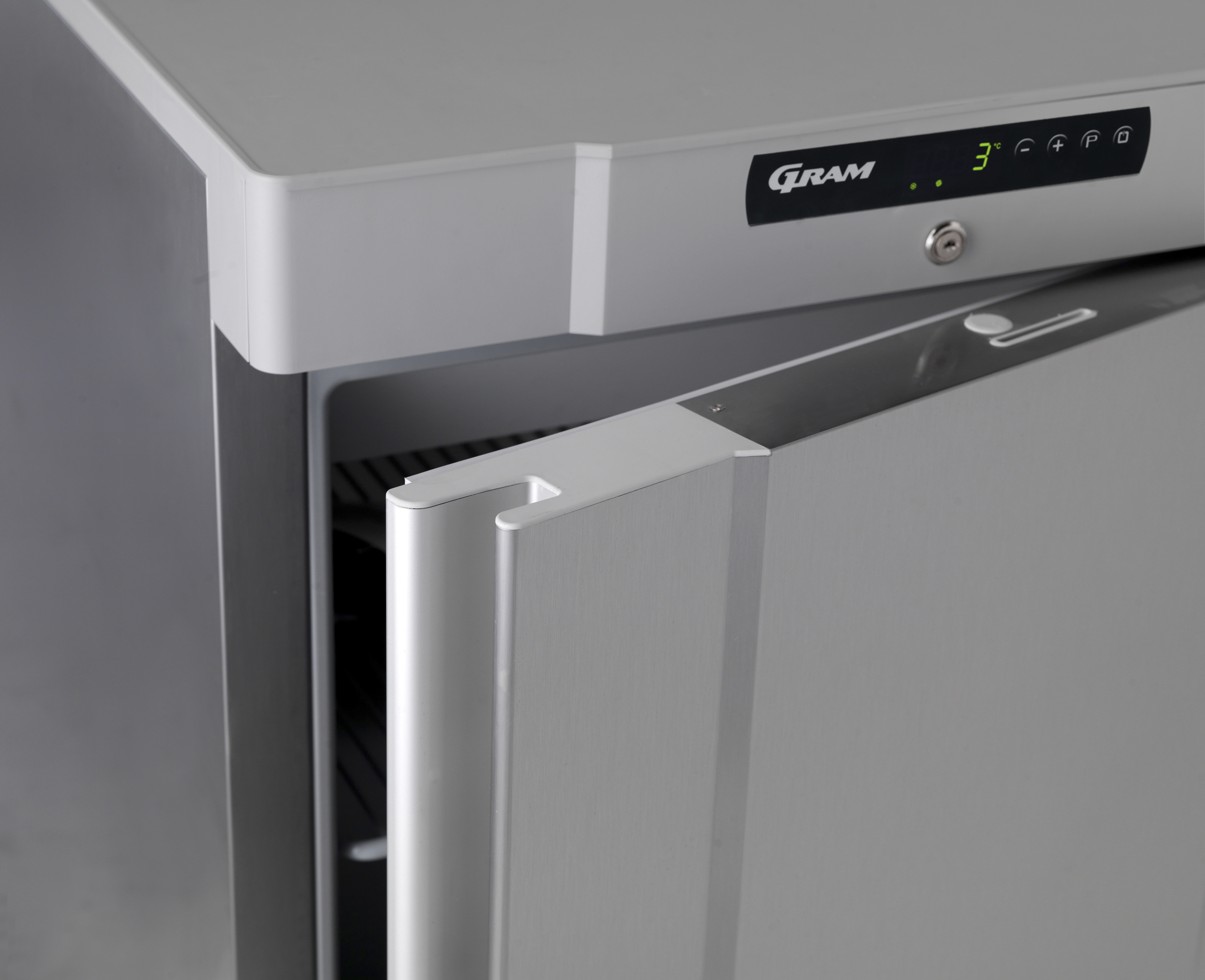

Integrated full height door handle
Internal LED light
Anti-tilt shelves
Door lock for extra security
Pedal door opener for handsfree operation (optional accessory
Automatic defrost with re-evaporation of defrost water
10 years spare parts warranty guaranteed

Specifications

Specification	Value
Item number	862120441
Model name	COMPACT F 210 RG 3N
Brand	Gram
Warranty period	5 Years on Parts & Labour
Equipped with	Right hand hinged reversible door with lock, 3 grey shelves. Exterior: Stainless. Interior: ABS lining in grey
Width	595 mm
Depth	640 mm
Height	830 mm
Energy consumption	905 kWh
Energy efficiency class	B
Energy Efficiency Index (EEI)	32 EEI
Shelf size	Shelf 484.7 x 433 mm
Product availability	-- Not available
Connection load	125 kW
Gross weight	46 kg
Insulation thickness	50 mm
Insulation type	Cyclopentane
Net usable volume	76 l
Net weight	46 kg
Power supply	230V, 50Hz
Sound level	38.6 dB
Temperature range	-22/-5°C
Volume, gross	125 l
Volume, net	76 l
Door Type	Solid Door
Refrigeration capacity	156
CO2 equivalent	0.11 kg
GWP	3 GWP
Refrigerant	0.04 kg
Refrigerant type	R600a
SKU	862120441
