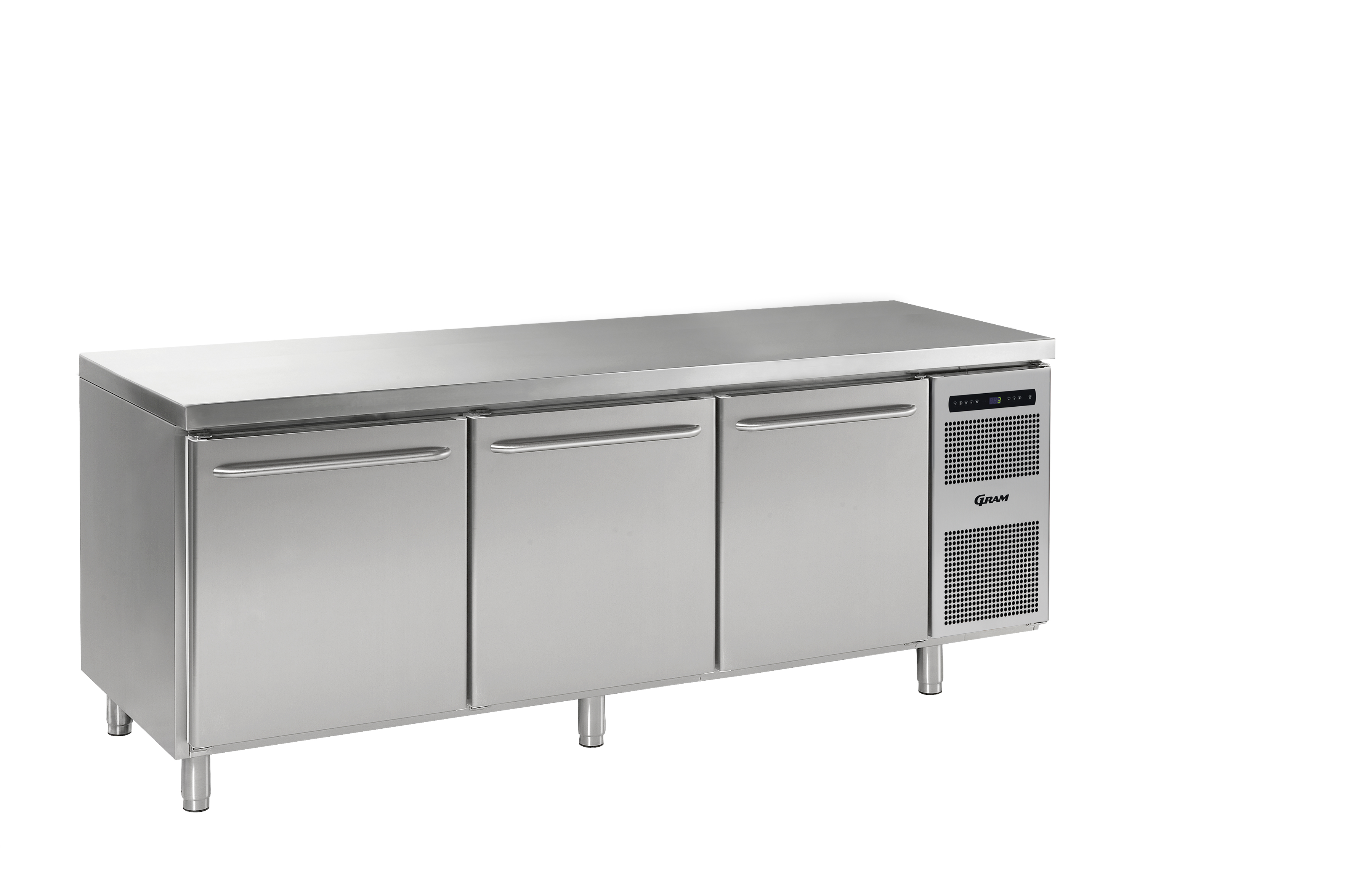

BAKER M 2408 CBG A DLB DLB DRB L2

Baker cabinets
D

The GRAM BAKER M 2408 CBG A DLB DLB DRB L2  is a with a net internal volume of  446 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperature and humidity levels inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Product not available
Get quote View spec sheet

Key features

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

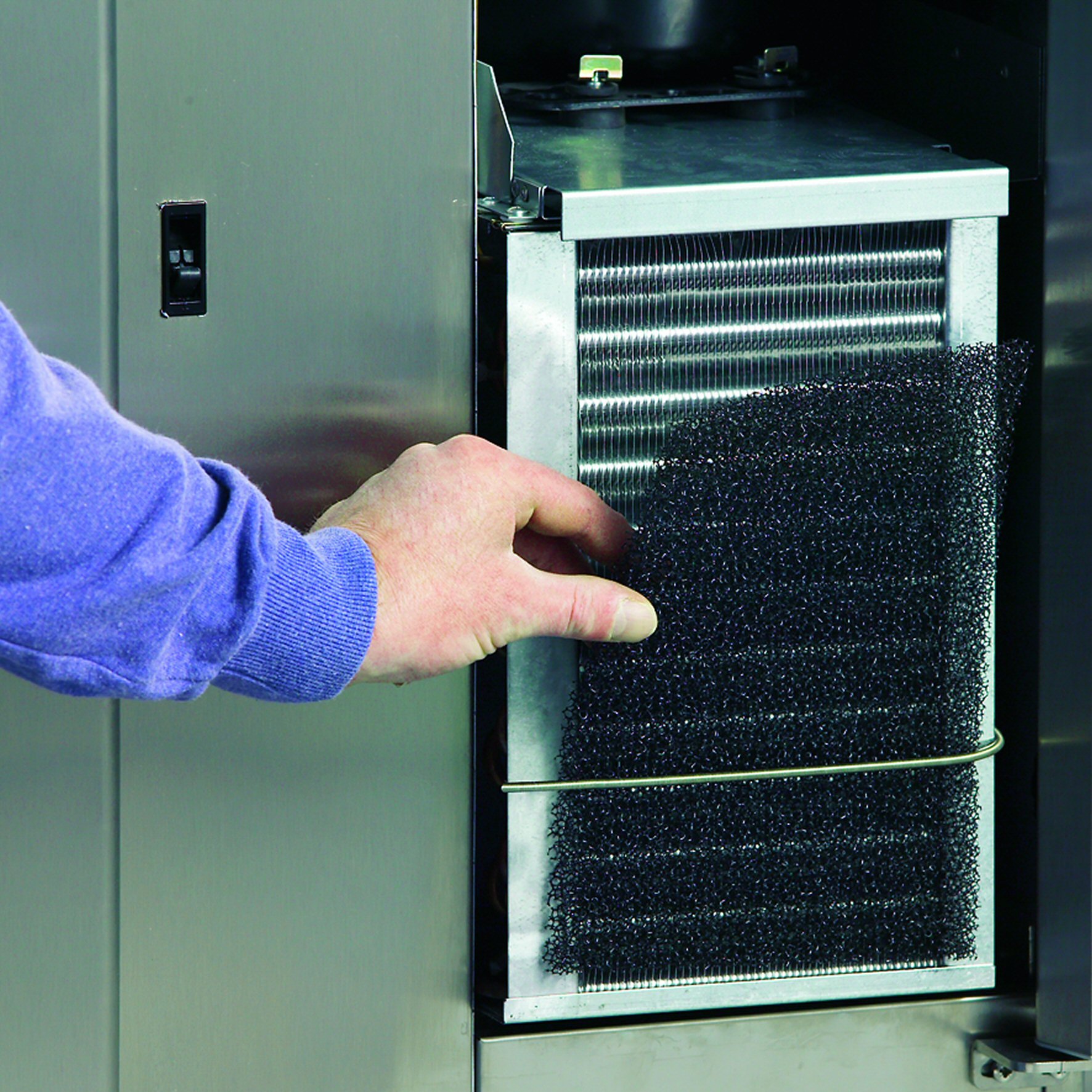

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

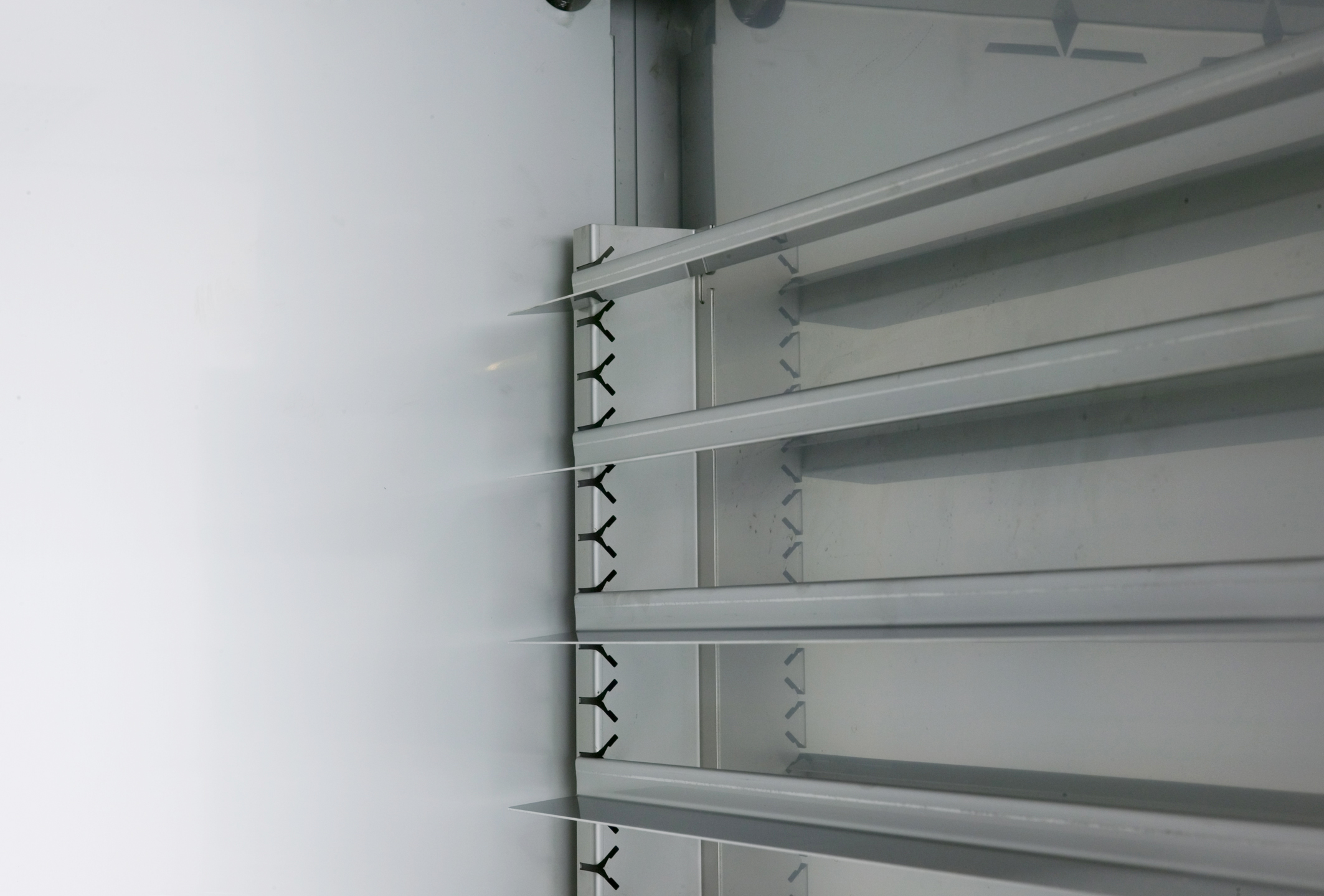

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER M 2408 CBG A DLB DLB DRB L2 comes with the following extras:

  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water



Specifications

Specification Value
Item number 862411534
Model name BAKER M 2408 CBG A DLB DLB DRB L2
Brand Gram
Warranty period 5 Years on Parts & Labour

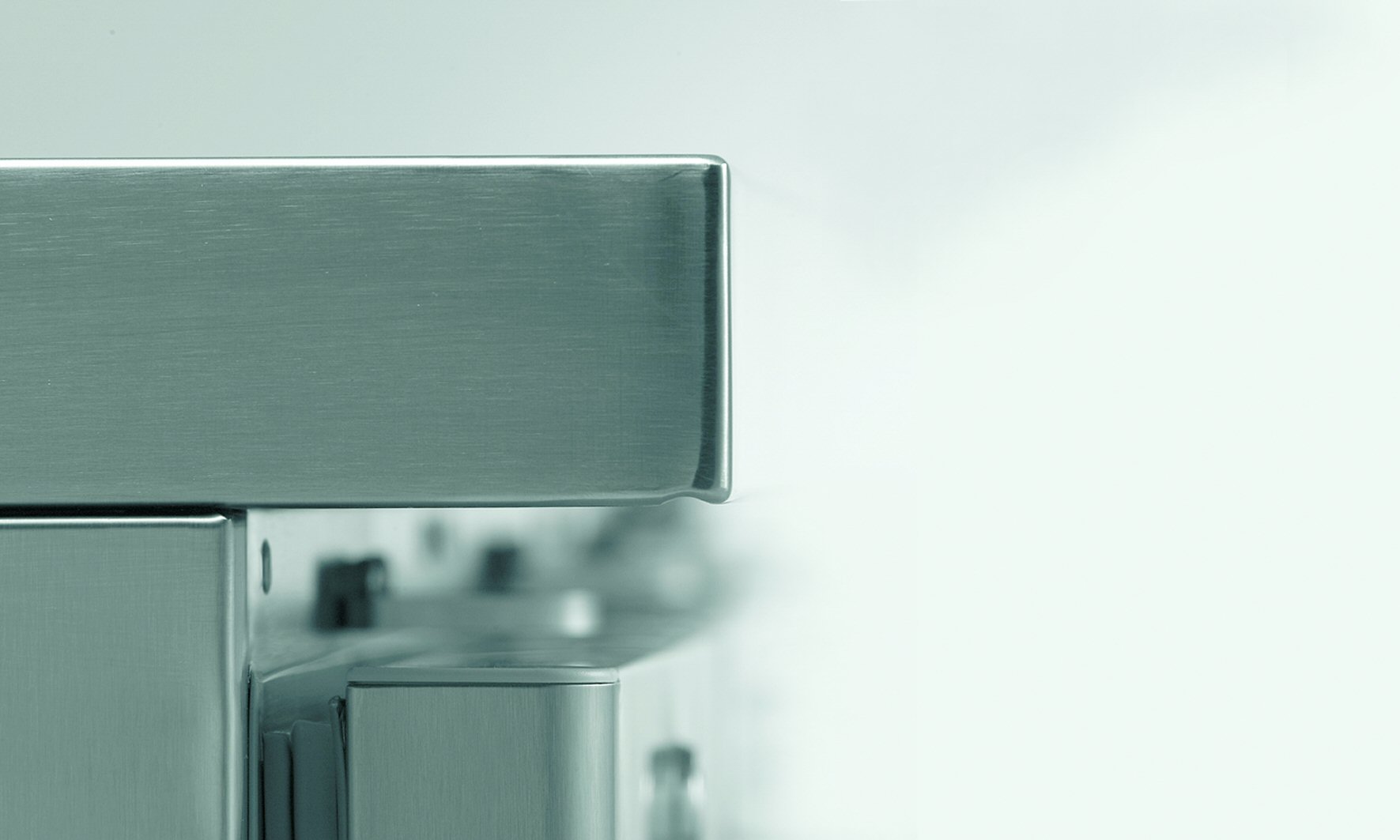

Equipped with Stainless steel solid top, 3 door sections each with 9 pairs of adjustable supports (60 x 40 cm)
Width 2340 mm
Depth 819 mm
Height including legs (minimum) 885 mm
Height including legs (maximum) 950 mm
Energy consumption 1468 kWh
Energy efficiency class D
Product availability -- Not available
Connection load 415 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 212 kg
Insulation thickness 50 mm
Insulation type Cyclopentane
Legs / Castors H = 135-200 mm (L)
Net usable volume 446 l
Net weight 212 kg
Options R134a refrigerant available at no extra cost
Power supply 230V, 50Hz
Temperature range -5/+12°C
Volume, gross 865 l
Volume, net 446 l
Door Type Solid Door
Refrigeration capacity 386
CO2 equivalent 0.23 kg
GWP 3 GWP
Refrigerant 0.07 kg
Refrigerant type R290
SKU 862411534

Documentation

Documentation
DWG files Download
DWG files Download
Declaration of conformity Download
BAKER_M_2408_G_DL_DL_DR_40x60__B__10308472.pdf Download
Instruction manual Download
7460671.pdf Download
7460670.pdf Download
