969500201

BAKER F 950 CCG L2 25B

Freezers
D

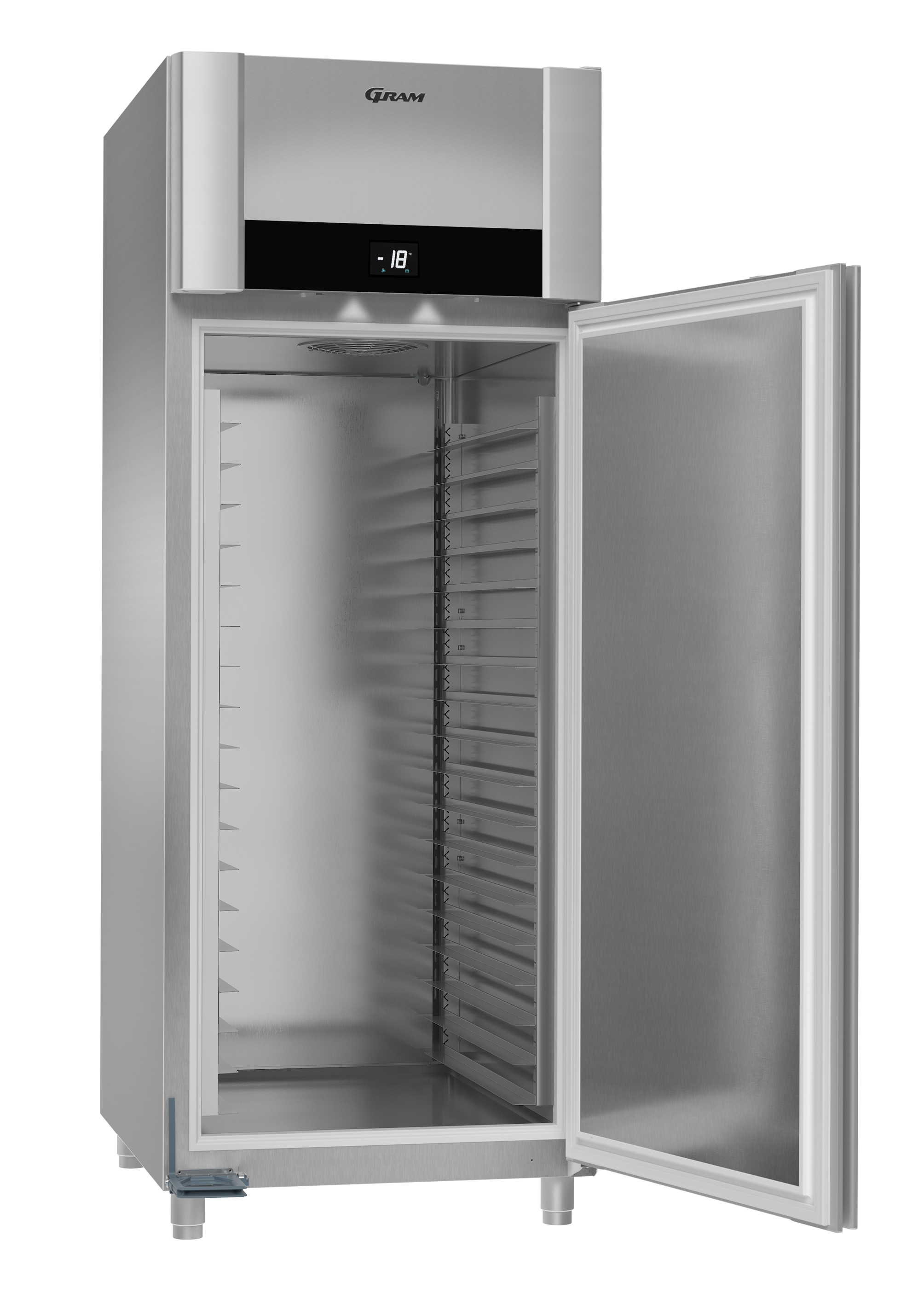

The GRAM BAKER F 950 CCG L2 25B  is a with a net internal volume of  660 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperatures inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Product not available
Get quote View spec sheet

Key features

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER F 950 CCG L2 25B comes with the following extras:

Right-hand hinged door with lock

Air circulation system

Dry cooling and controlled thawing (M versions)

Automatic defrost and reevaporation of water



Specifications

Specification Value
Item number 969500201
Model name BAKER F 950 CCG L2 25B
Brand Gram
Warranty period 5 Years on Parts & Labour
Equipped with Right hand hinged reversible door with lock, automatic door closing, pedal door opener, 25 pairs of adjustable supports (60 x 80 cm)
Width 820 mm
Depth 1065 mm
Height 2205 mm
Energy consumption 2849 kWh
Energy efficiency class D
Product availability -- Not available
Climate class 5 (max. ambient 40°C w/ 40% RH)
Connection load 736 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 186 kg
Insulation thickness 70 mm
Insulation type Cyclopentane
Legs / Castors H = 135-200 mm (L)
Net usable volume 660 l
Net weight 186 kg
Power supply 230V, 50Hz
Temperature range -25/-5°C
Volume, gross 949 l
Volume, net 660 l
Door Type Solid Door
Refrigeration capacity 882
CO2 equivalent 0.447 kg
GWP 3 GWP
Refrigerant 0.149 kg
Refrigerant type R290
SKU 969500201

Documentation

Documentation
DWG files Download
Declaration of conformity Download
BAKER_F_950_G_25B.pdf Download
Instruction manual Download
7462467.pdf Download

Accessories

Accessory name Item number
818805005 969500201
818805006 969500201
818805016 969500201
818805019 969500201
818809914 969500201
818899905 969500201
818899926 969500201
818899928 969500201
818899933 969500201
