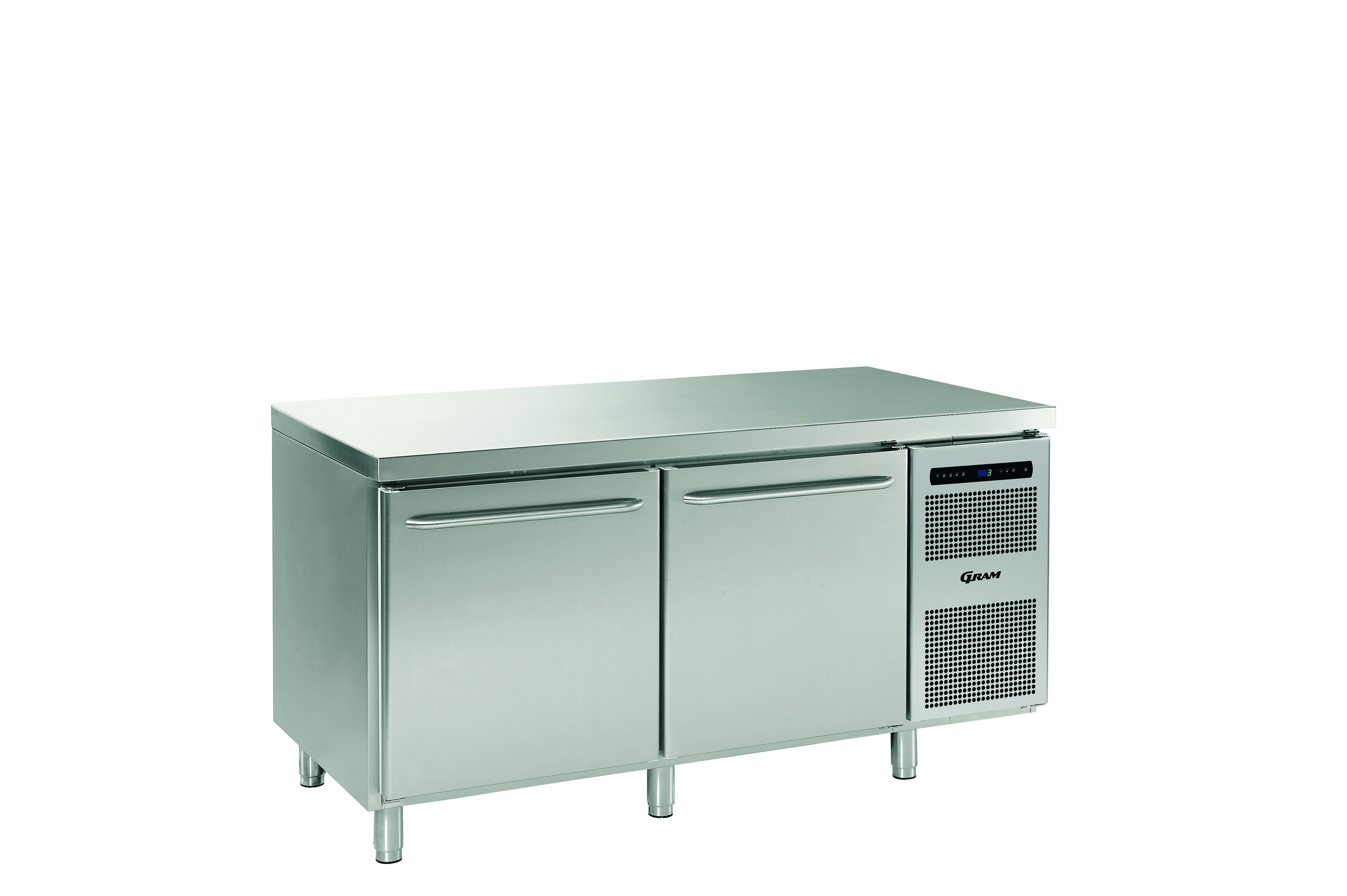

The GRAM BAKER F 1808 CBG A DLB DRB L2 is a with a net internal volume of 297 Ltr.
Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperatures inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.
Preserving Quality
Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.
Low Running Costs
The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.
Built-in Safety

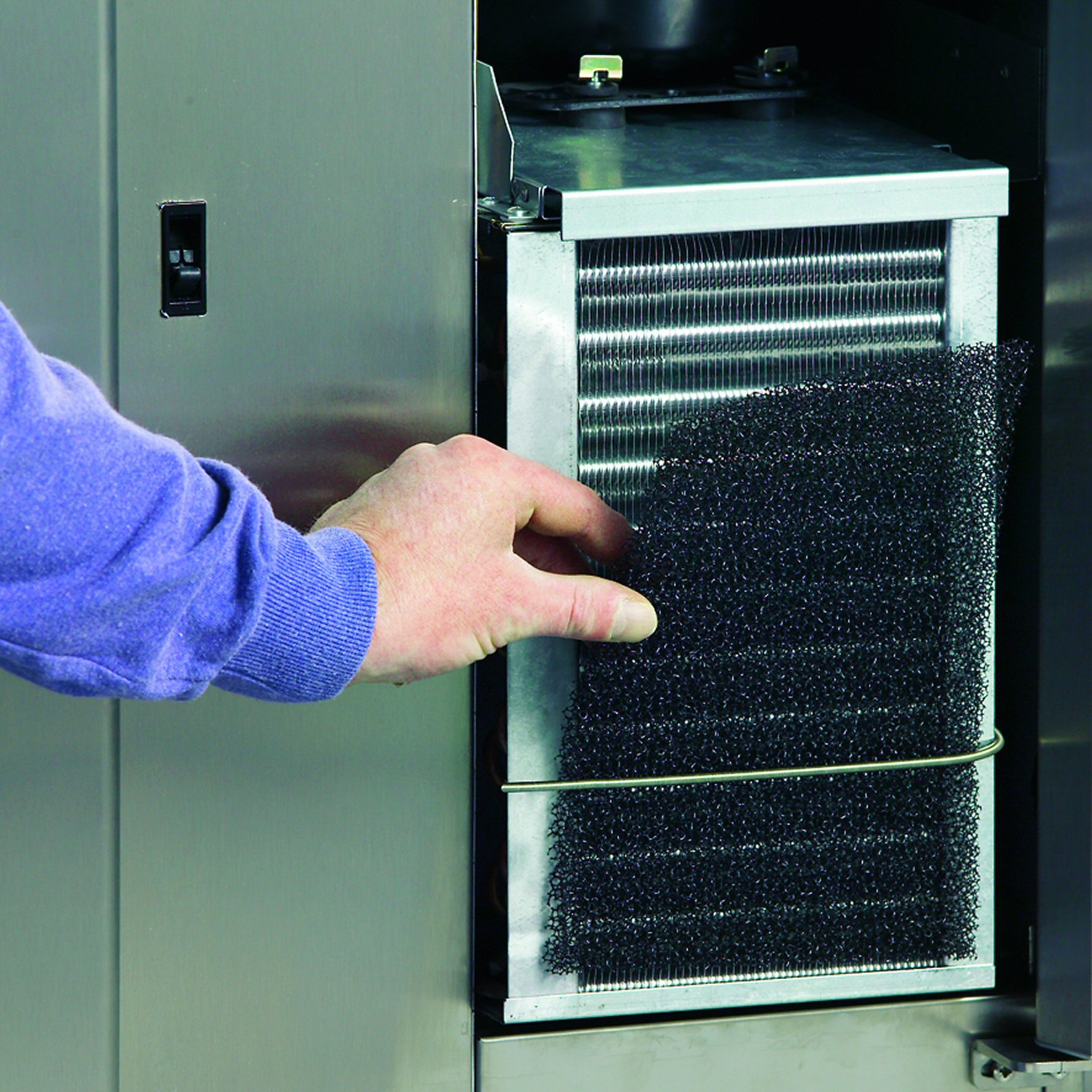

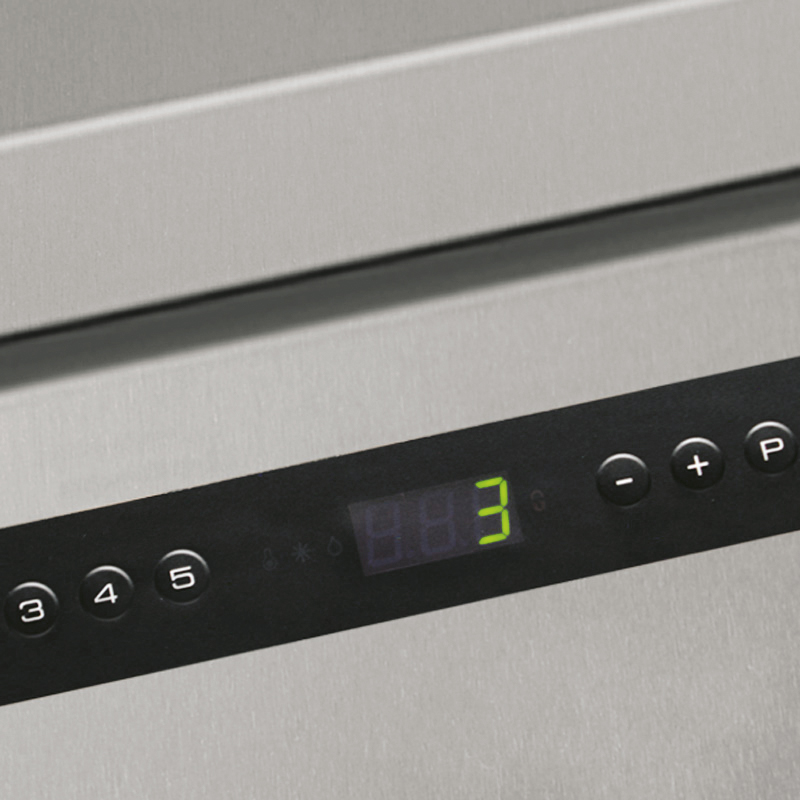

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.
Designed for Bakers

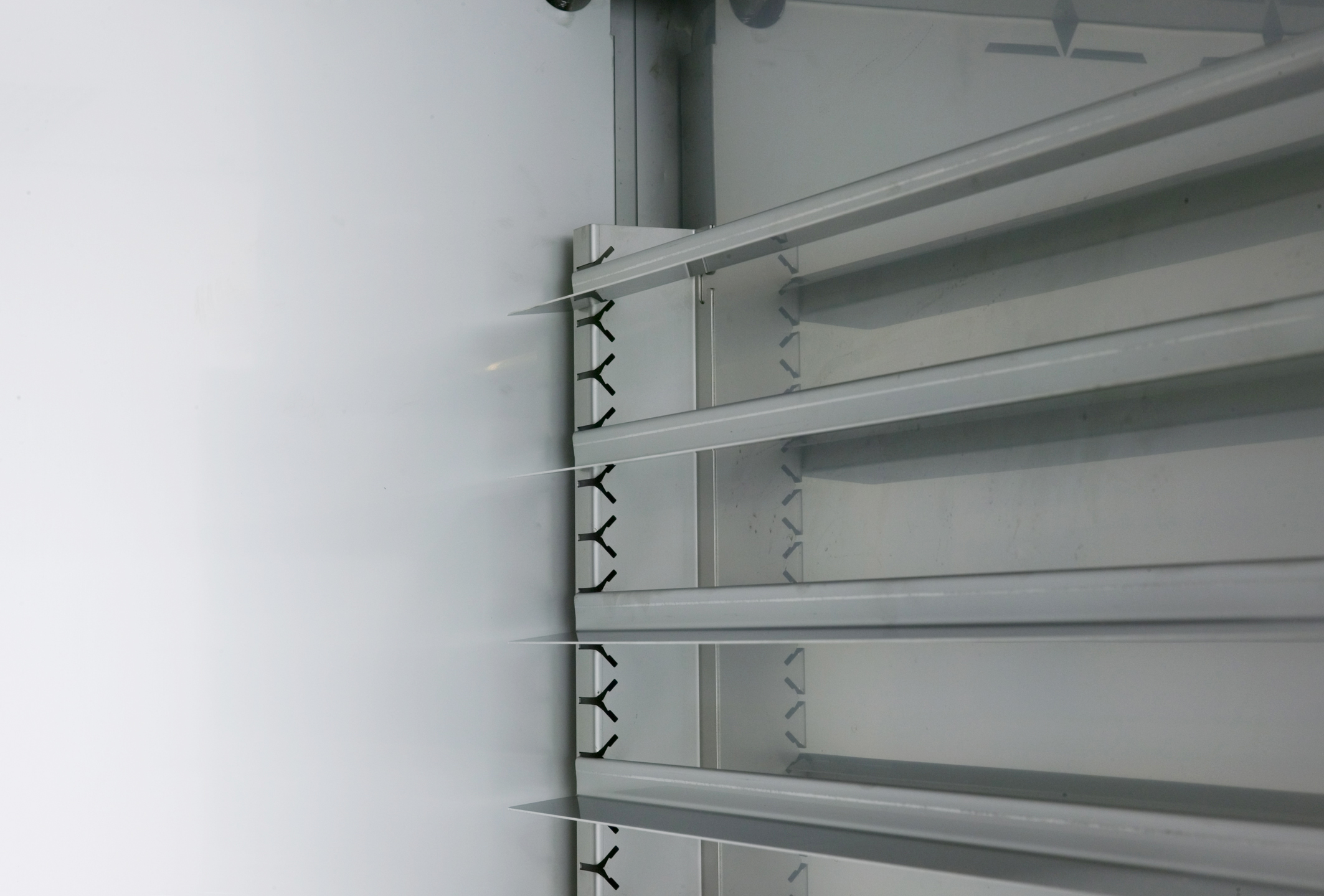

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.
The BAKER F 1808 CBG A DLB DRB L2 comes with the following extras:
Right-hand hinged door with lock
Air circulation system
Dry cooling and controlled thawing (M versions)
Automatic defrost and reevaporation of water
| Specification | Value |
| Item number | 861811530 |
| Model name | BAKER F 1808 CBG A DLB DRB L2 |
| Brand | Gram |
| Warranty period | 5 Years on Parts & Labour - based on country agreement |
| Equipped with | Stainless steel solid top, 2 door sections each with 9 pairs of adjustable supports (60 x 40 cm) |
| Extended spec sheets approved | 1 |
| Width | 1700 mm |
| Depth | 800 mm |
| Height including legs (minimum) | 885 mm |
| Height including legs (maximum) | 950 mm |
| Energy efficiency class | E |
| Product availability | -- Not available |
| Climate class | 4 (max. ambient temp. of 30 °C with 55% RH) |
| Exterior | Stainless Steel |
| Interior | Stainless |
| Gross weight | 184 kg |
| Insulation thickness | 50 mm |
| Insulation type | Cyclopentane |
| Legs / Castors | H = 125-200 mm (L) |
| Net usable volume | 297 l |
| Net weight | 184 kg |
| Power supply | 230V, 50Hz |
| Temperature range | -25/-5°C |
| Volume, gross | 588 l |
| Volume, net | 297 l |
| Door Type | Solid Door |
| Refrigeration capacity | 600 |
| CO2 equivalent | 0.25 kg |
| GWP | 3 GWP |
| Refrigerant | 0.08 kg |
| Refrigerant type | R290 |
| SKU | 861811530 |
