Products overviewADVANCE MD K 100 HG N E Multideck refrigerator with Clear Glass End Panels

ADVANCE MD K 100 HG N E Multideck refrigerator with Clear Glass End Panels

Multidecks

ADVANCE MULTIDECKS

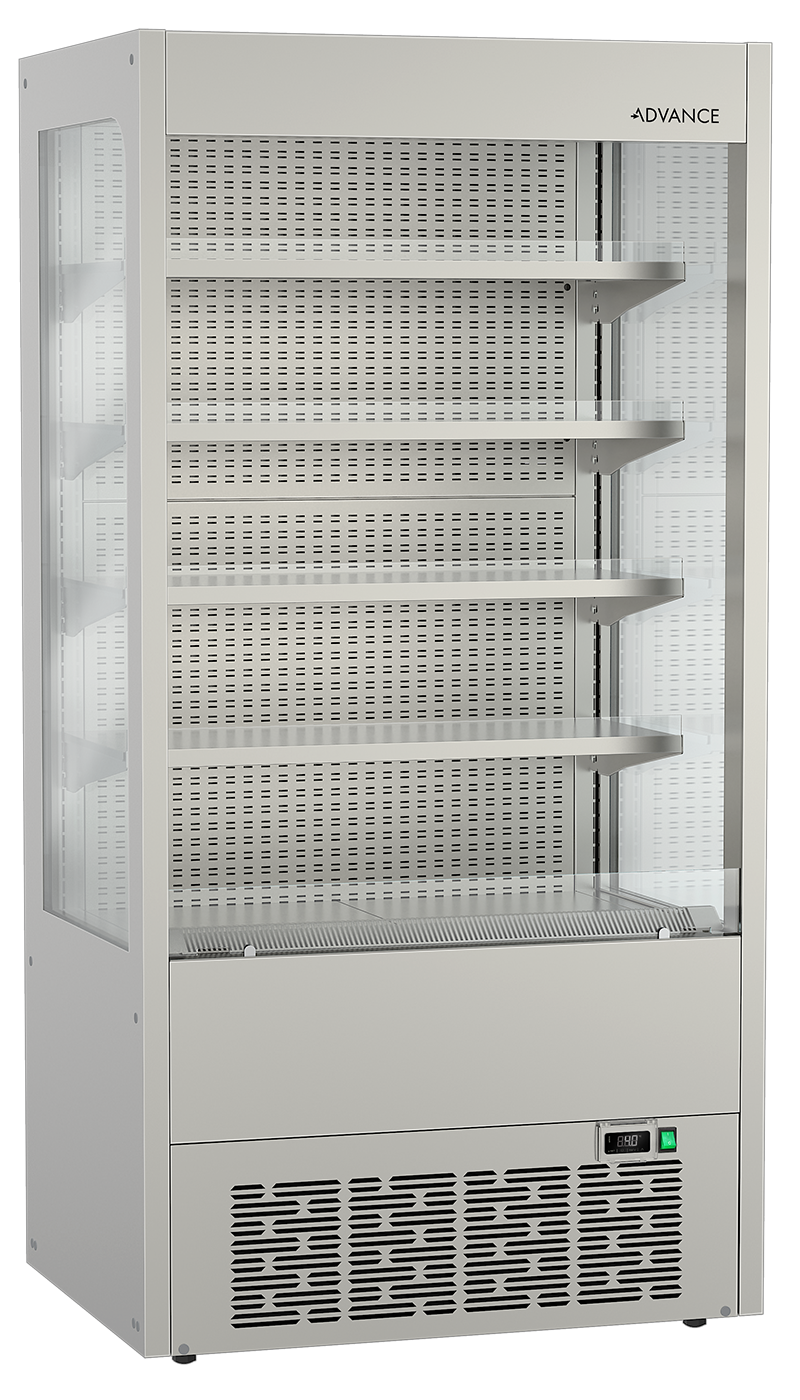

The ADVANCE ADVANCE MD K 100 HG N E is a Multideck refrigerator with Clear Glass End Panels with a net usable volume of 435 l.

The Multideck Series features an intelligent airflow system that ensures stable and uniform cooling across all shelves, from top to bottom. High-quality insulation and eco-friendly refrigerants help reduce energy consumption and operational costs, supporting a more sustainable business.

The dimensions (W x D x H) of the ADVANCE MD K 100 HG N E are 1000 x 750 x 2000 mm.

Get quote View spec sheet

Key features Specifications Documentation Accessories

Key features

VISIBILITY THAT DRIVES SALES
Clear visibility is key to every self-service concept. Each Multideck features bright LED lighting on every shelf, illuminating snacks, drinks, and ready meals in an attractive, uniform way.

BUILT FOR HEAVY LOADS
Thanks to integrated leveling ADVANCE Multidecks are stable and can positioned on any surface. All Mutlidecks come with a set of 4 wheels and leveling feet.

EASY OPERATION & MAINTENANCE
Daily work should be smooth and efficient. The Multideck Series offers adjustable shelves that can be angled or repositioned to match changing product ranges.

EASY CLEANING & HYGIENE
Hygiene is essential in all food-service environments. The Multideck interior is designed with rounded corners and smooth surfaces, reducing dirt accumulation and simplifying daily cleaning.

ENERGY EFFICIENCY THAT PAYS OFF
Every Multideck model is designed to balance performance and sustainability. Closed- door variants achieve excellent efficiency values, while night blinds on open models provide up to 28% energy savings* during non-service hours.

*Energy saving refers to energy consumption with night blinds closed 12 hours per day in comparison to energy consumption with night blinds open for 24 hours per day.

Specifications

Specification	Value
Item number	211103150
Model name	ADVANCE MD K 100 HG N E
Product availability	-- NEW DESIGN. This model is available soon
Brand	Advance
Warranty period	2 Years on Parts & Labour - based on country agreement
Country of origin	Turkey
Title	Multideck refrigerator with Clear Glass End Panels
Accessories included	4 stainless shelves
Equipped with	4 stainless shelves, LED lighting for each shelf, night blind, 4 levelling feet and wheels
Width	1000 mm
Width (packed)	1100 mm
Depth	750 mm
Depth (packed)	1000 mm
Height	2000 mm
Height (packed)	2150 mm
Volume (packed)	2.37 m³
Energy consumption	4769 kWh/year
Energy efficiency class	D
Energy efficiency class standard	ISO 23953-1/2:2023
Energy Efficiency Index (EEI)	38.16 EEI
Number of shelves	4
Maximum number of shelves	4
Shelf size	W 916 x D 375 mm
Temperature (Class: 3M2)	-1/+7°C
Cover type	Night blind
Maksimal hyldebelastning	350 mm
Maximum shelf load	65 kg
End panel type	End panel with clear glass
Maximum shelf can load (can = H120 mm x Ø66 mm)	65 Pc
Maximum bottom tray can load (can = H120 mm x Ø66 mm)	84 Pc
Climate class	3 (maximum ambient temperatures of 25 °C with 60% RH)
Connection load	1300 W
Exterior	Stainless steel AISI 304
Interior	Stainless steel AISI 304
Gross weight	255 kg
Insulation type	Polyurethane
Legs / Castors	Feet 34-52 mm
Net usable volume	435 l
Net weight	225 kg
Power supply	230V, 50 Hz
Volume, gross	600 l
Cooling system	Built-in cooling system
Product type	Cabinets
Refrigeration capacity	1702
Optional Extras	Price strips, snack baskets, food tray slides
CO2 equivalent	0.72 kg
GWP	3 GWP
Refrigerant	0.24 kg
Refrigerant type	R290
SKU	211103150

Documentation

Documentation
ADVANCE MD K 100-120 N COOLING DIAGRAM.pdf	Download
Declaration of conformity	Download
Ecodesign label / Energy label	Download
100-120 elektrık dıagram.pdf	Download
Instruction manual	Download

Accessories

Accessory name	Item number
Snack basket 1000 for ADVANCE MD K 100	760660968
Food tray slide 1000 for ADVANCE MD K 100	760660972
Price strip for ADVANCE MD K 100	760660976
