174802030

Premier KG W80 C DR U

Armadi gastronomia
B

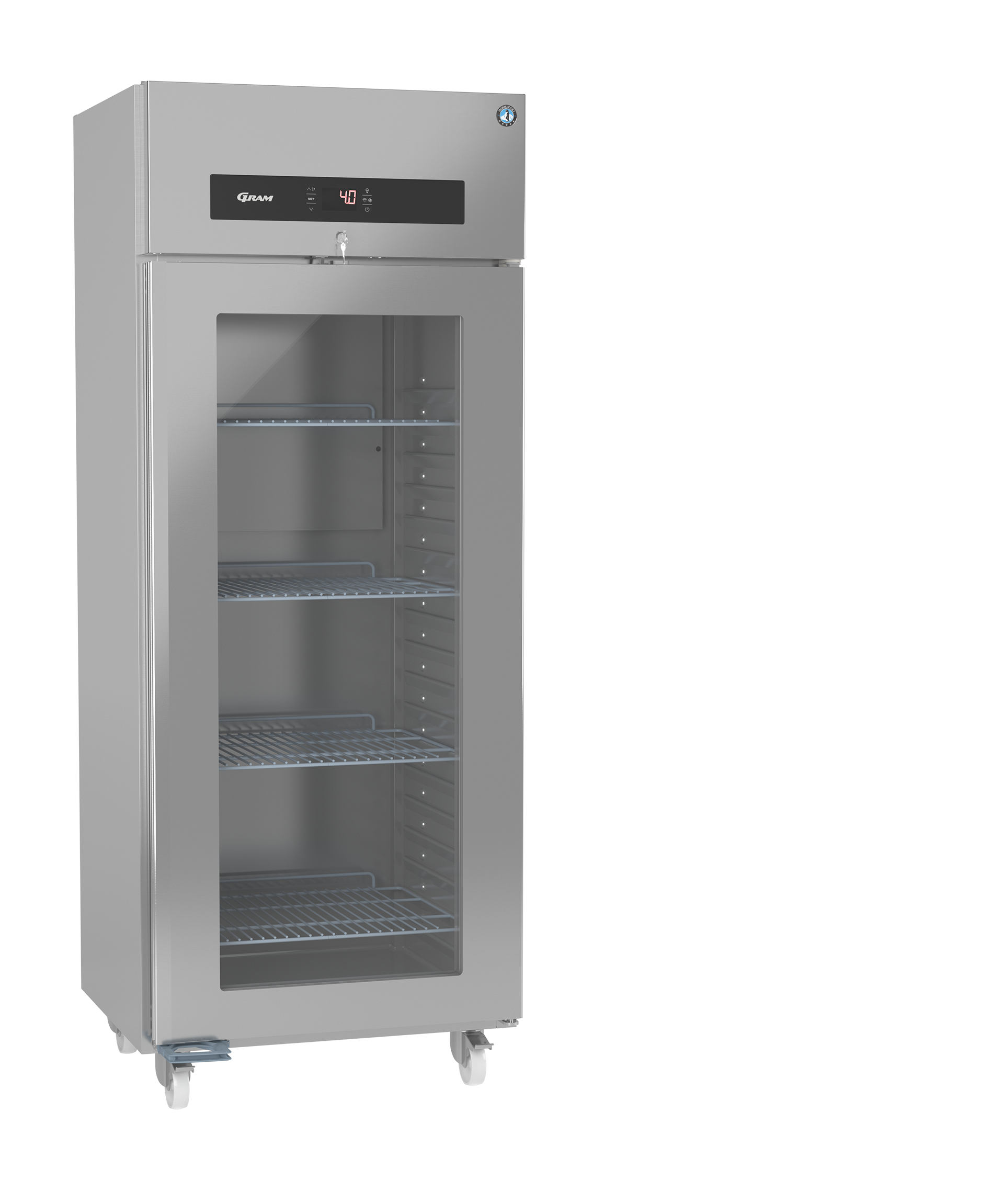

The Hoshizaki PREMIER is a series of heavy-duty cabinets for energy-efficient refrigeration (Climate Class 4 (max. ambient temp. of 30 °C with 55% RH)), catering to the needs of gastronomic perfectionists. The durable design with solid door hinges, stabile stainless steel, and flawless finish is built to withstand the most demanding kitchen operations. The low-height PREMIER cabinets are customizable with castors instead of legs to easily fit into low-ceiling environments, yet convince with a surprisingly high internal volume. The Premier KG W80 C DR U is a with a net internal volume of 475. The dimensions are 810 x 728 x 2075 (including castors) mm.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

“FOOD SAFETY & TEMPERATURE STABILITY

The efficient air circulation system helps to maintain perfect storage temperatures and to recover the inside temperature rapidly after each door opening and defrosting. Additionally, the automatic defrost function ensures stable temperatures at all times. The wide, magnetic gaskets provide an effective seal and reduce escaping of cold air.



COMPARTMENTALIZED DESIGN The PREMIER’s condenser is positioned on top of the cabinet, which brings multiple advantages. The cabinets can be hosed down in one run, without risking electric shortcuts. As the evaporator is positioned on top of the cabinet, valuable space inside the cabinet can be used for storage. Additionally, it can easily be serviced via the front flap on top of the cabinet.



LOW RUNNING COSTS & SUSTAINABILITY

The energy-efficient refrigeration technology implemented in this broad line-up of storage cabinets can help save running costs on an everyday basis. The Premier KG W80 C DR U runs on natural refrigerant and has [4].



ERGONOMIC & EASY TO USE

Extras, like the practical pedal-foot door opener, allow hands-free opening, contribute to a healthier work environment, and are a real-time-saver for hectic kitchen operations. The functional and intuitive display is easy to understand and use.



HYGIENE & WASTE REDUCTION

Thanks to the rounded corners, smooth surfaces, and molded rails, frequented cleaning routines become a quick and simple task. The practical anti-tilting function prevents spillage. The Interior and exterior are made of AISI 304 stainless steel and are perfectly suitable for humid locations.



EASY CUSTOMIZATION & FLEXIBILITY PREMIER

cabinets can easily be adjusted to your requirements, for example, the length of the legs, the position of the door, and the foot pedal. They also can accommodate shelves up to 18-22 levels (4 shelves included) offering you high flexibility to accommodate different types of produce. “

Specifiche

Specifiche Value
Codice articolo 174802030
Modello Premier KG W80 C DR U
Periodo di garanzia 6 anni di garanzia su parti di ricambio & manodopera

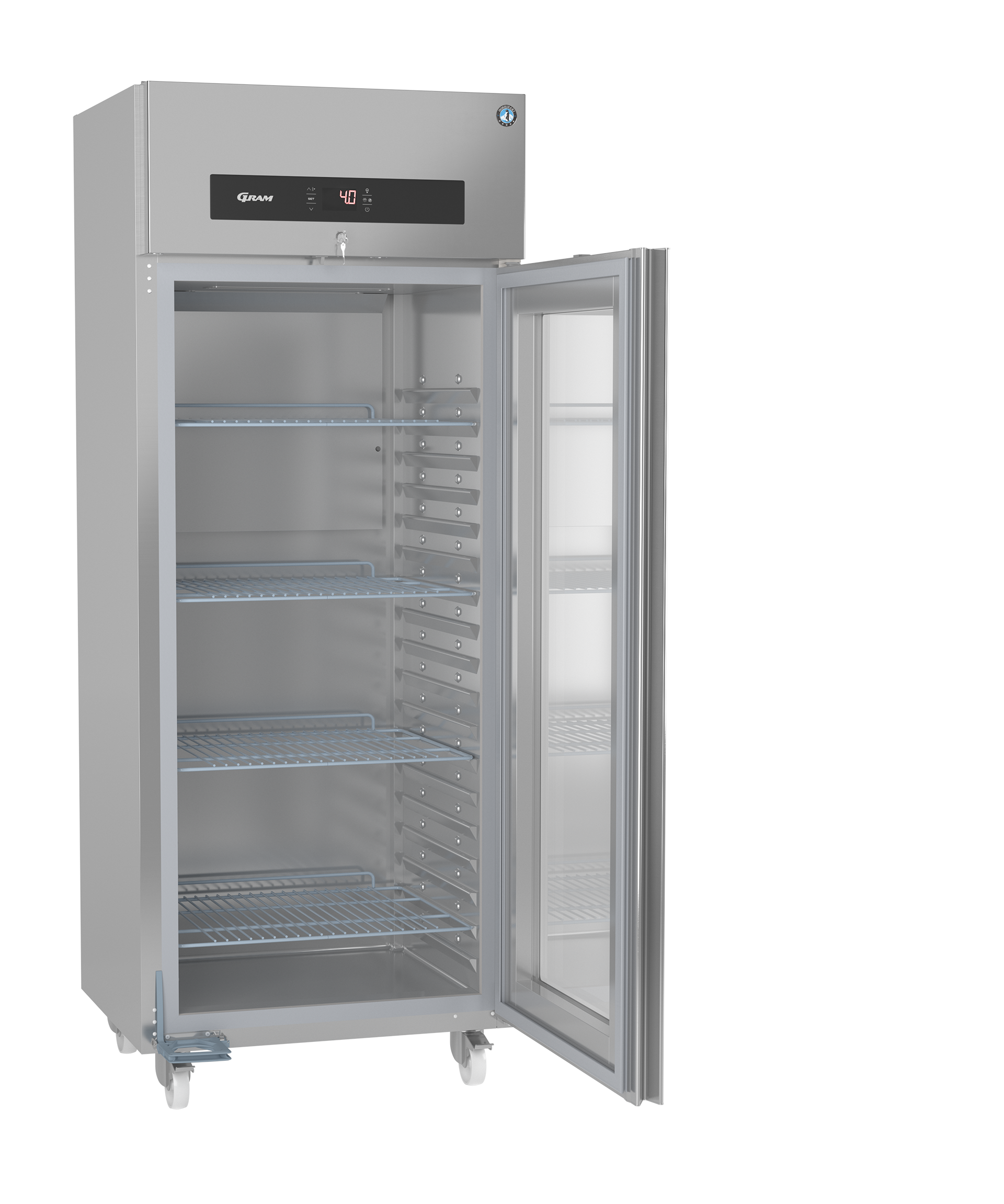

Equipaggiato con Right hand hinged reversible glass door with lock, automatic door closing, pedal door opener, 4 grey shelves, LED lighting
Larghezza 810 mm
Profonditá 728 mm
Altezza 2075 mm
Consumo elettrico 439 kWh
Classe di efficienza energetica B
Classe di efficienza energetica standard ISO 22041-2019
Indice di Efficienza Energetica (IEE) 31.62 EEI
Numero ripiani 4
Numero massimo ripiani 18
Dimensioni ripiano 2/1 GN largh.
Product availability -- Non disponibile
Classe climatica 4
Valori di allacciamento 120 kW
Rivestimento esterno Acciao Inox AISI 304
Rivestimento interno Acciaio inossidabile AISI 304
Peso lordo 140 kg
Spessore isolamento 78 mm
Tipologia isolamento Polyurethane
Piedini / Rotelle H = 125 mm (C)
Volume netto 475 l
Peso netto 130 kg
Alimentazione 230V, 50Hz
Livello rumorositá 46 dB
Intervallo di temperatura +2/+12°C
Volume lordo 700 l
Tipologia porta Glass door
Tipologia prodotto Armadi
Capacitá di refrigerazione 206
Equivalente CO2 0.24 kg
GWP 3 GWP
Refrigerante 0.08 kg
Tipologia refrigerante R600a
SKU 174802030

Documentazione

Documentazione
DWG files Download
Declaration of conformity Download
Instruction manual Download
Spec sheet Download
PREMIER_K_KG_M_WIRING_DIAGRAM.pdf Download

Accessori

Nome accessorio Codice articolo
Set of castors 125 mm (2 x braked and 2 x unbreaked) 760660022
Set of legs 130-180 mm                   760660118
760660430 760660430
760660433 760660433
Shelf (stainless steel) with back guard for GN 2/1 wide cabinet 760660438
Shelf (stainless steel) with back guard for GN 2/1 wide cabinet (bottom) 760660439
Shelf (grey) with back guard for GN 2/1 wide cabinets excl. shelf support (bottom) 760660443
Set of stainless steel shelves (3 top & 1 bottom) with back guard for GN 2/1 wide cabinets excl. shelf support 760660447
