861820021

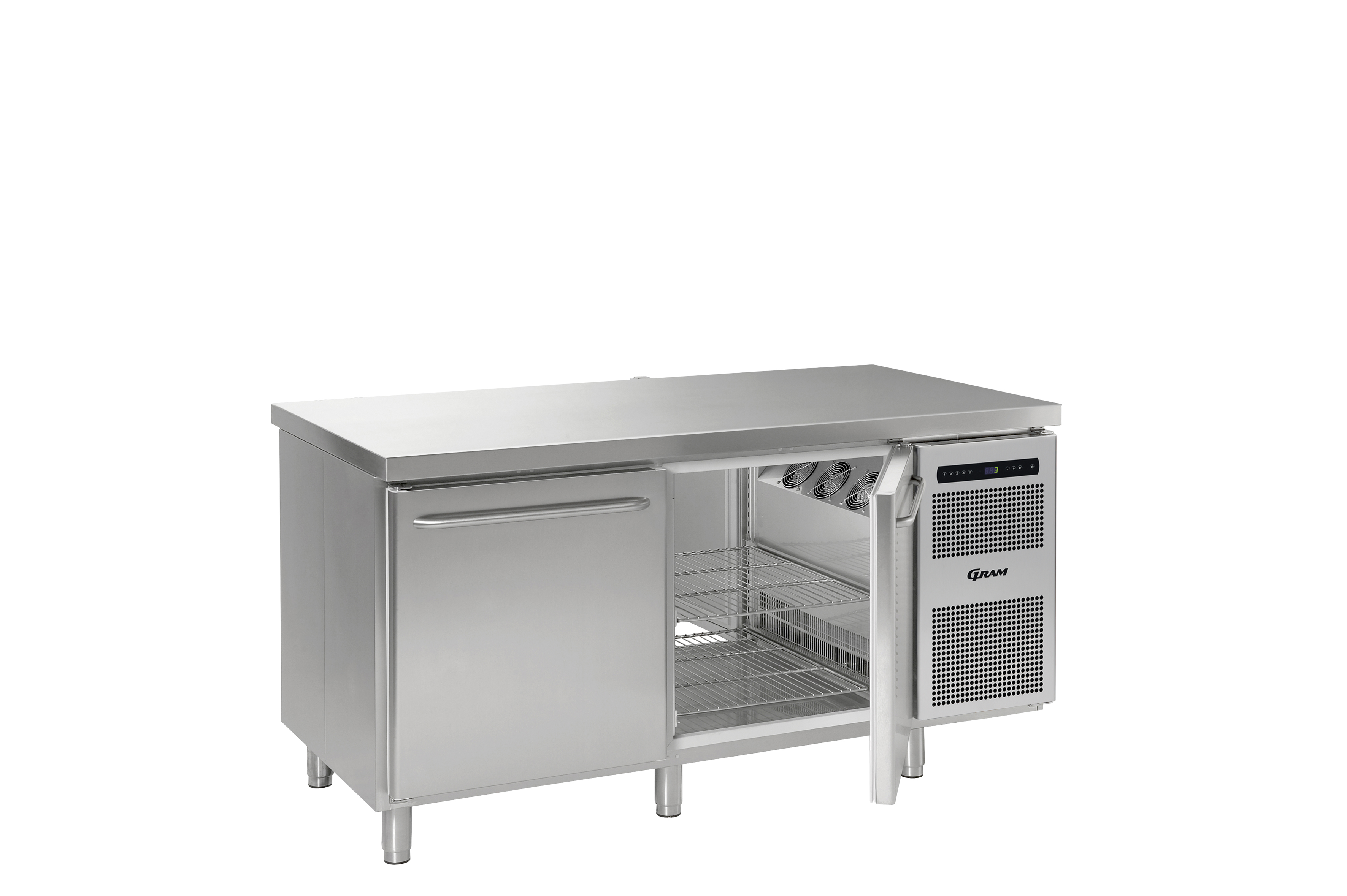

GASTRO K 1808 D CSG A DL DR L2

Refrigerated counters
Category not yet regulated

Equipped with: Stainless steel solid top, 2 door sections each with 2 stainless shelves. Height: 885/950mm Volume, gross: 586 ltr. Exterior/Interior: Stainless/Stainless The GRAM GASTRO 08 series is 2/1 GN refrigerated and freezer counters. The series is available with 2 or 3 sections. The range includes flat worktops with or without splashback and saladette worktops with insulated or acrylic lids. Available with electric elevation and prepared for connection to external compressor.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

With GRAM GASTRO 08 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges, and accessories.



Easy Maintenance

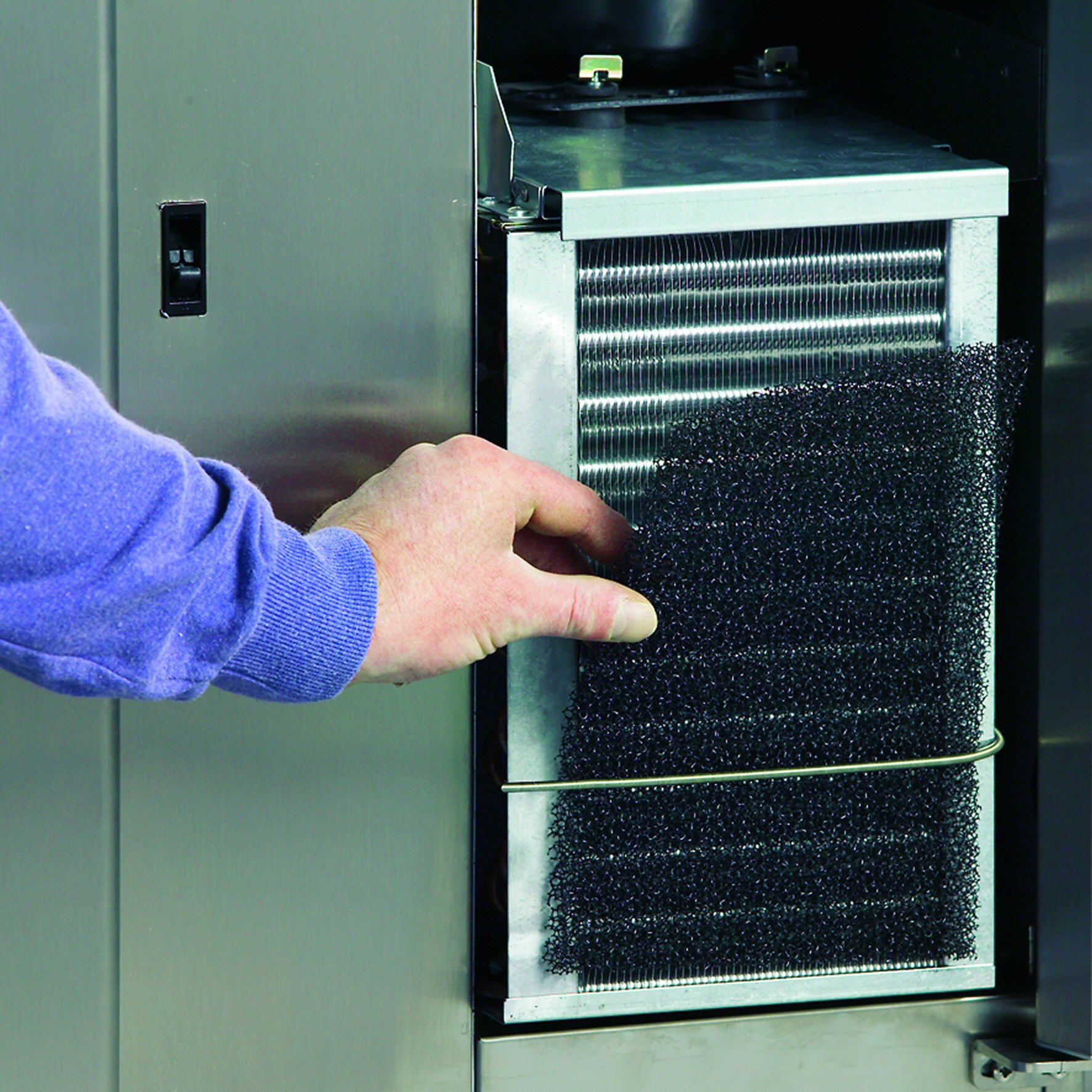

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick, and thorough cleaning.

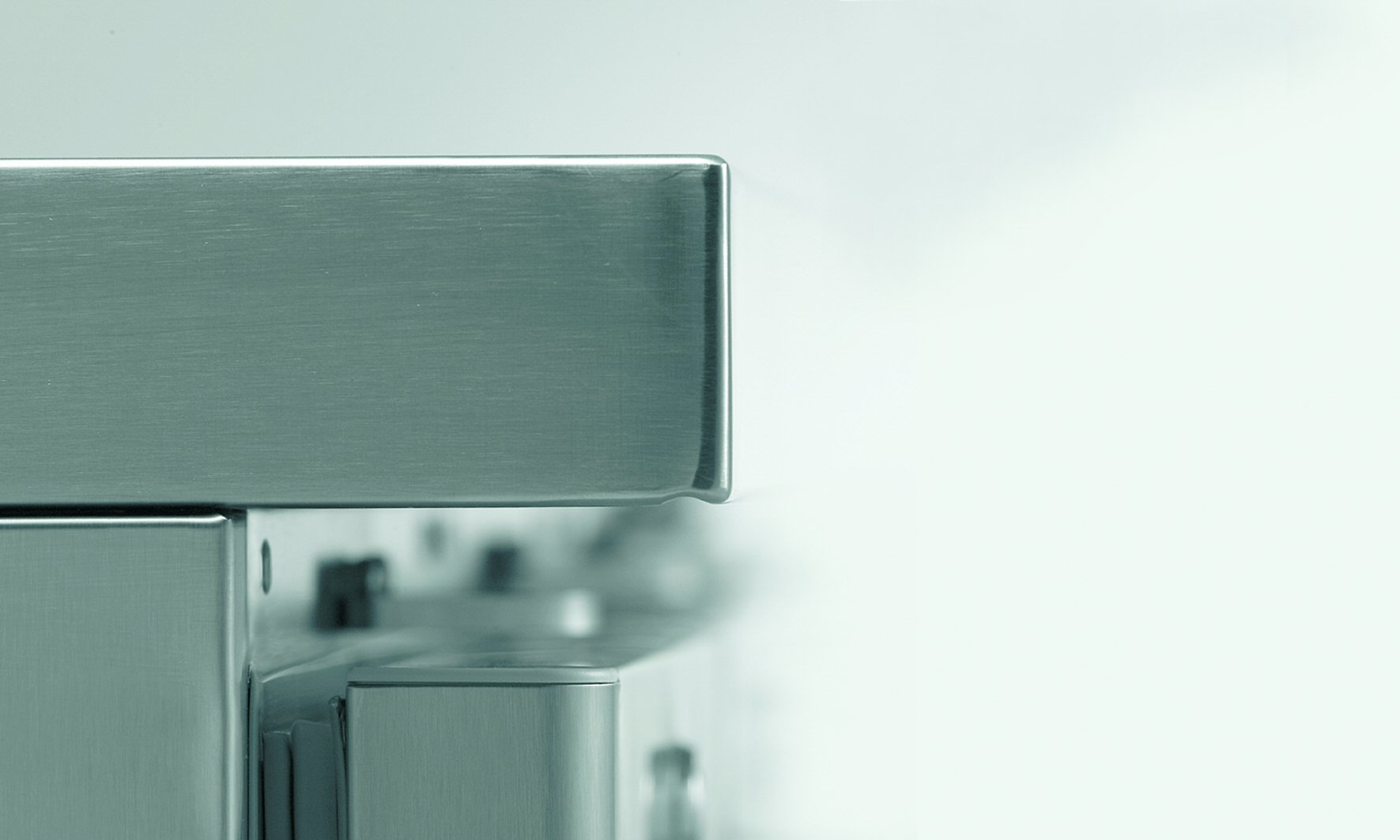

  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.

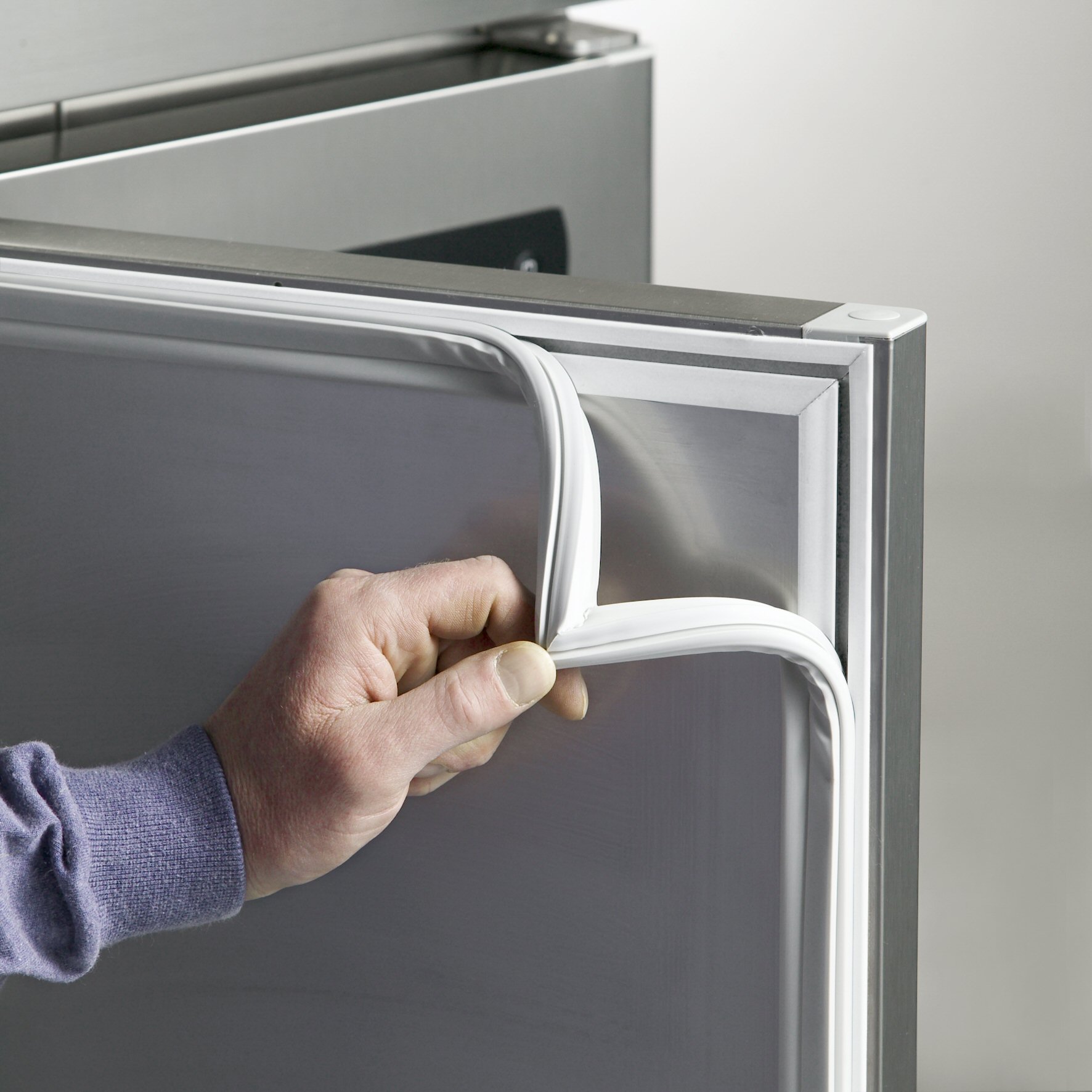

  • Removable drawer and door gaskets for easy cleaning.

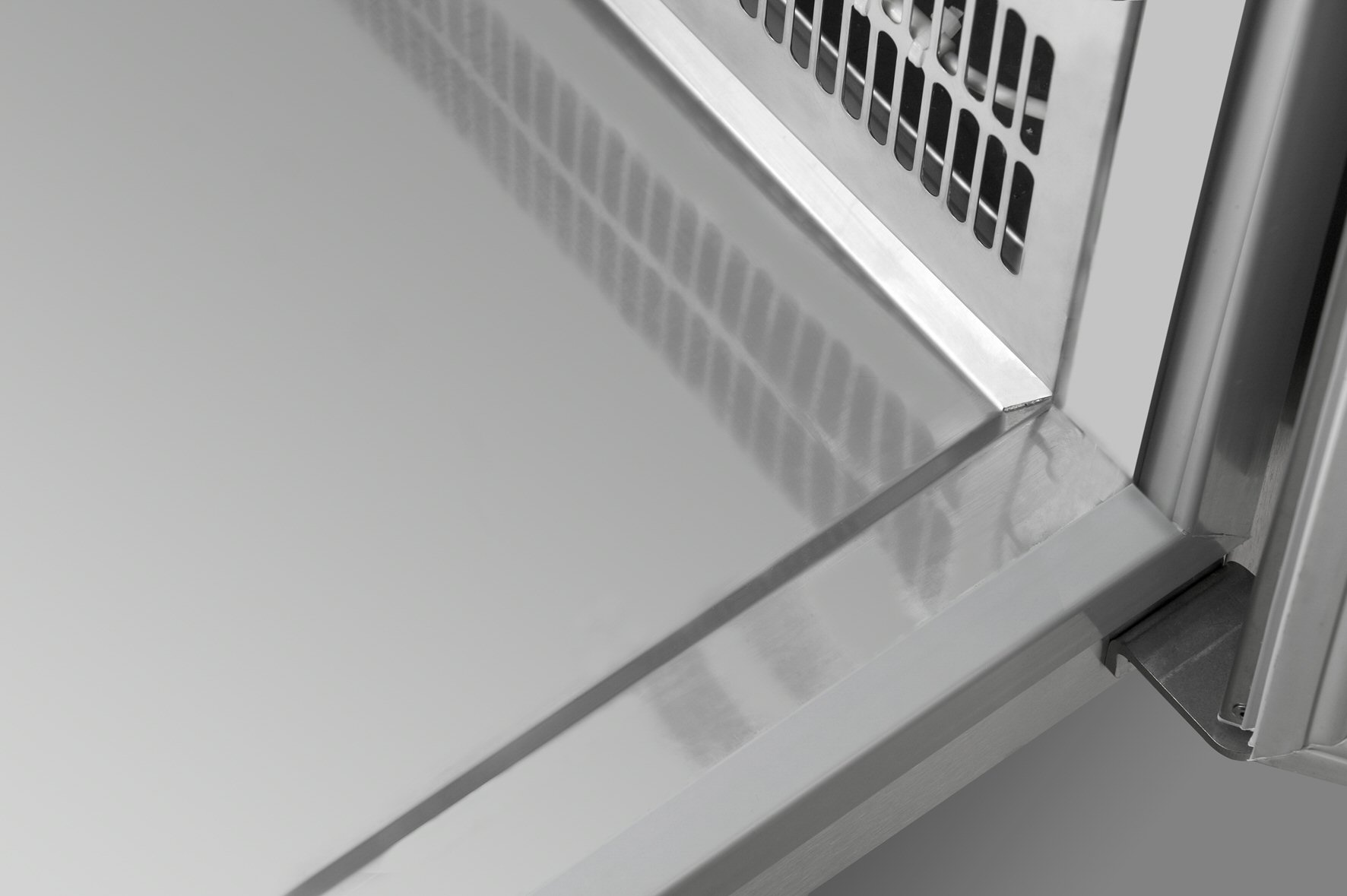

  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

  • Anti-tilt shelves and drawers with pull-out stop.
  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without

Specifiche

Specifiche Value
Codice articolo 861820021
Modello GASTRO K 1808 D CSG A DL DR L2
Marchio Gram
Equipaggiato con Stainless steel solid top, 2 door sections each with 2 stainless shelves
Larghezza 1700 mm
Profonditá 870 mm
Altezza inclusa le gambe (minimo) 885 mm
Altezza inclusi le gambe (massimo) 950 mm
Classe di efficienza energetica Category not yet regulated
Dimensioni ripiano 2/1 GN prof.
Product availability -- Non disponibile
Valori di allacciamento 310 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 184 kg
Spessore isolamento 50 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Peso netto 184 kg
Alimentazione 230V, 50Hz
Intervallo di temperatura +2/+12°C
Volume lordo 588 l
Tipologia porta Solid Door
Capacitá di refrigerazione 345
Equivalente CO2 0.23 kg
GWP 3 GWP
Refrigerante 0.07 kg
Tipologia refrigerante R290
SKU 861820021
