BAKER M 1808 CBG A5 DLA DRA L2

Baker cabinets
E

The M 1808 is a 2 door counter Gross Volume: 586 ltr Materials Exterior/ Interior: Stainless / Stainless Height: 885/950 mm Equipped with Stainless steel solid top with 5 cm backsplash, 2 door sections each with 9 pairs of trayslides (46x61 cm). BAKER counters are available with 2 or 3 refrigerated sections. The range includes flat worktops with or without splashback. The cabinet is also available with insulation board only, i.e. without a worktop. Remote models available.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

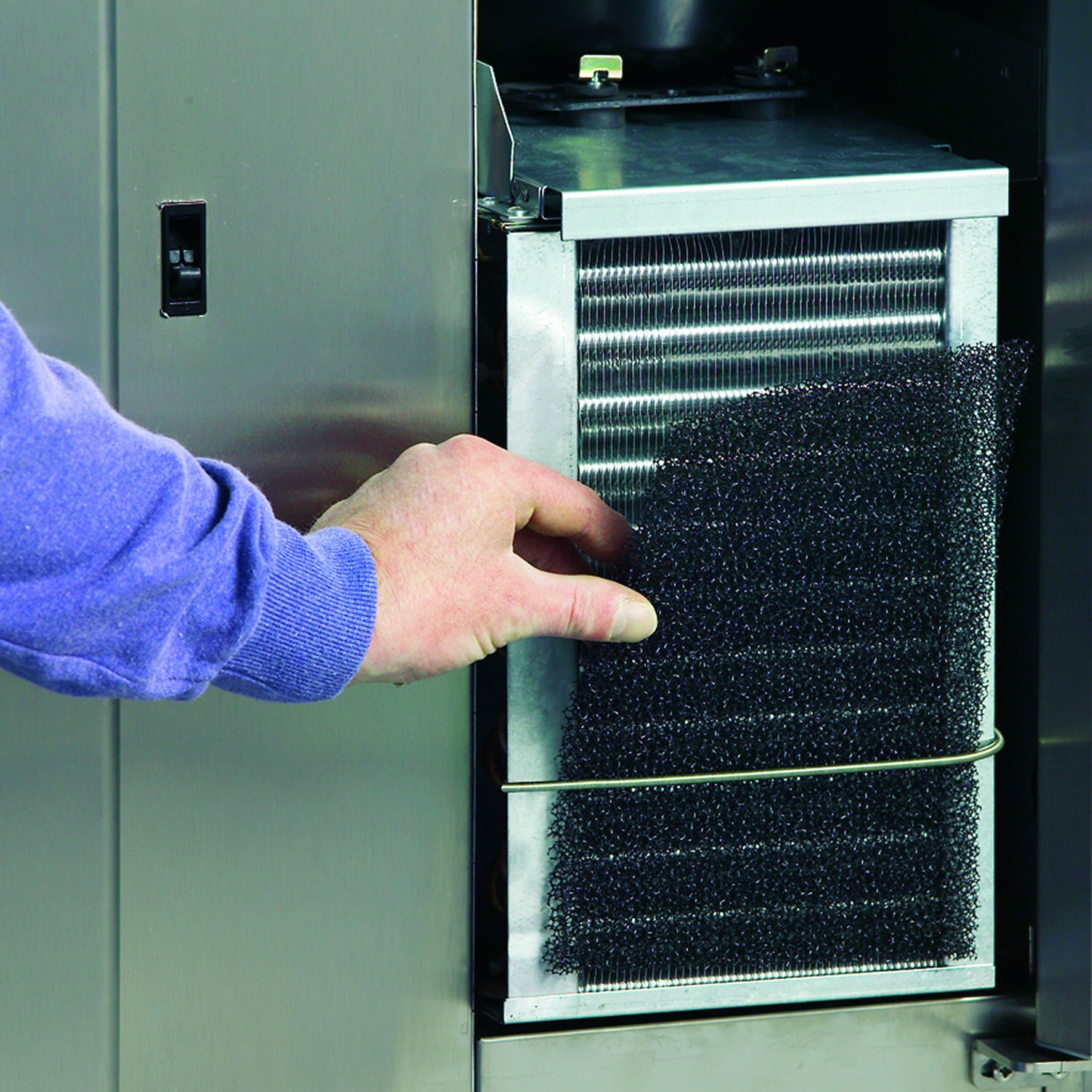

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

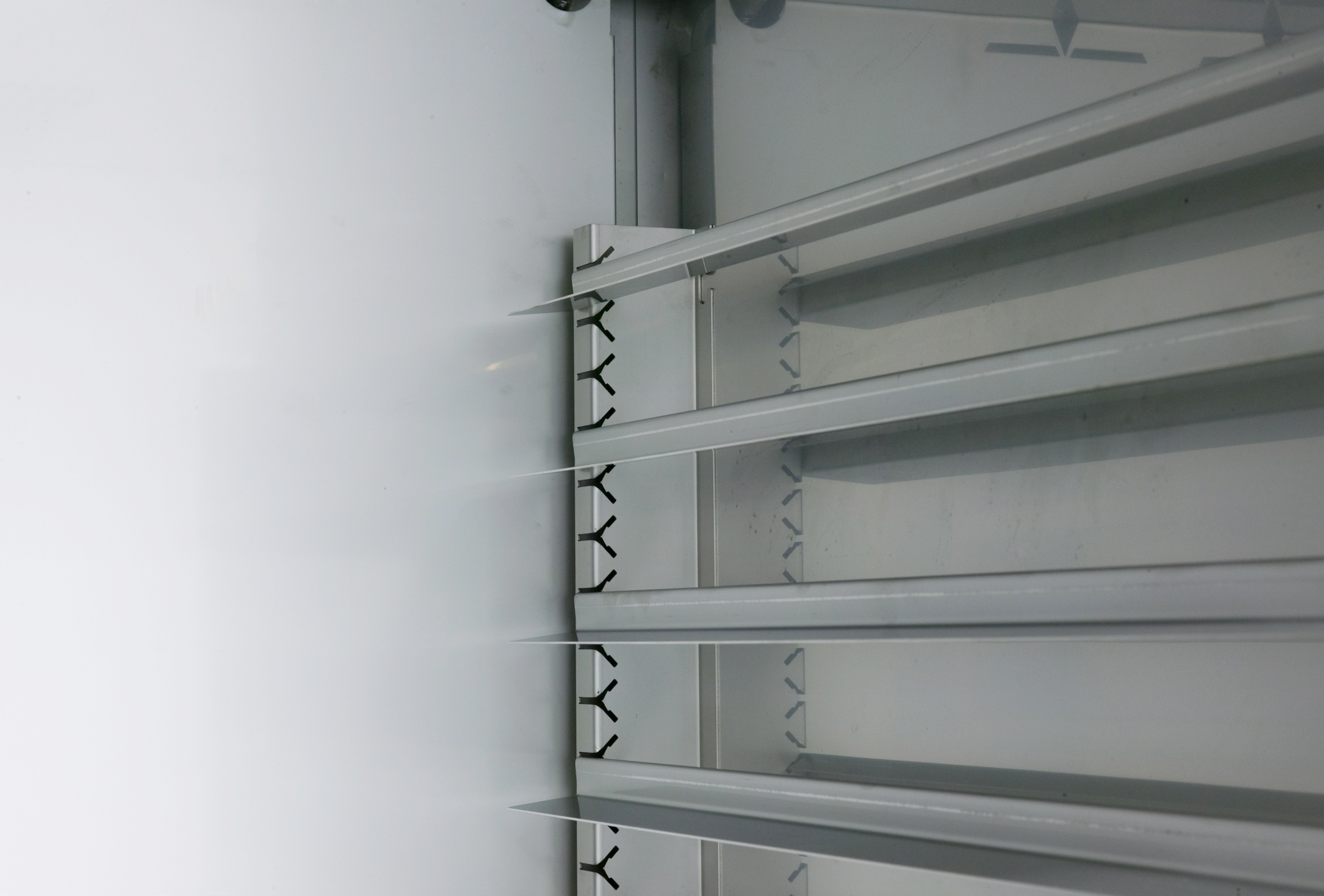

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER M 1808 CBG A5 DLA DRA L2 comes with the following extras:

  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water



Specifiche

Specifiche Value
Codice articolo 861811537
Modello BAKER M 1808 CBG A5 DLA DRA L2
Marchio Gram
Periodo di garanzia 5 anni di garanzia su parti di ricambio & manodopera

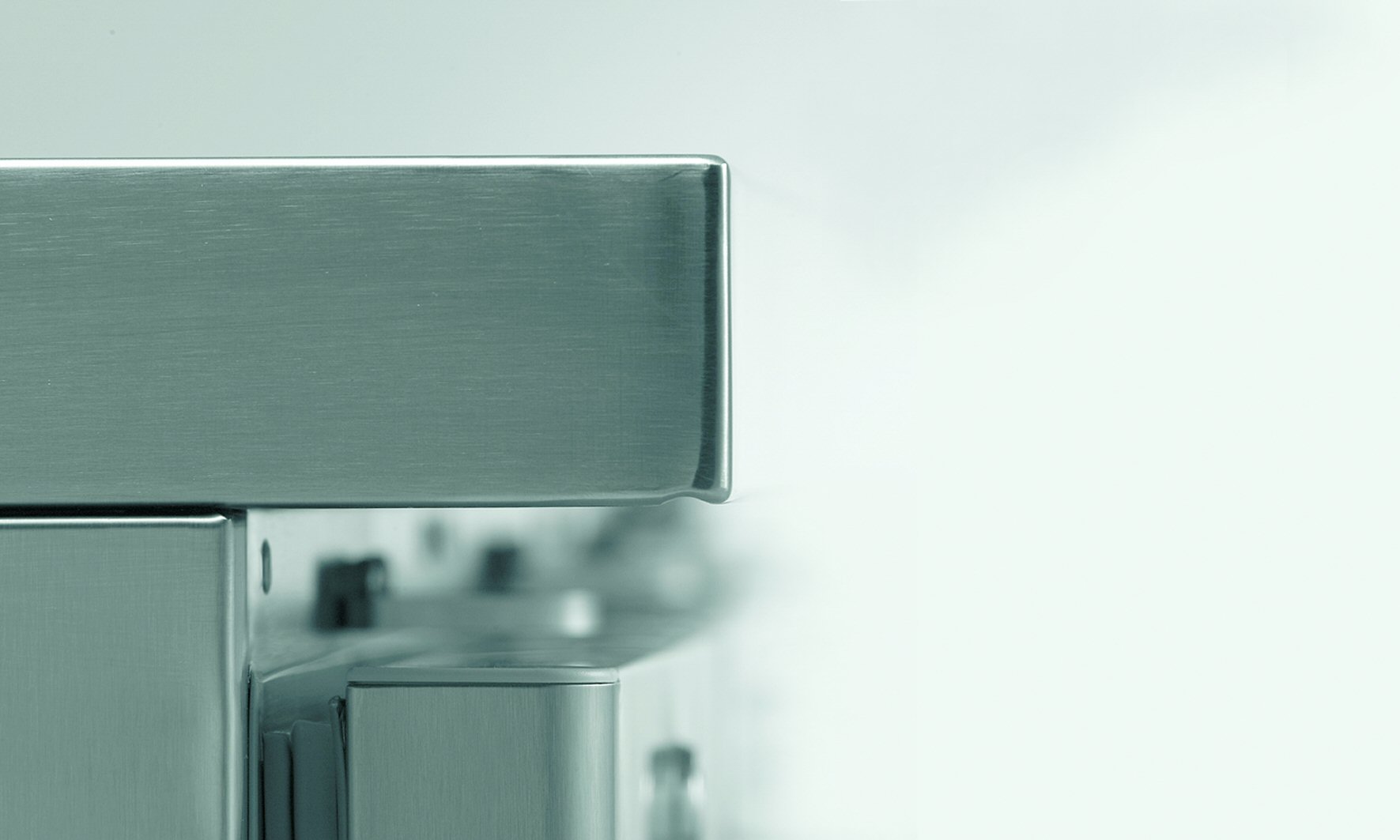

Equipaggiato con Stainless steel solid top with 50 mm splashback, 2 door sections each with 9 pairs of adjustable supports (46 x 61 cm)
Larghezza 1700 mm
Profonditá 819 mm
Altezza inclusa le gambe (minimo) 885 mm
Altezza inclusi le gambe (massimo) 950 mm
Consumo elettrico 1990 kWh
Classe di efficienza energetica E
Valori di allacciamento 310 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 184 kg
Spessore isolamento 50 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Volume netto 297 l
Peso netto 184 kg
Alimentazione 230V, 50Hz
Intervallo di temperatura -5/+12°C
Volume lordo 588 l
Tipologia porta Solid Door
Capacitá di refrigerazione 386
Equivalente CO2 0.23 kg
GWP 3 GWP
Refrigerante 0.07 kg
Tipologia refrigerante R290
SKU 861811537

Documentazione

Documentazione
Declaration of conformity Download
BAKER_M_1808_G_A5_DLA_DRA_10275056.pdf Download
Instruction manual Download
7460652.pdf Download
7460651.pdf Download
