961401013

BAKER F 140 CCG L2 50A

Freezers
D

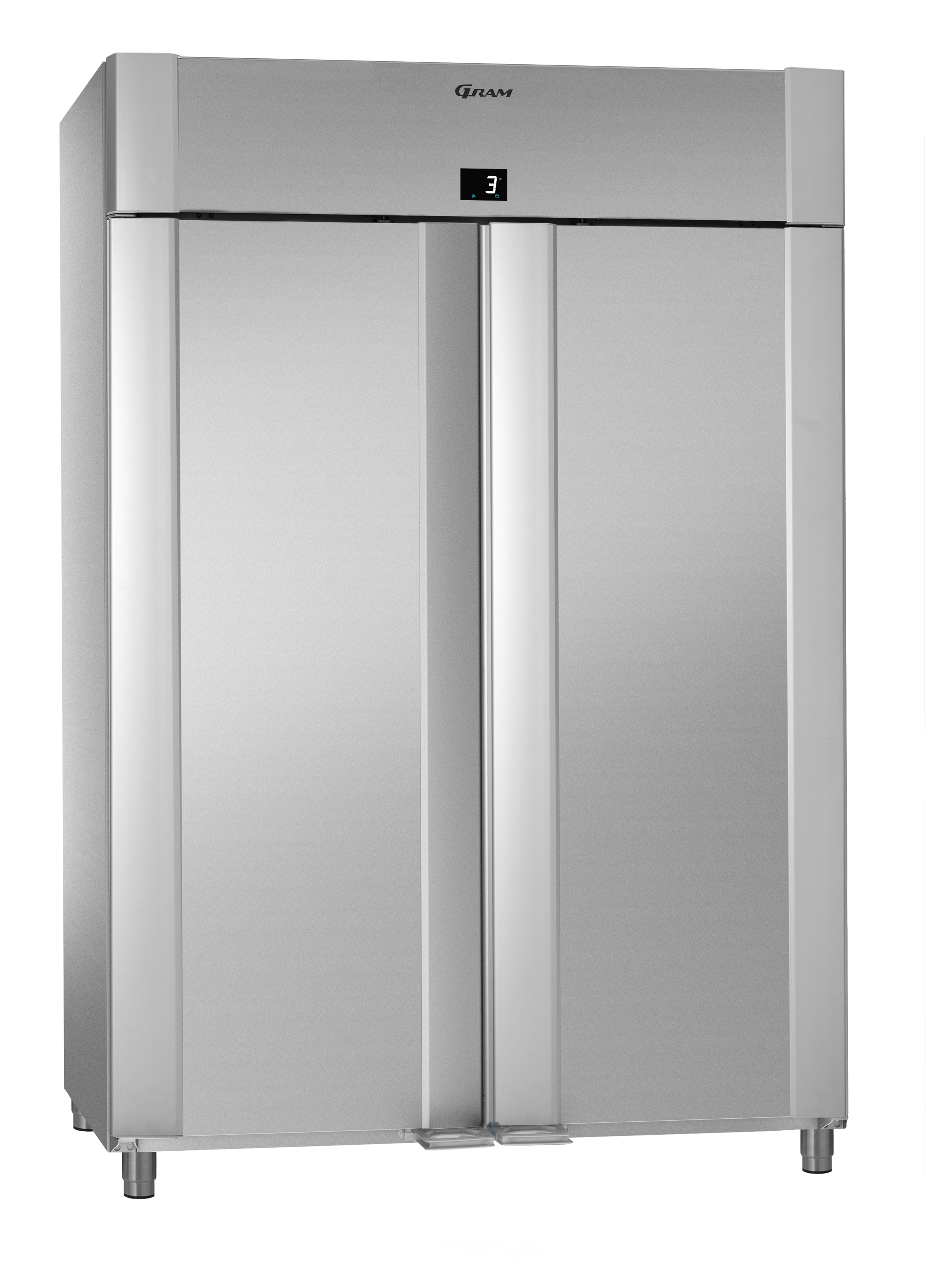

The GRAM BAKER F 140 CCG L2 50A  is a with a net internal volume of  801 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperatures inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER F 140 CCG L2 50A comes with the following extras:

Right-hand hinged door with lock

Air circulation system

Dry cooling and controlled thawing (M versions)

Automatic defrost and reevaporation of water



Specifiche

Specifiche Value
Codice articolo 961401013
Modello BAKER F 140 CCG L2 50A
Periodo di garanzia 5 anni di garanzia su parti di ricambio & manodopera
Equipaggiato con Equipped with right and left hand hinged door with lock, self closing doors and pedal door openers, LED light, 50 pairs of adjustable trayslides, legs.
Larghezza 1400 mm
Profonditá 905 mm
Altezza 2125 mm
Consumo elettrico 2795 kWh
Classe di efficienza energetica D
Indice di Efficienza Energetica (IEE) 42.01 EEI
Product availability -- Non disponibile
Classe climatica 5
Valori di allacciamento 607 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 220 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Volume netto 801 l
Peso netto 220 kg
Alimentazione 230V, 50Hz
Livello rumorositá 45.6 dB
Volume lordo 1359 l
Tipologia porta Double Door
Capacitá di refrigerazione 877
Equivalente CO2 0.45 kg
GWP 3 GWP
Refrigerante 0.149 kg
Tipologia refrigerante R290
SKU 961401013

Documentazione

Documentazione
Declaration of conformity Download
BAKER_PLUS_F_140_G__A__460x650_.pdf Download
Instruction manual Download
Wiring_diagram_ECO_and_BAKER_Plus_F_140.pdf Download
