961390112

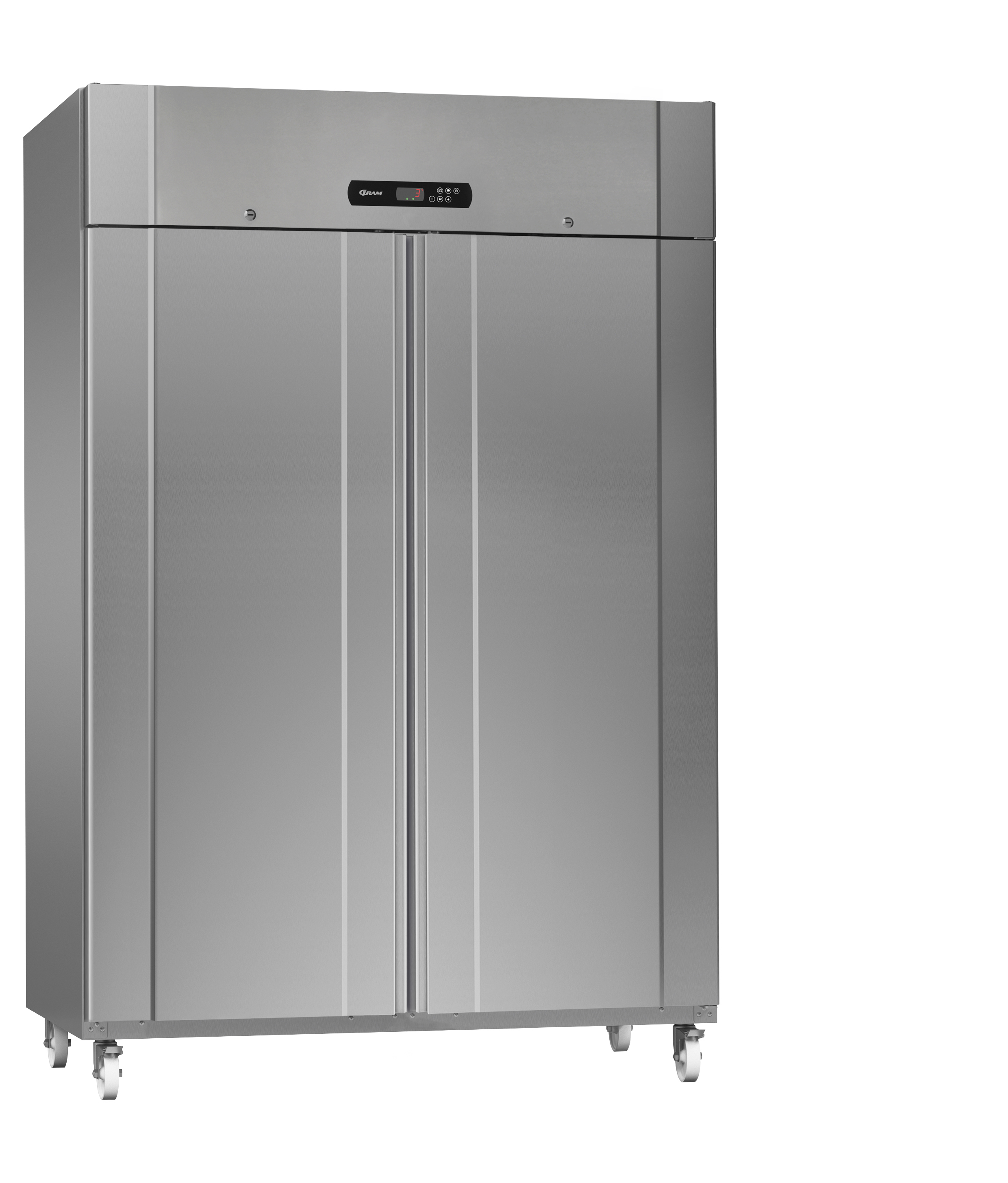

STANDARD PLUS M 139 FFG C1 6N

D

STANDARD PLUS M 139 FFG, heeft in- en uitwendig een RvS interieur, EN1.4016 / AISI 430. De kast is voorzien van poten, totale hoogte inclusief poten is 2125 mm. Het voetpedaal is optioneel leverbaar en wordt ongemonteerd geleverd. De kast kan worden voorzien van extra roosters.


Standard PLUS biedt de volgende HACCP functies en kenmerken:

  • Open deur alarm - Hoge temperatuur alarm
  • Duur van alarm periode
  • Hoogste kritieke temperatuur
  • Reset alarm & periode
  • RS485 module, optioneel
  • Eenvoudig te reinigen gladde oppervlakten.
  • Inwendige bak voor het opvangen van vloei- stoffen.


Standard PLUS is geschikt voor 2/1 GN diep. Op het rooster kunnen 2 stuks 1/1 GN bakken achter elkaar worden geplaatst.

Product not available
Get quote View spec sheet

Key features

Comfortable Work Environment

The STANDARD PLUS range contributes to a healthier work environment with low noise levels of approximately 44,4 for the refrigerator and 44,5 dB(A) for the freezer. Short compressor running times ensure low heat emission.



Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures are for optimal food safety and enhanced shelf-life.



Easy Monitoring & Control

All STANDARD PLUS cabinets come with extended HACCP functionalities for easy monitoring and control. HACCP data can be accessed from the controller and downloaded via RS485 interface (optional extra) for review on your PC.



Hygiene & Ergonomic Design

Just like all GRAM units, the STANDARD PLUS series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.

Specifications

Specification Value
Artikelnummer 961390112
Modelnaam STANDARD PLUS M 139 FFG C1 6N
Merk Gram
Voorzien van Right hand hinged reversible doors, automatic door closing, 6 grey shelves, LED lighting
Breedte 1400 mm
Diepte 895 mm
Hoogte 2100 mm
Energie verbruik 1586 kWh
Energie-efficiëntieklasse D
Energie-efficiëntie-index (EEI) 74.62 EEI
Plankgrootte 2/1 GN diep
Product availability -- Not available
Klasse van het klimaat 5
Verbindingstemperatuur 376 kW
Buiten RVS
Interieur RvS
Bruto gewicht 205 kg
Isolatiedikte 70 mm
Isolatietype Cyclopentane
Potens / Wielen H = 110 mm (C)
Netto bruikbare volume 923 l
Netto gewicht 205 kg
Voeding 230V, 50Hz
Geluidniveau 56.57 dB
Temperatuurbereik -5/+12°C
Volume, bruto 1359 l
Volume, netto 923 l
Deurtype Dubbele deuren
Koelcapaciteit 560
CO2-equivalent 0.438 kg
GWP 3 GWP
Koelmiddel 0.146 kg
Type koudemiddel R290
SKU 961390112

Documentation

Documentation
DWG files Download
765042389_Connection_Diagram.pdf Download
Declaration of conformity Download
Standard_Plus_M_139_EU.pdf Download
Instruction manual Download
765040844_Piping_Diagram.pdf Download
765073095_Wiring_Diagram_K_M_139_G.pdf Download
