960700244

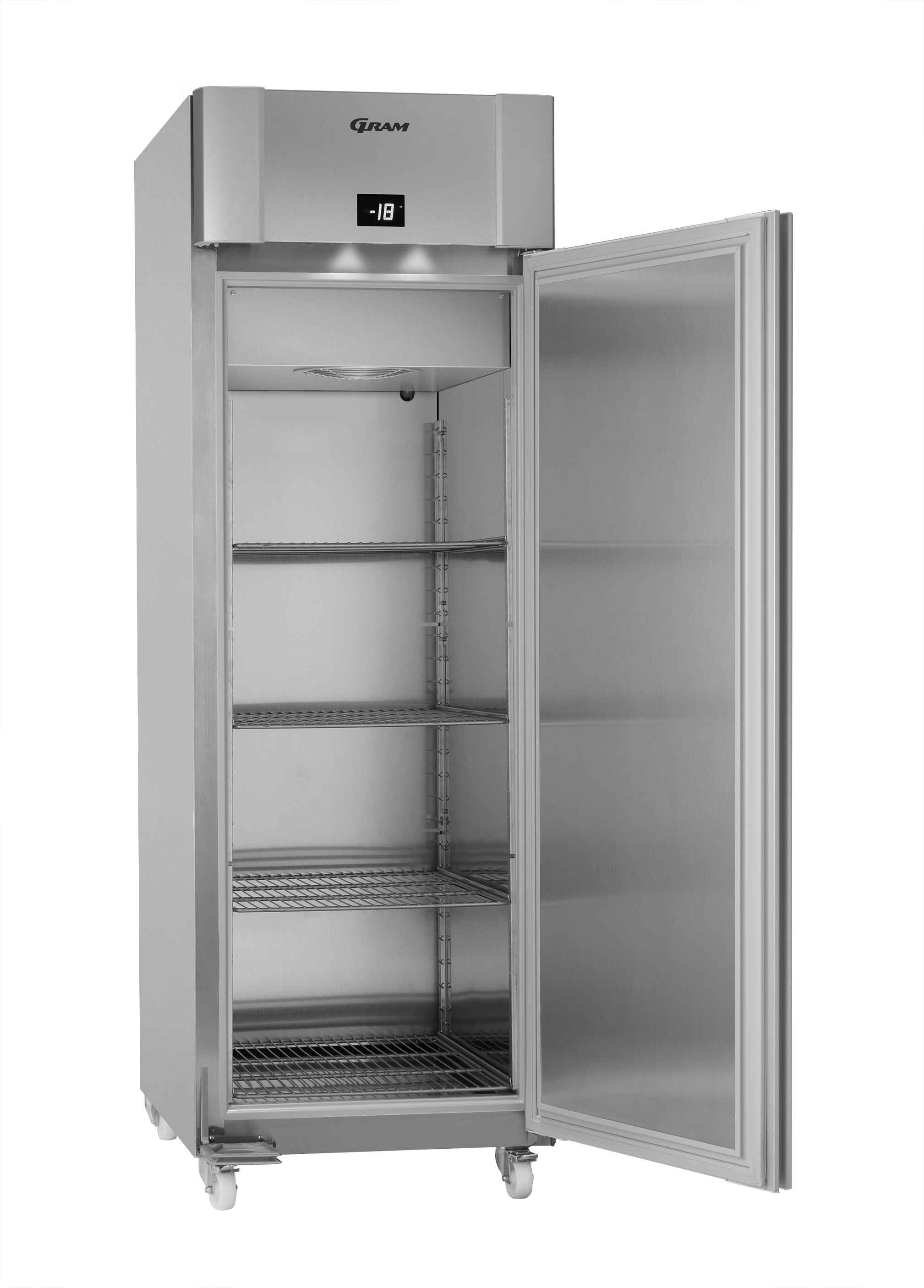

ECO PLUS F 70 RAG C1 4N

Vriezers
C

Please be informed that the ECO PLUS F 70 RAG C1 4N  reach-in cabinets is phased out.

For enquiries about the availability of the remaining products, please contact your branch office.



Our new Premier 70 will be available instead. You can read more about the Premier https://hoshizaki-europe.com/premier/ or get in contact with your local branch to receive the latest information.

Product not available
Get quote View spec sheet

Key features

Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures for optimal food safety and enhanced shelf-life are maintained for climate class 5.



Low Running Costs

Tracking and controlling the lifetime costs of equipment is key to any successful professional kitchen. All ECO cabinets strike with excellent energy ratings and help you save running costs on a daily level.

The Energy Efficiency Class of the ECO PLUS F 70 RAG C1 4N is C.



Comfortable Work Environment

The ECO range contributes to a healthier work environment with low noise levels of approximately 45 dB(A) when the compressor is running.



Hygiene & Ergonomic Design

Thanks to the rounded corners and smooth surface, frequented cleaning routines become a quick and simple task. All Cabinets have self-closing doors with full-height handles providing easy access for cleaning. The patented pedal door opener can be placed on the left or right side.



Smart Design

The ECO series strikes with its energy efficiency, food-safe design, and smart extras such as the patented pedal door opener. This helpful feature can be placed on the left or right side. While carrying goods, the cabinet door can be opened with a quick foot tap.

Specifications

Specification Value
Artikelnummer 960700244
Modelnaam ECO PLUS F 70 RAG C1 4N
Merk Gram
Voorzien van Right hand hinged reversible door, automatic door closing, pedal door opener, 4 grey shelves, LED lighting, castors
Breedte 700 mm
Diepte 905 mm
Hoogte 2100 mm
Energie verbruik 1508 kWh
Energie-efficiëntieklasse C
Energie-efficiëntie-index (EEI) 40.8 EEI
Plankgrootte 2/1 GN diep
Product availability -- Not available
Verbindingstemperatuur 368 kW
Interieur RvS, aluminium
Bruto gewicht 136 kg
Isolatiedikte 70 mm
Isolatietype Cyclopentane
Netto bruikbare volume 451 l
Netto gewicht 136 kg
Voeding 230V, 50Hz
Geluidniveau 47.3 dB
Temperatuurbereik -25/-5°C
Volume, bruto 610 l
Volume, netto 451 l
Deurtype Geïsoleerde deur
Koelcapaciteit 490
CO2-equivalent 0.27 kg
GWP 3 GWP
Koelmiddel 0.08 kg
Type koudemiddel R290
SKU 960700244

Documentation

Documentation
DWG files Download
Declaration of conformity Download
ECO_PLUS_F_70_G.pdf Download
Instruction manual Download
7460181.pdf Download
