KPS 42 SF Blast Chiller/Freezer for remote installations

Blast chillers / freezers

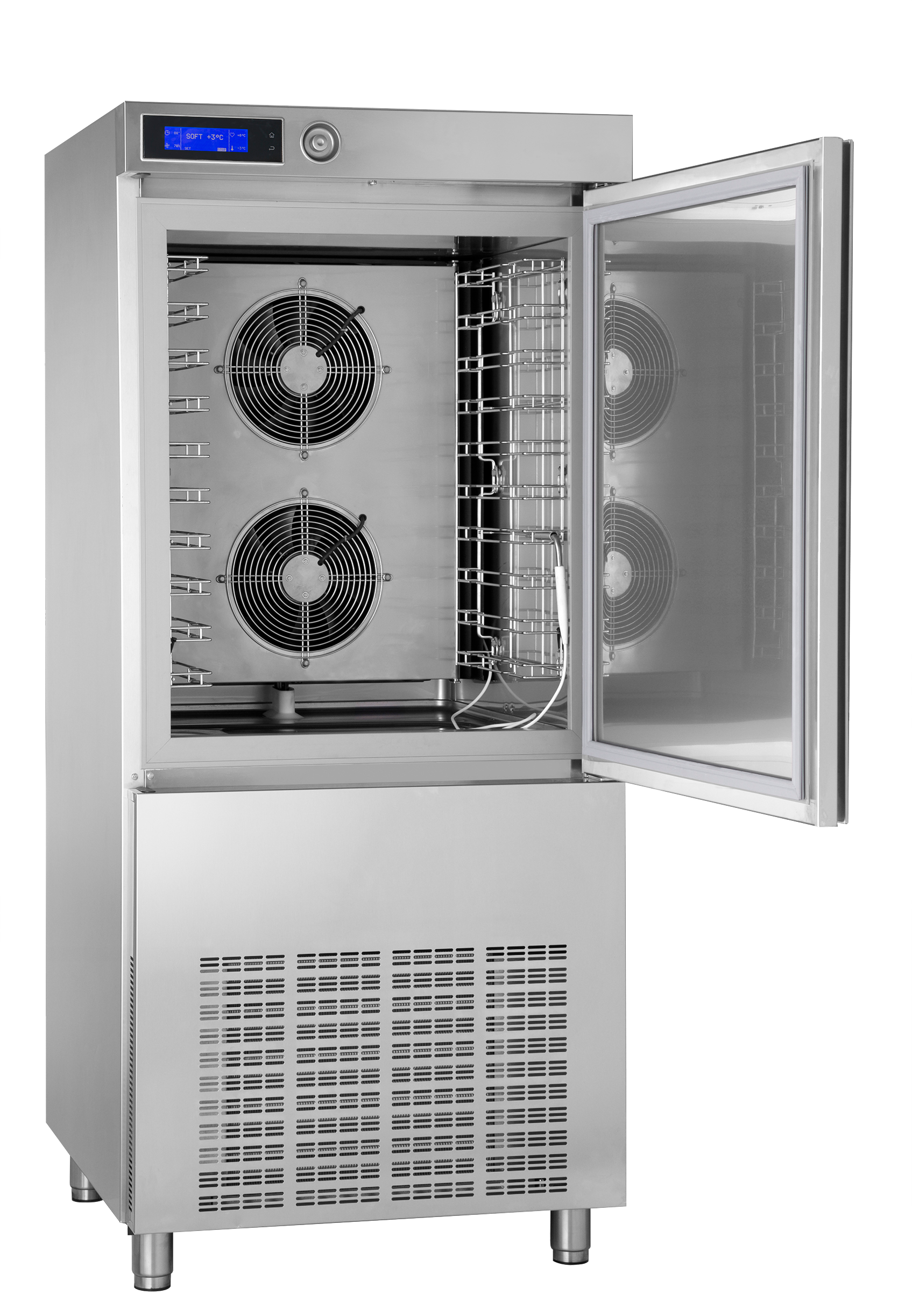

The GRAM KPS 42 SF is a Blast Chiller/Freezer for remote installations.



The GRAM KPS series has been designed to cover all regulations around the perfectly hygienic transition from cooking to chilling your valuable produce.

Product not available
Get quote View spec sheet

Key features

External equipment

Top positioned  LCD control panel with encoder wheel

Right hand hinged reversible and self-closing door

Legs H 150 mm



Internal equipment

IFR control system

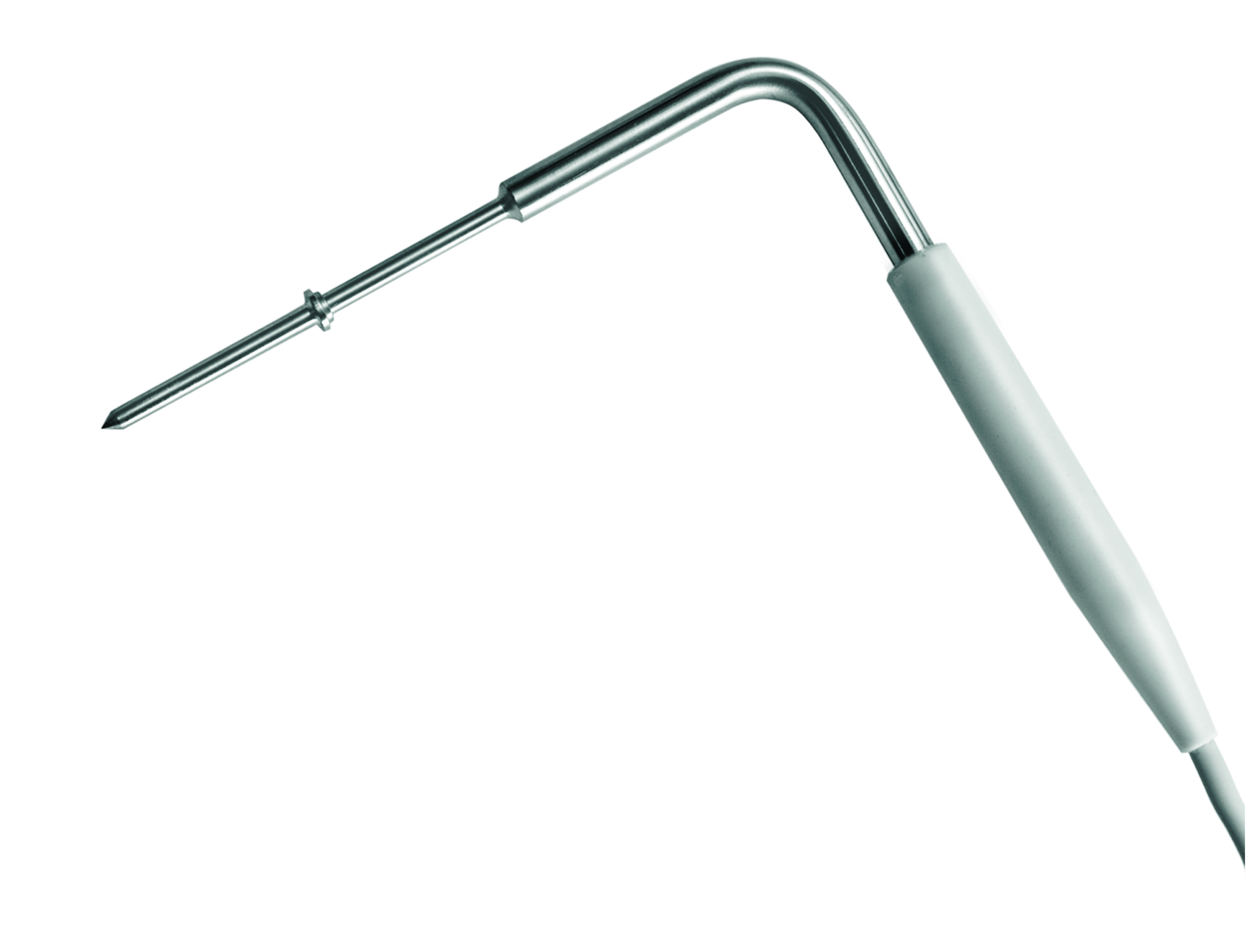

Multipoint probe with 3 measuring points

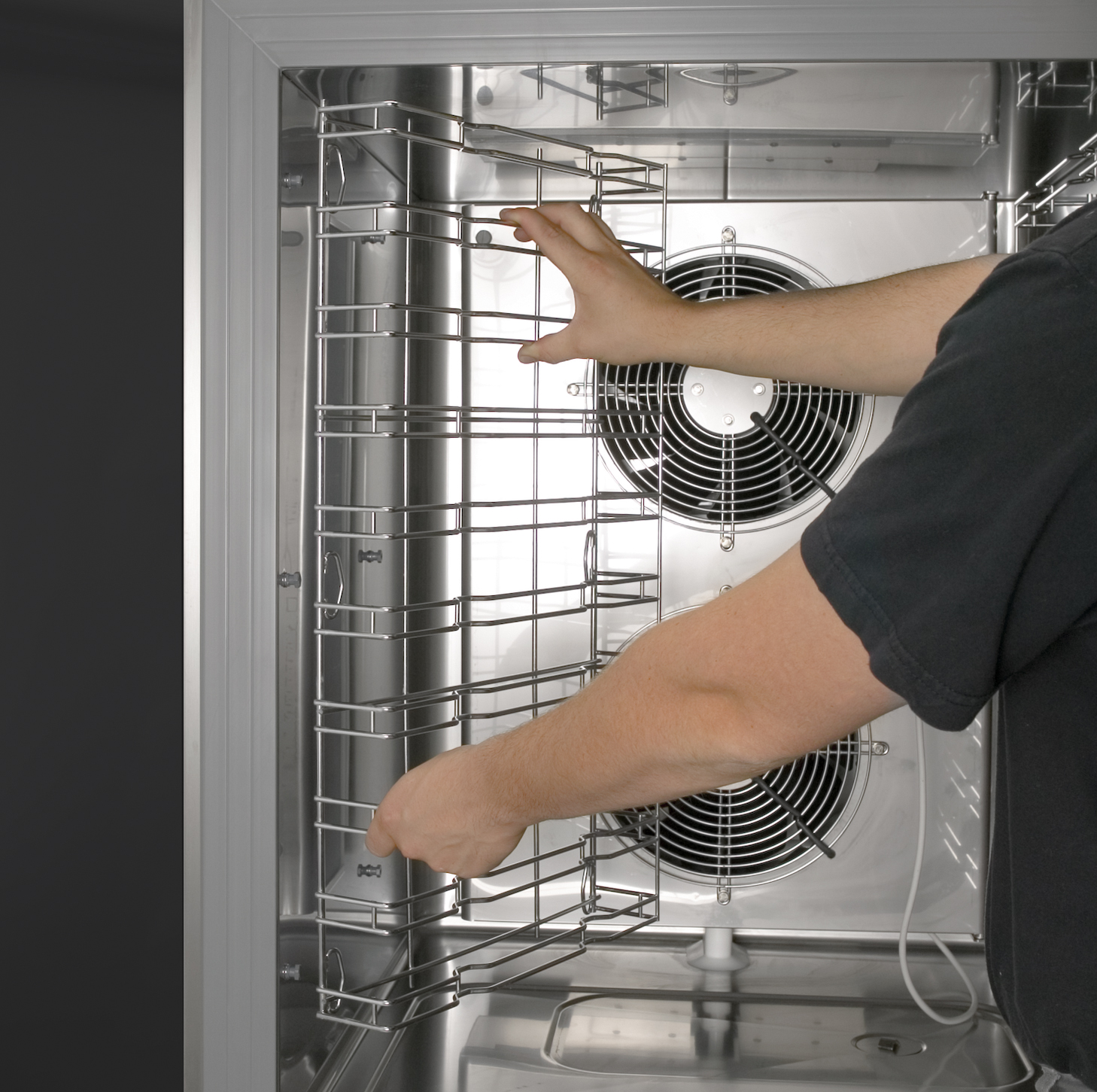

Removable wire rack for 1/1 GN and 40 x 60 cm

Max. Number of trays: 10

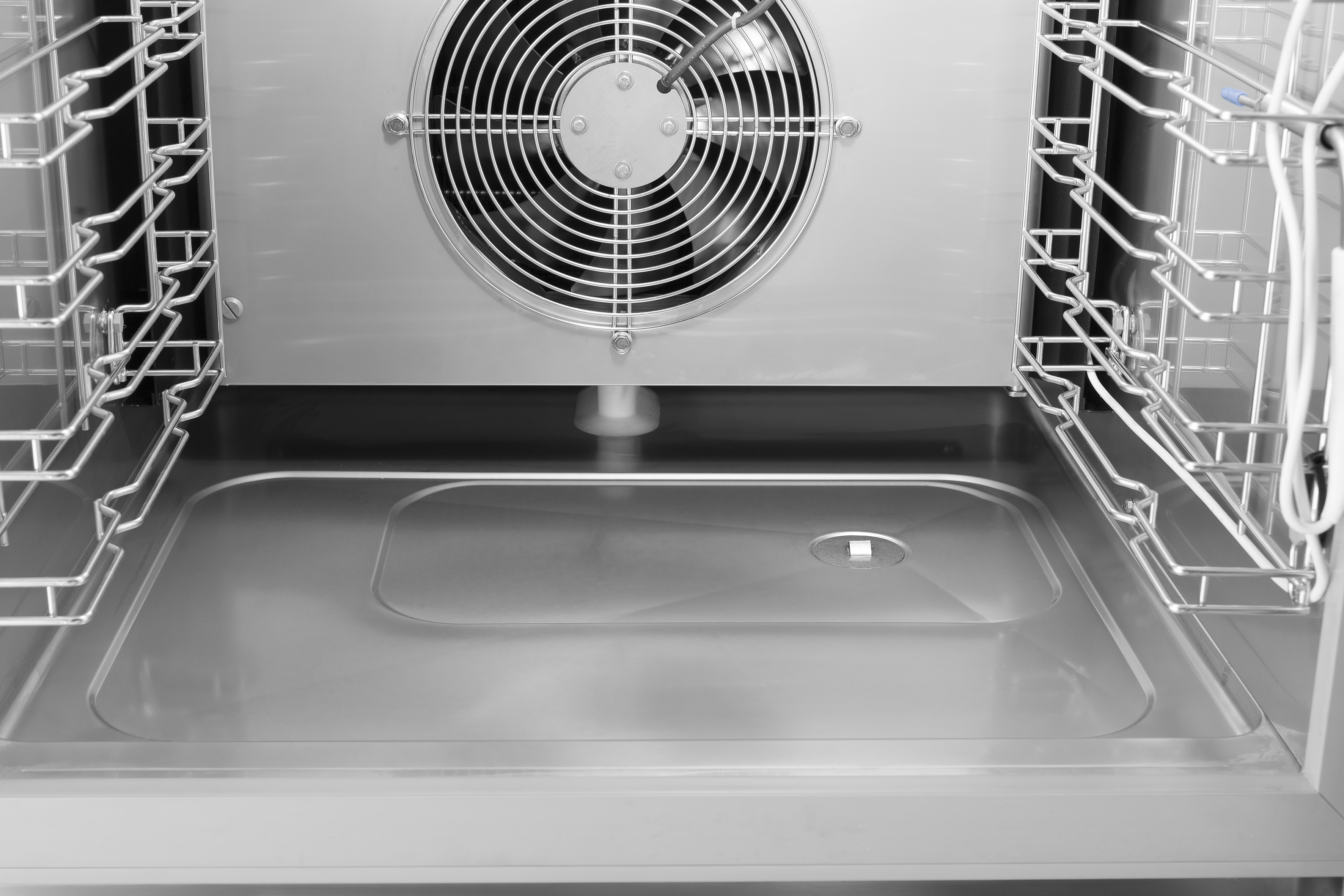

Cabinet fitted with an internal condensate tray
Removable magnetic door gasket



Food Safe

Food items are handled in full compliance with the HACCP guidelines.

Automatic shift to ‘storage mode’  after the chilling/freezing process. If a power failure occurs or when a temperature limit is exceeded this will activate an audio-visual alarm (HACCP alarms).

The internal fan section can be opened for cleaning around and behind the

unit.



High Food Quality

The use of IFR function protects against surface freeze damage. Operates as a storage cabinet after the chilling/freezing process has finished. Taste, texture, appearance as well as vitamins and nutrient content are preserved.



Versatility

Offers different operational modes: IFR operation, time or temperature controlled chill cycle.

Up to 20 customized cycles can be stored.

Specifications

Specification Value
Item number 865809959
Model name KPS 42 SF
Title Blast Chiller/Freezer for remote installations
Width 800 mm
Depth 830 mm
Height 1850 mm
Connection load 300 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 185 kg
Insulation thickness 75 mm
Insulation type Cyclopentane
Power supply 230V, 50Hz
Temperature range -25/+10°C
Volume, gross 195 l
Chilling capacity 45
Freezing capacity 27
Refrigeration capacity 2400
Refrigerant type attOpt_R452a_ready
SKU 865809959

Documentation

Documentation
DWG files Download
Instruction manual Download
