E1CP-D101

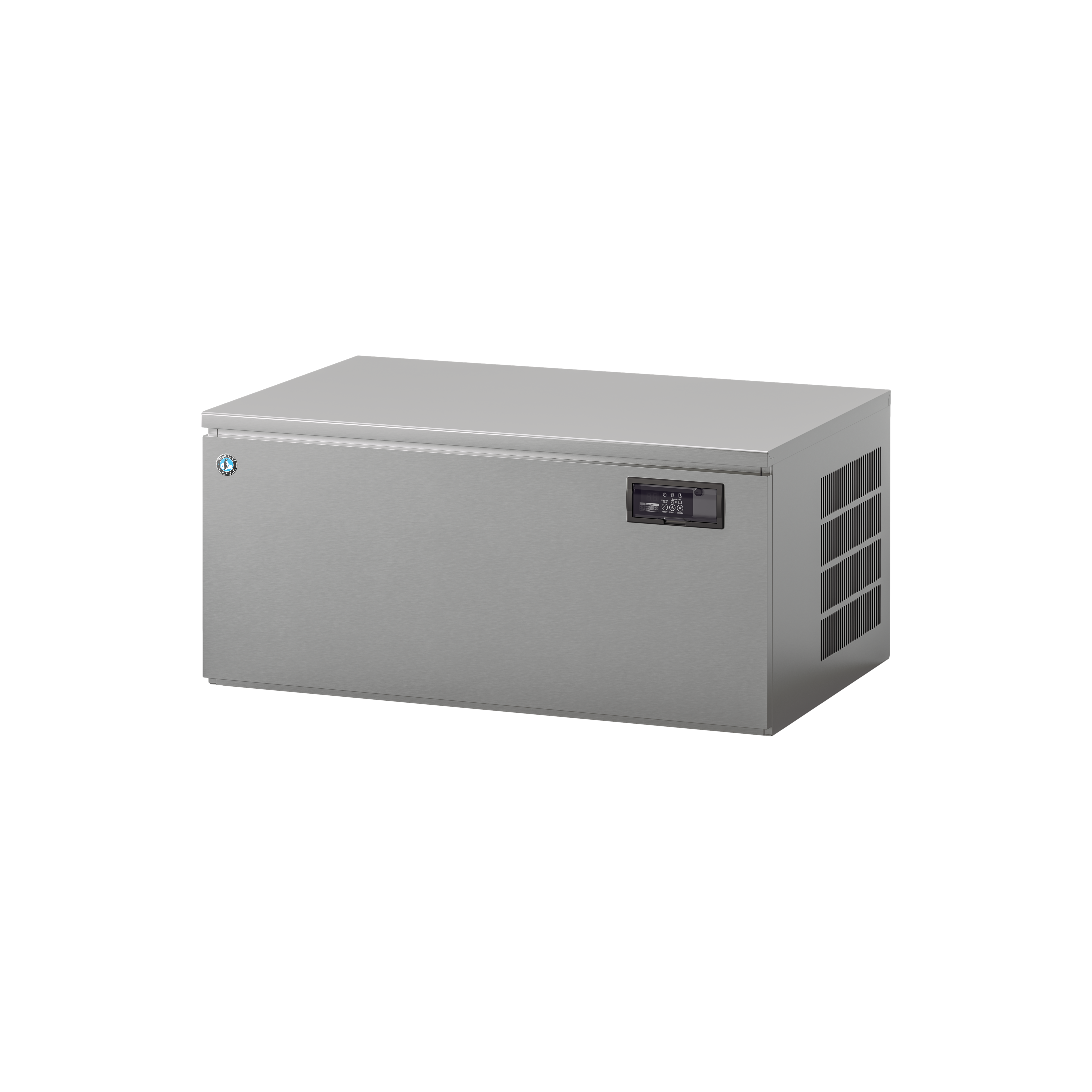

IM-240ANE-23 Cuber, Modular

Ice makers

This Hoshizaki IM-240ANE-23 is a modular cube ice maker producing up to 225 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.



All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.



Get quote View spec sheet

Key features

The IM-240ANE-23 uses refrigerant R404A.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process.  Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-240ANE-23 is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

Need to amp up your production capacity? The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the IM-240ANE-23 are 560 x 700 x 880 mm.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number E1CP-D101
Model name IM-240ANE-23
Brand Hoshizaki
Product configuration Modular
Title Cuber, Modular
Please observe This type of icemaker is on special order only. Please take longer lead times into consideration.
Width (legs excluded) 560 mm
Depth (legs excluded) 700 mm
Height (legs excluded) 880 mm
Electric Consumption 1.32 kW
Energy consumption 1.32 kWh
Product availability -- Not available
Exterior Stainless Steel
Gross weight 95 kg
Net weight 80 kg
Power supply 1/220 - 240V/50Hz
Cooling system Air Cooled
Ice type Medium cubes - 23
Ice production 225
Water consumption - Air cooled ice makers 0.8
CO2 equivalent 1882 kg
Refrigerant type R404A
SKU E1CP-D101

Documentation

Documentation
DWG files Download
Declaration of conformity Download
l2e1cp201.pdf Download
Instruction manual Download

Accessories

Accessory name Item number
9320-52 E1CP-D101
4 HC Replacement Cartridge E1CP-D101
