IM-65WPE-E-Q Ball Ice Maker, Self Contained
M113-D315
Read more
| Specification | Value |
| Item number | M110-D200 |
| Model name | IM-30CPE-U |
| Ice maker type | Cube icemaker |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 3 Years on Parts & Labour |
| Country of origin | UK |
| Accessories included | Installation kit, Legs, Scoop |
| Sub series | IM UltraCUBE |
| Title | Cuber, Self Contained |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Extended spec sheets approved | 1 |
| Width (legs excluded) | 398 mm |
| Width (packed) | 505 mm |
| Depth (legs excluded) | 451 mm |
| Depth (packed) | 575 mm |
| Height (legs excluded) | 695 mm |
| Height (packed) | 862 mm |
| Dimensions legs | For legs add 92-127mm |
| Electric Consumption | 0.215 kW |
| Ambient temperature (maximum) | 40 u00b0C |
| Ambient temperature (minimum) | 1 u00b0C |
| Voltage range | Rated Voltage ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7bar) |
| Water supply temperature (maximum) | 35 u00b0C |
| Water supply temperature (minimum) | 5 u00b0C |
| Functions | Automated cleaning, UV-C sanitization |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 41 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 0.57 kW |
| Net weight | 36 kg |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 11.5 kg |
| Cooling system | Air Cooled |

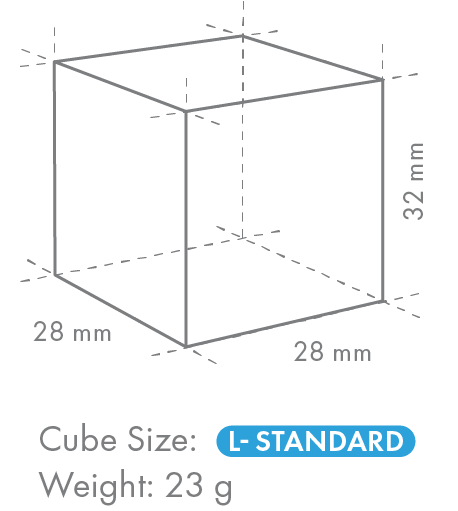

| Ice type | Large cubes, Standard |
| Ice production | 34 |
| Water consumption - Air cooled ice makers | 0.15 |
| Optional Extras | 4HC-H water filtration, scoop holder kit |
| CO2 equivalent | 0.195 kg |
| Refrigerant | 0.065 kg |
| Refrigerant type | R290 |
| SKU | M110-D200 |
