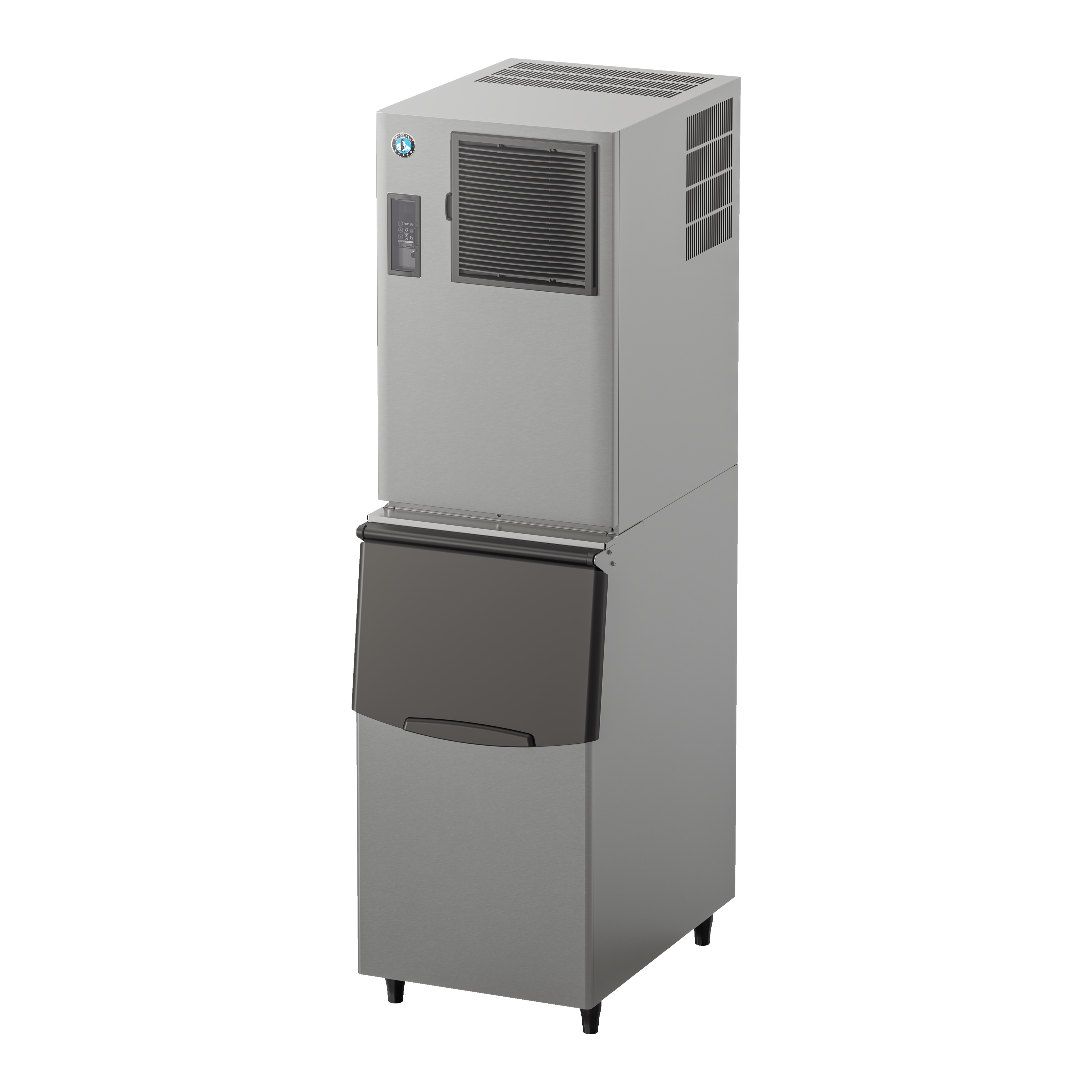

IM-240APE Cuber, Modular

Ice

Get quote View spec sheet

Specifications Documentation Accessories

Specifications

Specification	Value
Item number	M119
Model name	IM-240APE
Ice maker type	Cube icemaker
Brand	Hoshizaki
Product configuration	Modular
Warranty period	3 Years on Parts & Labour
Country of origin	UK
Sub series	IM Cube
Title	Cuber, Modular
Accessories included	Ice chute, Installation kit, Scoop
Please observe	Water cooled units should have the condenser circuit connected to a self-contained recirculating system. It is likely that the connection of such units to the mains water supply may be a contravention of local water authority by-laws.
Corresponding water filters	4HC-H Twin Water Filter, 4HC Replacement Cartridge
Extended spec sheets approved	1
Width	560 mm
Width (packed)	665 mm
Depth	700 mm
Depth (packed)	820 mm
Height	880 mm
Height (packed)	1054 mm
Volume (packed)	0.5747 m³
Electric Consumption	0.85 kW
Ambient temperature (maximum)	40 °C
Ambient temperature (minimum)	1 °C
Voltage range	Rated Voltage ±6%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 °C
Water supply temperature (minimum)	5 °C
Functions	Automated cleaning
Electrical circuit breaker protection	5 A
Exterior	Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight	89 kg
Heat Rejection (AT 32°C, WT 21°C)	2.51 kW
Net weight	78 kg
Power supply	1/220 - 240V/50Hz
Cooling system	Air Cooled
Ice type	Large cubes, Standard
Ice production	210
Water consumption - Air cooled ice makers	0.67
Optional Extras	4HC-H water filtration, UV-C sanitization kit
Corresponding Bin(s)	B-140SB, B-210SB, B-340SB
CO2 equivalent	0.441 kg
Refrigerant	0.147 kg
Refrigerant type	R290
Corresponding top kits	TK-30 for B-140SB, B-210SB, B340SB (optional, not required), TK-8D for B-210SB, TK-8D + TK18D for B-340SB
SKU	M119
