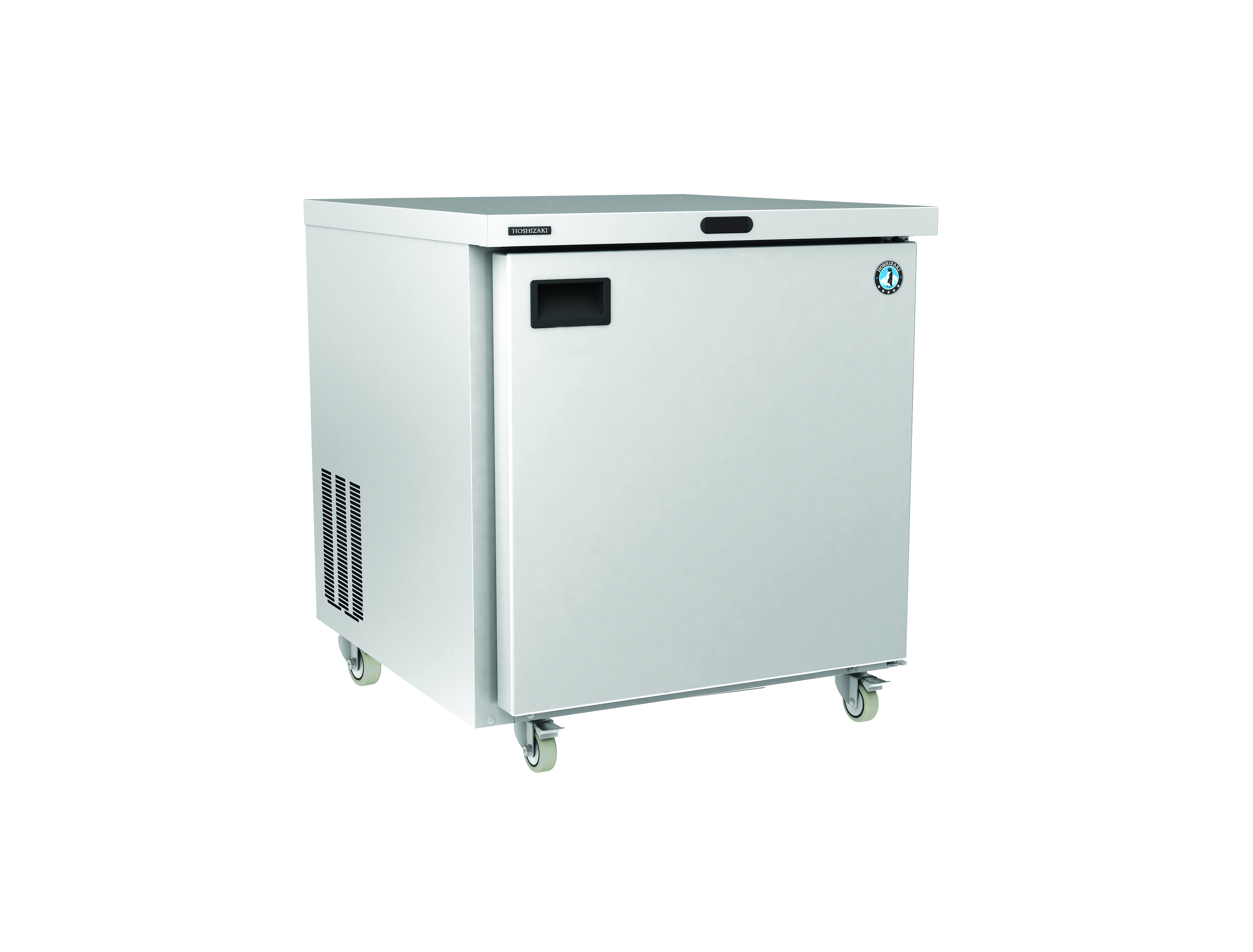

FTWH70MS4 1 door undercounter freezer

Freezer counters

Hoshizaki Snowflake FTWH70MS4 is an undercounter freezer with a gross volume of 171 ltr. This heavy duty cabinet is equipped with right hand hinged reversible door with lock, automatic door closing and 2 white shelves. The cabinet height is 824 mm including castors, shelf width is 561 mm.

Get quote View spec sheet

Specifications Documentation

Specifications

Specification	Value
Item number	WH86220011
Model name	FTWH70MS4
Brand	Hoshizaki
Warranty period	2 Years on Parts
Country of origin	India
Accessories included	2 white shelves
Title	1 door undercounter freezer
Equipped with	Stainless steel work top, 1 door, 1 white top shelf W561 x D554 mm, 1 white bottom shelf W561 x D297 mm
Extended spec sheets approved	1
Width	700 mm
Width (packed)	700 mm
Depth	755 mm
Depth (packed)	755 mm
Height	824 mm
Height (packed)	824 mm
Volume (packed)	0.56 l
Energy consumption	3.84 kWh
Number of shelves	2
Shelf size	Top shelf 561 x 554 mm / Bottom shelf 561 x 297 mm
Climate class	5 (max. ambient 40°C w/ 40% RH)
Connection load	0.28 kW
Exterior	Stainless Steel
Interior	Stainless steel AISI 430
Gross weight	86 kg
Legs / Castors	H = 124 mm (C)
Net weight	70 kg
Number of sections	1 section
Power supply	230V, 1N-/50 Hz
Temperature range	-23/-7°C
Volume, gross	171 l
Volume, net	148 l
Cooling system	Built-in cooling system
Door Type	Solid Door
Product type	Counters
Refrigeration capacity	250
Optional Extras	Set of legs 150-170 mm Set of legs 90-110 mm Stainless bottom shelf, 561 x 297 mm Stainless top shelf, 561 x 554 mm White bottom shelf, 561 x 297 mm White top shelf, 561 x 554 mm
CO2 equivalent	0.159 kg
GWP	3 GWP
Refrigerant	0.053 kg
Refrigerant type	R404A
SKU	WH86220011
