F088-C101

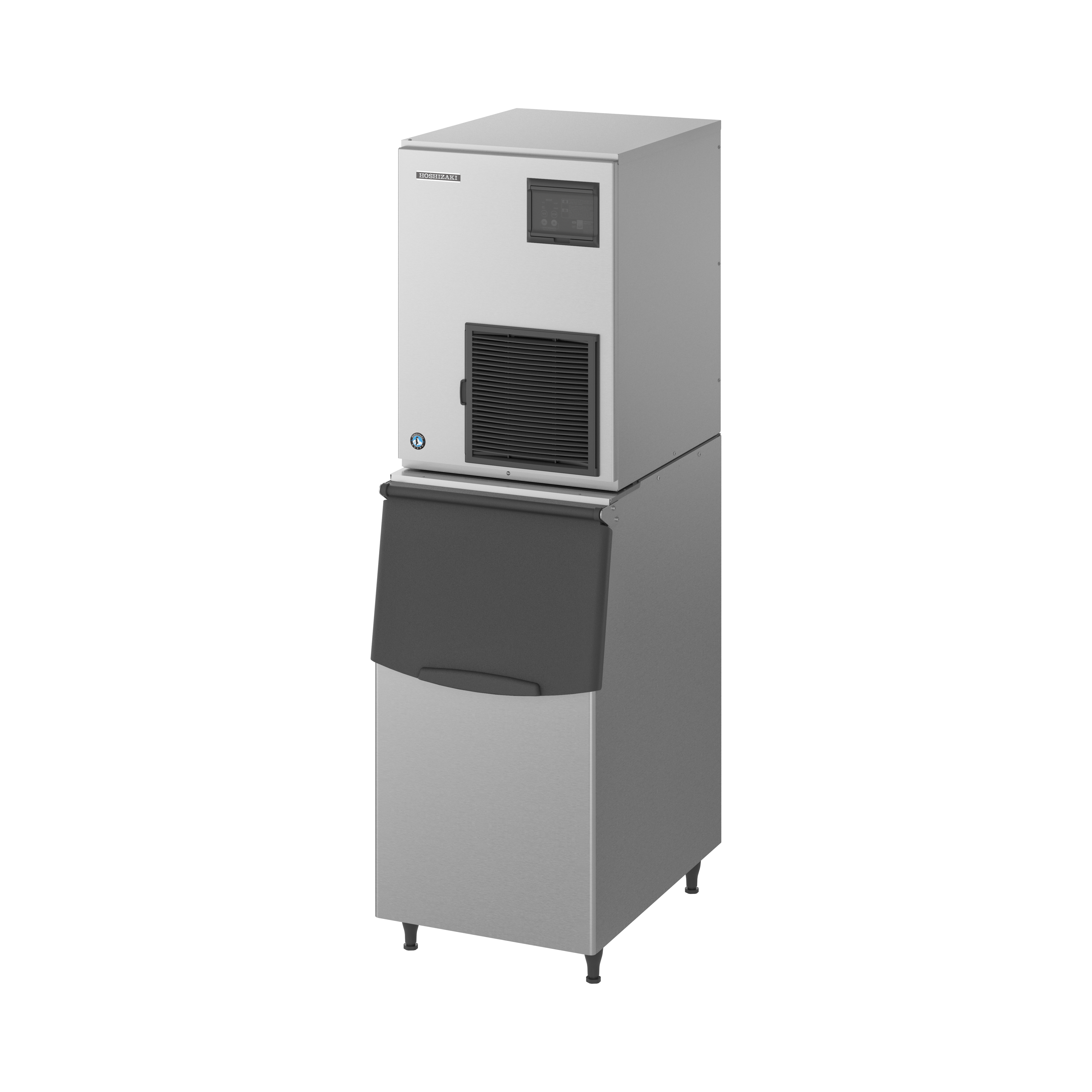

FM-300AKE-HC-SB Flaker, Modular

Ice makers

Hoshizaki FM-300AKE-HC is a modular ice maker producing up to 300 kg of flake ice per 24 hours. This model is compatible with our storage bins.

Get quote View spec sheet

Specifications

Specification Value
Item number F088-C101
Model name FM-300AKE-HC-SB
Ice maker type Flake ice maker
Brand Hoshizaki
Product configuration Modular
Warranty period 2 Years on Parts & Labour
Country of origin UK
Accessories included Installation kit, Mounting bracket
Title Flaker, Modular
Corresponding water filters 4HC-H Twin Water Filter, 4HC Replacement Cartridge
Width 560 mm
Width (packed) 665 mm
Depth 700 mm
Depth (packed) 820 mm
Height 780 mm
Height (packed) 950 mm
Volume (packed) 0.518 l
Electric Consumption 0.9 kW
Energy consumption 0.9 kWh
Ambient temperature (maximum) 40 u00b0C
Ambient temperature (minimum) 5 u00b0C
Voltage range Rated Voltage ±6%
Water supply pressure (maximum) 0.8MPa (8bar)
Water supply pressure (minimum) 0.05MPa (0.5bar)
Water supply temperature (maximum) 35 u00b0C
Water supply temperature (minimum) 5 u00b0C
Exterior Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight 88 kg
Heat Rejection (AT 32°C, WT 21°C) 1.84 kW
Net weight 81 kg
Power supply 1/220 - 240V/50Hz
Volume, gross 0.518 l
Cooling system Air Cooled
Ice type Flake
Ice production 300
Water consumption - Air cooled ice makers 0.3
Optional Extras 4HC-H water filtration
Corresponding Bin(s) B-140SA, B-210SA, B-340SA
CO2 equivalent 0.27 kg
Refrigerant 0.09 kg
Refrigerant type R290
Corresponding top kits TK-30 for B-140SA, B-210SA, B340SA (optional, not required), TK-8D for B-210SA, TK-8D + TK18D for B-340SA
SKU F088-C101

Documentation

Documentation
DWG files Download
Declaration of conformity Download
FM_300AKE_HC.pdf Download
l2f087204.pdf Download
Instruction manual Download
Spec sheet Download

Accessories

Accessory name Item number
4HC-H Single F088-C101
4 HC Replacement Cartridge F088-C101
