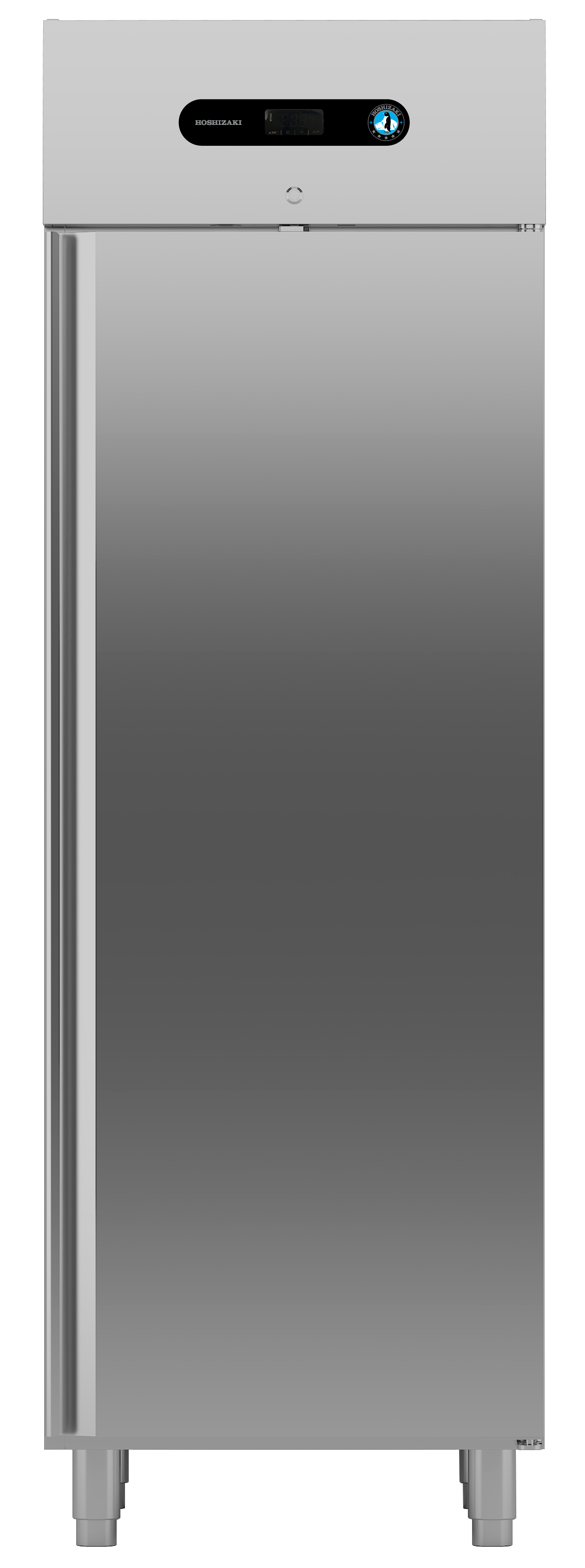

SUF-65EG-C-C 1-Door Freezer Cabinet, HC

Armadi congelatori
D

Please be informed that the SUF-65EG-C-C  reach-in cabinets is phased out.

For enquiries about the availability of the remaining products, please contact your branch office.

Our new Advance 70 will be available instead. You can read more about the Advance https://hoshizaki-europe.com/advance/ or get in contact with your local branch to receive the latest information.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Sustainable

The refrigerant used in all Snowflake GII+ models is R290. This agent is a natural gas which enhances the performance of the refrigerated counter and has, compared to other refrigerants, a minimal ozone depletion potential.



Material

Both interior and exterior of the refrigerated cabinet are built of  stainless steel AISI 304/ nickel-free (non-allergic) stainless steel AISI 430, which is among the best choices for hygienic and food safe cooking environments.



Smart Use of Space

Making best possible use of limited space conditions is a common challenge in kitchen design. The evaporator is positioned on top of the cabinet,  so valuable space inside the cabinet can be used for storage.

The condensation tray is not positioned on the back of the cabinet, but on top of it. This clever design allows you to move the cabinet closer to the back wall which gives you additional 5 cm of your valuable operational area.



Energy Efficiency

The double insulated and extra wide door gaskets help to keep the cold air inside the cabinet, which is an important factor for device efficiency.  The Ecodesign AEC Energy consumption is 2171.



Convenience and Ergonomics

The SUF-65EG-C-C has self-closing doors, which close automatically when open in an angle of less than 90 degrees. Additionally, they offer maximum flexibility as they are fully reversible. an anti-tilt mechanism with moulded liners helps with safer container and rooster handling. The GN shelf size of the SUF-65EG-C-C is [2_1_gn_deep]. With sound levels of 56.0000 dB(A) the SUF-65EG-C-C adds to a comfortable work environment for your staff.



Easy Cleaning & Maintenance

The Snowflake GII+  refrigeration system uses a mono-block construction that is removable for easier maintenance and repair. The removable gaskets make sure that can clean the device thoroughly. This and other thoughtful extras, such as the cleaning-free condenser, are designed to reduce kitchen cleaning times whilst storing foods protectively in the best possible way.



Specifiche

Specifiche Value
Codice articolo 877010901
Modello SUF-65EG-C-C
Marchio Hoshizaki
Titolo 1-Door Freezer Cabinet, HC
Equipaggiato con Right hand hinged reversible door, automatic door closing, 3 grey shelves, LED lighting
Larghezza 654 mm
Profonditá 830 mm
Altezza 1977 mm
Consumo elettrico 2171 kWh
Classe di efficienza energetica D
Indice di Efficienza Energetica (IEE) 60.88 EEI
Numero ripiani 3
Dimensioni ripiano 2/1 GN prof.
Product availability -- Non disponibile
Classe climatica 5
Valori di allacciamento 606 kW
Rivestimento esterno Acciao Inox AISI 304
Rivestimento interno Acciaio inossidabile AISI 304
Peso lordo 133 kg
Spessore isolamento 60 mm
Tipologia isolamento Polyurethane
Piedini / Rotelle H = 127 mm (C)
Volume netto 420 l
Peso netto 133 kg
Alimentazione 230V, 50Hz
Livello rumorositá 56 dB
Intervallo di temperatura -22/-5°C
Volume lordo 600 l
Tipologia porta Solid Door
Capacitá di refrigerazione 495
Equivalente CO2 0.246 kg
GWP 3 GWP
Refrigerante 0.082 kg
Tipologia refrigerante R290
SKU 877010901

Documentazione

Documentazione
Declaration of conformity Download
SUF_65EG.pdf Download
Instruction manual Download
SUF_65_135_EG_Wiring_Diagram.pdf Download
