188601031

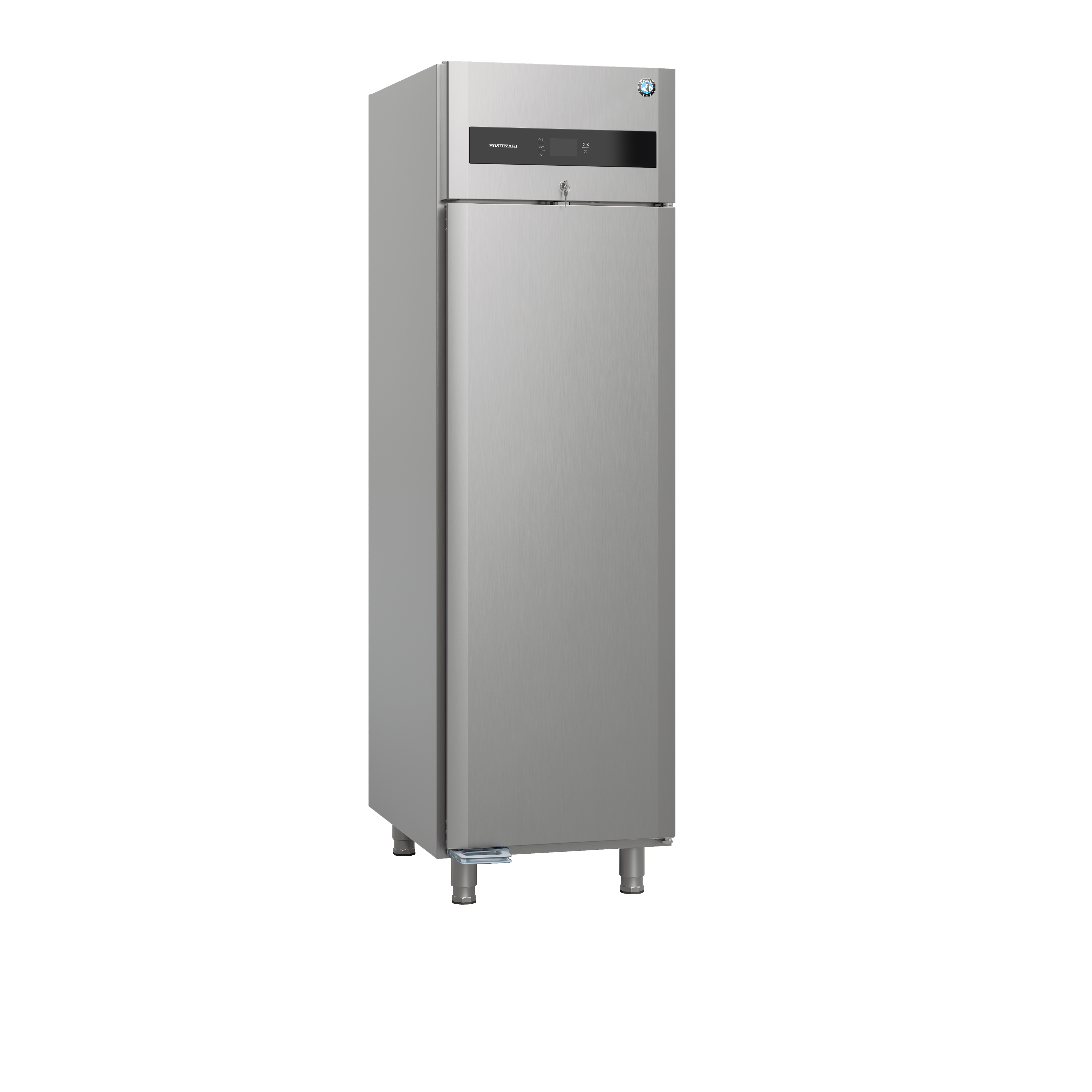

Premier U 60 DR U Ru1 Refrigerator/Freezer ‘U’ type with RU1 valve for remote cooling system

Armarios refrigerados

The Hoshizaki PREMIER is a series of heavy-duty cabinets for energy-efficient refrigeration (Climate Class 5 (max. ambient 40°C w/ 40% RH)), catering to the needs of gastronomic perfectionists. The durable design with solid door hinges, stabile stainless steel, and flawless finish is built to withstand the most demanding kitchen operations. The low-height PREMIER cabinets are customizable with castors instead of legs to easily fit into low-ceiling environments, yet convince with a surprisingly high internal volume. The Premier U 60 DR U Ru1 is a Refrigerator/Freezer 'U' type with RU1 valve for remote cooling system with a net internal volume of . The dimensions are 610 x 848 x 2080-2130 mm.

Producto no disponible
Presupuesto Ficha técnica

Características clave

«FOOD SAFETY & TEMPERATURE STABILITY

The efficient air circulation system helps to maintain perfect storage temperatures and to recover the inside temperature rapidly after each door opening and defrosting. Additionally, the automatic defrost function ensures stable temperatures at all times. The wide, magnetic gaskets provide an effective seal and reduce escaping of cold air.



COMPARTMENTALIZED DESIGN The PREMIER’s condenser is positioned on top of the cabinet, which brings multiple advantages. The cabinets can be hosed down in one run, without risking electric shortcuts. As the evaporator is positioned on top of the cabinet, valuable space inside the cabinet can be used for storage. Additionally, it can easily be serviced via the front flap on top of the cabinet.



LOW RUNNING COSTS & SUSTAINABILITY

The energy-efficient refrigeration technology implemented in this broad line-up of storage cabinets can help save running costs on an everyday basis. The Premier U 60 DR U Ru1 runs on natural refrigerant and has [5].



ERGONOMIC & EASY TO USE

Extras, like the practical pedal-foot door opener, allow hands-free opening, contribute to a healthier work environment, and are a real-time-saver for hectic kitchen operations. The functional and intuitive display is easy to understand and use.



HYGIENE & WASTE REDUCTION

Thanks to the rounded corners, smooth surfaces, and molded rails, frequented cleaning routines become a quick and simple task. The practical anti-tilting function prevents spillage. The Interior and exterior are made of AISI 304 stainless steel and are perfectly suitable for humid locations.



EASY CUSTOMIZATION & FLEXIBILITY PREMIER

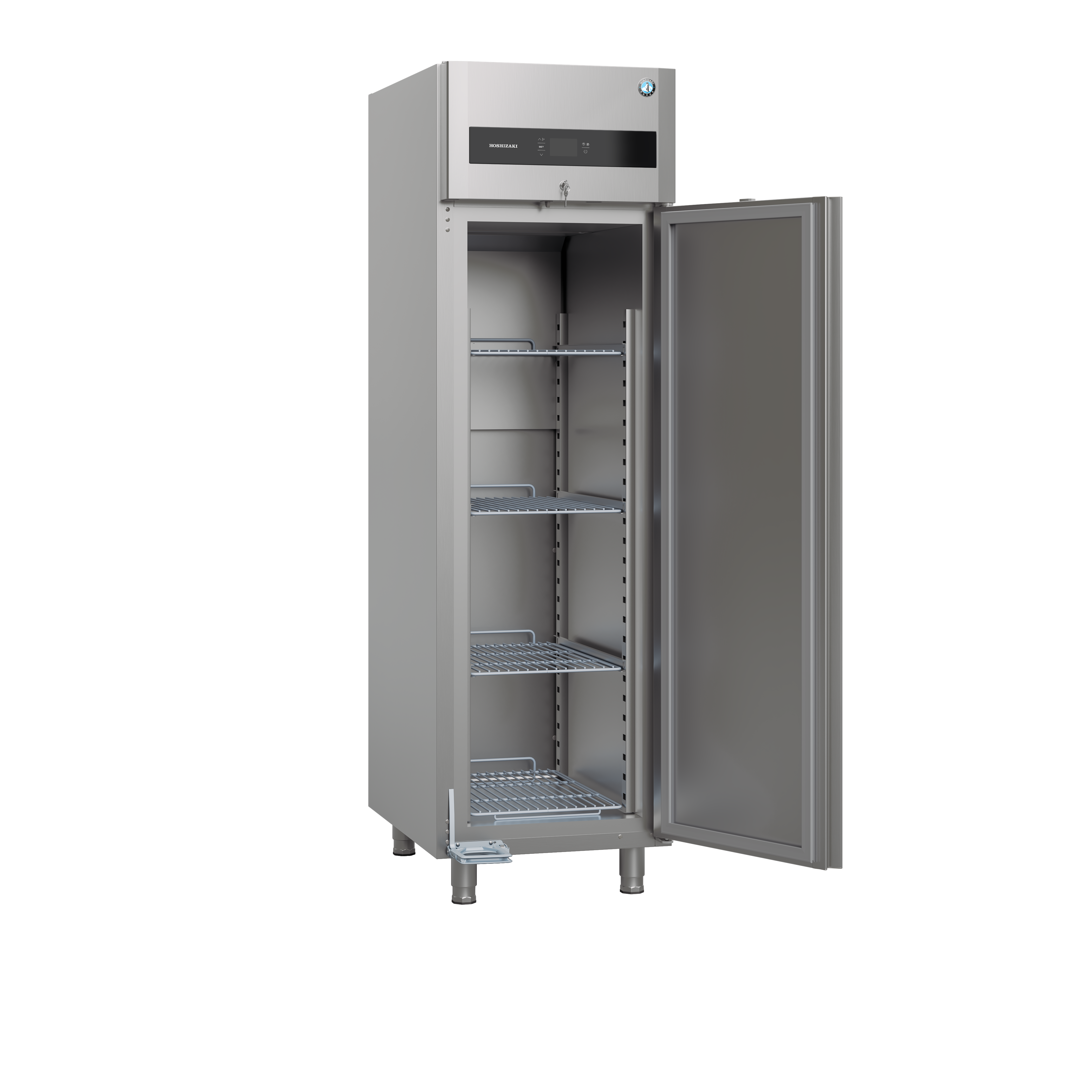

cabinets can easily be adjusted to your requirements, for example, the length of the legs, the position of the door, and the foot pedal. They also can accommodate shelves up to 18-22 levels (4 shelves included) offering you high flexibility to accommodate different types of produce. «

Especificaciones

Especificación Valor
Número de artículo 188601031
Nombre del modelo Premier U 60 DR U Ru1
Marca Hoshizaki
Período de garantía 6 años en piezas y mano de obra
País de origen Turquia
Accesorios incluidos 4 estantes grises (400 x 600 mm), Apertura de puerta con pedal y protección contra sobrecarga
Título Refrigerator/Freezer 'U' type with RU1 valve for remote cooling system
Equipado con Right hand hinged reversible door with lock, automatic door closing, pedal door opener, 4 grey shelves, LED lighting
Ancho 610 mm
Ancho (en caja) 670 mm
Profundo 848 mm
Profundo (en caja) 975 mm
Altura incluyendo piernas (mínimo) 2080 mm
Altura incluyendo patas (máximo) 2130 mm
Altura (en caja) 2150 mm
Volumen (en caja) 1.4 l
Número de estantes 4
Número máximo de estantes 25
Tamaño del estante Repisa Euronorm 400x600 mm | Apto para el sistema 1/1 EN
Min. cooling capacity 300 W
Temperature Range Span -25/+12°C
Clase climática 5
Exterior Acero inoxidable AISI 304
Interior Acero inoxidable AISI 304
Peso bruto 100 kg
Grosor del aislamiento 78 mm
Tipo de aislamiento Polyurethane
Patas / Ruedas H = 130-180 mm (L)
Peso neto 90 kg
Fuente de alimentación 230V, 50Hz
Volumen bruto 480 l
Sistema de refrigeración For remote cooling system
Tipo de puerta Puerta única
Tipo de producto Armarios
Extras opcionales Set of legs 130-180 mm   Grey shelf with back guard Stainless shelf with back guard Set of 4 stainless shelves with back guard Set of 2 shelf supports for EN 1/1, U shape Master key
Compatibilidad de refrigerante R448A, R449A, R455A
Pricelist notification (short) Models with RU1 valve prepared for external cooling system are compatible with the following refrigerants: R448A, R449A, R452A. In addition the CO2 models prepared for external cooling system are compatible with refrigerant R744 (CO2). Lead time approx. 8 weeks.
SKU 188601031

Documentación

Documentación
Declaration of conformity Descargar
PREMIER_60_Remote_Model.pdf Descargar
Instruction manual Descargar
Cooling_Diagram_RU1_PREMIER_UPRIGHT___UC___BAKER_U_GA_950_MODEL.pdf Descargar
Electric_Wiring_Diagram_RU1_PREMIER_UPRIGHT___UC___BAKER_U_950_MODEL__1_.pdf Descargar

Accesorios

Nombre de accesorio Número de artículo
Set of castors 125 mm (2 x braked and 2 x unbreaked) 760660022
Set of legs 130-180 mm                   760660118
Master key 760660430
Shelf (grey) with back guard for EN 1/1 cabinet excl. shelf support 760660431
Set of 2 shelf support for EN 1/1 cabinet U shape 760660432
Shelf (stainless steel) with back guard for EN 1/1 cabinet 760660440
Set of 4 stainless steel shelves with back guard for EN 1/1 cabinets excl. shelf support 760660446
