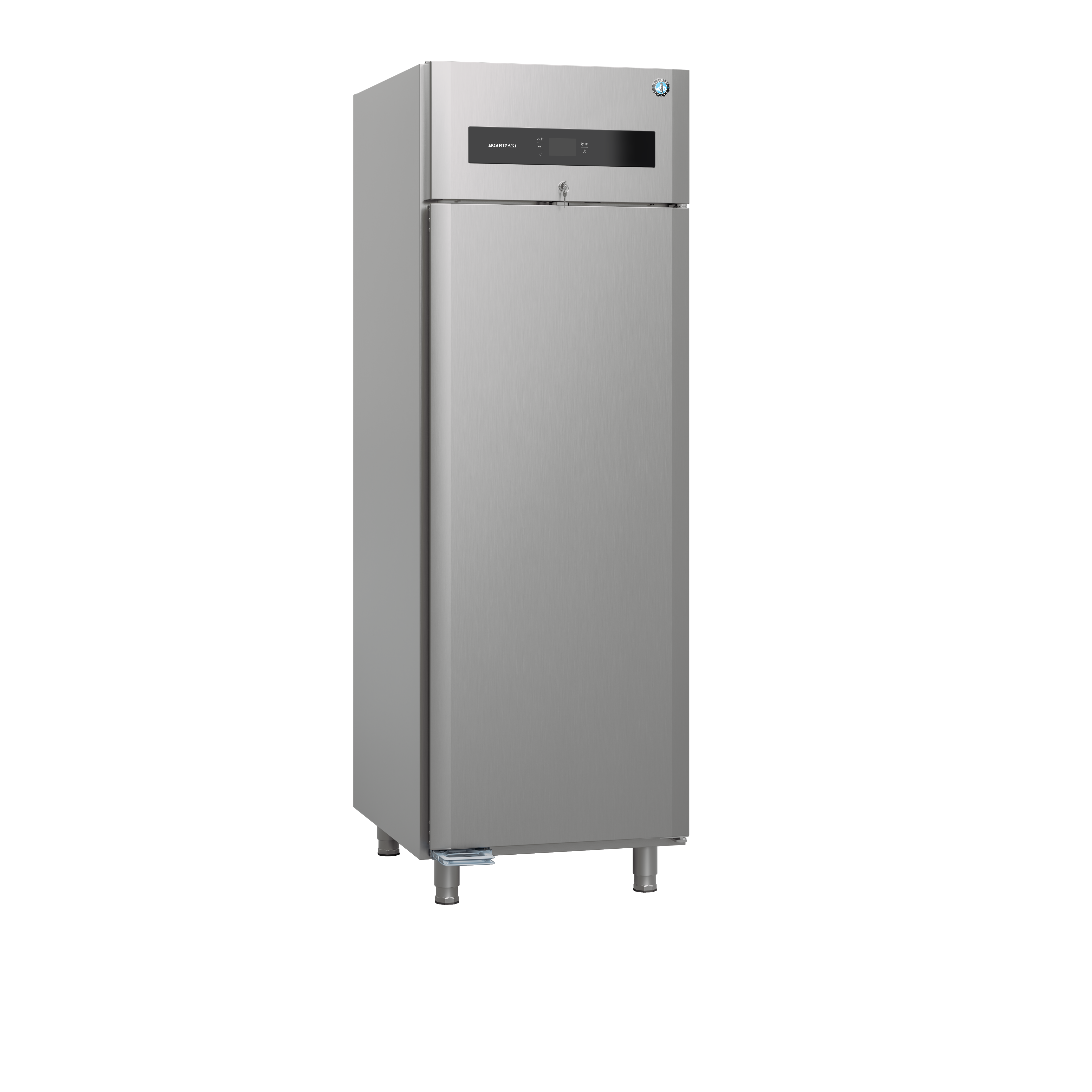

Premier U 70 DR U Ru1 Refrigerator/Freezer ‘U’ type with RU1 valve for remote cooling system

Gastronomiekasten

The Hoshizaki PREMIER is a series of heavy-duty cabinets for energy-efficient refrigeration (Climate Class 5 (max. ambient 40°C w/ 40% RH)), catering to the needs of gastronomic perfectionists. The durable design with solid door hinges, stabile stainless steel, and flawless finish is built to withstand the most demanding kitchen operations. The low-height PREMIER cabinets are customizable with castors instead of legs to easily fit into low-ceiling environments, yet convince with a surprisingly high internal volume. The Premier U 70 DR U Ru1 is a Refrigerator/Freezer 'U' type with RU1 valve for remote cooling system with a net internal volume of . The dimensions are 690 x 848 x 2080-2130 mm.

Get quote View spec sheet

Key features

“FOOD SAFETY & TEMPERATURE STABILITY

The efficient air circulation system helps to maintain perfect storage temperatures and to recover the inside temperature rapidly after each door opening and defrosting. Additionally, the automatic defrost function ensures stable temperatures at all times. The wide, magnetic gaskets provide an effective seal and reduce escaping of cold air.



COMPARTMENTALIZED DESIGN The PREMIER’s condenser is positioned on top of the cabinet, which brings multiple advantages. The cabinets can be hosed down in one run, without risking electric shortcuts. As the evaporator is positioned on top of the cabinet, valuable space inside the cabinet can be used for storage. Additionally, it can easily be serviced via the front flap on top of the cabinet.



LOW RUNNING COSTS & SUSTAINABILITY

The energy-efficient refrigeration technology implemented in this broad line-up of storage cabinets can help save running costs on an everyday basis. The Premier U 70 DR U Ru1 runs on natural refrigerant and has [5].



ERGONOMIC & EASY TO USE

Extras, like the practical pedal-foot door opener, allow hands-free opening, contribute to a healthier work environment, and are a real-time-saver for hectic kitchen operations. The functional and intuitive display is easy to understand and use.



HYGIENE & WASTE REDUCTION

Thanks to the rounded corners, smooth surfaces, and molded rails, frequented cleaning routines become a quick and simple task. The practical anti-tilting function prevents spillage. The Interior and exterior are made of AISI 304 stainless steel and are perfectly suitable for humid locations.



EASY CUSTOMIZATION & FLEXIBILITY PREMIER

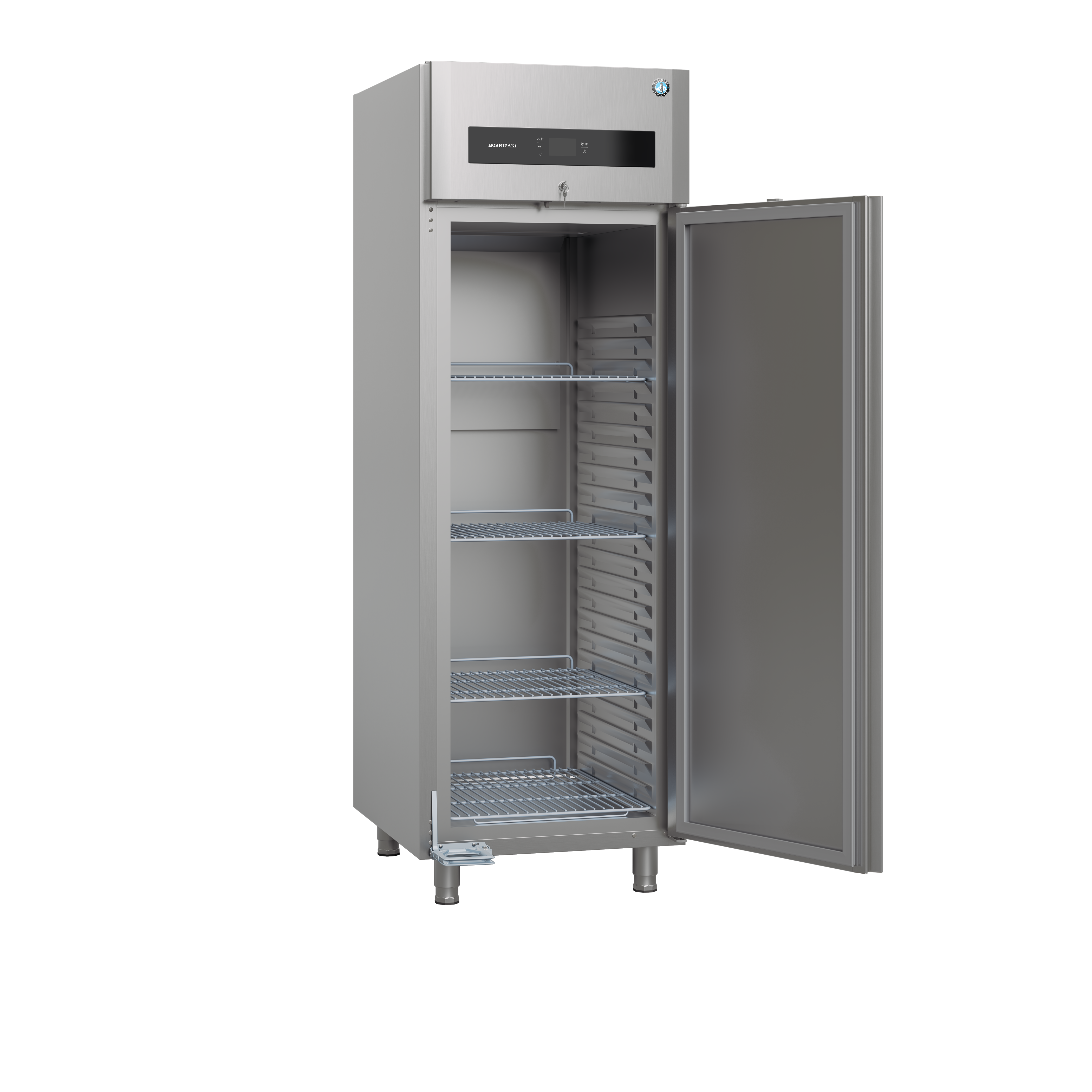

cabinets can easily be adjusted to your requirements, for example, the length of the legs, the position of the door, and the foot pedal. They also can accommodate shelves up to 18-22 levels (4 shelves included) offering you high flexibility to accommodate different types of produce. “

Specifications

Specification Value
Artikelnummer 188701031
Modelnaam Premier U 70 DR U Ru1
Merk Hoshizaki
Garantieperiode 6 jaar
Land van oorsprong Turkije
Titel Refrigerator/Freezer 'U' type with RU1 valve for remote cooling system
Toebehoren inbegrepen 3 grijze roosters (530 x 650 mm) + 1 onder, Pedaaldeuropener met overbelastingsbeveiliging
Voorzien van Right hand hinged reversible door with lock, automatic door closing, pedal door opener, 4 grey shelves, LED lighting
Let op This cabinet for connection to remote cooling system is on special order only. Please take longer lead times into consideration
Breedte 690 mm
Breedte (verpakt) 750 mm
Diepte 848 mm
Diepte (verpakt) 975 mm
Hoogte inclusief poten (minimum) 2080 mm
Hoogte inclusief poten (maximum) 2130 mm
Hoogte (verpakt) 2150 mm
Volume (verpakt) 1.5722 mu00b3
Aantal planken 4
Maximaal aantal planken 22
Plankgrootte 2/1 GN diep
Min. cooling capacity 300 W
Temperature Range Span -25/+12°C
Klasse van het klimaat 5
Uitwendig RvS AISI 304
Interieur RvS AISI 304
Bruto gewicht 115 kg
Isolatiedikte 78 mm
Isolatietype Polyurethaan
Potens / Wielen H = 130-180 mm (L)
Netto gewicht 105 kg
Voeding 230V, 50Hz
Volume, bruto 700 l
Koelsysteem For remote cooling system
Deurtype Geïsoleerde deur
Producttype Kasten
Optionele extra's Grey shelf with back guard Grey bottom shelf with back guard Stainless shelf with back guard Stainless bottom shelf with back guard Set of stainless shelves (3 top and 1 bottom) with back guard Master key
Refrigerantcompatibiliteit R448A, R449A, R455A
Pricelist notification (short) Models with RU1 valve prepared for external cooling system are compatible with the following refrigerants: R448A, R449A, R452A. In addition the CO2 models prepared for external cooling system are compatible with refrigerant R744 (CO2). Lead time approx. 8 weeks.
SKU 188701031

Documentation

Documentation
Declaration of conformity Download
Instruction manual Download
Cooling_Diagram_RU1_PREMIER_UPRIGHT___UC___BAKER_U_GA_950_MODEL.pdf Download
Electric_Wiring_Diagram_RU1_PREMIER_UPRIGHT___UC___BAKER_U_950_MODEL__1_.pdf Download

Accessories

Accessory name Item number
Rooster grijs met achteropstand voor GN 2/1 kasten excl. dragers 760660009
Rooster RVS met achteropstand voor GN 2/1 kasten 760660013
Set van 4 wielen 125 mm 760660022
Set van 4 poten 130-180 mm 760660118
Hoofd sleutel (loper) 760660430
Rooster RVS met achteropstand voor GN 2/1 kasten (onder) 760660437
Rooster grijs voor GN 2/1 kasten excl. dragers (onder) 760660442
Set rooster (3 boven + 1 onder) rvs met achteropstand voor GN 2/1 kasten excl. dragers (enkele deur) 760660444
