SBU40HT (230V 1N-/50Hz) Blast chiller / freezer

Blast chillers / freezers

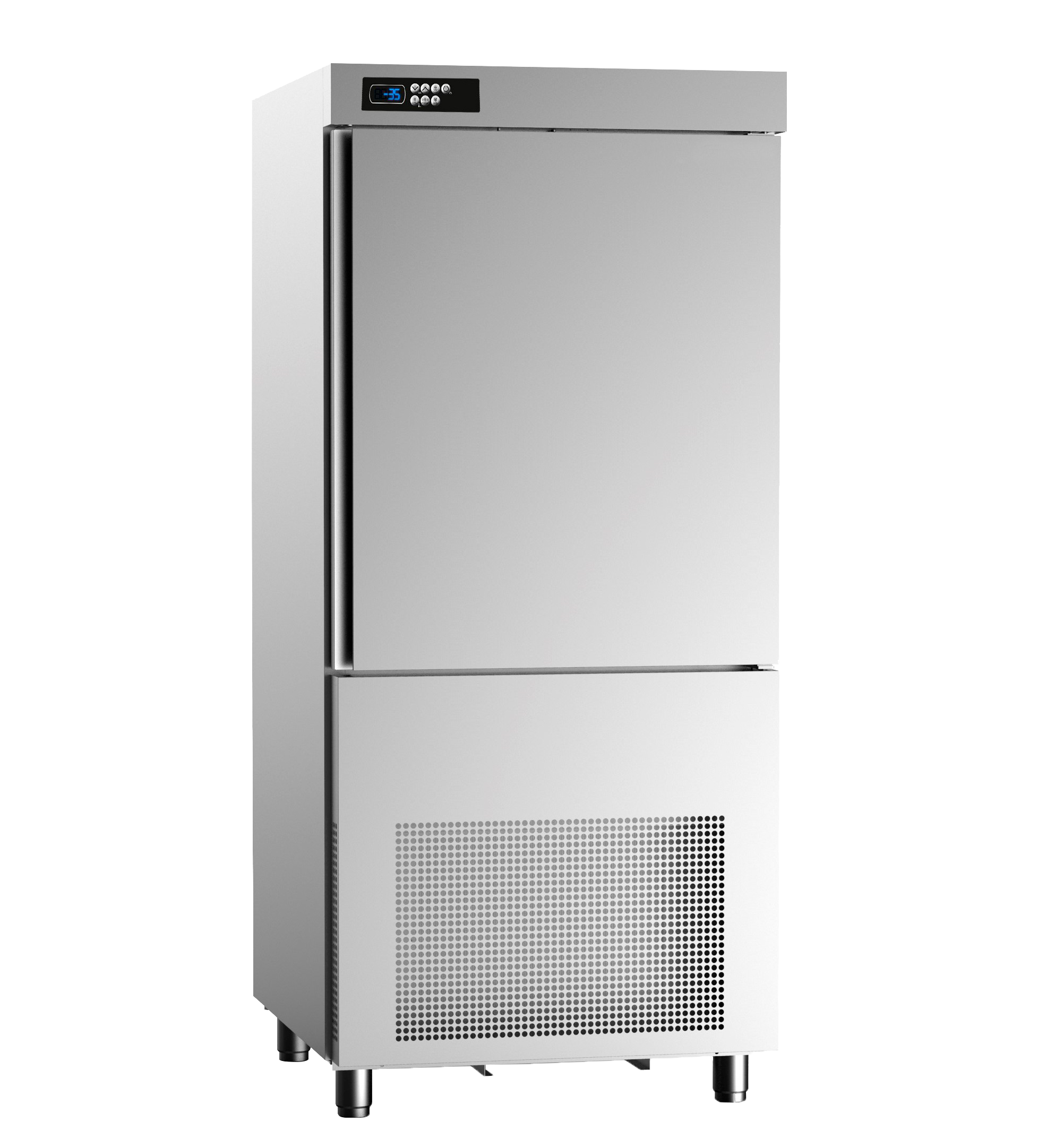

The HOSHIZAKI SBU40HT (230V 1N-/50Hz) is a Blast chiller / freezer.



The HOSHIZAKI SBU series has been designed to cover all regulations around the perfectly hygienic transition from cooking to chilling your valuable produce.

Product not available
Get quote View spec sheet

Key features

External equipment

  • Top positioned digital control panel.
  • Right hand hinged reversible door
  • Height adjustable legs from 75 to 108 mm.
  • Defrost drip tray on outer base



Internal equipment

  • Core probe
  • Removable wire rack for 1/1 GN
  • Max. Number of trays: 5

Removable magnetic door gasket



Food Safe

Food items are handled in full compliance with the HACCP guidelines.

Automatic shift to ‘storage mode’ after the chilling/freezing process.

If a power failure occurs or when a temperature limit is exceeded this will activate a visual alarm (HACCP alarms).

The hinged fan cover panel provides access to the evaporator and fan during cleaning.



Versatility

Offers different operational modes: Time-controlled or controlled by the core probe (temperature).

Specifications

Specification Value
Item number 965780541
Model name SBU40HT (230V 1N-/50Hz)
Title Blast chiller / freezer
Width (packed) 800 mm
Width inside 650 mm
Depth (packed) 830 mm
Depth inside 700 mm
Height (packed) 1850 mm
Height inside 780 mm
Maximum number of trays 10
Climate class 4 (max. ambient temp. of 30 °C with 55% RH)
Connection load 4 kW
Exterior Stainless steel AISI 304
Interior Stainless steel AISI 304
Gross weight 225 kg
Net weight 200 kg
Power supply 230V, 1N-/50 Hz
Chilling capacity 42
Freezing capacity 25
CO2 equivalent 4282 kg
Refrigerant type attOpt_R452a
SKU 965780541

Documentation

Documentation
Declaration of conformity Download
Instruction manual Download
SBU_40_765072932.pdf Download
