Products overviewPremier U 70 DR Ru1 Refrigerator/Freezer ‘U’ type with RU1 valve for remote cooling system

188701011

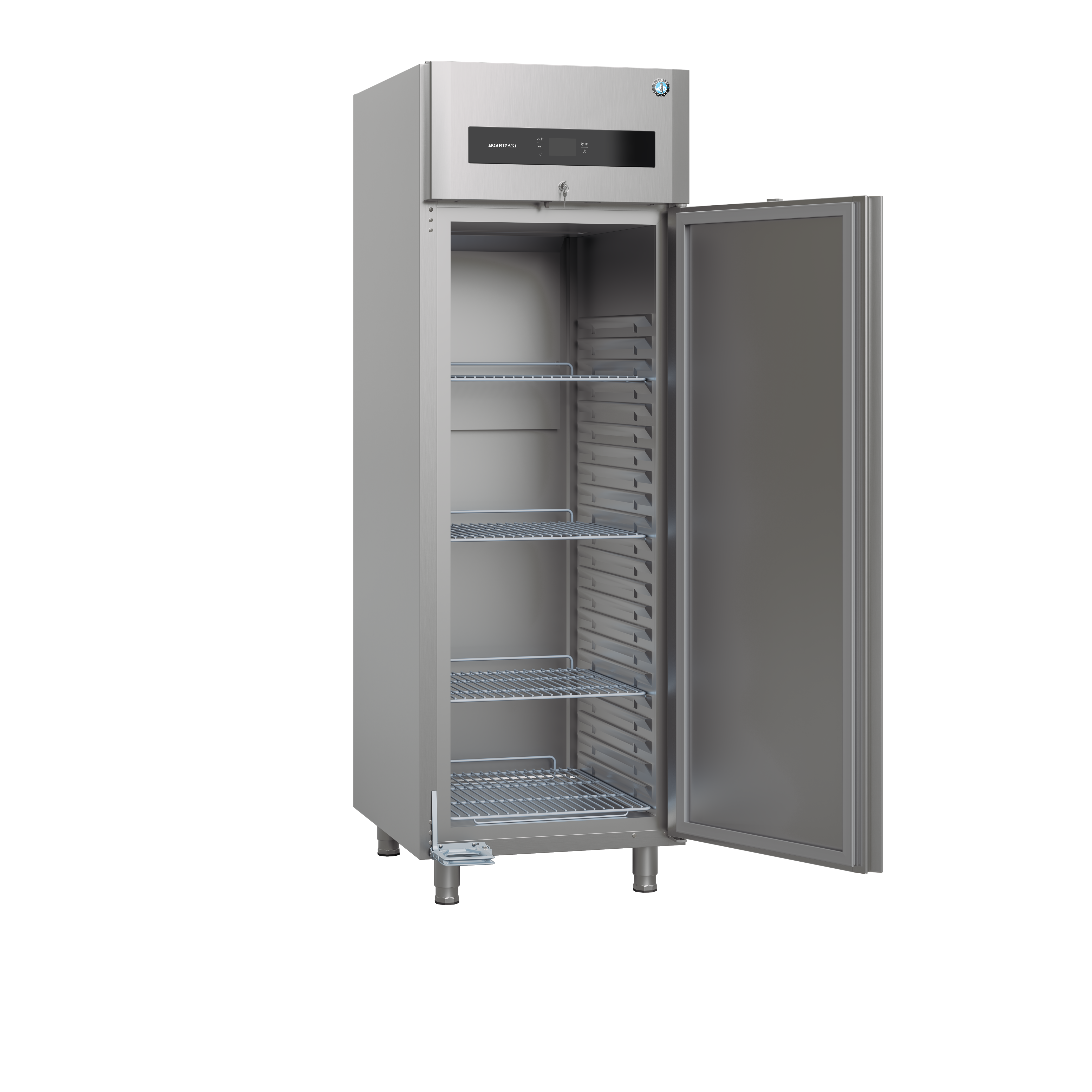

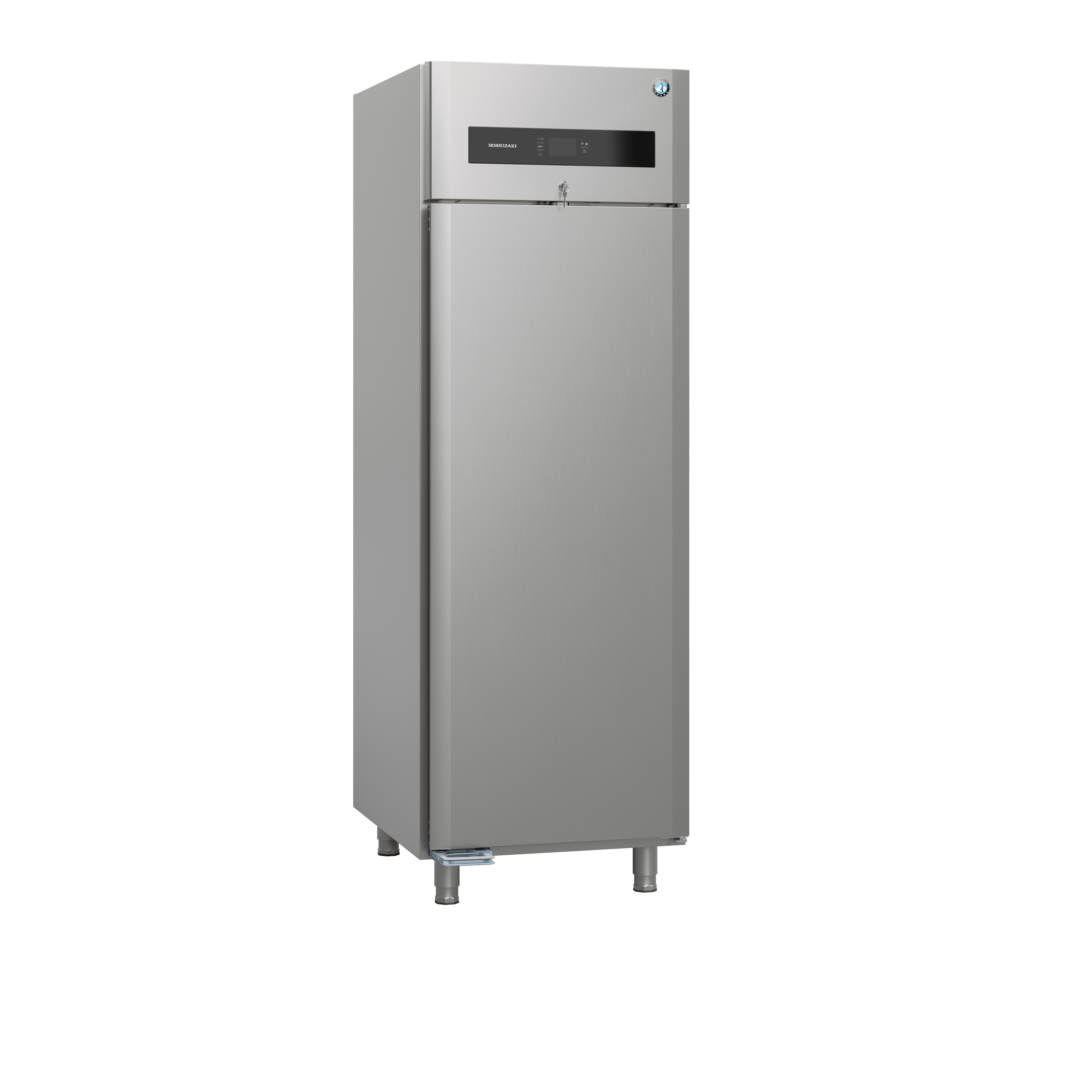

Premier U 70 DR Ru1 Refrigerator/Freezer ‘U’ type with RU1 valve for remote cooling system

Freezers

The Hoshizaki PREMIER is a series of heavy-duty cabinets for energy-efficient refrigeration (Climate Class 5 (max. ambient 40°C w/ 40% RH)), catering to the needs of gastronomic perfectionists. The durable design with solid door hinges, stabile stainless steel, and flawless finish is built to withstand the most demanding kitchen operations. The low-height PREMIER cabinets are customizable with castors instead of legs to easily fit into low-ceiling environments, yet convince with a surprisingly high internal volume. The Premier U 70 DR Ru1 is a Refrigerator/Freezer 'U' type with RU1 valve for remote cooling system with a net internal volume of ltr. The dimensions are 690 x 848 x 2080-2130 mm.

Product not available

Get quote View spec sheet

Specifications Documentation Accessories

Specifications

Specification	Value
Item number	188701011
Model name	Premier U 70 DR Ru1
Brand	Hoshizaki
Warranty period	6 Years on Parts & Labour (Cabinet only)
Country of origin	Turkey
Accessories included	3 grey shelves (530 x 650mm) + 1 bottom shelf, Pedal door opener with overload protection
Title	Refrigerator/Freezer 'U' type with RU1 valve for remote cooling system
Equipped with	Right hand hinged reversible door with lock, automatic door closing, pedal door opener, 4 grey shelves, LED lighting
Please observe	This cabinet for connection to remote cooling system is on special order only. Please take longer lead times into consideration
Width	690 mm
Width (packed)	750 mm
Depth	848 mm
Depth (packed)	975 mm
Height including legs (minimum)	2080 mm
Height including legs (maximum)	2130 mm
Height (packed)	2150 mm
Volume (packed)	1.57 l
Number of shelves	4
Maximum number of shelves	22
Shelf size	2/1 GN deep
Min. cooling capacity	300 W
Temperature Range Span	-25/+12°C
Climate class	5 (max. ambient 40°C w/ 40% RH)
Exterior	Stainless steel AISI 304
Interior	Stainless steel AISI 304
Gross weight	115 kg
Insulation thickness	78 mm
Insulation type	Polyurethane
Legs / Castors	H = 130-180 mm (L)
Net weight	105 kg
Power supply	230V, 50Hz
Volume, gross	700 l
Cooling system	For remote cooling system
Door Type	Solid Door
Product type	Cabinets
Optional Extras	Set of legs 130-180 mm Grey shelf with back guard Grey bottom shelf with back guard Stainless shelf with back guard Stainless bottom shelf with back guard Set of stainless shelves (3 top and 1 bottom) with back guard Master key
Refrigerant compatibility	R448A, R449A, R452A
Pricelist notification (short)	Models with RU1 valve prepared for external cooling system are compatible with the following refrigerants: R448A, R449A, R452A. In addition the CO2 models prepared for external cooling system are compatible with refrigerant R744 (CO2). Lead time approx. 8 weeks.
SKU	188701011

Documentation

Documentation
Declaration of conformity	Download
PREMIER_70_Remote_Model.pdf	Download
Instruction manual	Download
Cooling_Diagram_RU1_PREMIER_UPRIGHT___UC___BAKER_U_GA_950_MODEL.pdf	Download
Electric_Wiring_Diagram_RU1_PREMIER_UPRIGHT___UC___BAKER_U_950_MODEL.pdf	Download

Accessories

Accessory name	Item number
Shelf (grey) with back guard for GN 2/1 cabinets excl. shelf support	760660009
Shelf (stainless steel) with back guard for GN 2/1 cabinets	760660013
Set of castors 125 mm (2 x braked and 2 x unbreaked)	760660022
Set of legs 130-180 mm	760660118
Master key	760660430
Shelf (stainless steel) with back guard for GN 2/1 cabinets (bottom)	760660437
Shelf (grey) for GN 2/1 cabinets excl. shelf support (bottom)	760660442
Set of stainless steel shelves (3 top & 1 bottom) with back guard for GN 2/1 cabinets excl. shelf support (single door)	760660444
