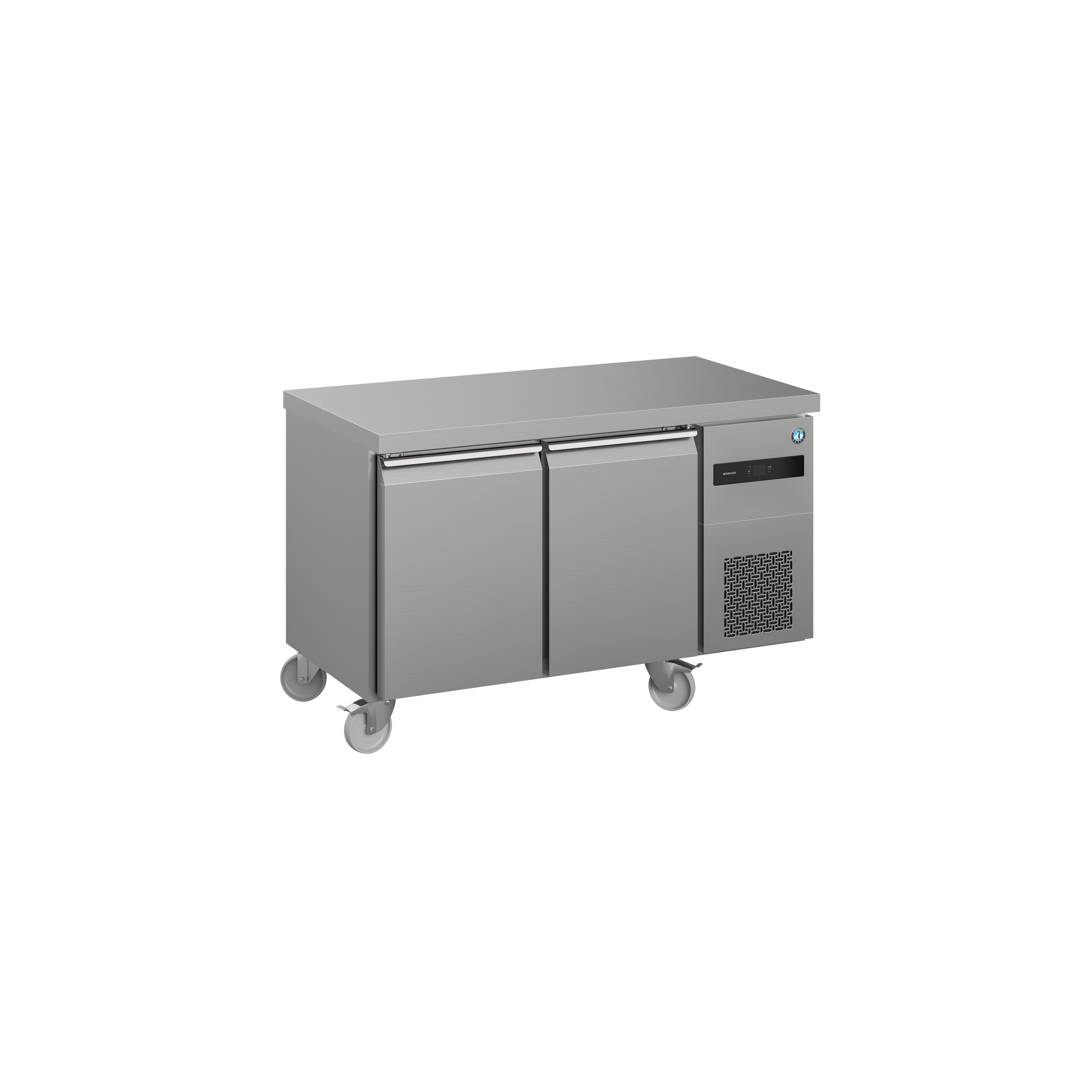

Premier K 2 B DL DR C U 2-Section Refrigerated Counter

Gastronomy counters

A+

The Premier K 2 B DL DR C U is a 2-Section Refrigerated Counter with a net internal volume of 192 Ltr.

This 1/1 GN workstation on castors has outside dimensions W x D x H of 1310 x 680 x 900 (including castors) mm.

Get quote View spec sheet

Key features Specifications Documentation Accessories

Key features

PREMIER counters and cabinets are designed to recover the inside temperature rapidly after each door opening and defrosting.

SEAMLESS KITCHEN DESIGN

Thanks to the smart front venting design, no air flow is required to the underneath, sides, or back of the unit. This allows seamless integration into your kitchen design

EASY MAINTENANCE

The compartmentalized cooling unit is extractable for easy maintenance.

HYGIENE & COOLING EFFICIENCY

The wide magnetic gaskets are removable for easy cleaning. The triple insulation area provides an effective seal, reducing escaping cold air for maximum efficiency.

ERGONOMIC DESIGN

PREMIER counters strike with ergonomic design features, such as anti-tilt shelves, drawers with pull-out stops, extra-long drawer telescopic rails, and full-length handles.

VAST VARIETY

With PREMIER counters you can choose the workplace that fits into your individual kitchen routine. Select from a wide counter portfolio with different combinations of worktops, doors, drawers, legs /castors/electric elevation, temperature ranges, and accessories.

MORE FEATURES:

Soft Closing Drawer (optional)
Different worktop options & insulation board
Increased body height of 750mm
Possibility to extend the height of castors by 50 mm with Castor Extension Kit (optional accessory)

Specifications

Specification	Value
Item number	211030012210
Model name	Premier K 2 B DL DR C U
Brand	Hoshizaki
Warranty period	6 Years on Parts & Labour
Country of origin	Turkey
Accessories included	2 grey shelves per door section
Title	2-Section Refrigerated Counter
Equipped with	With an insulation board (without worktop) for build-in under existing tabletop, 2 door sections each with 2 grey shelves
Extended spec sheets approved	1
Width	1310 mm
Width (packed)	1340 mm
Depth	680 mm
Depth (packed)	730 mm
Height	900 mm
Height (packed)	1101 mm
Volume (packed)	1.06 l
Energy consumption	317 kWh
Energy efficiency class	A+
Energy efficiency class standard	ISO 22041-2019
Energy Efficiency Index (EEI)	13.9 EEI
Number of shelves	4
Number of shelves per section	2
Shelf size	1/1 GN
Climate class	5 (max. ambient 40°C w/ 40% RH)
Connection load	115 kW
Exterior	Stainless steel AISI 304
Interior	Stainless steel AISI 304
Gross weight	95 kg
Insulation thickness	60 mm
Insulation type	Polyurethane
Legs / Castors	H = 150 mm (C)
Net usable volume	192 l
Net weight	83 kg
Number of sections	2 sections
Power supply	230V, 50Hz
Sound level	43 dB
Temperature range	+2/+12°C
Volume, gross	301 l
Volume, net	192 l
Worktop options	Without worktop (B)
Cooling system	Built-in cooling system
Product type	Counters
Configuration of sections	Models with door section
Refrigeration capacity	206
Optional Extras	Set of legs 125-200mm Set of legs 130-180mm Set of castors 125mm Set of castors 150mm Set of castors 200mm Mini Castors - 2 braked and 2 unbraked 88mm Stainless shelf, 325 x 530mm Grey shelf, 325 x 530mm Shelf supports, 2 of Door section Drawer section with 2 x 1/2 drawers Drawer section with 3 x 1/3 drawers Flat worktop Flat worktop with 50mm splashback Flat worktop with 100mm splashback
CO2 equivalent	0.21 kg
GWP	3 GWP
Refrigerant	0.07 kg
Refrigerant type	R600a
Model	10
Pricelist headline label counters	REFRIGERATOR WITH INSULATION BOARD (TYPE B)
Pricelist notification (short)	Mini castors are available - please contact your account manager for more information. Remote models available soon. Models with RU1 valve prepared for external cooling system are compatible with the following refrigerants: R448A, R449A. In addition the CO2 models prepared for external cooling system are compatible with refrigerant R744 (CO2). Lead time approx. 8 weeks.
Pricelist notification (long)	Mini Castors & Remote Models are Available
SKU	211030012210

Documentation

Documentation
Declaration of conformity	Download
PREMIER_2_SEC._UC_DIMENSIONAL_DRAWING_3_SS.pdf	Download
H_EL_PREMIER_K_2_B_DL_DR___UK.pdf	Download
Instruction manual	Download
COOLING_CIRCUIT_DIAGRAM_FOR_CABINET_OF_PREMIER_UNDERCOUNTER.PDF	Download
PREMIER_UNDERCOUNTER__UC__REFRIGERATOR_WIRING_DIAGRAM.pdf	Download

Accessories

Accessory name	Item number
Shelf stainless, 325 x 530 mm	760660010
Set of castors 150 mm (2 x braked and 2 x unbreaked)	760660011
Set of castors 200 mm (2 x braked and 2 x unbreaked)	760660012
Set of castors 125 mm (2 x braked and 2 x unbreaked)	760660022
Set of legs 130-180 mm	760660118
Set of legs 135-200 mm	760660119
Castor Extension Kit (extends height of castors by 50 mm)	760660453
Door section	760660482
Drawer section with 2 x 1/2 drawers	760660483
Drawer section with 3 x 1/3 drawers	760660484
Shelf supports x 2	760660545
Shelf grey 325 x 530 mm	760660546
Flat worktop PREMIER 270	760660580
Flat worktop with 50mm splashback PREMIER 270	760660583
Flat worktop with 100mm splashback PREMIER 270	760660584
Set of legs 100-150 mm	760660700
